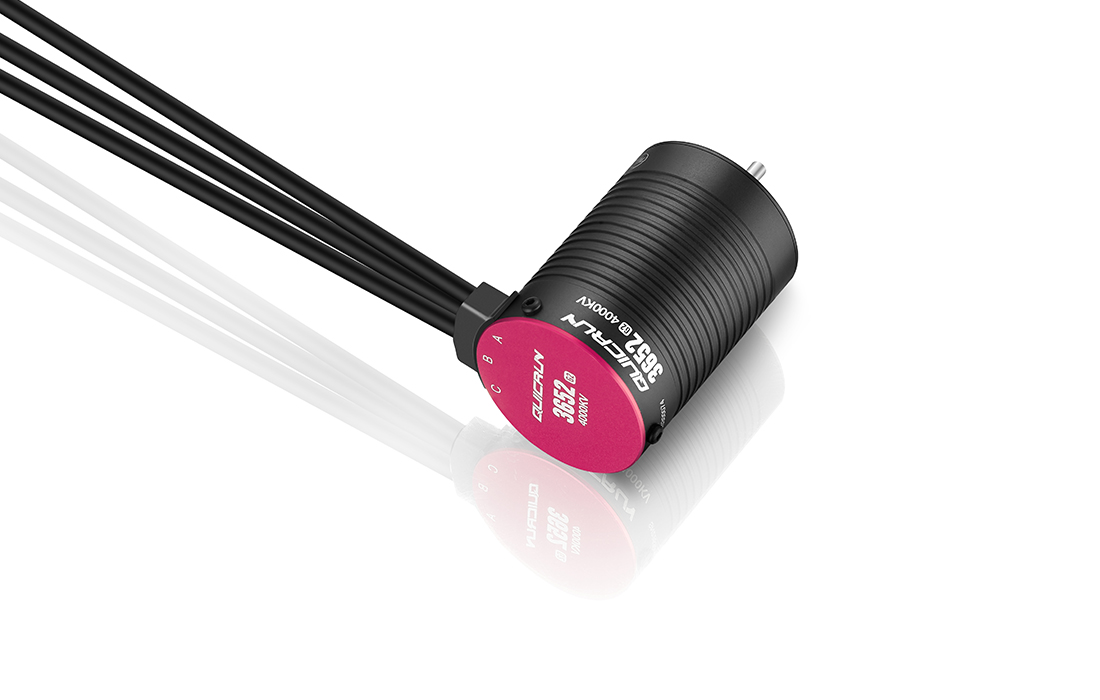

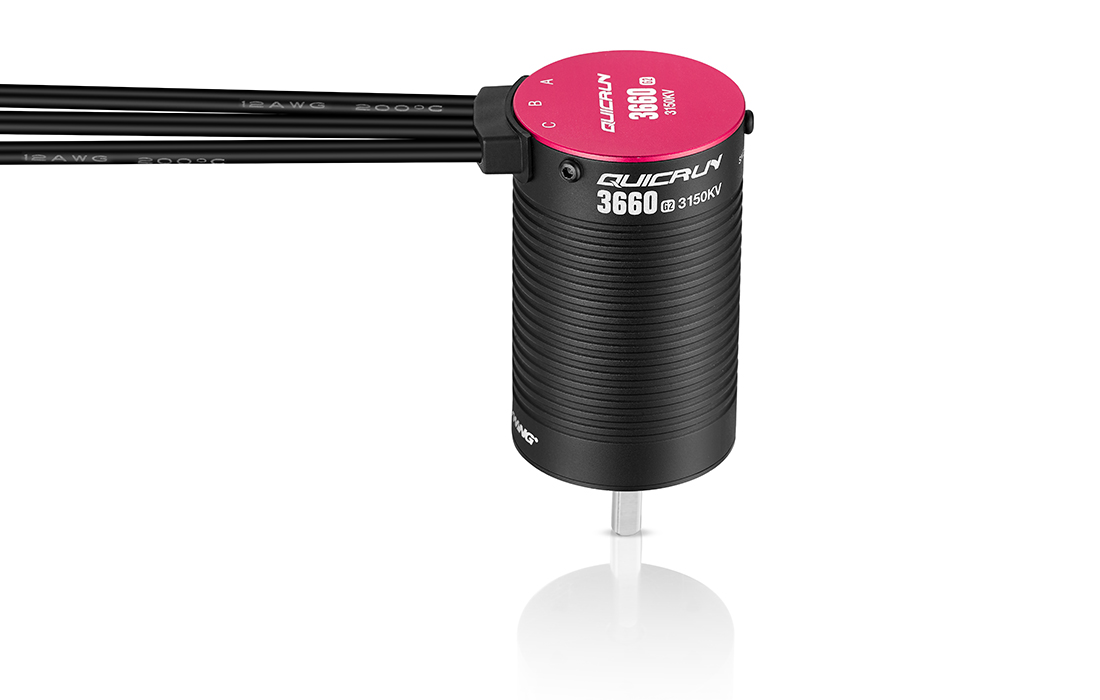

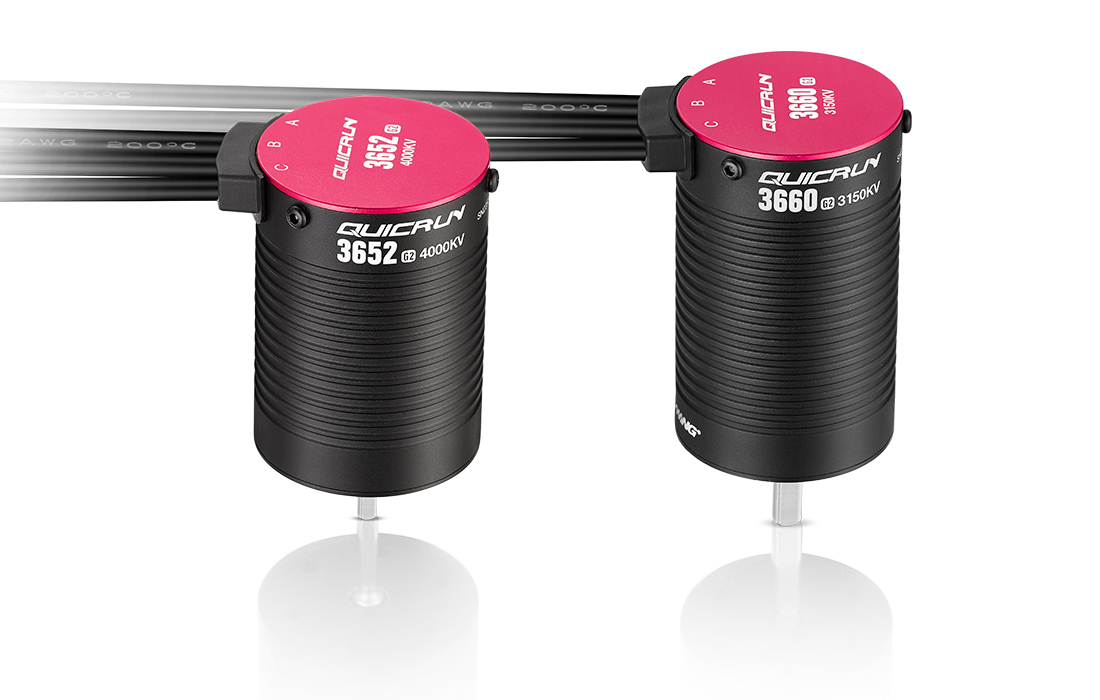

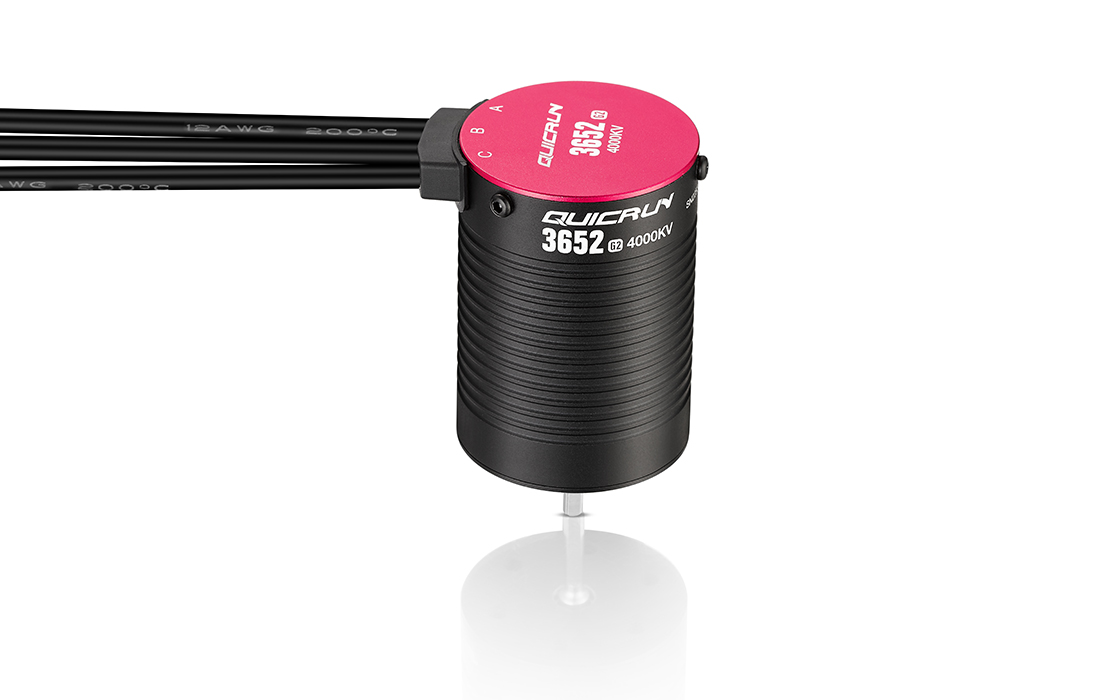

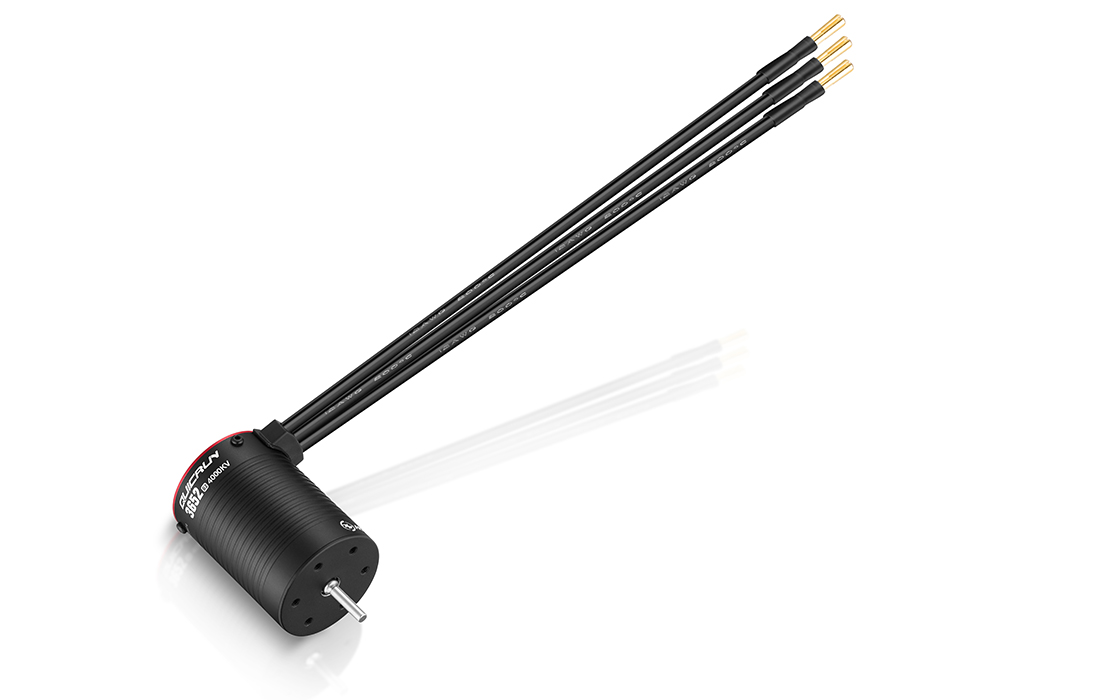

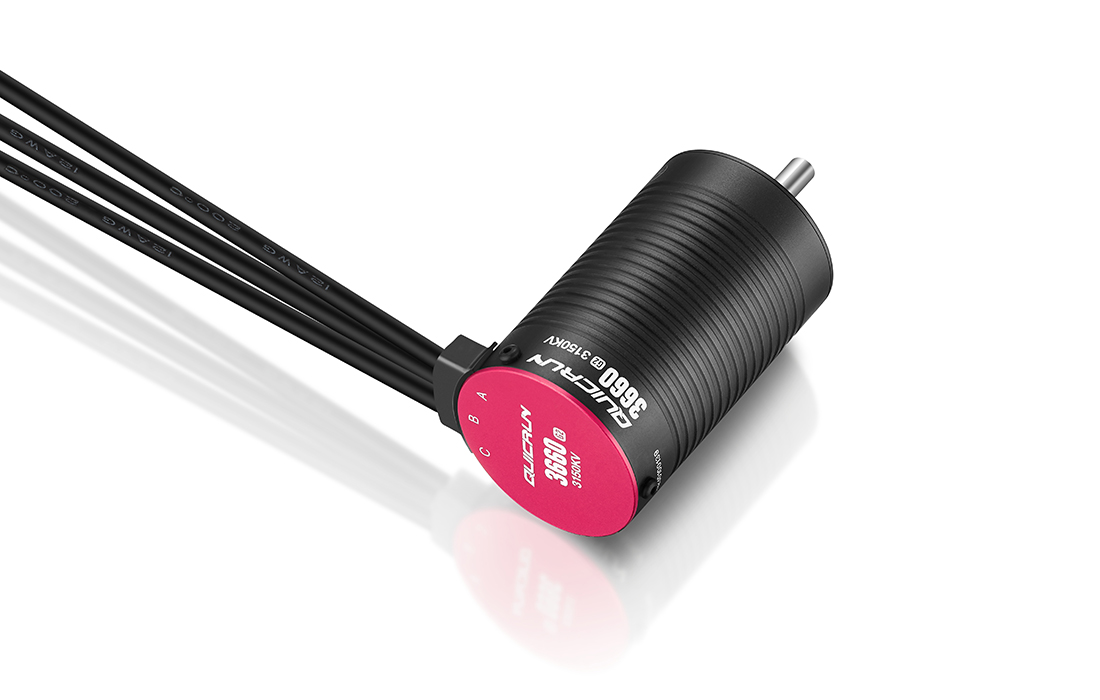

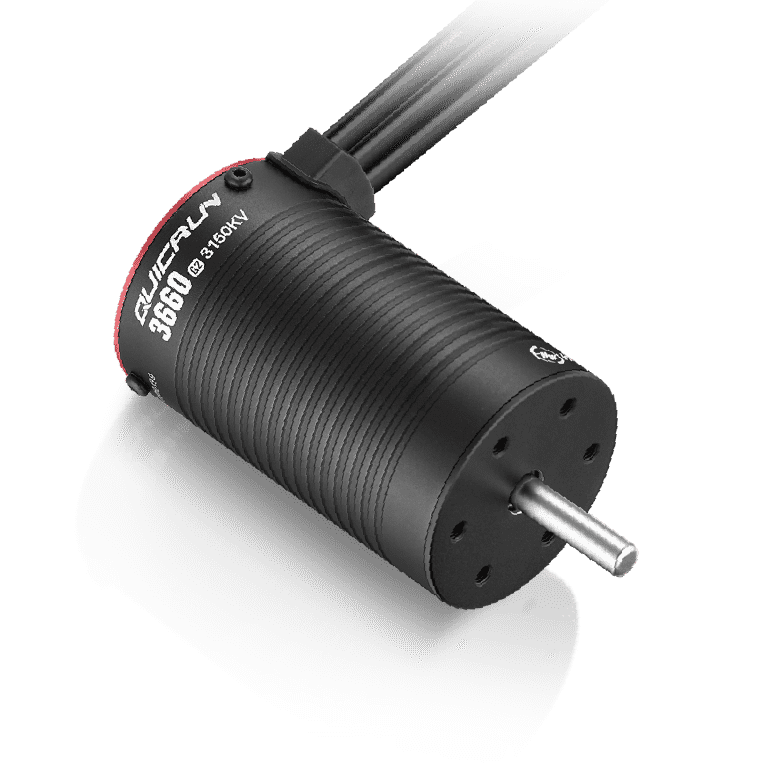

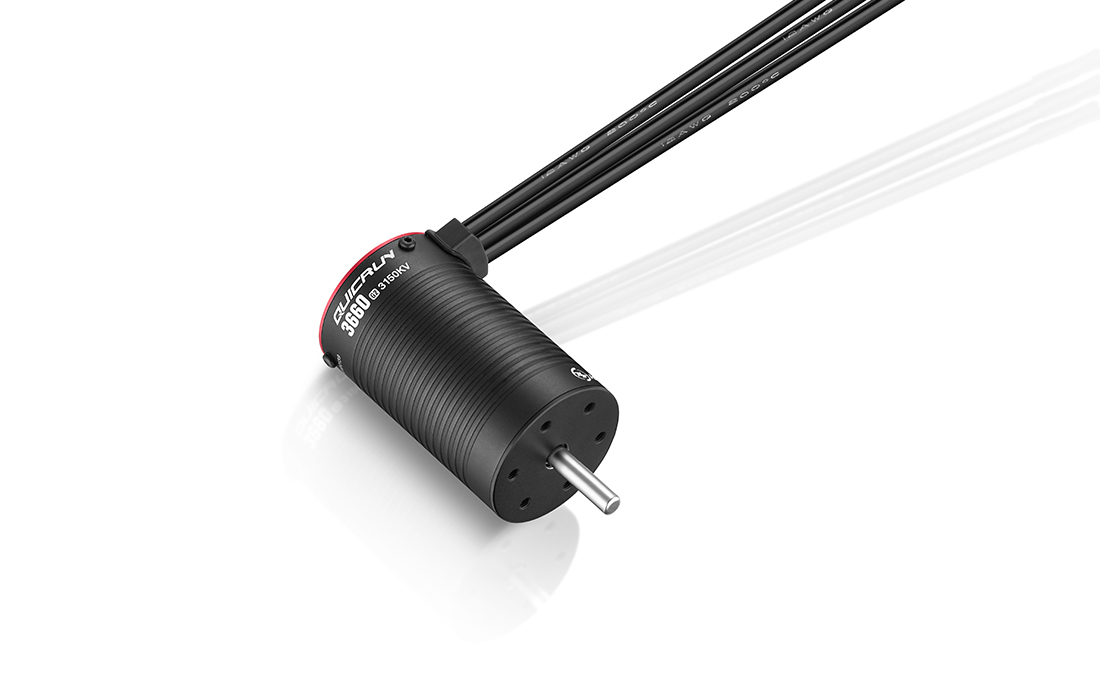

QuicRun 3652 & 3660 SL G2
QuicRun 3652 & 3660 SL G2
Sensorless Brushless Motor

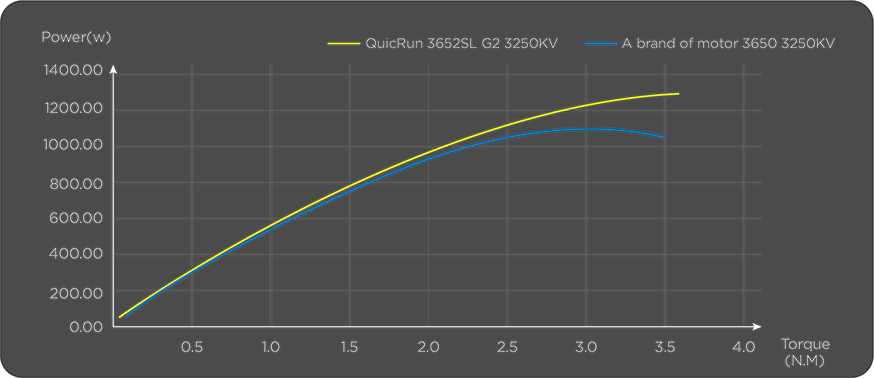

Explosive output power
The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and
comparing it with the same specification,

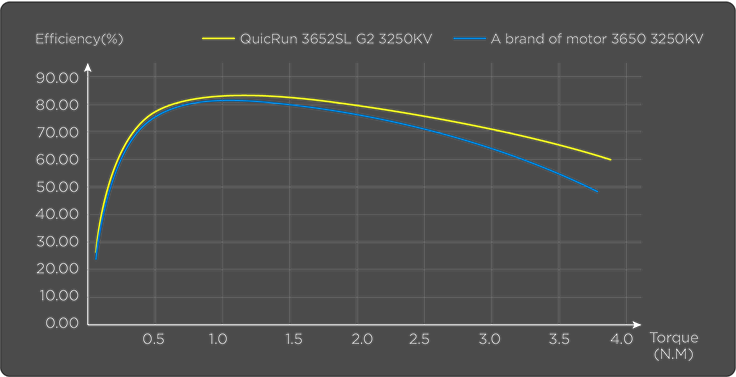

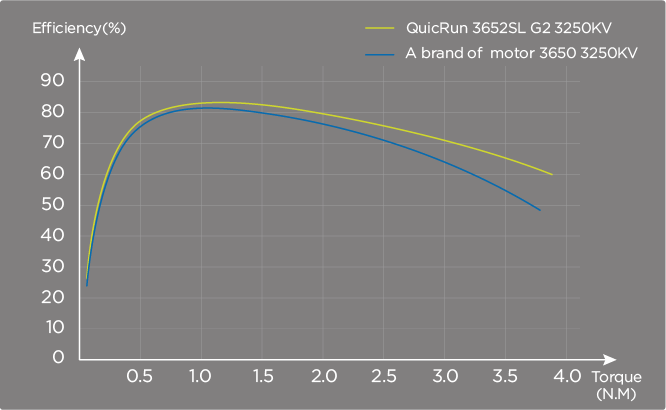

Excellent performance,
temperature is lowered
The motor efficiency is significantly higher
when comparing it with the same specification.
Taking 3652-3250KV as an example,
The efficiency of the rear section is 8% higher,
motor temperature is lower under the same load condition.
Explosion-proof rotor design,
strong and reliable
The rotor is designed with front and rear aluminum end plates,
which greatly improves the overall balance.
At the same time,
the rotor is wound with high-strength tensile materials
and has strong explosion-proof ability.
Solid material, strong and reliable
provide a solid guarantee for the long-term excellent performance of the motor.

It adopts high-hardness
aluminum CNC
end cover

0.2mm ultra-thin and
low-loss silicon
steel sheet

top of the line
high-precision
and
high-quality
bearings

200°C high-temperature
-resistant
enameled
wire

High current silicone wires

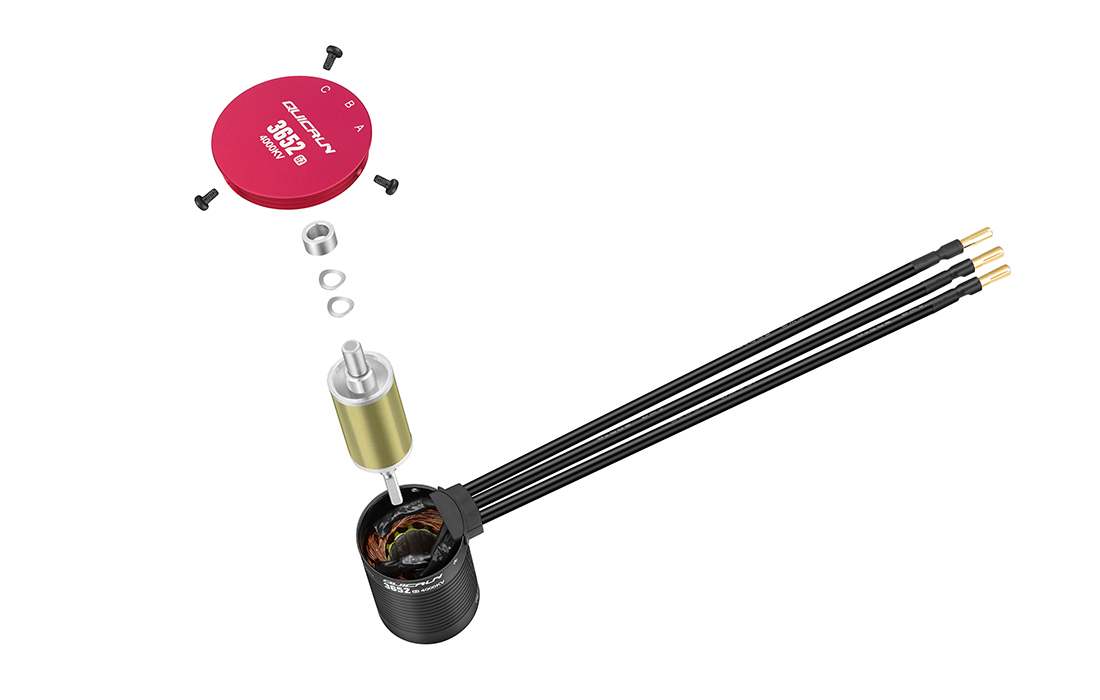

Detachable design for
easy maintenance
The motor adopts a modular detachable structure design,
which is convenient for routine cleaning and maintenance,
effectively prolonging the service life of the motor
and maintaining the working efficiency of the motor.
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors

Weight (g)
Other Parameters Front Bearing

Rear Bearing

Applications
Product Name QuicRun 3652SL G2 QuicRun 3660SL G2
Product Number 30404400/30404401/30404402 30404500/30404501
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count		 1/10th

Brushless

Sensorless

4		 1/10th

Brushless

Sensorless

4
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)		 3250KV/4000KV/5400KV

2-3S LIPO

4.0A/5.3A/6.8A		 3150KV/3700KV

2-3S LIPO

5.4A/6.5A
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors

Weight (g)		 36

52

3.175mm

4.0mm（male）

224g		 36

60

5mm

4.0mm（male）

273g/278g
Other Parameters Front Bearing

Rear Bearing

Applications		 D13*D5*T4

D13*D5*T4

1/10th On-road, Buggy,

Truck (Light load)		 D16*D5*T5

D13*D5*T4

1/10th Truck, Monster truck
