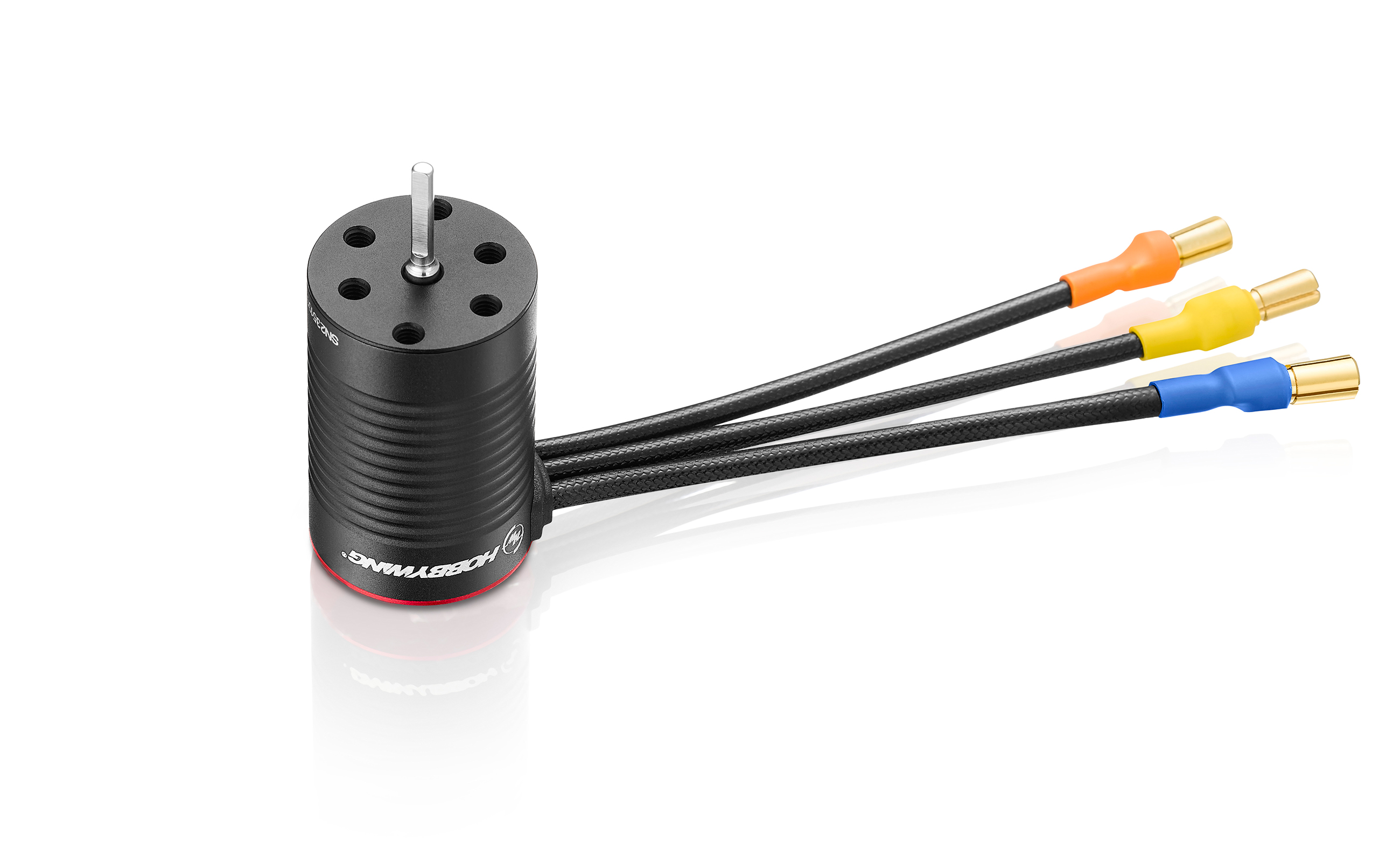

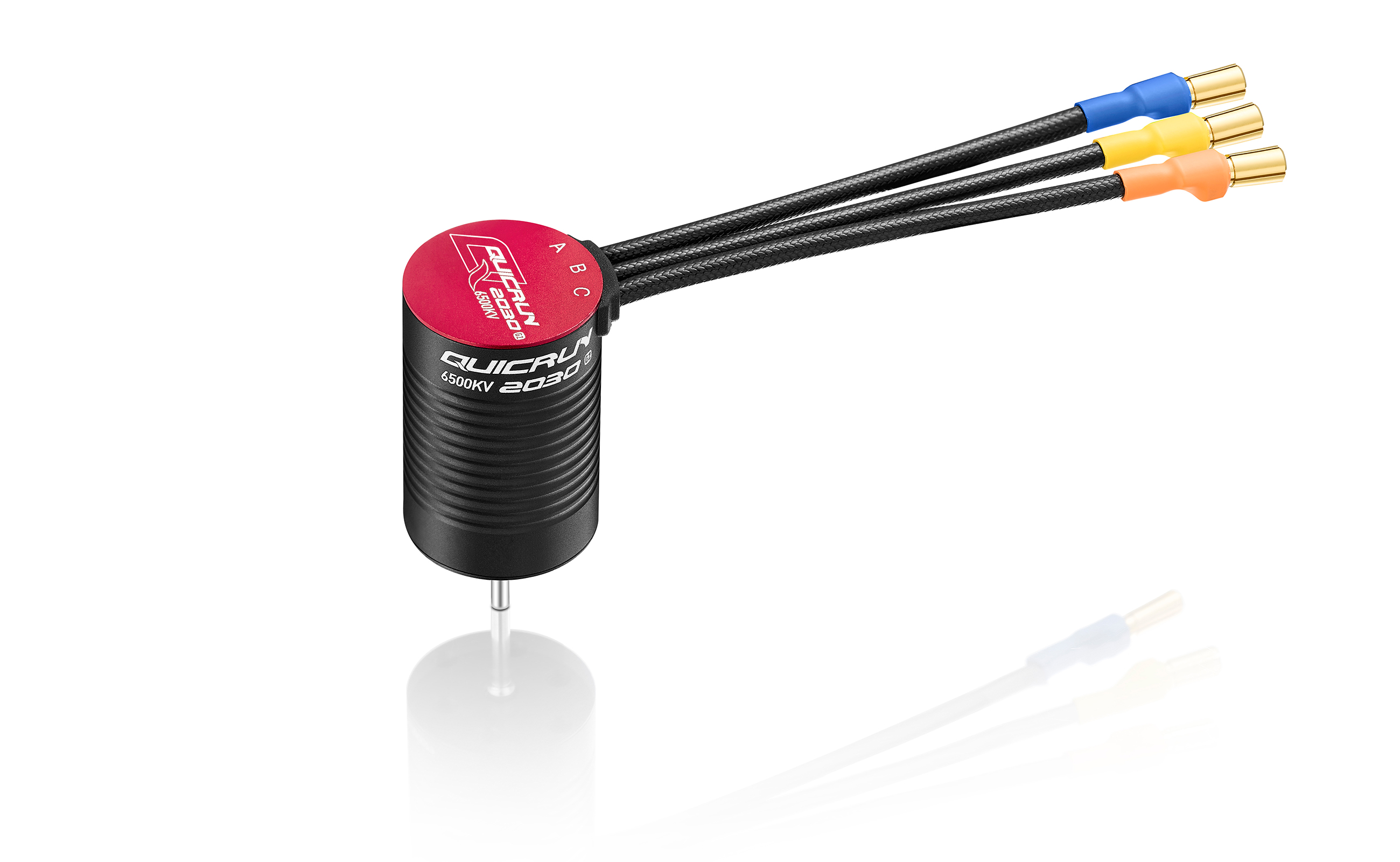

QuicRun 2030 G2
QuicRun 2030 G2
Suitable for all types of 1:18 scale vehicles

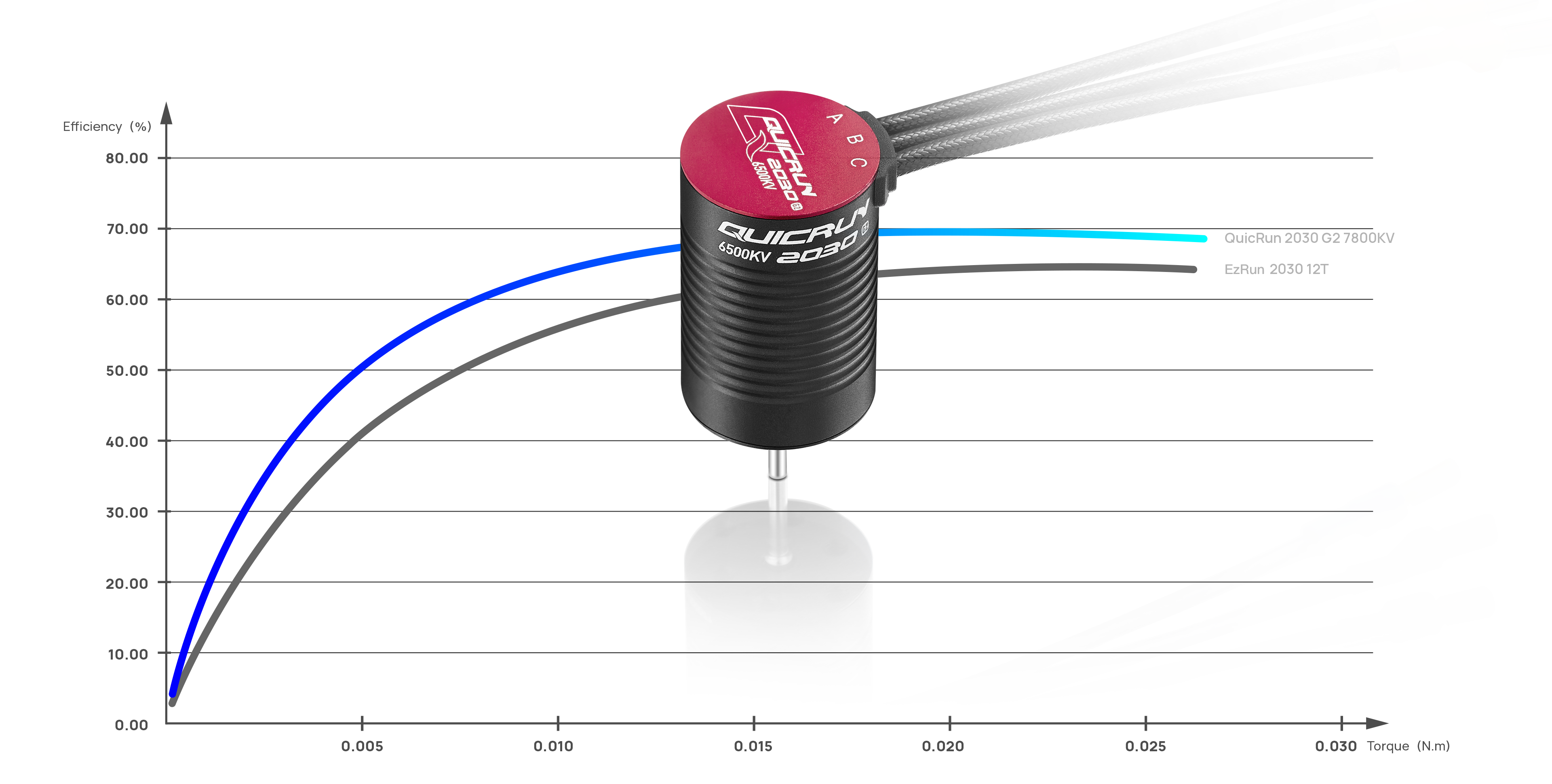

  • Increased Efficiency
  • Reduced Temperature
Compared to EzRun 2030 motor
  • The maximum efficiency
    is increased by over
    6%
  • Under equivalent load conditions,
    the maximum temperature can be reduced by approximately 20℃
Support higher
speed limit
The motor adopts an integrated magnetic
ring structure to strengthen the rotor
  • It is able to support a higher
    speed limit of up to
    65000RPM
  • It is increased by 4%
    when compared to EzRun 2030

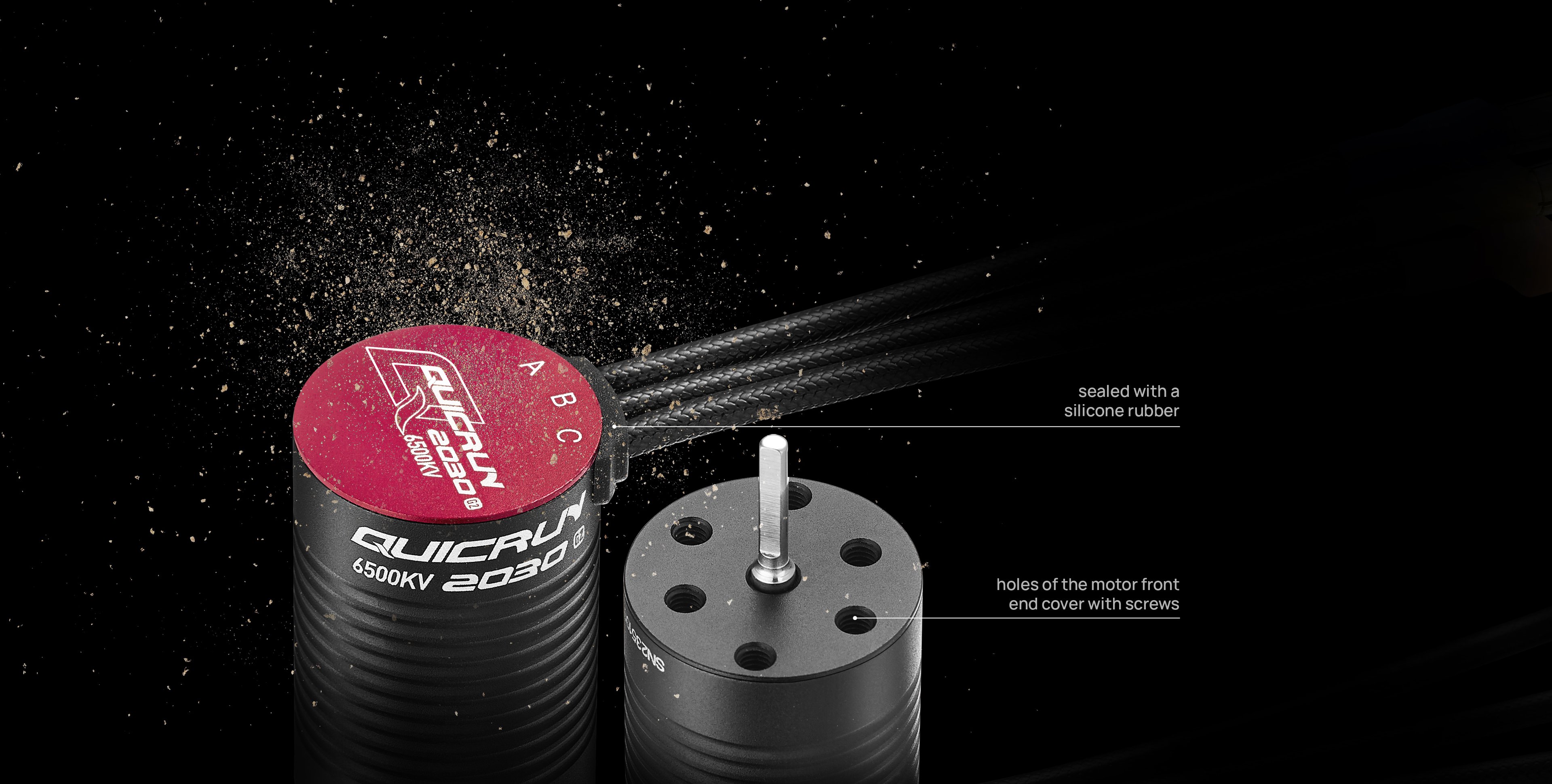

Excellent protection
The outlet of the motor is sealed with a silicone rubber
sleeve to operate in harsh conditions such
as dust, sand and gravel.
Note:
It is recommended to block the unused mounting holes of
the motor front end cover with screws.

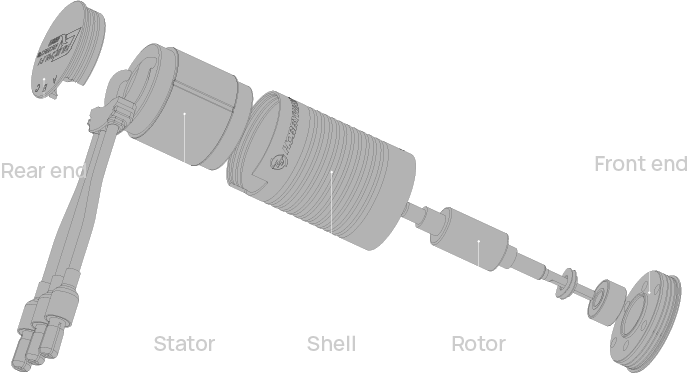

Upgraded
materials
durable
  • 0.2mm thick
    silicon
    steel sheet
  • high-strength
    explosion-proof
    rotor
  • High-temperature
    resistant
    enameled wire
  • high-precision
    bearings
Plug-and-play
wire output
The motor output wires are soldered
with 24k gold-plated 3.5mm plugs.
The plug-and-play connectivity makes it easy
to use and improves the quality of life.
Wide applicability
It is widely applicable with three KV values to choose from.
It is suitable for all types of 1:18 scale vehicles
ranging from on-road to off-road vehicles,
short course trucks, trucks, and monster trucks.
  • On-road
  • Off-road
  • Short Course
  • Trucks
  • Monster
Product Name
QUICRUN 2030SL
G2 5000KV		 QUICRUN 2030SL
G2 6500KV		 QUICRUN 2030SL
G2 7800KV
Product Number
  30404800 30404801 30404802
Type
Scale 1/18th 1/18th 1/18th
Brushed/Brushless Brushless Brushless Brushless
Sensored/Sensorless Sensorless Sensorless Sensorless
Pole Count 2 2 2
Relevant Parameters
KV Rating 5000KV 6500KV 7800KV
LiPo Cells 2-3S 2S 2S
No-load Current(A) 1.05A 1.2A 1.3A
Size & Weight
O.D.(mm) 20 20 20
Length (mm) 31 31 31
Shaft Diameter (mm) 2 2 2
Connectors 3.5mm (male) *3 3.5mm (male) *3 3.5mm (male) *3
Wire 75MM*3 75MM*3 75MM*3
Weight (g) 42g 42g 43g
Front Bearing D8*D3*T4 D8*D3*T4 D8*D3*T4
Rear Bearing D8*D3*T4 D8*D3*T4 D8*D3*T4
Other Parameters
ESC QUICRUN WP 16BL30 QUICRUN WP 16BL30 QUICRUN WP 16BL30
Vehicles 1/18th On-road&Off-road 1/18th On-road&Off-road /18th On-road&Off-road
