QuicRun WP 880 Dual Brushed

Two Sets of Output Wires

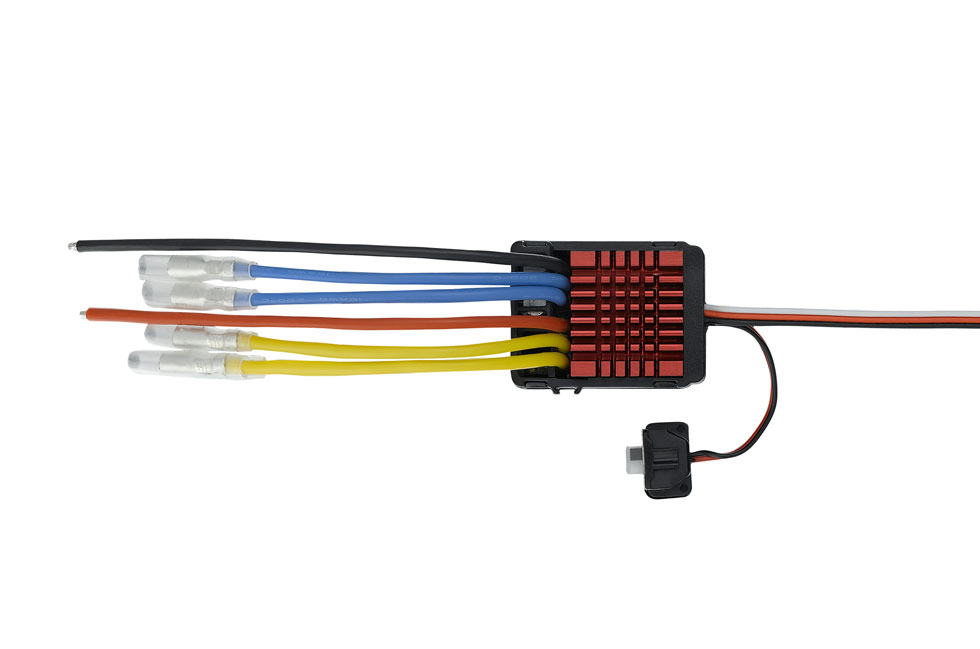

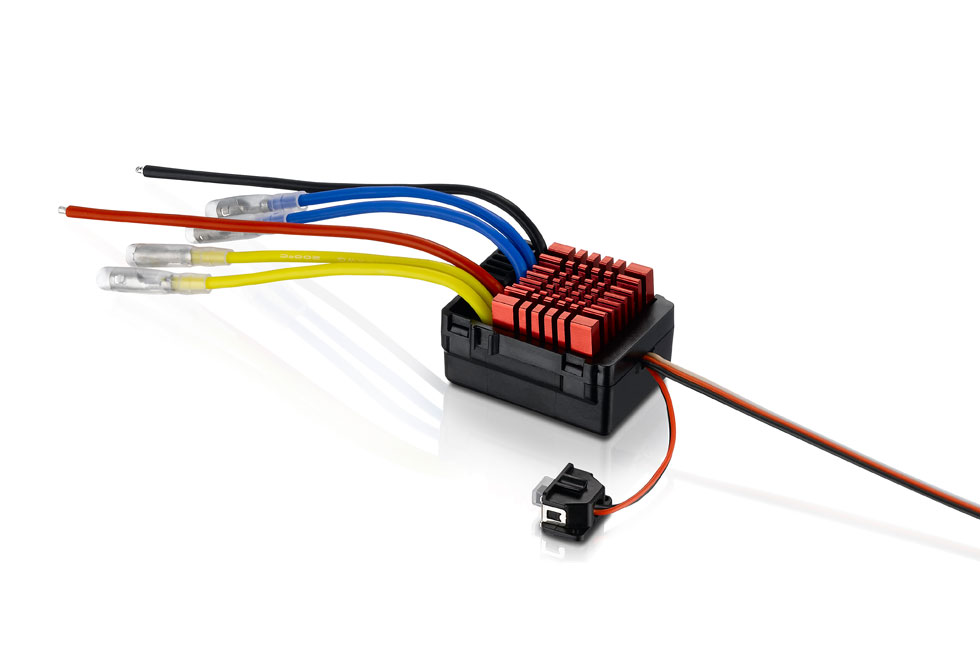

Two sets of output wires for simultaneously connecting to two motors.
It’s very convenient for vehicles which are driven by two motors.
Notes: the two sets of output wires are connected in parallel and can
only be used to drive motors synchronously, the driving directions
should be the same when connecting to two motors.

Two Sets of
Output Wires

Two Sets of Output Wires

Applicable to All Weather Conditions

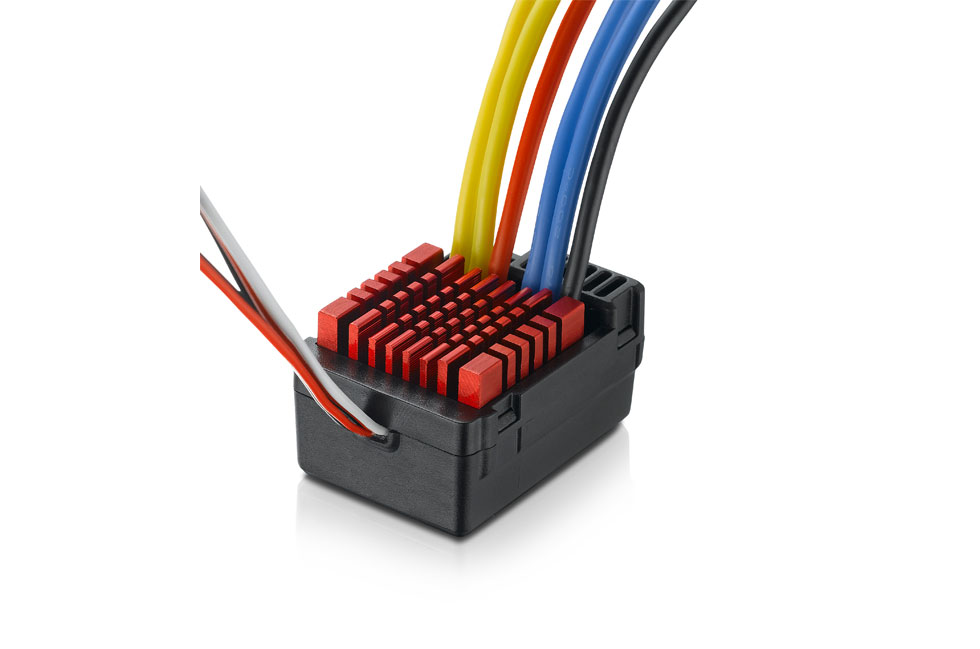

The waterproof and dust-proof design allows the QuicRun WP-880 Dual
Brushed to be used in all weather conditions without any issue of damage
caused to the ESC from water or debris.

Applicable to All
Weather Conditions

Adjustable PWM Frequency
& Advanced DEO/Freewheeling Technology

The adjustable PWM frequency combined with advanced DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.

Adjustable PWM Frequency
& Advanced DEO
/Freewheeling Technology

Excellent Brake Functions

Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag
brake and brake force greatly improve the brag brake and allow users to
have the excellent braking performance.

Excellent Brake Functions

Multiple Programmable Items

The QuicRun WP-880 Dual Brushed, which features 15
programmable parameter items, is applicable to various
vehicles and tracks.

Multiple Programmable Items

Separate Programming/Fan Port

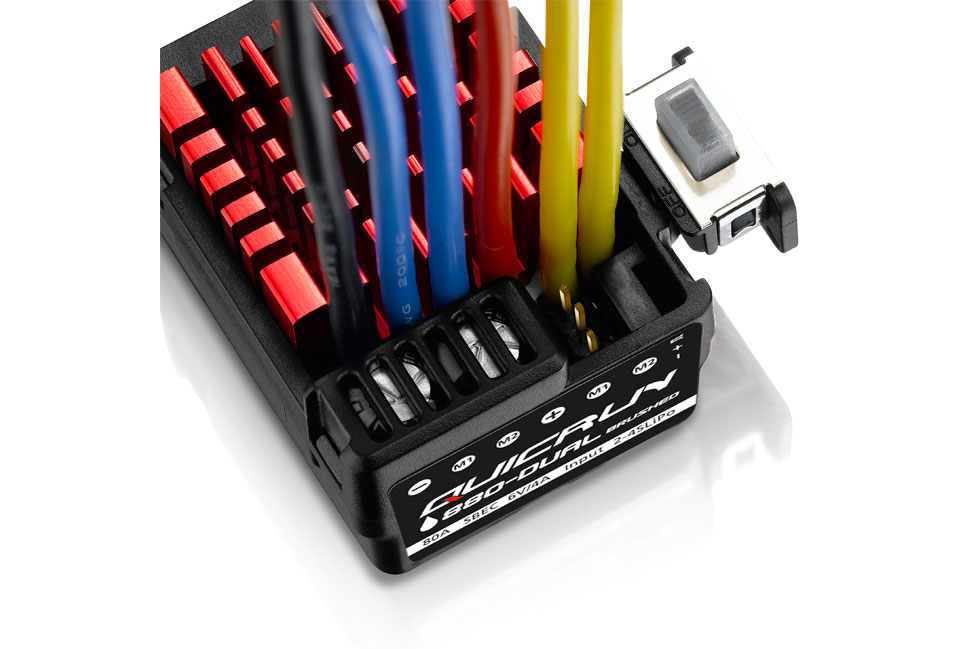

The separate PRG/FAN port on the ESC can power an
external fan to maximize cooling performance or
connect the ESC to a LED program box for
ESC programming.

Separate Programming
/Fan Port

Separate Programming/Fan Port

Product Name
Product Number
Type Scale

Brushed/Brushless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

KV Rating/T Count
Product Name QuicRun WP 880 Dual Brushed
Product Number 30120301
Type Scale

Brushed/Brushless

Waterproof		 1/10th&1/8th

Brushed

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output		 80A/400A

2-4S LiPo/5-12 Cell NiMH

6V@4A (Switch-mode)
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors		 Red-16AWG-150mmx1 / Black-16AWG-150mmx1

Blue-16AWG-100mmx2 / Yellow-16AWG-100mmx2

No

4.0 Bullet Connectors (Female)
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port		 Not Supported

Supported

Not Supported

Not Supported

Not Supported

Separate Port
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight		 45.9X34.7X26.5mm

75g
Applications Motors

Vehicles

KV Rating/T Count		 Brushed Motor（540/550/775 size motors）

Various 1/10th &1/8th Vehicles

Brushed Motor Limit with 2S LiPo/6S NiMH: ≥12T or RPM<30000@7.4V (540/550 size motors)

Brushed Motor Limit with 3S LiPo/9S NiMH: ≥18T or RPM<20000@7.4V (540/550 size motors)

Brushed Motor Limit with 4S LiPo/12S NiMH: ≥24T or RPM<15000@7.4V (540/550 size motors)
