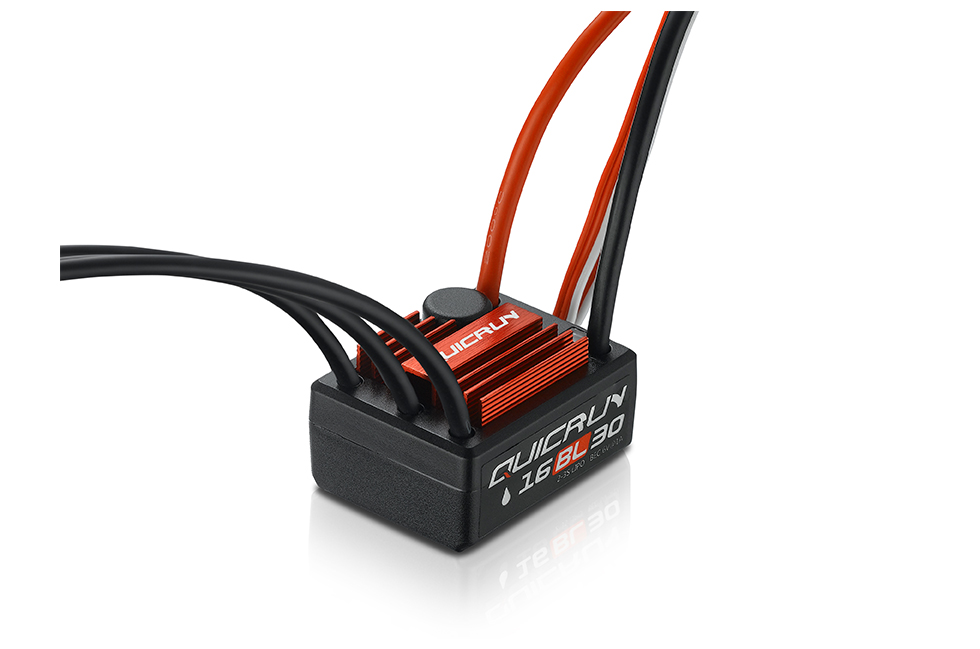

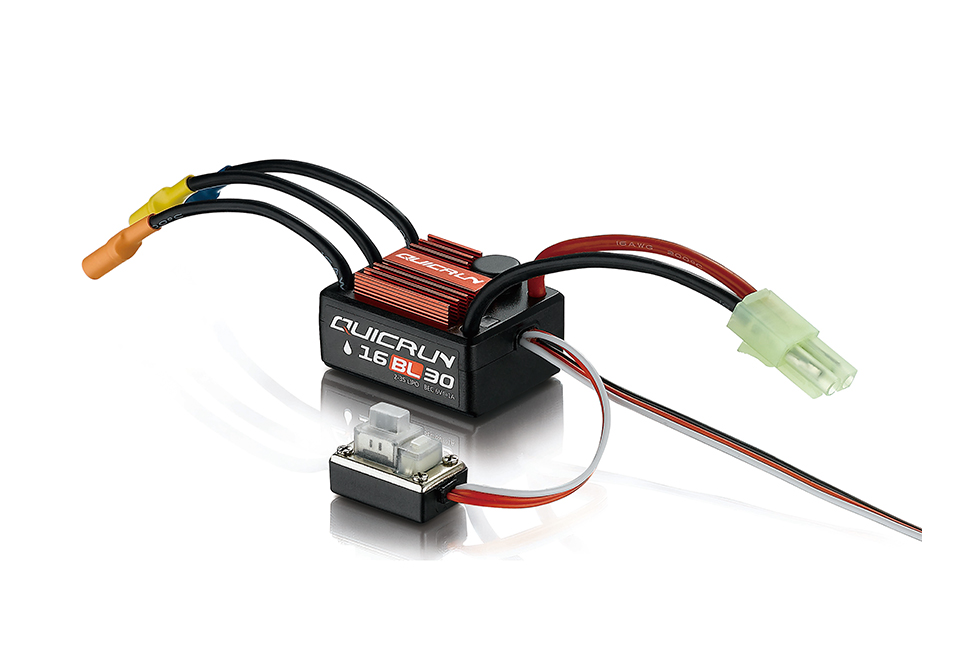

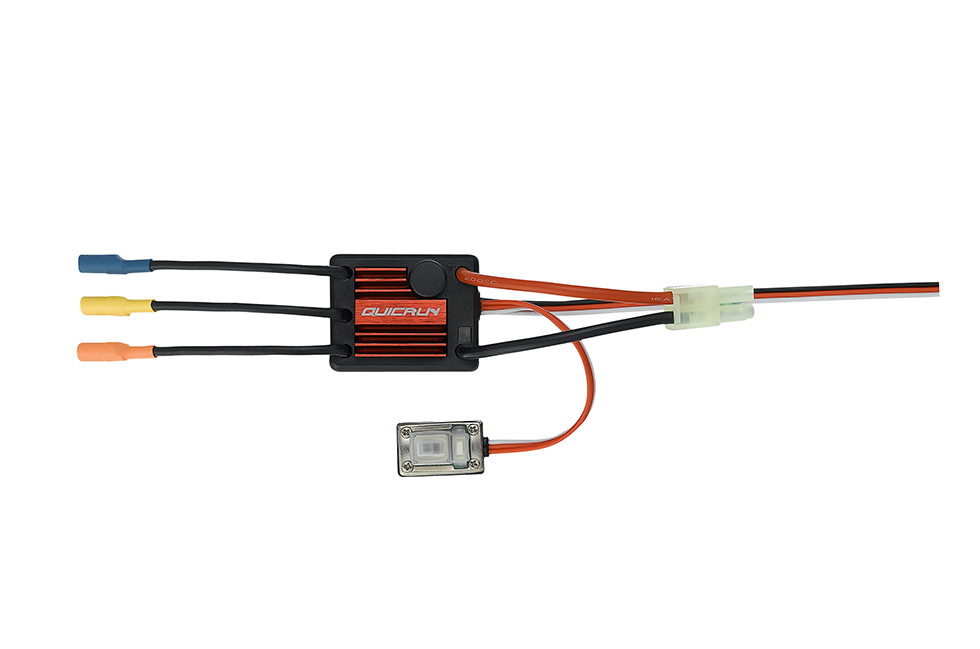

QuicRun WP 16BL30

Overview
Specifications
Support
Accessories
Detail

Easy Operation

This ESC is specially designed for new beginners and intermediate modelers;
it not only carries forward the outstanding quality of HOBBYWING products
but simplifies the operation.

Easy Operation

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-16BL30 to
be used in all weather conditions without any issue of damage
caused to the ESC from water or dust.

Applicable to All
Weather Conditions

High Reliability & Durability

Reliable hardware combined with advanced software technology allows the
QUICRUN WP- 16BL30 to not only provide high power output but also
overload protection of the ESC circuit.

High Reliability
& Durability

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Single-button Programming
& Factory Reset

Wide Application

This ESC is applicable to all-weather sport of 1/18^th, 1/16^th scale
touring cars, buggies, trucks, and monster trucks.

Wide Application

Programmable Items

Installation & Connection

This brushless system is powerful and dangerous, for the safety of your own and those people around you, please turn on the ESC while keeping all the wheels in the air.

Packaging

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Fan	Size Voltage Range Powered by
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		QuicRun WP 16BL30
Product Number		30110000
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/16^th,1/18^th BL SL WP
Specifications	Cont./Peak Current Input BEC Output	30A/180A 2-3S LiPo/6-9 Cells NiMH Linear Mode:6V/1A
Wires & Connectors	Input Wires Output Wires Input Connectors	Red-16AWG-75mm1/Black-16AWG-75mm1 Black-16AWG-75mm*3 Small-sized TAMIYA Connector 3.5 Gold Connector (Female)
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port	Supported Supported Not Supported Not Supported Not Supported Program/Throttle Wire
Fan	Size Voltage Range Powered by	No No No
Firmware	Firmware Upgrade	Not Supported
Size & Weight	Size Weight	36.0x28.0x18.0mm 38g
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors/SD BL Motors(only in SL mode) 1/16^th,1/18^th Touring Cars/Buggies/Trucks/Monster Trucks 2S LiPo: 1/10^th Touring Cars KV≤8000, 1/10th Buggies KV≤5000 3S LiPo: 1/10^th Touring Cars KV≤5500, 1/10^th Buggies KV≤3500 (2435 Motors)
