QuicRun WP 10BL120 G2

Overview
Specifications
Support
Accessories
Detail

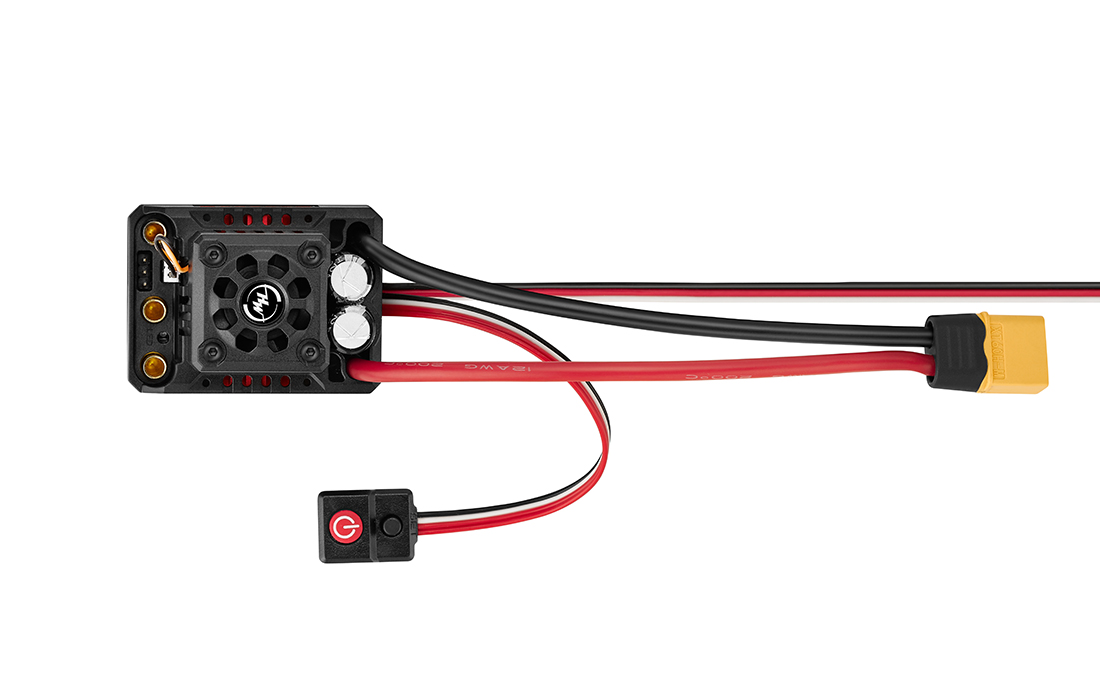

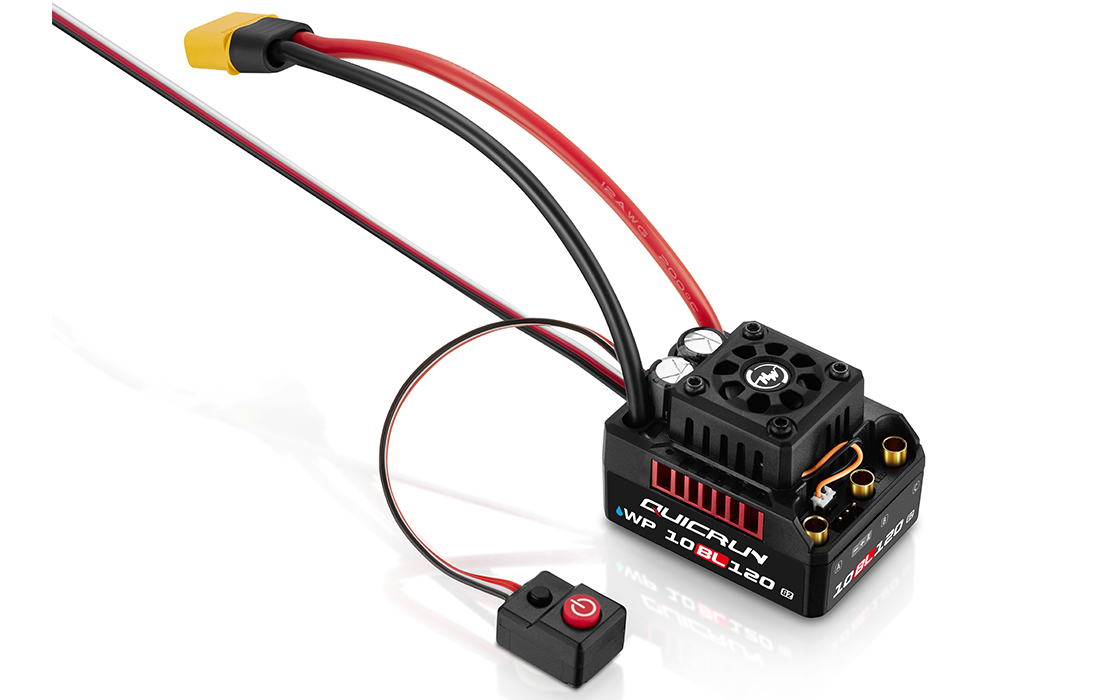

Brushless Electronic Speed Controller

intelligent freewheeling technology,
greatly improved performance

The innovative intelligent freewheeling technology enables
higher driving efficiency and lower operating temperature of the ESC,
and further improves the stability and reliability of the ESC.

Powerful built-in BEC

The ESC has a built-in BEC with a continuous current of 5A
and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V.
This ensures that the ESC is able to support
the demanding high-torque servos in the market.

Continuous
current of
5A
Maximum output
current of up to
10A
The output voltages are
switchable between
6V/7.4V

Efficient cooling system

The integrated radiator design,
combined with the patented copper thermal
conduction sink on the internal power board of the ESC,
facilitates the rapid conduction
of internal heat to the radiator,
and the fan is added to dissipate heat.
These results an efficient heat dissipation
system to ensure that the ESC is always in a good heat dissipation state.

Capacitor Thermal Protection

Capacitor thermal protection is designed and
implemented into the ESC to effectively prevent capacitors
from exploding and causing irreversible damages
to the ESC due to overloading.

Built-in capacitor

Super large built-in capacitor, The built-in
capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale
models on the market and
helps improves ease of use.

High protection level,
all-weather operation

The IP-67 waterproof Rating guarantees excellent
waterproof and dustproof protection.
The whole power system is able to drive
on a variety of surfaces including mud, sand, ice,
snow and water without damaging the power unit.

Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD G2 Program Box OTA Programmer Program Port
Fan	Size Output Wires Input Connectors
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		QUICRUN WP 10BL120 G2
Product Number		3010720
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th Brushless Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output	120A/760A 2S-4S Lipo Switch Mode 6V/7.4V @5A
Wires & Connectors	Input Wires Output Connectors	Black-12AWG-150MMmm1 / Red--12AWG-150MMmm1 4.0mm Gold (female)
ESC Programing via	SET Button on ESC LED Program Box LCD G2 Program Box OTA Programmer Program Port	Not Supported Supported Supported Not Supported Separate Program Port
Fan	Size Output Wires Input Connectors	25x25x10mm 5-7.4V Powered by BEC
Firmware	Firmware Upgrade	Not Supported
Size & Weight	Size Weight	52.839.838.2mm 119g (Included wires&connectors)
Applications	Motors Vehicles KV Rating/T Count	Sensorless / Sensored Brushless Motor (only in sensorless mode) 1/10^th Short course truck,Monster truck 3652、3660 Size Motor
