Easy Operation
This ESC is specially designed for new beginners and intermediate modelers;
it not only carries forward the outstanding quality of HOBBYWING products but
simplifies the operation.
Easy Operation
Applicable to All Weather Conditions

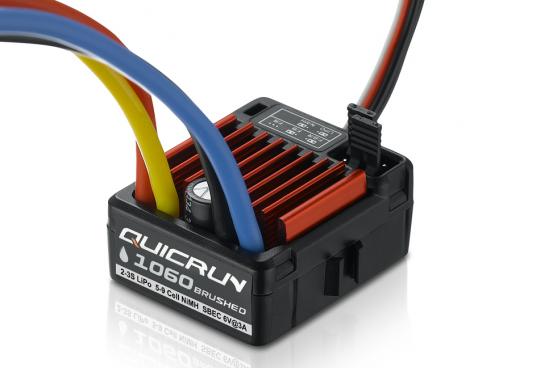

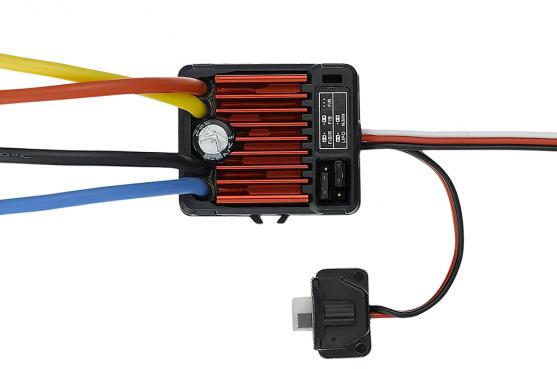

The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be
used in all weather conditions without any issue of damage caused
to the ESC from water or dust.
Applicable to All
Weather Conditions
High Reliability & Durability
Reliable hardware combined with advanced software technology allows the
QUICRUN WP 1060 Brushed to not only provide high power output but
also overload protection of the ESC circuit.
High Reliability
& Durability
Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use,
especially applicable to new beginners.
Easy to Use
Wide Application
This ESC is designed for 1/10th scale touring cars, buggies,
short-course trucks, monster trucks, trucks, crawlers and tanks.
Wide Application
Programmable Items
Installation & Connection
Turn off the ESC switch, wire the battery, motor, ESC, servo, receiver according to the following diagram. Recheck the wiring to ensure all connections are correct before getting into the next step.
1) Once the power is wrongly connected (that means the battery polarity is mistakenly reversed ), irreparable damage may occur to the ESC and batteries. Therefore, please pay close attention to the battery polarity.
2) Please swap the two wire connections if the motor rotate in the opposite direction.
Packaging
Product Name | |
Product Number | |
Type | Scale Brushed/Brushless Waterproof |
Specifications | Cont./Peak Current Input BEC Output |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
ESC Programing via | SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Fan | Size Voltage Range Powered by |
Firmware | Firmware Upgrade |
Size & Weight | Size Weight |
Applications | Motors Vehicles KV Rating/T Count |
Product Name | QuicRun WP 1060 Brushed | |
Product Number | 30120200 | |
Type | Scale Brushed/Brushless Waterproof |
1/10th Brushed WP |
Specifications | Cont./Peak Current Input BEC Output |
60A/360A 2-3S LiPo/6-9 Cells NiMH Switch Mode:6V/3A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-16AWG-100mm*1/Black-16AWG-100mm*1 Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1 Big-sized TAMIYA Connector 4.0 Bullet Connectors (Female) |
ESC Programing via | SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Not Supported Not Supported Not Supported Not Supported Not Supported Jumper Cap |
Fan | Size Voltage Range Powered by |
No No No |
Firmware | Firmware Upgrade | Not Supported |
Size & Weight | Size Weight |
36.5x32.0x18.0mm 39g |
Applications | Motors Vehicles KV Rating/T Count |
Brushed Motors 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers 2S LiPo: T≥12T 3S LiPo: T≥18T (540/550 Size Motors) |
Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.
Easy Operation
Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
Applicable to All
Weather Conditions
High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.
High Reliability
& Durability
Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.
Easy to Use
Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.
Wide Application
Programmable Items
Installation & Connection
Turn off the ESC switch, wire the battery, motor, ESC, servo, receiver according to the following diagram. Recheck the wiring to ensure all connections are correct before getting into the next step.
1) Once the power is wrongly connected (that means the battery polarity is mistakenly reversed ), irreparable damage may occur to the ESC and batteries. Therefore, please pay close attention to the battery polarity.
2) Please swap the two wire connections if the motor rotate in the opposite direction.
Packaging
Product Name | QuicRun WP 1060 Brushed | |
Product Number | 30120200 | |
Type | Scale Brushed/Brushless Waterproof |
1/10th Brushed WP |
Specifications | Cont./Peak Current Input BEC Output |
60A/360A 2-3S LiPo/6-9 Cells NiMH Switch Mode:6V/3A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-16AWG-100mm*1/Black-16AWG-100mm*1 Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1 Big-sized TAMIYA Connector 4.0 Bullet Connectors (Female) |
ESC Programing via | SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Not Supported Not Supported Not Supported Not Supported Not Supported Jumper Cap |
Fan | Size Voltage Range Powered by |
No No No |
Firmware | Firmware Upgrade | Not Supported |
Size & Weight | Size Weight |
36.5x32.0x18.0mm 39g |
Applications | Motors Vehicles KV Rating/T Count |
Brushed Motors 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers 2S LiPo: T≥12T 3S LiPo: T≥18T (540/550 Size Motors) |
Product Name | QuicRun WP 1060 Brushed | |
Product Number | 30120200 | |
Type | Scale Brushed/Brushless Waterproof |
1/10th Brushed WP |
Specifications | Cont./Peak Current Input BEC Output |
60A/360A 2-3S LiPo/6-9 Cells NiMH Switch Mode:6V/3A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-16AWG-100mm*1/Black-16AWG-100mm*1 Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1 Big-sized TAMIYA Connector 4.0 Bullet Connectors (Female) |
ESC Programing via | SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Not Supported Not Supported Not Supported Not Supported Not Supported Jumper Cap |
Fan | Size Voltage Range Powered by |
No No No |
Firmware | Firmware Upgrade | Not Supported |
Size & Weight | Size Weight |
36.5x32.0x18.0mm 39g |
Applications | Motors Vehicles KV Rating/T Count |
Brushed Motors 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers 2S LiPo: T≥12T 3S LiPo: T≥18T (540/550 Size Motors) |
