QuicRun Fusion Pro
aeglos-p1
Fusion Pro
FOC Integrated power system for crawler
Strength for
all to see
  • Integrated
    design
  • Significant increase
    in efficiency
  • Three operating modes
  • FOC drive,
    crawl worry-free
  • Multi-gear adjustability,
    stop when its required
  • Refine parameter items
  • Advanced and Secured
    Electronic Switch
  • Applicable to All Weather
    & Track Conditions
Integrated design.
Significant increase
in efficiency.
Three operating modes.
FOC drive, crawl worry-free.
Multi-gear adjustability,
stop when its required.
Refine parameter items.
Advanced and Secured
Electronic Switch.
Applicable to All Weather
& Track Conditions.

The PRO version is

stronger and better.

The ESC and Motor
Integrated design.
Motor
ESC
All-in-one design,
shorter
The design has been integrated and optimized to provide a cleaner and sleeker layout appearance. The overall length is now at 58mm and is 6mm shorter than the previous version. The smaller footprint provides for a spacious and an easy assembly process.
Overall length
  • 6mmshorter
    58mm
    QuicRun Fusion Pro
  • 64mm
    QuicRun Fusion
FOC driver algorithm upgrade,
power increase guaranteed
The FOC drive algorithm upgrade increases the efficiency by 8% and reduces the power consumption loss by 30% , resulting in a significant increase in power. The increase in temperature is lower when climbing at low speed, with a longer battery lifespan for a longer playtime.
Fusion Pro vs Fusion
  • 8%
    Increase in
    efficiency
  • 30%
    Decrease in
    power loss
  • 1

    Normal Mode

    (Forward and reverse with brake)
  • 2

    Normal Mode

    (Forward and reverse)
  • 3

    Constant Speed Mode

    (Forward and reverse)

  • Normal Mode

    (Forward and reverse with brakes)

    Normal mode has no drag brake effect.
    When throttle is released,
    the vehicle continues to roll freely until it stops.

  • Normal Mode

    (Forward and reverse)

    Normal mode is similar to the brushed
    sysytem without constant speed.

  • Constant Speed Mode

    (Forward and reverse)

    Fixed speed mode, the running state of the car
    always changes with the amount of throttle,
    and not due to the driving environment.

  • FOC driven,
    crawl worry-free

    The FOC mode operates smoothly at low speed. The strong torque is able to outperform the sensored power system and the consistency is better than the brushed power system. The latest generation motor is extremely silent, eliminating unwanted noises during operation and is the best choice for rock crawler.
    Note: This feature is only available in
              constant speed mode.
Multi-gear adjustable, stop when its required
There are 8-gears of drag brake force and 9-gears of drag brake acceleration adjustment to provide for a stronger ramp parking capability.
Multi-gear adjustable
  • 8Gears
    Drag brake force
    +
  • 9Gears
    Drag brake
    acceleration
    adjustment
Professional Drag
Brake Adjustments &
Super Parking Capacity

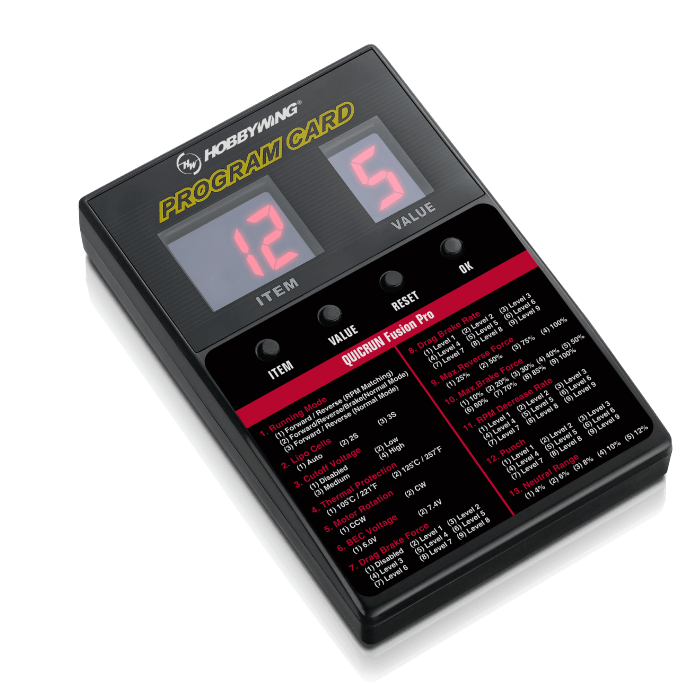

Refine parameter items
  • 13Items
    Adjustable Parameter
  • Max.
    Brake Force
  • RPM
    Decrease Rate
  • Punch
  • Neutral Range
4 new parameters have been added
  • 1
    Max. Brake Force
  • 2
    RPM Decrease Rate
  • 3
    Punch
  • 4
    Neutral Range

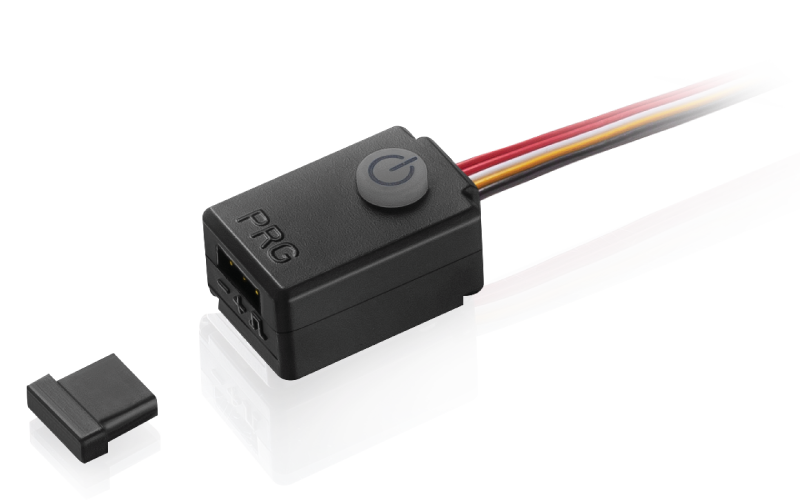

Advanced and Secured
Electronic Switch
Compare to the standard on/off switches, the dust, dirt, and waterproof switch housing ensures reliable and longer life. Heavy impact or harsh surface will no longer affect and damaged the switch, eliminating any unwanted damage. Users will be able to enjoy bashing their RC cars.
Long life expectancy,
waterproof and dustproof,
shock resistant

Advanced and SecuredElectronic Switch
Applicable to All Weather
& Track Conditions
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.
Excellent waterproof and dustproof performance
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output



Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles
Wires & Connectors Input Wires

Input Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Vehicles
Product Number 30120402
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/10th

BL

SD

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output



Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles		 60A/200A

2-3S Lipo/6-9 Cell NiMH

Switch Mode:6V/7.4V，6A

Note: 7.4V voltage can be output only when using 3S Lipo

2300KV

37mm / 58mm

3.175mm / 16mm

4
Wires & Connectors Input Wires

Input Connectors		 Red-14AWG-330mm*1 / Black-14AWG-330mm*1

XT60
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

Program Port

 Not Supported

Supported

Not Supported

Not Supported

Independent programming interface(switch position)
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight		 37*58mm

209g (including wires&connectors)
Applications Vehicles 1/10th rock crawler
Support

Manuals & Documents

Manuals
介绍视频
QuicRun Fusion Pro

QuicRun Fusion Pro

17/08/22
11111111111

11111111111

24/09/22
11111111111

11111111111

24/09/22
1111

1111

24/09/22
教学视频
222

222

24/09/22
111111111

111111111

24/09/22
11111

11111

24/09/22

FAQ

LED Program Box_General

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

+
