QuicRun 3650 SD G2

Overview
Specifications
Support
Accessories
Detail

Linear & Smooth Control

The built-in Hall sensor non-adjustable end bell combined with a high precision
and balanced rotor guarantees the user a smooth and linear power on demand.

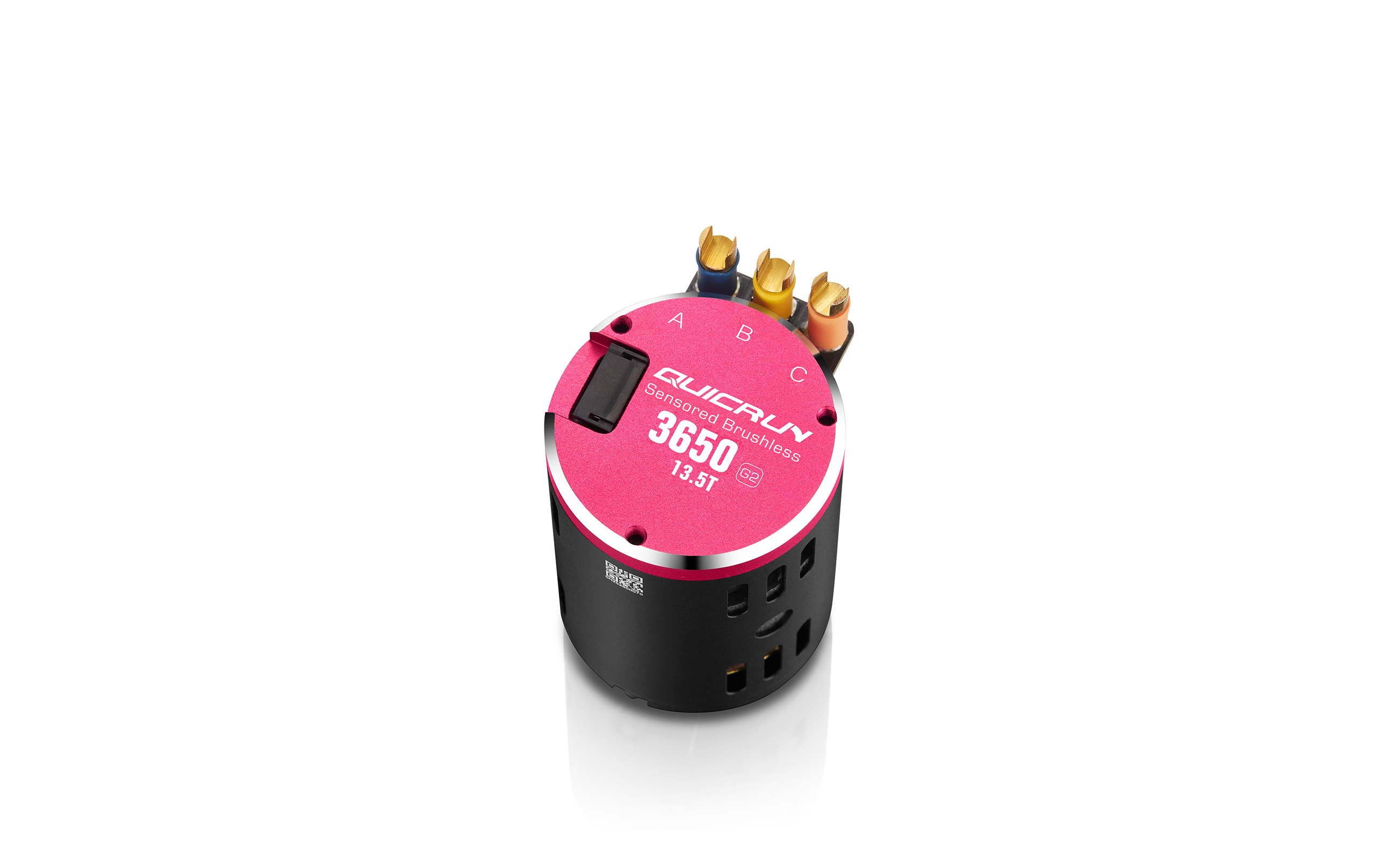

Built-in Hall Sensor

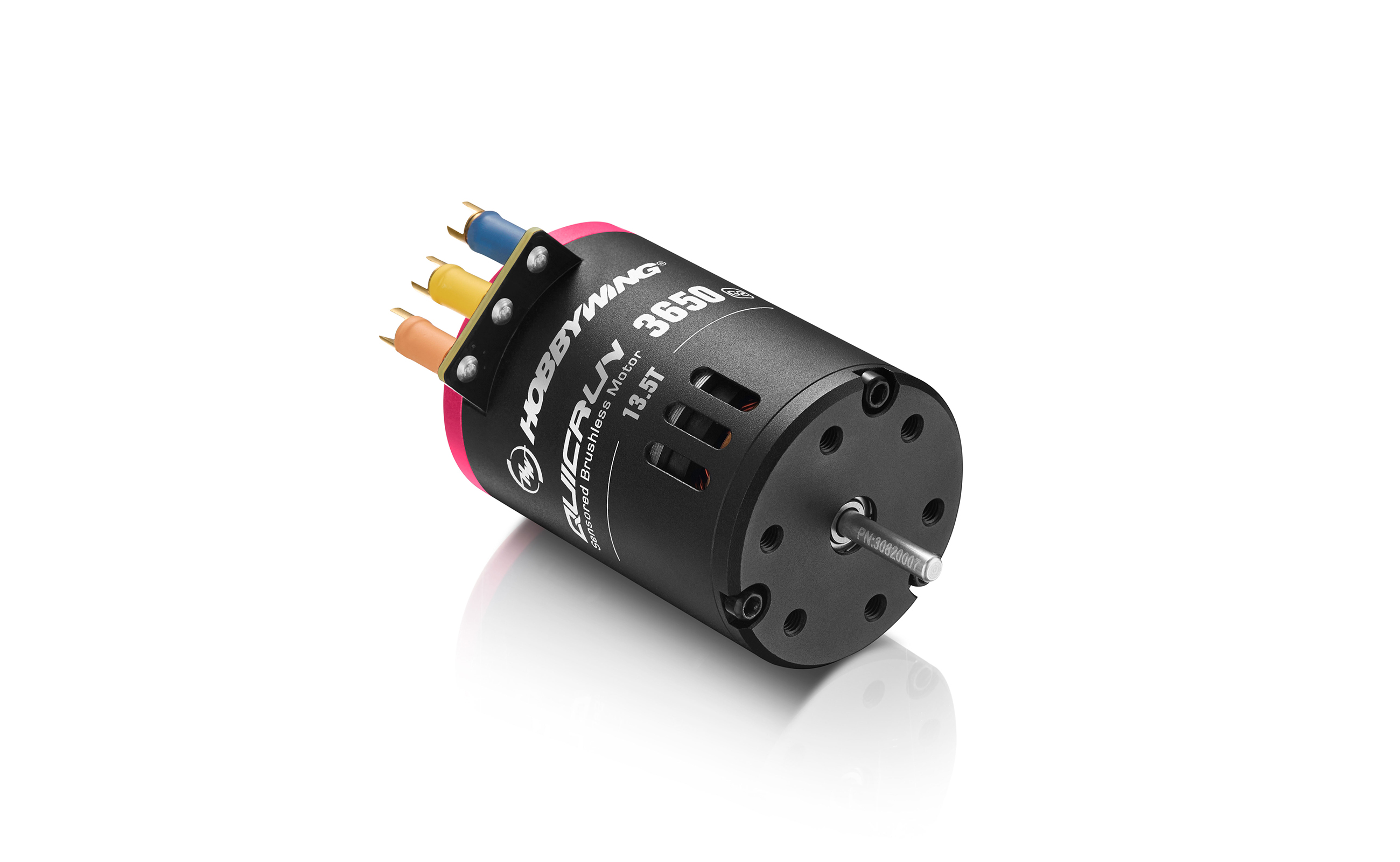

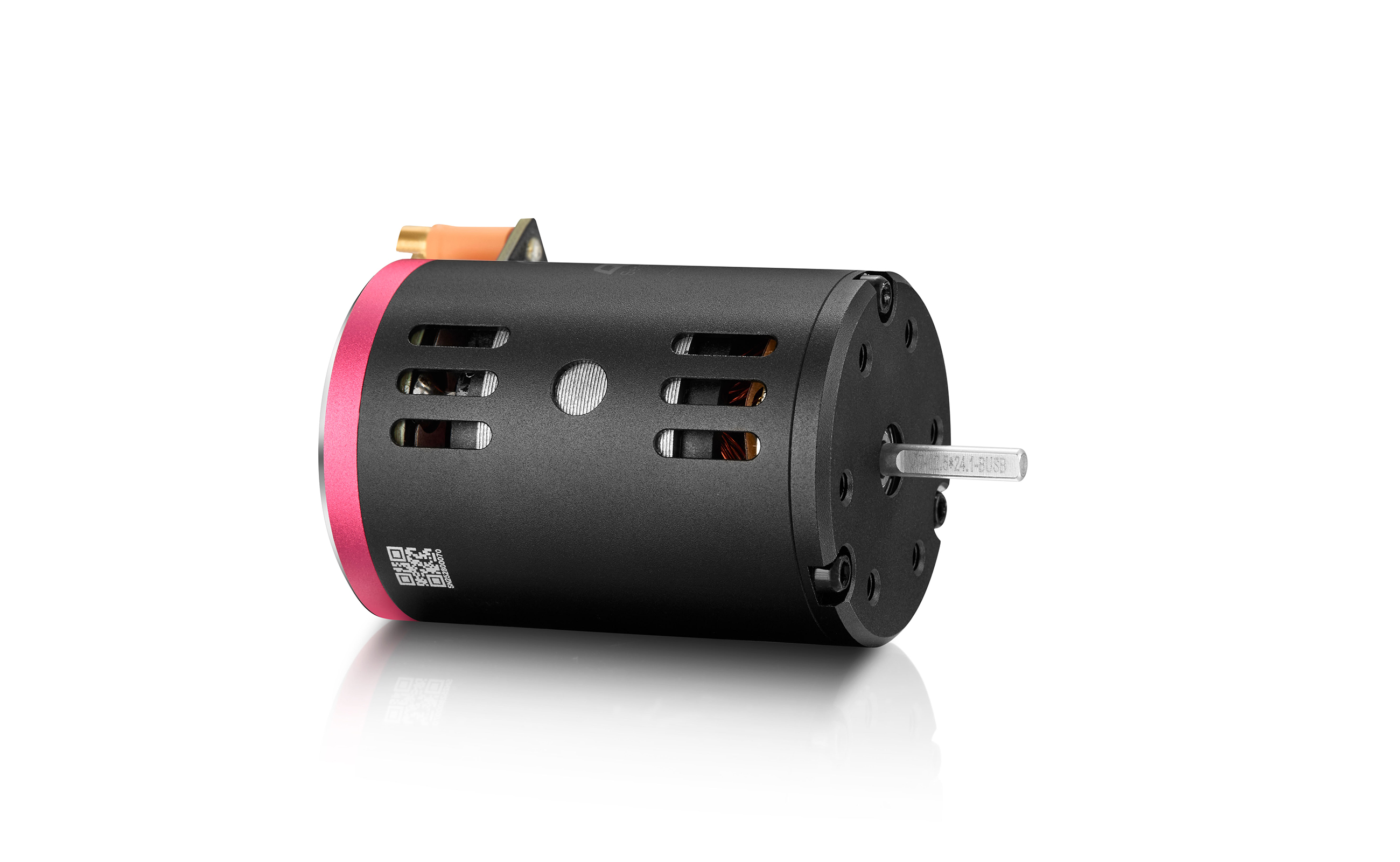

Great Heat-dissipation

The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Great
Heat-dissipation

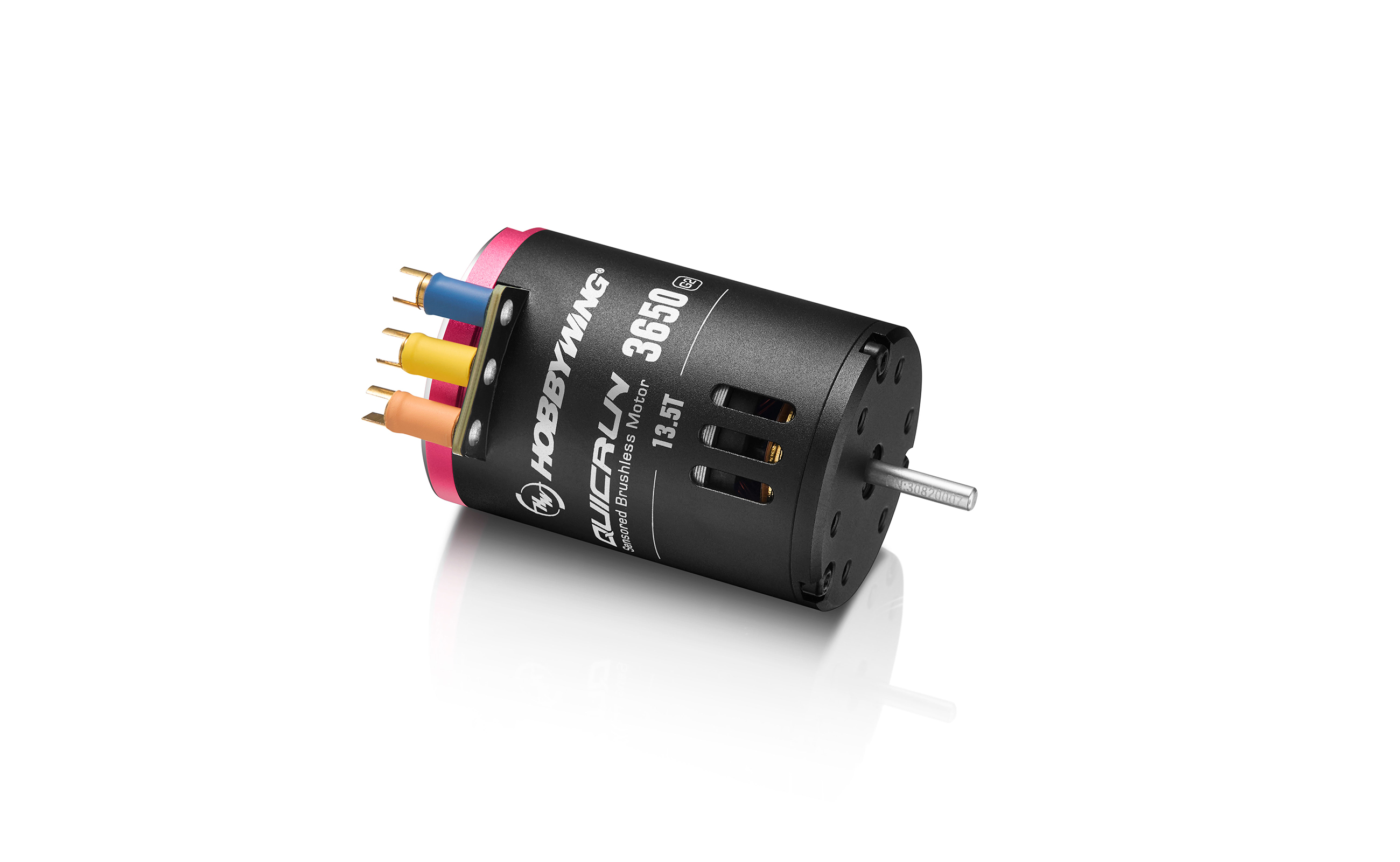

Plug-and-Play

Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Plug-and-Play

Pre-soldered Gold Connectors

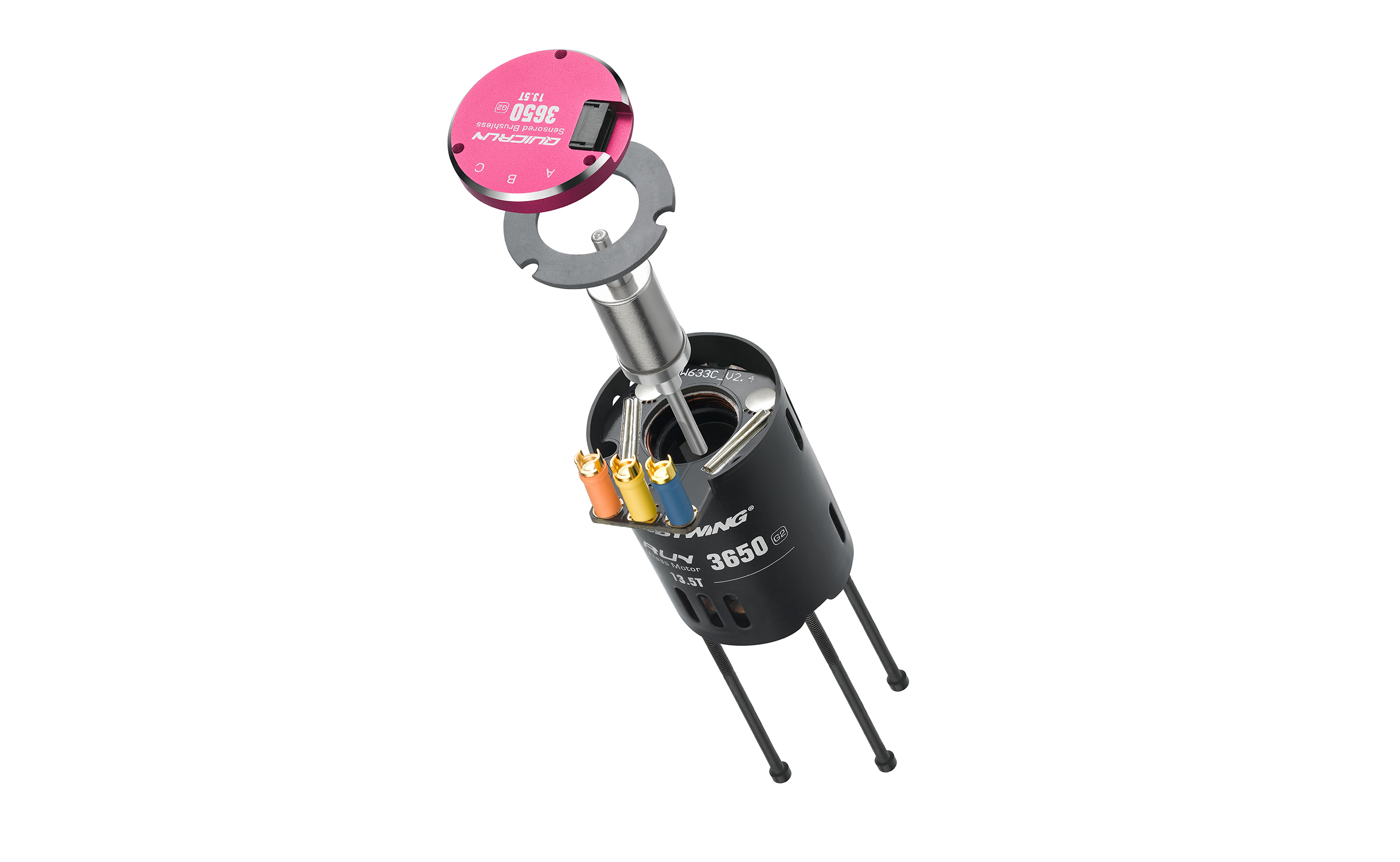

Re-buildable Design

The end bell is easy to be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

Re-buildable
Design

QuicRun 3650 G2

Compatible (with QuicRun-10BL60-Sensored ESC)

When pairing the QuicRun3650 G2 motor with the Hobbwing QuicRun-10BL60-Sensored ESC,
the excellent match between ESC and motor will give you a very smooth and
linear power band.

Great Compatibility

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count
Specifications	KV Rating LiPo Cells No-load Current(A)
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing
Other Parameters	Timing Applications

Product Name		QuicRun-3650SD-6.5T G2	QuicRun-3650SD-8.5T G2	QuicRun-3650SD-10.5T G2	QuicRun-3650SD-13.5T G2	QuicRun-3650SD-17.5T G2	QuicRun-3650SD-21.5T G2	QuicRun-3650SD-25.5T G2
Product Number		30404312	30404311	30404309	30404310	30404306	30404307	30404308
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count	1/10^th BL SD 2	1/10^th BL SD 2	1/10^th BL SD 2	1/10^th BL SD 2	1/10^th BL SD 2	1/10^th BL SD 2	1/10^th BL SD 2
Specifications	KV Rating LiPo Cells No-load Current(A)	5750 2S 4.6	4560 2S 3.2	3600 2-3S 2.8	2850 2-3S 2.4	2170 2-3S 1.6	1800 2-3S 1.3	1520 2-3S 1.1
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing	36(1.417in) 52.8(2.079in) 3.17(0.125in) 194(6.843oz) D9.525D3.175t3.967 D9.525D3.175t3.967	36(1.417in) 52.8(2.079in) 3.17(0.125in) 186(6.561oz) D9.525D3.175t3.967 D9.525D3.175t3.967	36(1.417in) 52.8(2.079in) 3.17(0.125in) 186(6.561oz) D9.525D3.175t3.967 D9.525D3.175t3.967	36(1.417in) 52.8(2.079in) 3.17(0.125in) 186(6.561oz) D9.525D3.175t3.967 D9.525D3.175t3.967	36(1.417in) 52.8(2.079in) 3.17(0.125in) 187(6.596oz) D9.525D3.175t3.967 D9.525D3.175t3.967	36(1.417in) 52.8(2.079in) 3.17(0.125in) 187(6.596oz) D9.525D3.175t3.967 D9.525D3.175t3.967	36(1.417in) 52.8(2.079in) 3.17(0.125in) 186(6.561oz) D9.525D3.175t3.967 D9.525D3.175t3.967
Other Parameters	Timing Applications	Fixed 1/10^th, 1/12^th On- road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)	Fixed 1/10^th, 1/12^th On- road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)	Fixed 1/10^th, 1/12^th On- road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)	Fixed 1/10^th, 1/12^th On- road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)	Fixed 1/10^th, 1/12^th On- road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)	Fixed 1/10^th, 1/12^th On- road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)	Fixed 1/10^th, 1/12^th On- road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)

Support

Manuals & Documents

Manuals

1/10 XeRun Motor Bearings

Part Number: 30820001
Size: 3.2(Internal diameter)x9.5(External
diameter)x4.0(Height)mm
Applications: XeRun series of 1/10^th
scale sensored brushless motors
