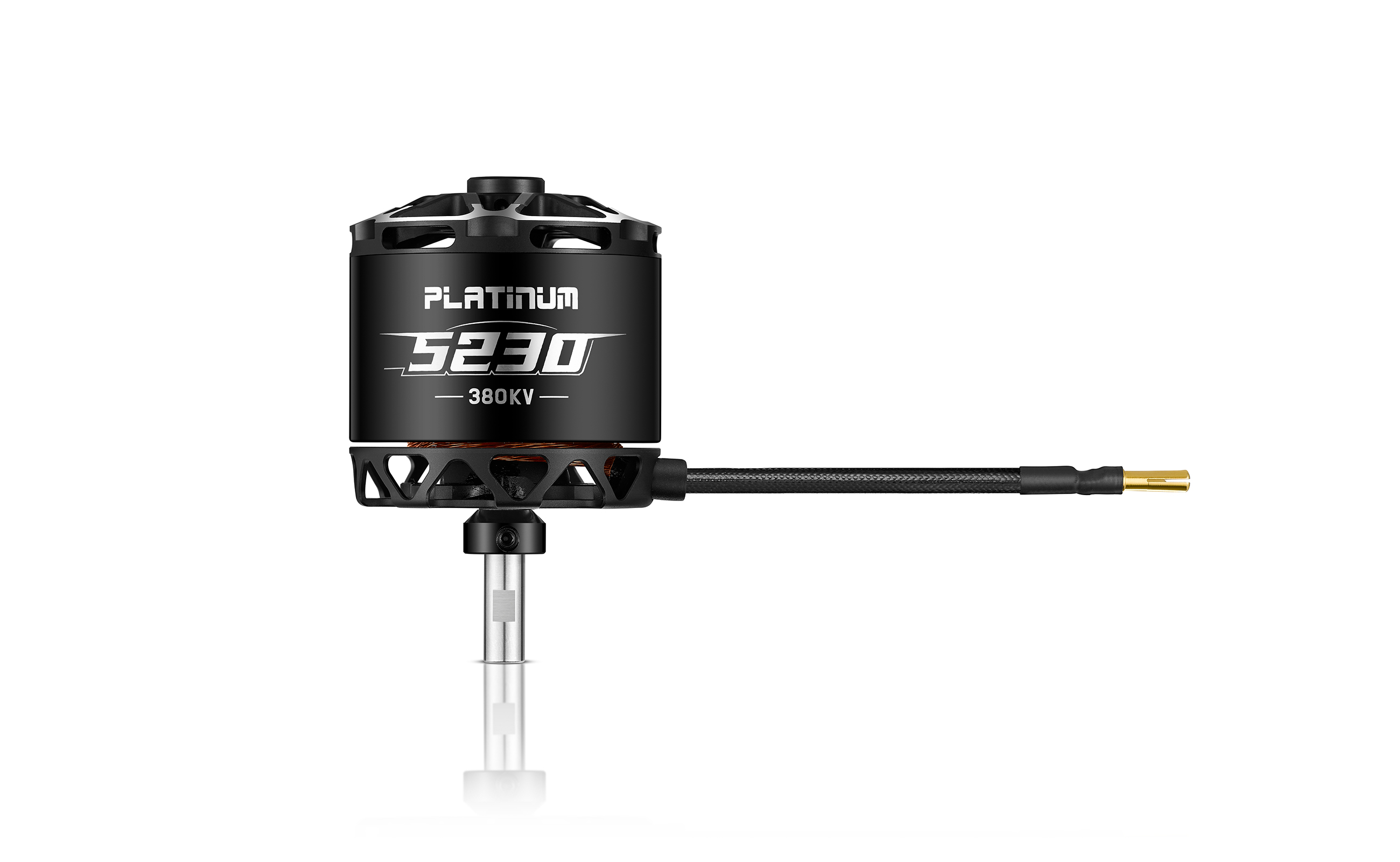

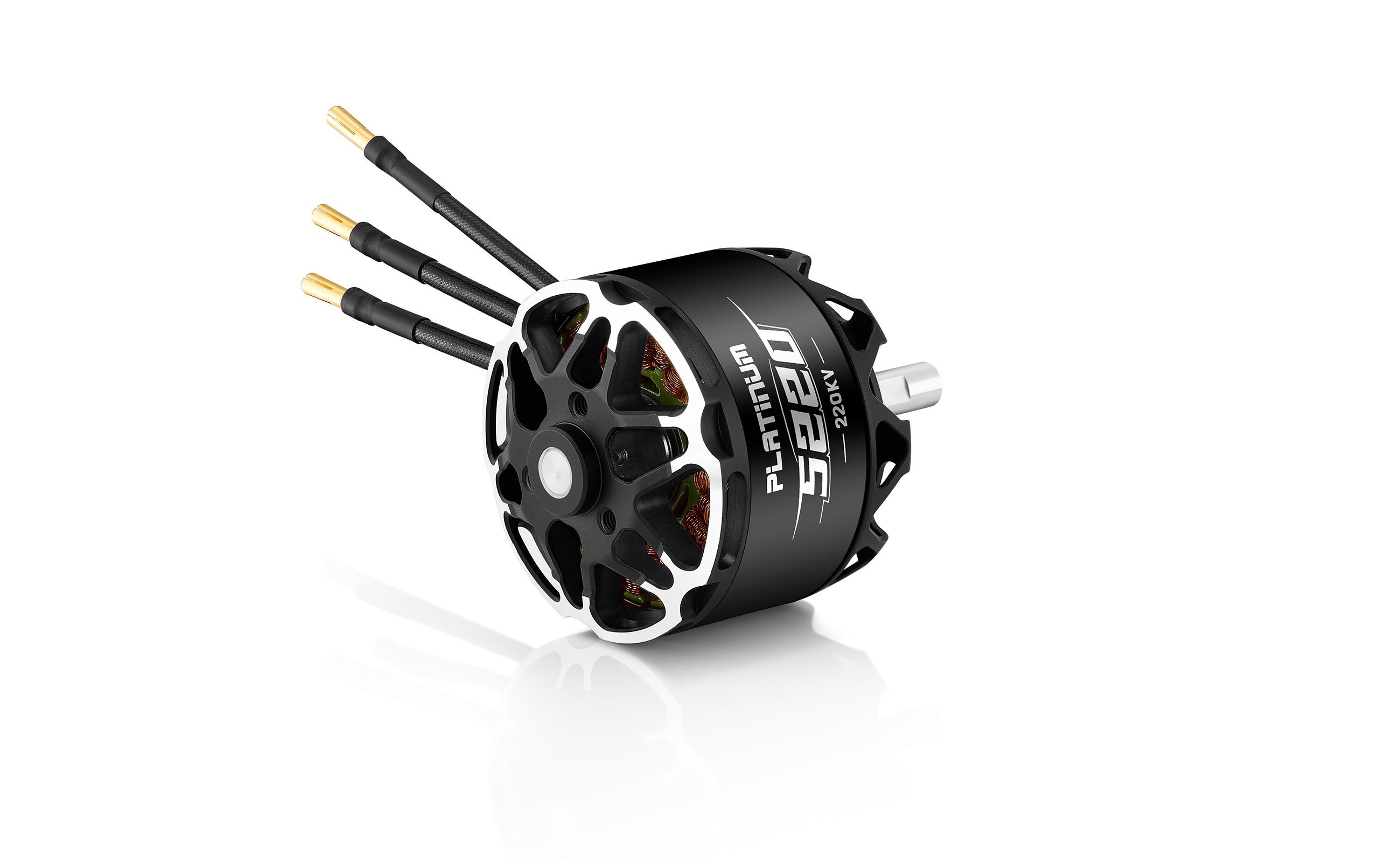

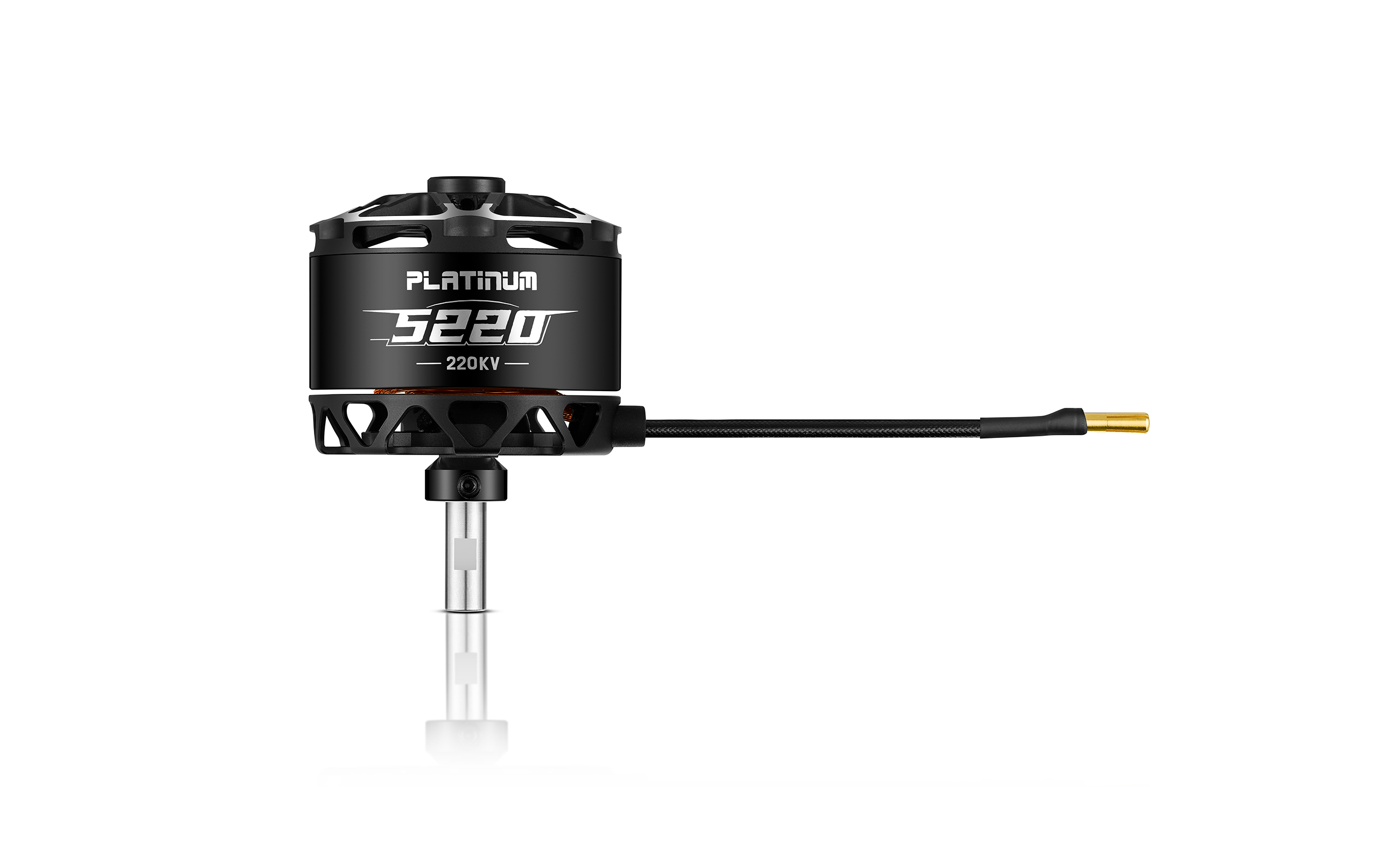

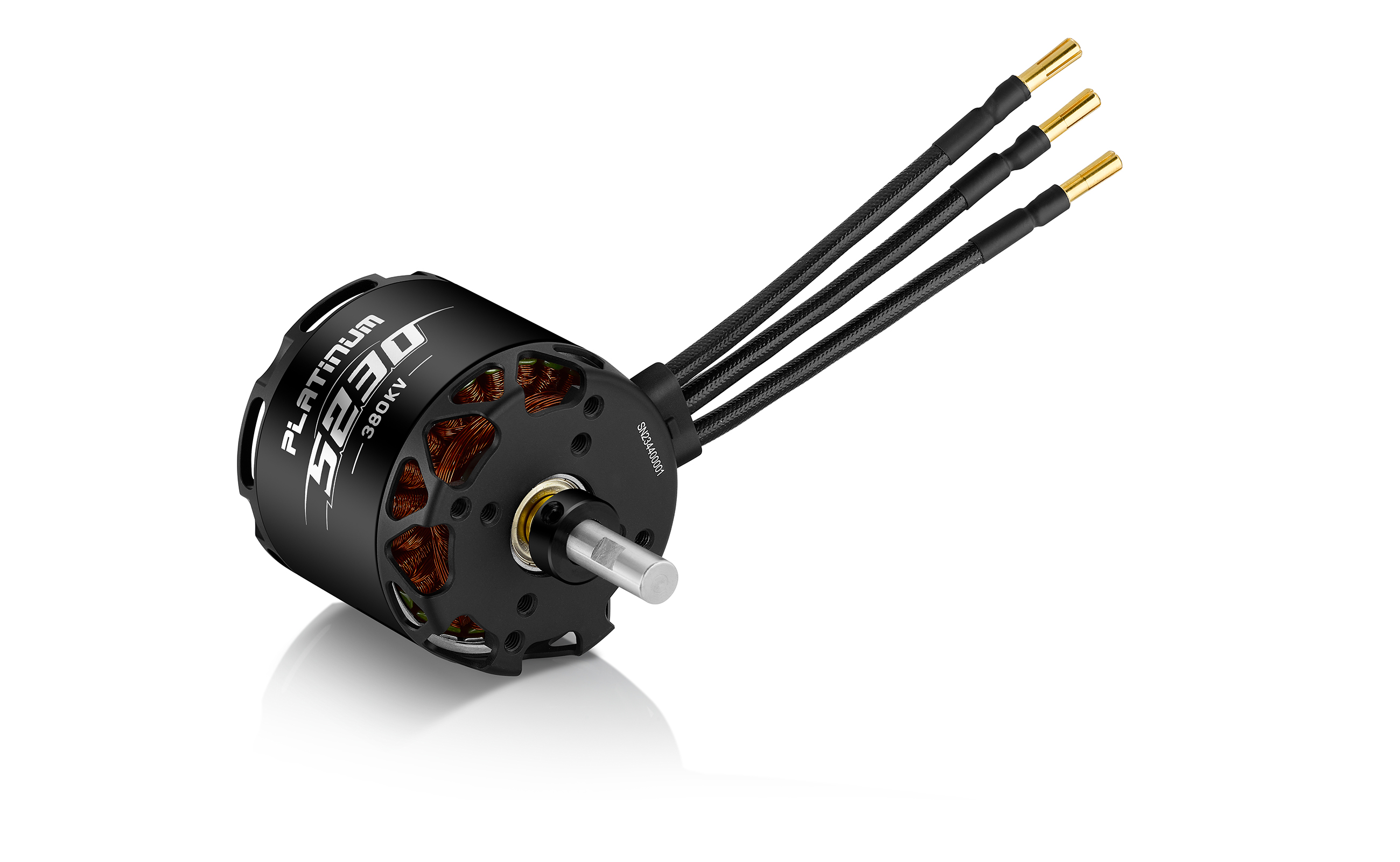

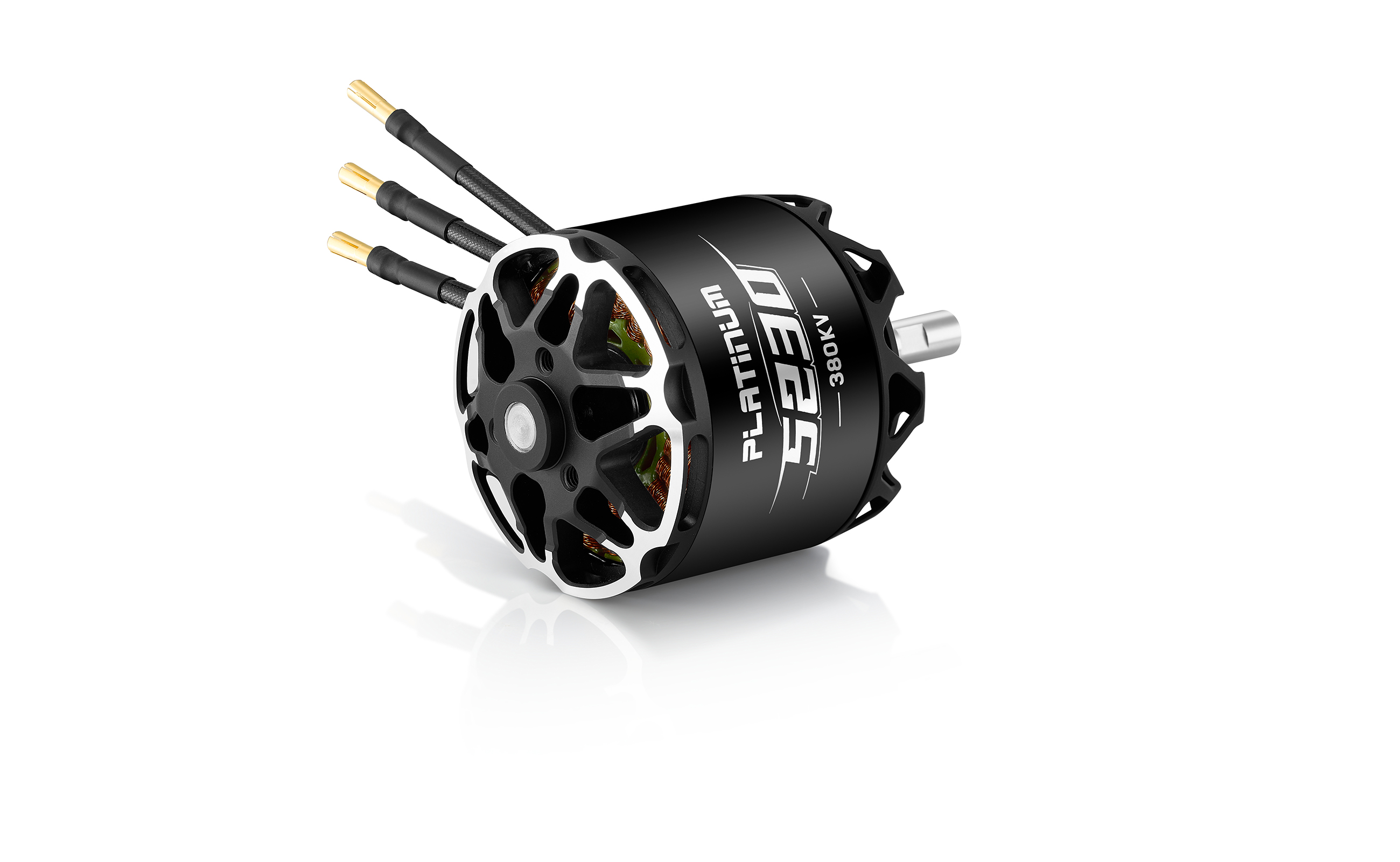

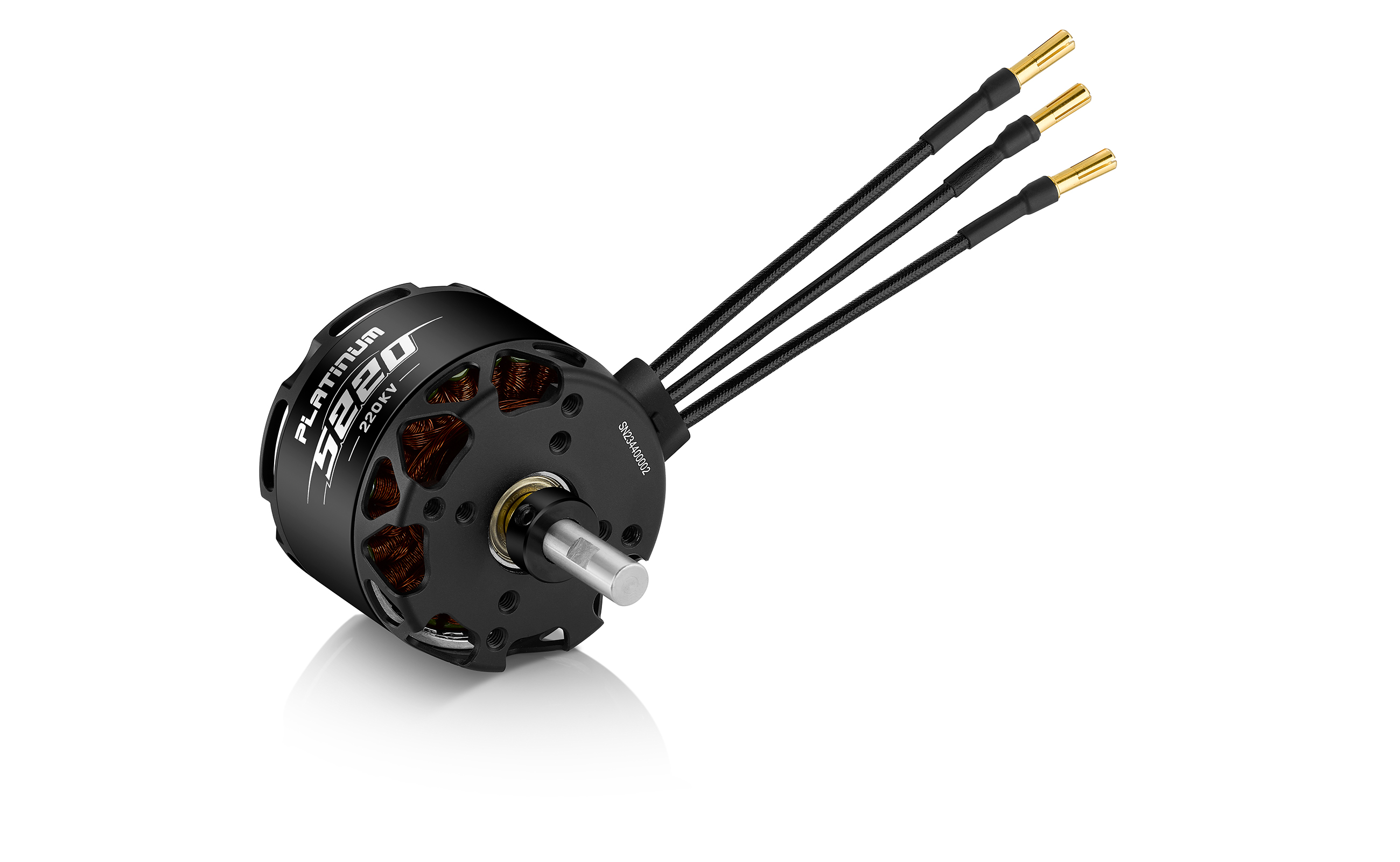

52 Series fixed wing motor
LOAD PERFORMANCE PARAMETERS: Platinum 5220 Platinum 5230
Double dynamic balance
detection to strictly
control motor vibration
The rotor and the complete machine undergo dynamic balancing
testing separately. The rotor dynamic balancing testing is
completed first, followed by simulating the actual operating
conditions. A secondary dynamic balancing testing is performed
on the complete motor to further eliminate the in-balance
between the stator and the rotor during assembly.
High power efficiency,
good heat dissipation

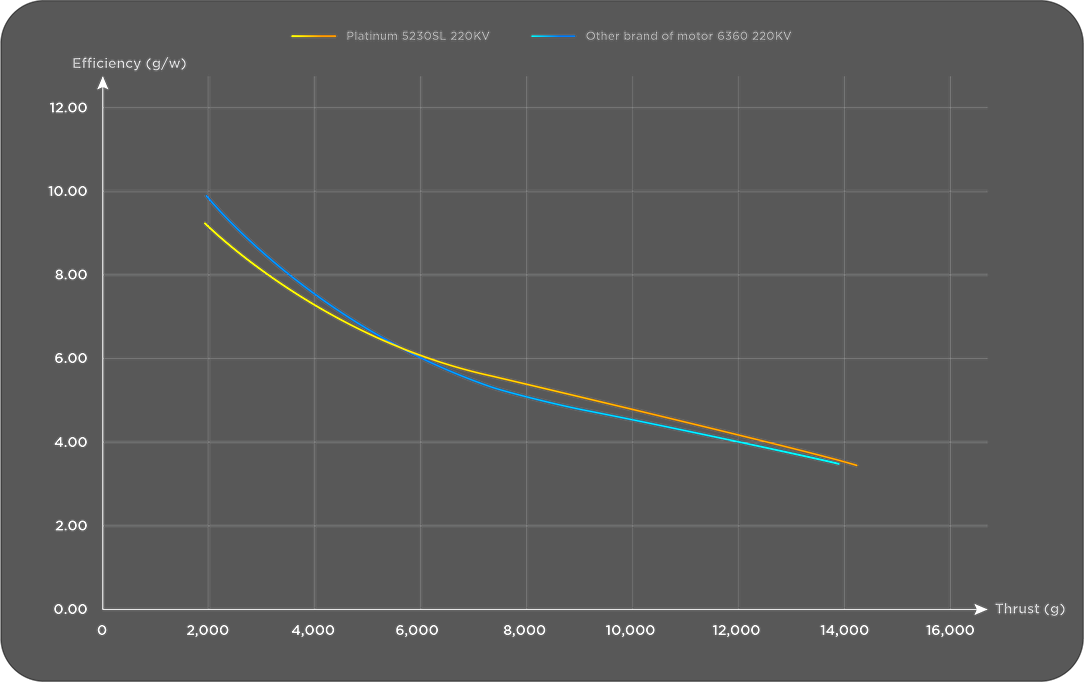

The all-new and innovative structure provides great heat
dissipation and has excellent efficiency adjustment to
further improve the performance of the motor.
Compared with motors of the same
specifications from other top brands,
  • The efficiency in the middle
    and rear sections is increased by
    2-5%

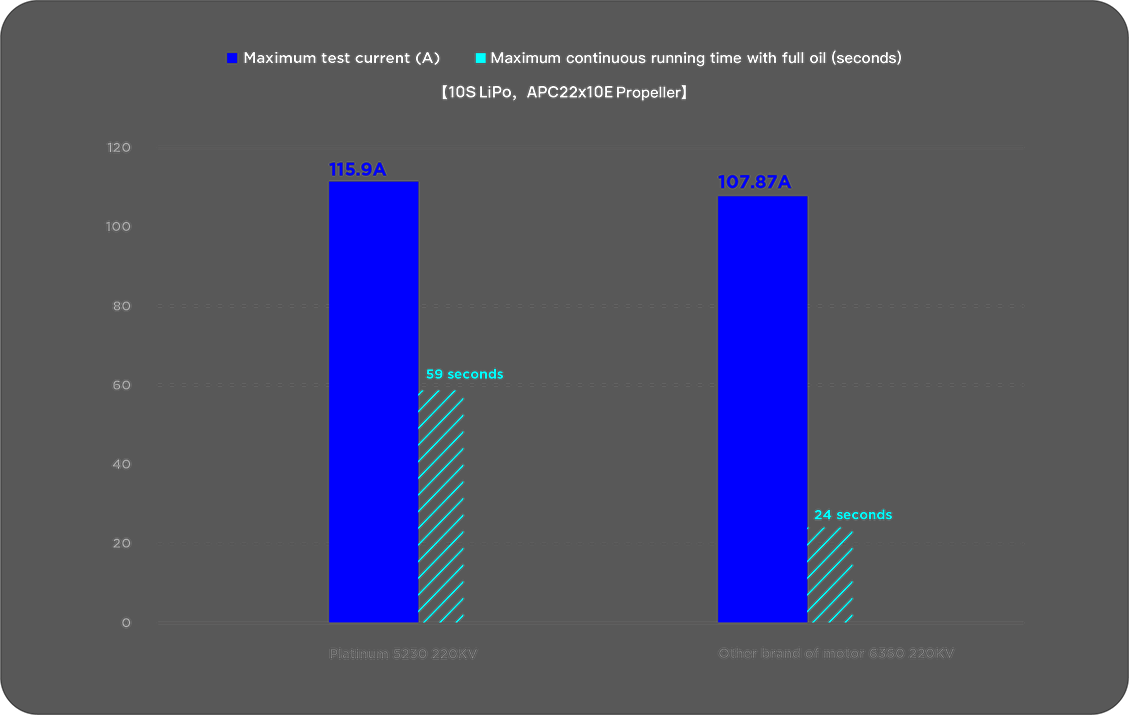

  • The running time under continuous
    heavy load is extended by more than
    30%
The anti-loosening design of the
propeller clamp has been patented
The innovatively designed propeller clamp anti-loosening structure can effectively prevent
the propeller from flying out due to the loose propeller clamp nut, ensuring safe flight.
【Patent number accepted】
202311210278.7

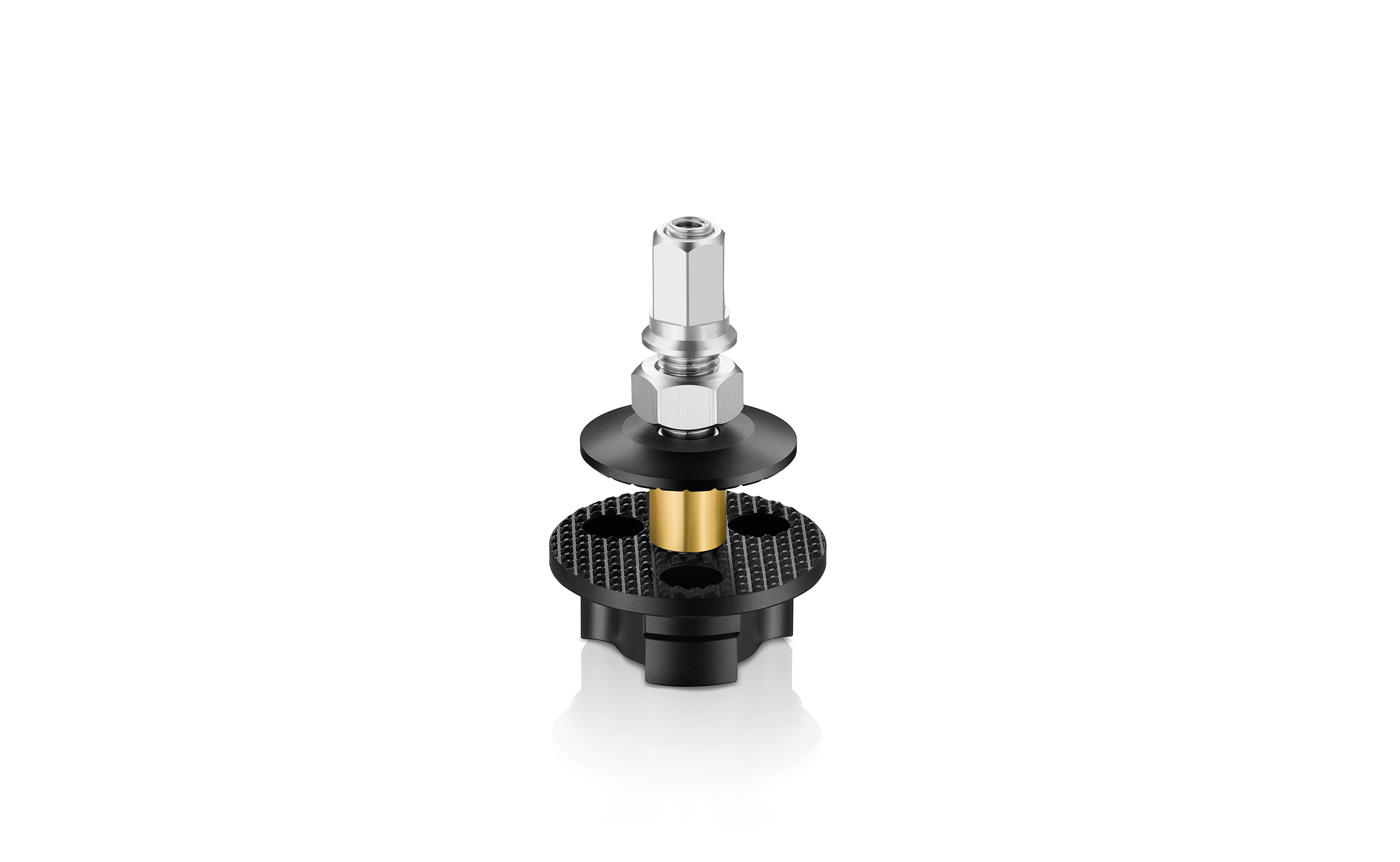

Excellent propeller clamp fixed seat
The diamond-shaped anti-slip structure of the propeller clamp seat prevents the propeller from slipping and
idling in the body. The stainless steel propeller clamp shalf has a new anti-rotational stop. The shalf and the
propeller clamp seat have an interference fit and are reinforced with glue to further improve on the durability
and stability of the entire propeller clamp body. Overall, providing users with a safer flying experience.
Outstanding product
design and
industry-leading
material selection
It adopts top-tier brand JNEH1200 iron core, 200°C
high-temperature resistant wire, and international top-tier brand
bearings to meet the needs of users in different scenarios.
N52SH strong magnetic arc-shaped magnet design provides
powerful torque for the motor.
The motor's three-phase wire outlet is equipped with a
custom-made silicone rubber sheath, taking into account both
aesthetic appearance and insulation.
The rotor has multiple locking designs, copper pad, circlip and
bushing set screw to prevent the motor rotor from loosening and
further improve the reliability of the motor.

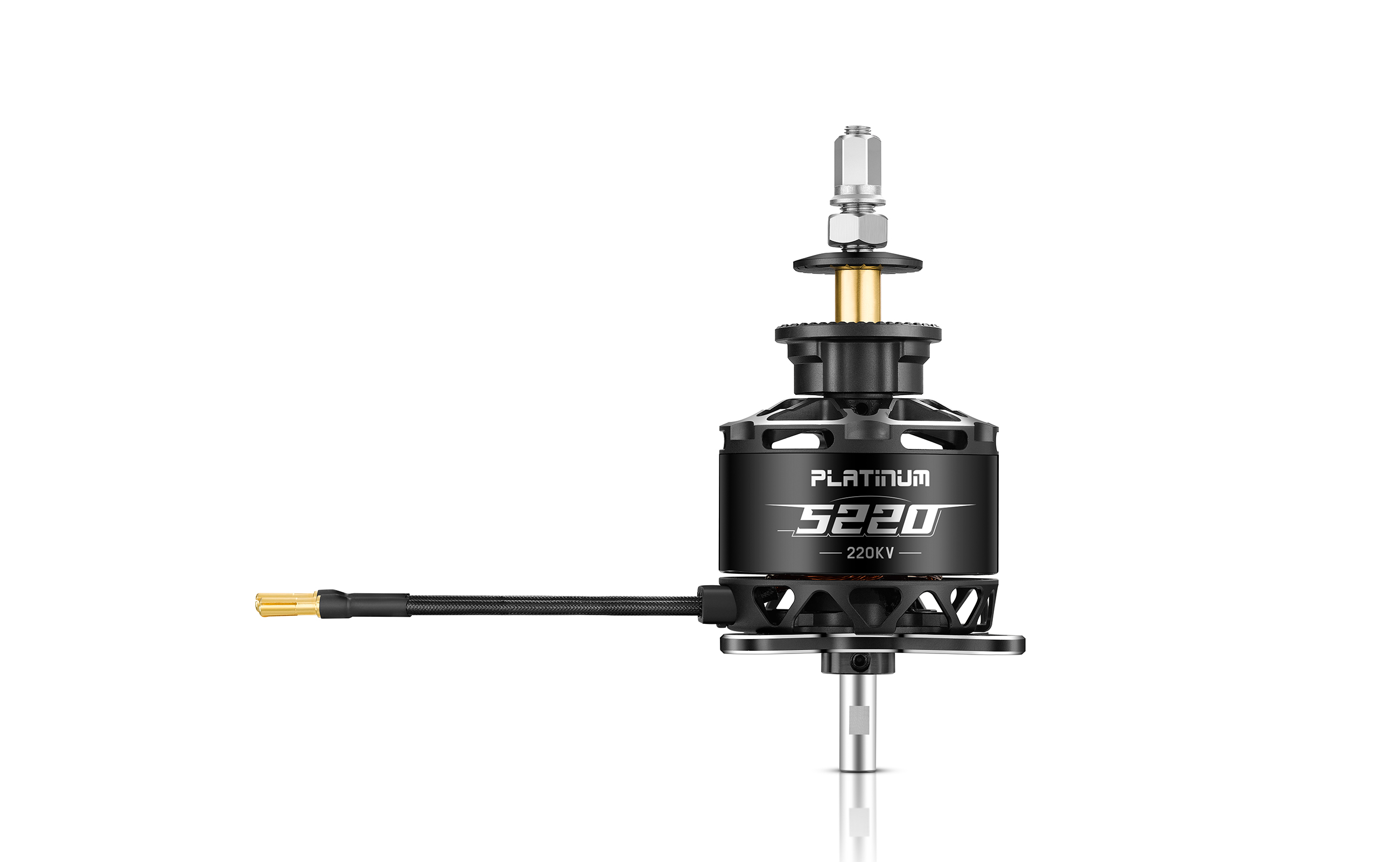

Multi-purpose design, the optional rear shaft propeller mount can
also be installed on the rear end of the motor to meet the
multi-purpose needs of different machines.
Standard titanium alloy nuts and bracket mounting screws help
to reduce the overall weight.
The motor adopts a modular and easy to disassemble design,
which facilitates easy cleaning and maintenance.
Model
Platinum 5220SL 220KV Platinum 5220SL 380KV Platinum 5230SL 190KV Platinum 5230SL 220KV Platinum 5230SL 380KV
Specifications
Product Number 30416150 30416151 30416200 30416201 30416202
Motor Size Φ60.2 *83.5mm Φ60.2 *83.5mm Φ60.2 *93.5mm Φ60.2 *93.5mm Φ60.2 *93.5mm
Stator Size Φ51.7*t20 Φ51.7*t20 Φ51.7*t30 Φ51.7*t30 Φ51.7*t30
Stator process High standard silicon steel sheet, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
Enamelled wire 200℃ 200℃ 200℃ 200℃ 200℃
Fiber Screw Thread Φ22mm-3*M4 Φ22mm-3*M4 Φ22mm-3*M4 Φ22mm-3*M4 Φ22mm-3*M4
Screw Diameter/Thread Φ30mm-4*M4;Φ44mm-4*M4 Φ30mm-4*M4;Φ44mm-4*M4 Φ30mm-4*M4;Φ44mm-4*M4 Φ30mm-4*M4;Φ44mm-4*M4 Φ30mm-4*M4;Φ44mm-4*M4
Slot& Pole 24N28P 24N28P 24N28P 24N28P 24N28P
Dynamic balance ≤10mg ≤10mg ≤10mg ≤10mg ≤10mg
Bearing 1560ZZ，698ZZ 1560ZZ，698ZZ 1560ZZ，698ZZ 1560ZZ，698ZZ 1560ZZ，698ZZ
Motor axle diameter 8mm 8mm 8mm 8mm 8mm
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test 500V AC high voltage resistance test 500V AC high voltage resistance test 500V AC high voltage resistance test
Specification
KV 220 380 190 220 380
Battery(LiPo) LiPo-10~12S LiPo-6~8S LiPo-10~12S LiPo-10~12S LiPo-6~8S
No-load current 3.5A/44.4V 3.7A/22.2V 3.0A/44.4V 3.7A/44.4V 4.0A/22.2V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃） 86A/44s 136.3A/47s 112.5A/42s 122.3A/45s 162A/1min22s
Max power 3828W/44s 4028W/47s 4985W/42s 5423W/45s 4790W/1min22s
Max thrust 10.05kg 10.14kg 14.99kg 14.34kg 11.49kg
Resistance 27.5mΩ 11.3mΩ 22mΩ 17.2mΩ 7.8mΩ
Wire Size Enamelled Wire Output Enamelled Wire Output Enamelled Wire Output Enamelled Wire Output Enamelled Wire Output
Wire length 100mm 100mm 100mm 100mm 100mm
Weight（With wire） 430g 435g 582g 579g 590g
Recommended Props/ESCs
Recommended ESC PLATINUM 130A V4
PLATINUM 180A V5		 PLATINUM 120A V4 PLATINUM 150A V5 PLATINUM 130A V4 PLATINUM 180A V5 PLATINUM 130A V4 PLATINUM 180A V5 PLATINUM 120A V4 PLATINUM 150A V5
Propeller 10S：20x8E，20x10E 12S：17x8E，18x8E，18x10E 6S：18x10E，19x10E，20x10E 8S：16x10E，17x10E，18x10E 10S：20x10E，22x10E，22x12E 12S： 20x8E， 20x10E，22x10E 10S：20x10E，22x10E 12S：18x10E，19x10E，20x10E 6S：19x10E，20x10E，22x10E 8S：17x10E，18x10E，18x12E
Support

Manuals & Documents

5230 LOAD PERFORMANCE PARAMETERS
5220 LOAD PERFORMANCE PARAMETERS

FAQ

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends
