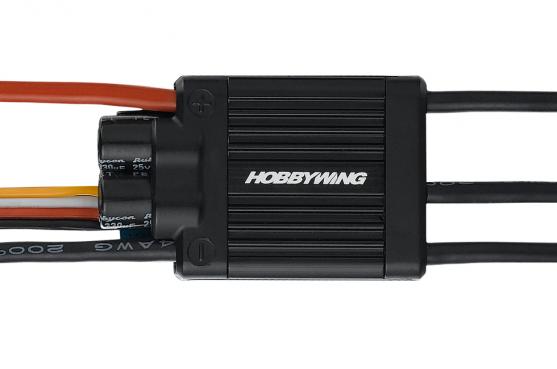

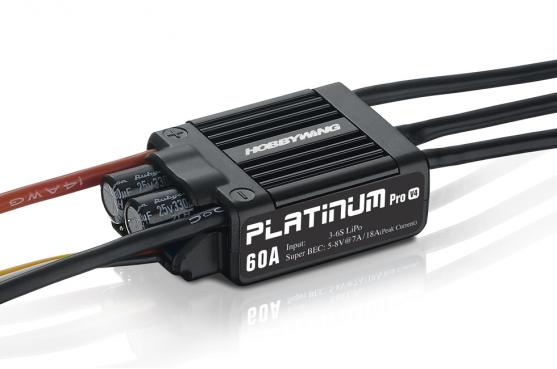

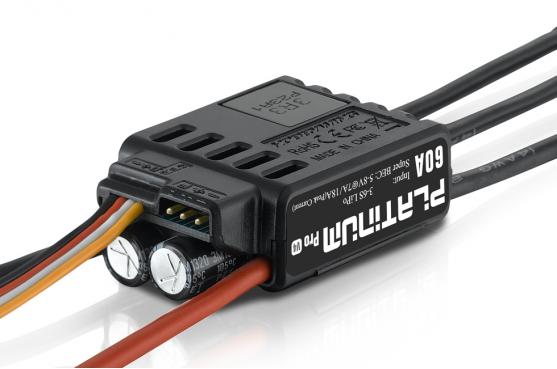

Platinum 60A V4

Excellent Motor Governing Speed

High-performance 32-bit processor with a running frequency of 72MHz
combined with advanced algorithm optimizes the speed governing.
Together with the adjustable governor parameters guarantees every
pilot a precise control experience.

Excellent Motor
Governing speed

High Voltage Built-in BEC

The built-in switch mode BEC with an adjustable voltage range from 5V to 8V,
a continuous current of over 7A and peak current of 18A can supply enough
power for your servos to operate efficiently.

High voltage
built-in BEC

DEO Technology

The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling")
technology implemented in the ESC has multiple advantages.
● Quicker response to the throttle change.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation.

Rapider throttle
response

Higher efficiency and
longer flight time

Lower temperature rise

Temperature Comparison

Run Time

Platinum 50A V3

Platinum 60A V4

1 minute

41.2°C

36.7°C

2 minute(s)

48.0°C

39.2°C

4 minute(s)

54.5°C

44.0°C

6 minute(s)

59.0°C

46.2°C

8 minute(s)

61.5°C

47.4°C

10 minute(s)

62.9°C

48.7°C

Test Equipment & Conditions:

Platinum 60A V4 ESC (which implemented the DEO technology) ，
Platinum 50A V3 ESC (which didn’t implement the DEO technology)，
Dualsky 5050 size motor, KV=430, throttle amount =85%, input=12.6V, ambient temperature=29℃.

Four Brake Modes

This Platinum 60A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four brake modes. The brake amount is adjustable in
normal brake mode; in proportional brake mode, the brake force will be
automatically allocated based on the position of the radio throttle stick; in reverse
brake mode, the motor rotation can be changed via a spare transmitter channel.

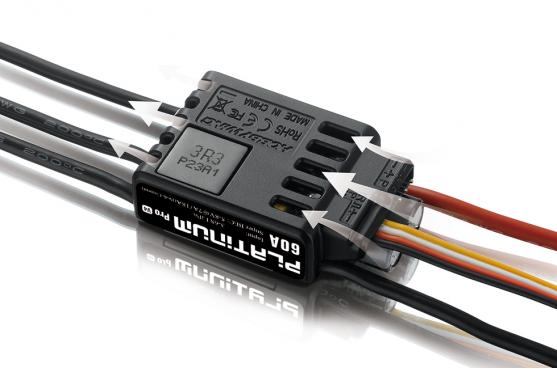

Multiple Protections

Multiple protection features include, ESC thermal, capacitor thermal
(HOBBYWING-patented technology), ESC overload, throttle signal loss (or Fail Safe),
and low voltage cutoff effectively prolongs the service life of the ESC.

Multiple Protections

Other Features

A separate programming port for connecting the programmer on this ESC allows user to
● Program ESC,
● Check flight data include minimum voltage, maximum temperature, standardized RPM and
speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
● Upgrade ESC firmware with a multifunction LCD program box or a Wi-Fi Module & our Apple/Android phone App.

Other Features

Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications
Product Name Platinum 60A V4
Product Number 30215100
Type Brushed/Brushless

High Voltage/Regular		 BL

Regular
Specifications Cont./Peak Current

Input Voltage

BEC Output		 60A/80A

3-6S LiPo

Switch Mode:5-8V,7A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors		 Red-14AWG-100mm*1/Black-14AWG-100mm*1

Black-14AWG-75mm*3

No

3.5mm Gold Connectors (Female)
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port		 Not Supported

Not Supported

Not Supported

Supported

Supported

Supported

Program/Throttle Wire
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight		 48.0x30.0x15.5mm

49g
Applications 450-480 Class Heli (Main Blade: 325-360mm）
