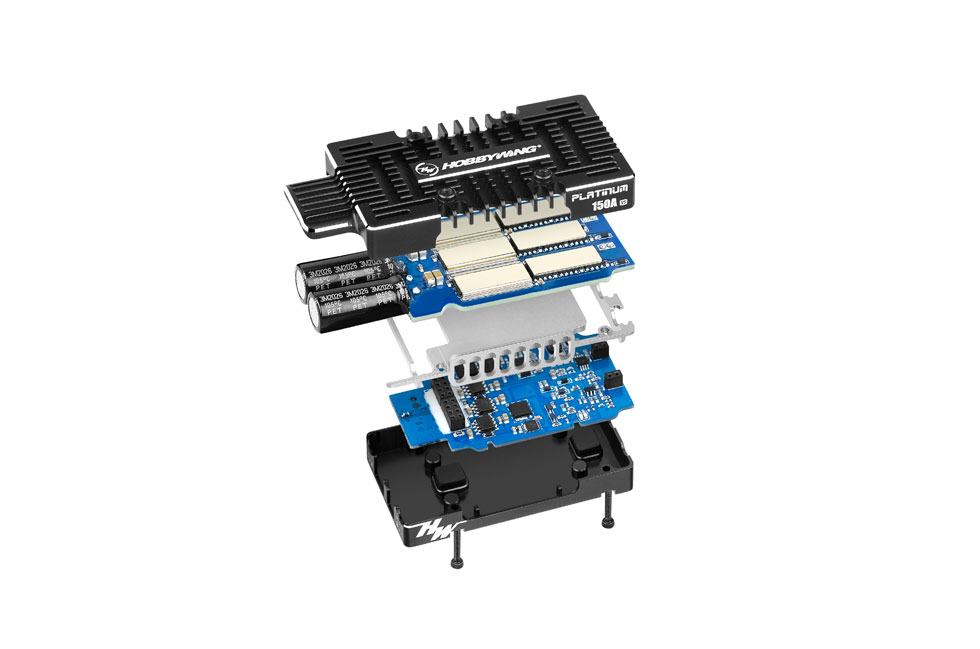

Two-sided hollow
cooling structure
The two-sided structure of the circuit board has been re-designed to improve heat dissipation. The "open" design has allowed for better internal airflow circulation, resulting in a better cooling effect. Using thermal conductive tape and an additional heatsink would prolong the life and improves heat dissipation on the external capacitors. The thermal scale duct design has enhanced the cooling effect for the ESC to work cooler and more stable in the most extreme of conditions.
Note: the double-sided hollow heat dissipation
structure is patented.
VBar Telemetry Ready
The Platinum 150A V5 is equipped with Mikado VBar Control and is
VBar Telemetry Ready able to monitor data of their electronics by its Fully Telemetry functions.
VBar Telemetry Ready
Smaller size,Stronger flow resistance
The newly redesigned circuity has a more robust thermal structure in order for the Platinum 150A V5 to
achieve a stronger flow resistance (150A/instant, 180A flow resistance). The smaller footprint design
further improves assembly process, resulting in the ESC from touching the head cover (canop).
Smaller size
Superior fixed speed capabilities
The 32-bit processor combines with advanced algorithms from
the Hobbywing engineers are key to maximizing the full potential
of the ESC. The fixed speed sensitivity is fully adjustable. This
allows users to quickly find the suitable settings to suit their
flying style, performing advanced aerobatic maneuvers and 3D
flying at ease with precision.
Superior fixed
speed capabilities
High power BEC
The high power BEC is built-in and fully programmable. The
output voltage is adjustable between 5.4-8.4V (0.1v step) and
has a continuous output current of more than 10A. The instant
output current has been increased to 30A and will provide an
abundance of power consistently throughout the entire flight.
High power BEC
Added safety protection
It has multiple protection functions such as;
Start-up protection, current protection, temperature
protection, overload protection, throttle signal loss
protection, input voltage protection, and effectively
extending the life of the ESC.
Added safety
protection
Start-up Protection
ESC Thermal
Protection
Overload
Protection
Overload Protection
Throttle Signal
Loss Protection
Abnormal Input
Voltage Protection
Synchronous rectifier technolo
gy with multiple advantages
The ESC features optimized synchronous rectifier drives up
efficiency (DEO---driving Efficiency Optimization, or Active
Freewheeling), with multiple benefits:
● Faster throttle response, increased flight stability and
flexibility at the same time
● Higher drive efficiency and longer battery life
● Lower temperature adjustment, more reliable
aster throttle response,
increased flight stability and
flexibility at the same time
Higher drive efficiency
and longer battery life
Lower temperature
adjustment,
more reliable
Additional features
Comes with a stand-alone parameter setting interface that expands a wide
range of functions:
● Connect the multi-function LCD setup box or OTA wireless module through the
mobile phone for parameter setup With flight data recording function such as;
● Minimum voltage, maximum current, maximum temperature data, calibration
speed, speed curve table (helicopter storage fixed speed mode)
● Upgradable firmware (LCD parameter setup box or OTA module required).
Additional features
Multiple braking modes added to fixed wing flights
There are four modes of braking in total. They are; Brake off, Ordinary brake, Proportional brake and Reverse brake.
● In the brake mode, the brake strength can be adjusted.
● In the proportional brake mode, brake strength is automatically assigned though the throttle rocker position.
● In reverse brake, the remote control system is able to achieve and control forward and reverse.
Multiple braking modes
added to fixed wing flights
Ordinary brake
Brake off
Reverse brake
Proportional brake
Product Name | |
Product Number | |
Type | Brushed/Brushless High Voltage/Regular |
Specifications | Cont./Peak Current Input Voltage BEC Output |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port |
Firmware | Firmware Upgrade |
Size & Weight | Size Weight |
Product Name | Platinum 150A V5 | |
Product Number | 30203500 | |
Type | Brushed/Brushless High Voltage/Regular |
BL Regular |
Specifications | Cont./Peak Current Input Voltage BEC Output |
150A/180A 3-8S LiPo Switch Mode:5-8V,10A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-10AWG-150mm*1/Black-10AWG-150mm*1 Black-12AWG-120mm*3 No 4.0mm Gold Connectors (Female) |
ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port |
Not Supported Not Supported Not Supported Supported Supported Separate Program Port |
Firmware | Firmware Upgrade | Supported |
Size & Weight | Size Weight |
83x37x21mm 140g |
Part Number: 30850500
Size: 25x13x6mm
Applications: Some of Platinum V4/V4.1/V5
series aircraft ESC ;
Some of XeRun series of car ESCs.
* For details, please refer to ESC manual to
ensure if the ESC can work with this device.

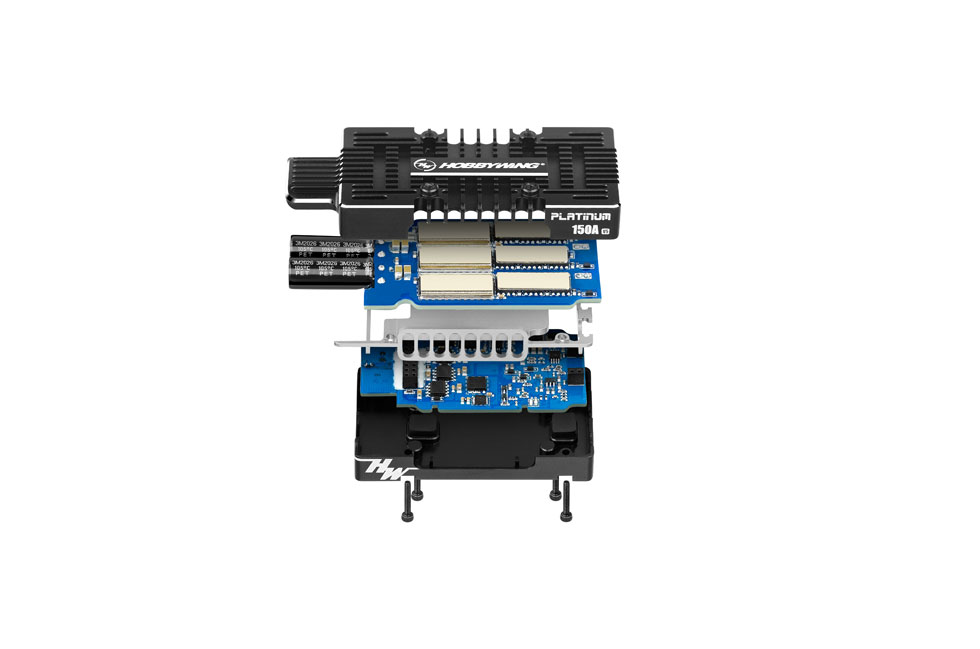

Two-sided hollow cooling structure
The two-sided structure of the circuit board has been re-designed to improve heat dissipation. The “open” design has allowed for better internal airflow circulation, resulting in a better cooling effect. Using thermal conductive tape and an additional heatsink would prolong the life and improves heat dissipation on the external capacitors. The thermal scale duct design has enhanced the cooling effect for the ESC to work cooler and more stable in the most extreme of conditions.
Two-sided hollow
cooling structure
VBar Telemetry Ready
The Platinum 150A V5 is equipped with Mikado VBar Control and is able to monitor data of their electronics by its Fully Telemetry functions.
VBar Telemetry Ready
Smaller size,Stronger flow resistance
The newly redesigned circuity has a more robust thermal structure in order for the Platinum 150A V5 to achieve a stronger flow resistance (150A/instant, 180A flow resistance). The smaller footprint design further improves assembly process, resulting in the ESC from touching the head cover (canop).
Smaller size
Superior fixed speed capabilities
The 32-bit processor combines with advanced algorithms from the Hobbywing engineers are key to maximizing the full potential of the ESC. The fixed speed sensitivity is fully adjustable. This allows users to quickly find the suitable settings to suit their flying style, performing advanced aerobatic maneuvers and 3D flying at ease with precision.
Superior fixed
speed capabilities
High power BEC
The high power BEC is built-in and fully programmable. The output voltage is adjustable between 5.4-8.4V (0.1v step) and has a continuous output current of more than 10A. The instant output current has been increased to 30A and will provide an abundance of power consistently throughout the entire flight.
High power BEC
Added safety protection
It has multiple protection functions such as; Start-up protection, current protection, temperature protection, overload protection, throttle signal loss protection, input voltage protection, and effectively extending the life of the ESC.
Added safety
protection
Synchronous rectifier technolo gy with multiple advantages
The ESC features optimized synchronous rectifier drives up efficiency (DEO---driving Efficiency Optimization, or Active Freewheeling), with multiple benefits:
● Faster throttle response, increased flight stability and flexibility at the same time
● Higher drive efficiency and longer battery life
● Lower temperature adjustment, more reliable
aster throttle response,
increased flight stability and
flexibility at the same time
Higher drive efficiency
and longer battery life
Lower temperature
adjustment,
more reliable
Additional features
Comes with a stand-alone parameter setting interface that expands a wide range of functions:
● Connect the multi-function LCD setup box or OTA wireless module through the mobile phone for parameter setup With flight data recording function such as;
● Minimum voltage, maximum current, maximum temperature data, calibration speed, speed curve table (helicopter storage fixed speed mode)
● Upgradable firmware (LCD parameter setup box or OTA module required).
Additional features
Multiple braking modes added to fixed wing flights
There are four modes of braking in total. They are; Brake off, Ordinary brake, Proportional brake and Reverse brake.
● In the brake mode, the brake strength can be adjusted.
● In the proportional brake mode, brake strength is automatically assigned though the throttle rocker position.
● In reverse brake, the remote control system is able to achieve and control forward and reverse.
Multiple braking modes
added to fixed wing flights
Product Name | Platinum 150A V5 | |
Product Number | 30203500 | |
Type | Brushed/Brushless High Voltage/Regular |
BL Regular |
Specifications | Cont./Peak Current Input Voltage BEC Output |
150A/180A 3-8S LiPo Switch Mode:5-8V,10A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-10AWG-150mm*1/Black-10AWG-150mm*1 Black-12AWG-120mm*3 No 4.0mm Gold Connectors (Female) |
ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port |
Not Supported Not Supported Not Supported Supported Supported Separate Program Port |
Firmware | Firmware Upgrade | Supported |
Size & Weight | Size Weight |
83x37x21mm 140g |
Product Name | Platinum 150A V5 | |
Product Number | 30203500 | |
Type | Brushed/Brushless High Voltage/Regular |
BL Regular |
Specifications | Cont./Peak Current Input Voltage BEC Output |
150A/180A 3-8S LiPo Switch Mode:5-8V,10A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-10AWG-150mm*1/Black-10AWG-150mm*1 Black-12AWG-120mm*3 No 4.0mm Gold Connectors (Female) |
ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module Program Port |
Not Supported Not Supported Not Supported Supported Supported Separate Program Port |
Firmware | Firmware Upgrade | Supported |
Size & Weight | Size Weight |
83x37x21mm 140g |
