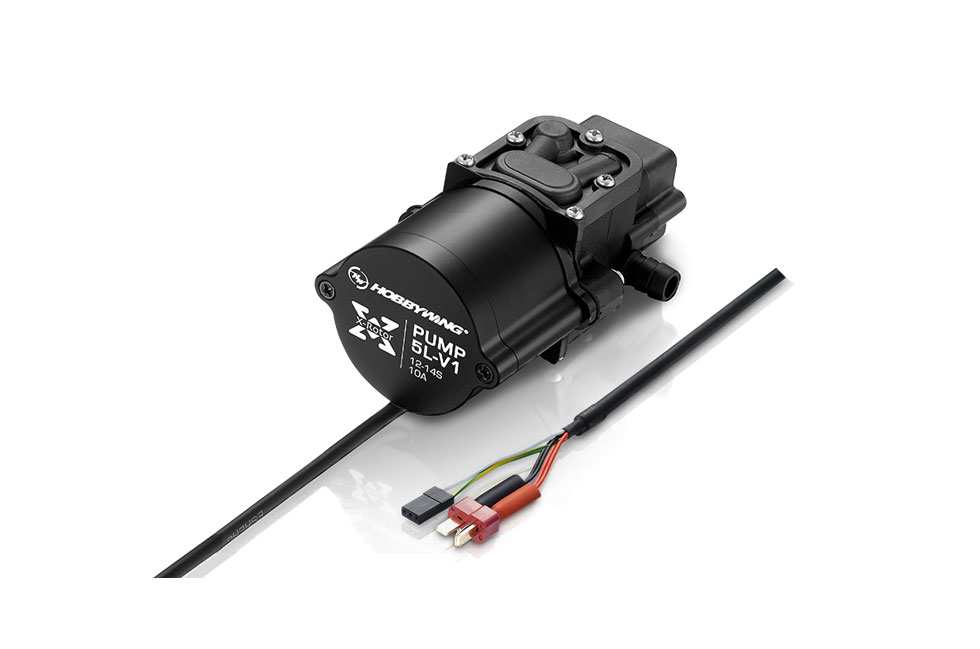

One-piece Brushless Water Pump 5L

High life brushless water pump

The Brushless water pump is approximately 3-5 times the life of an ordinary water pump.
It can be used for more than 500 hours without worrying about pump damage, frequent
replacementand any delay in operations. This helps to reduce after-sales repair and replacement costs.

Long Service Life

Double protection, Stable and Durable

The pump is integrated with both temperature and current protection. In an event when the pump is working abnormally, a sudden surge in current or temperature of more than 110 °C, the ESC will disconnect and restart. These protection functions effectively reduce the loss of overheating the water pump due to sudden failure.

Stable and Durable

The overall pump protection is IP67

Use water to keep clean and tidy and further reduces pesticide corrosion.

Product Name
Brushless water pump COMBO-PUMP-5L-brushless-10A-14S-V1
Specifications
Working Voltage 12-14S(DC44-60.9V)
Rated Power 120W
Working Pressure 0.35Mpa
Working Current ≤2.5A
Data of opening 5L/min
Protection Class IP67
Weight 388g(Appox without wire 338g)
Size 123x76x52mm
Operating PWM Width 1050-1950μS
