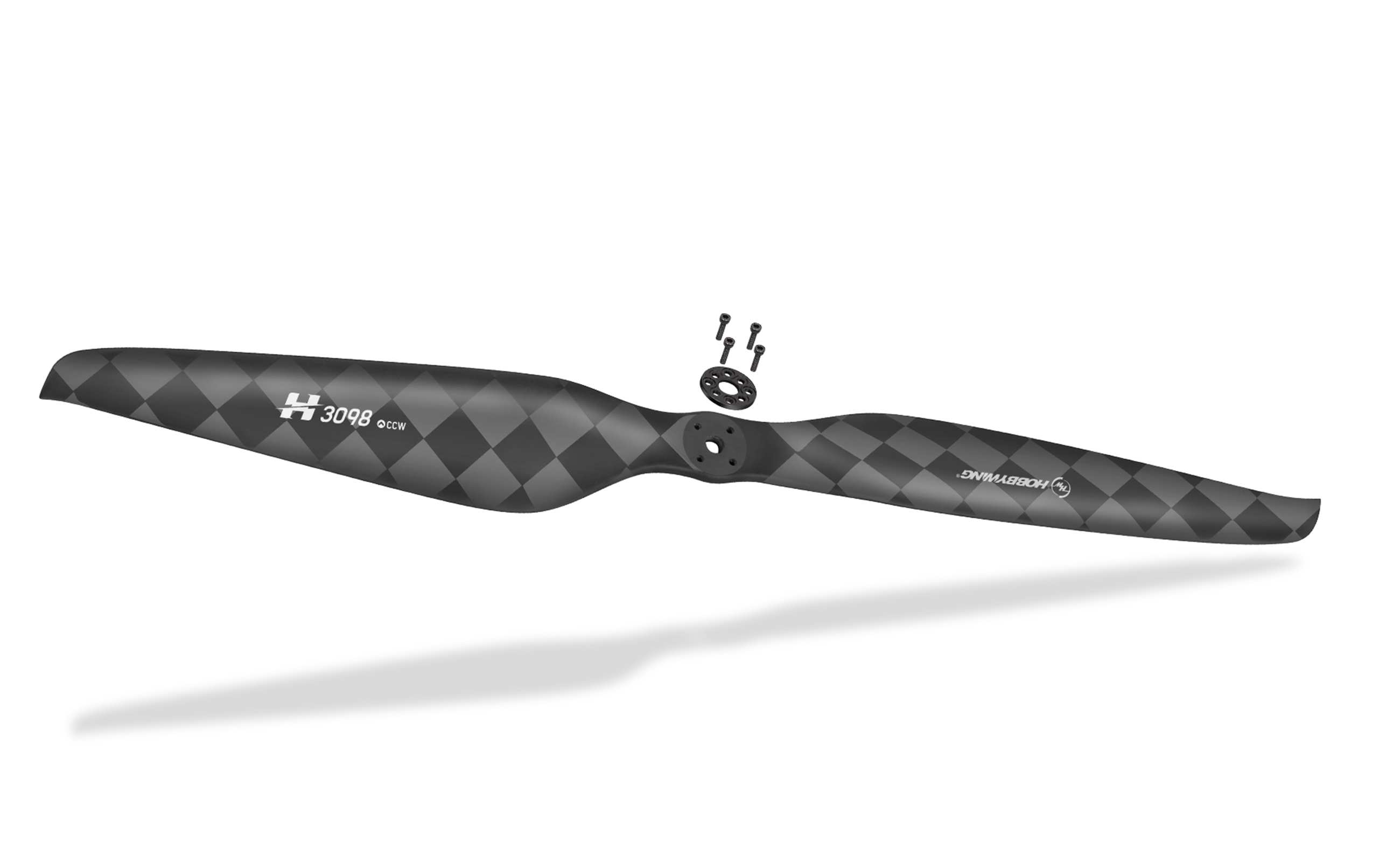

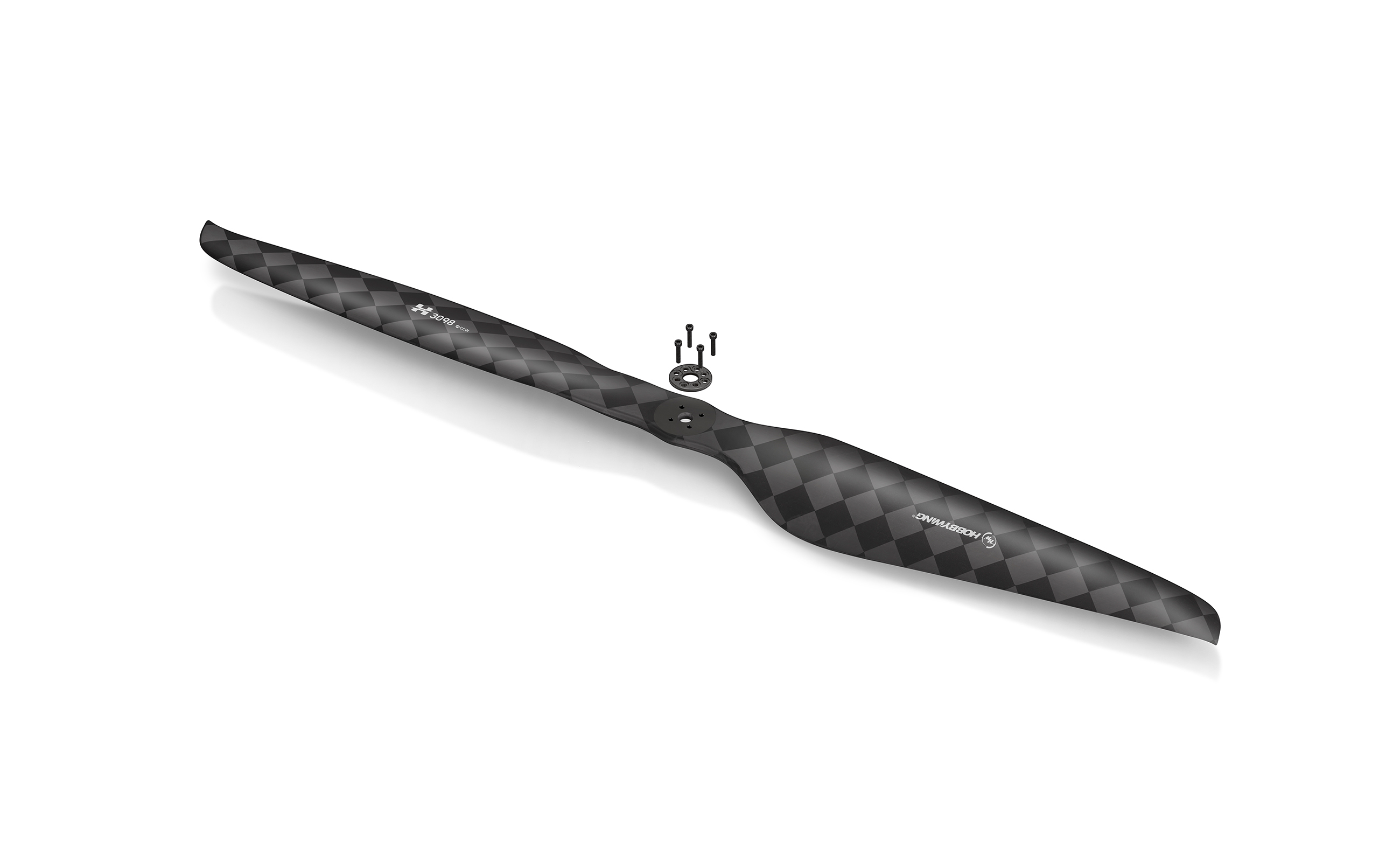

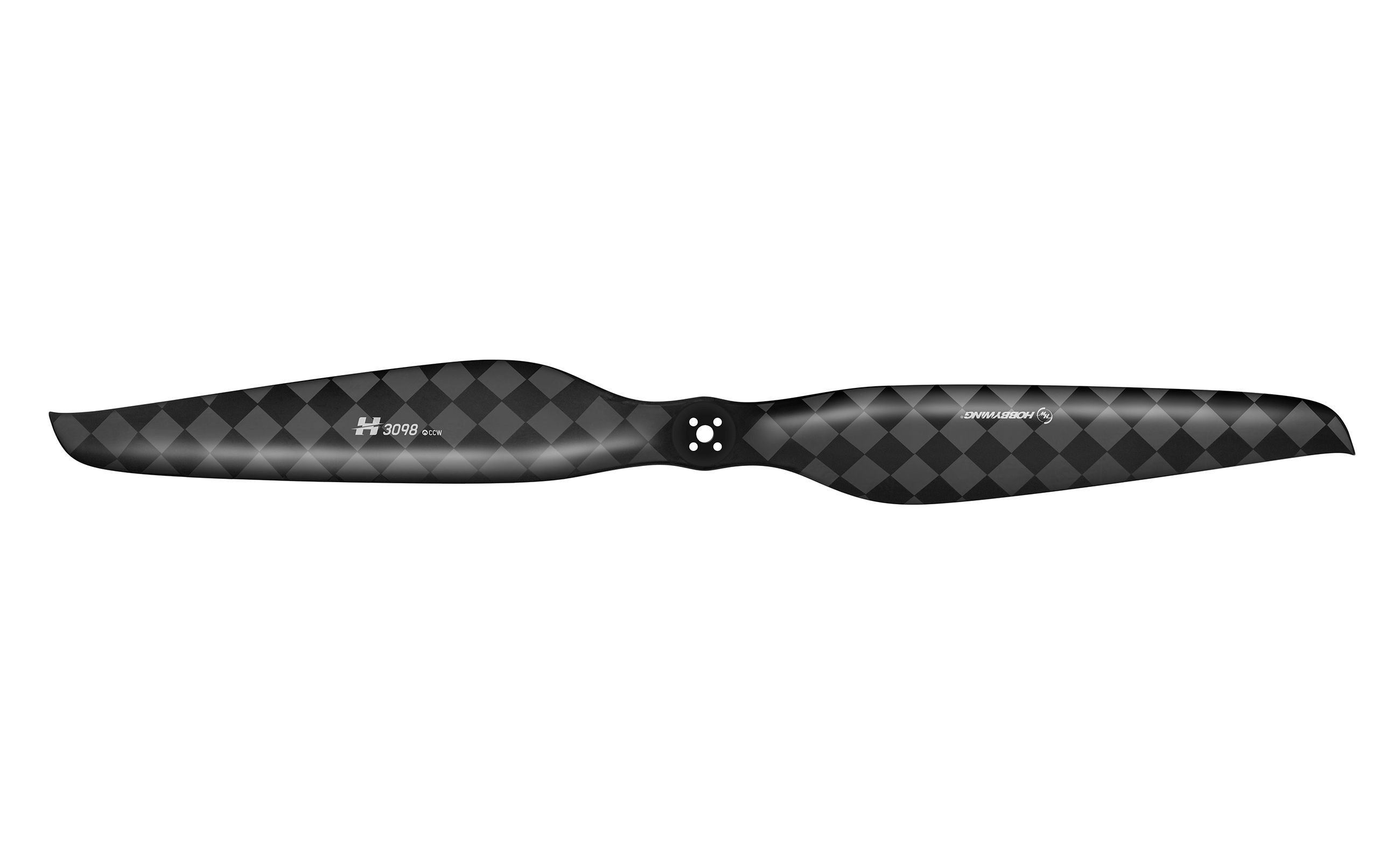

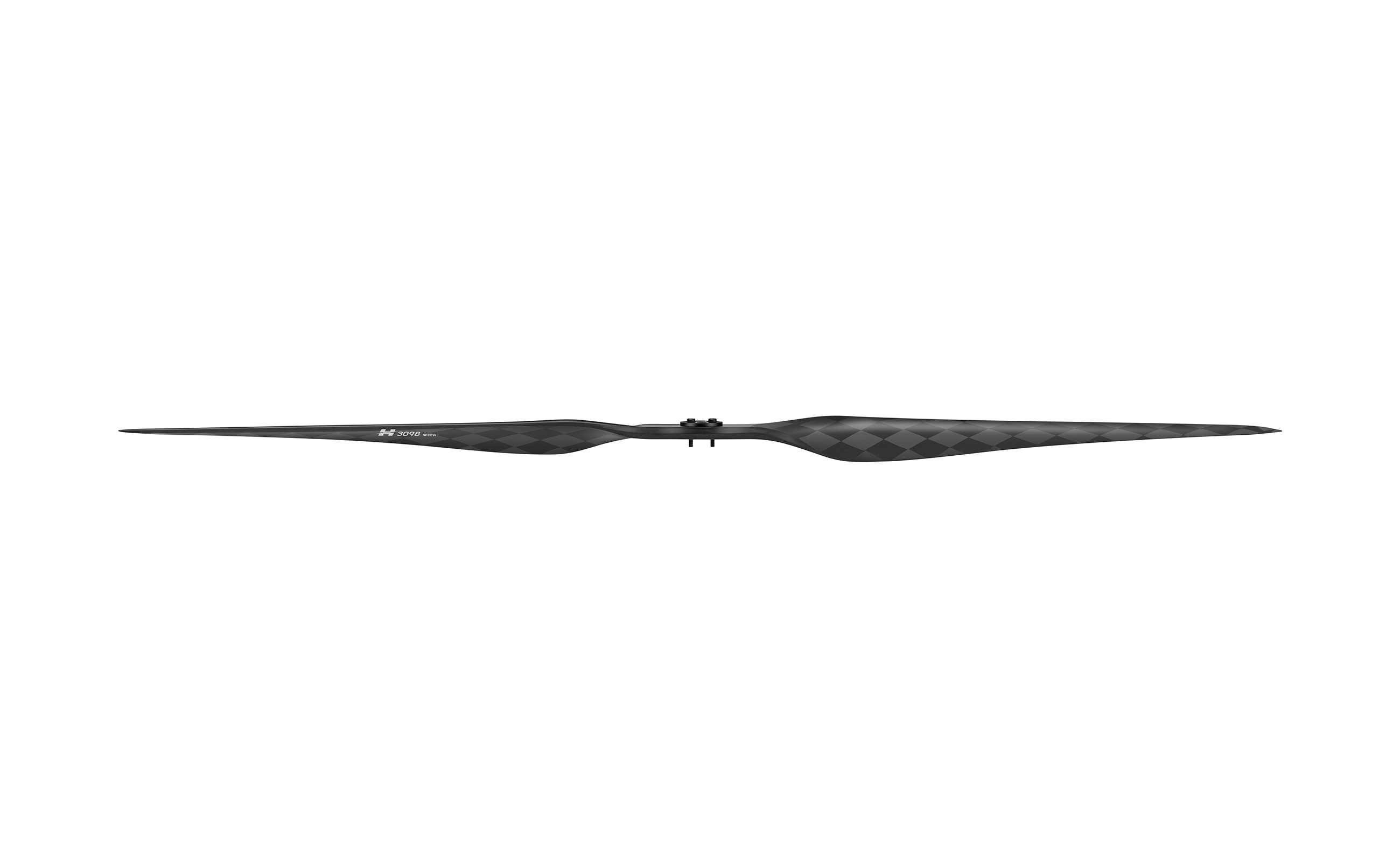

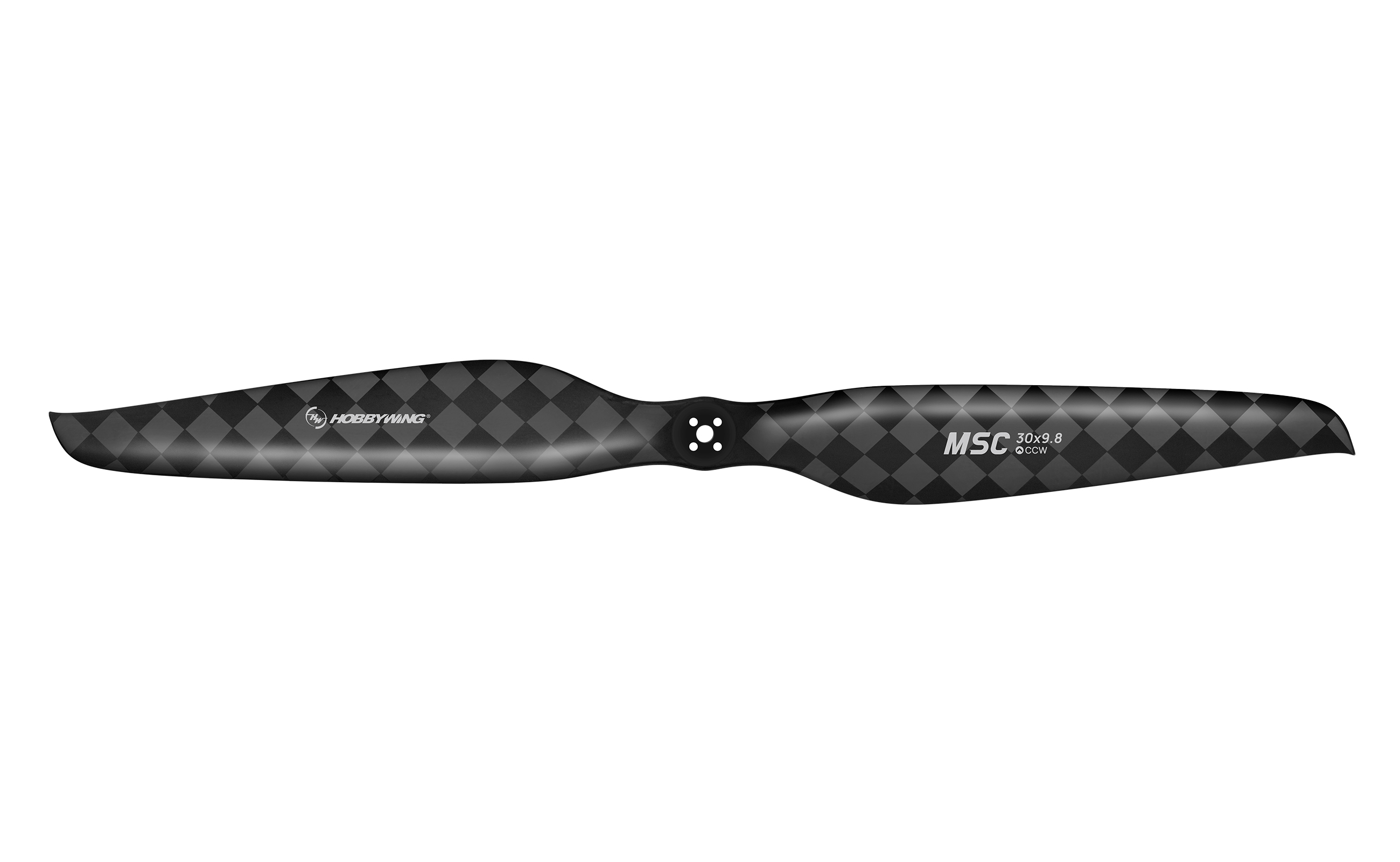

ML 30*9.8"
ML30*9.8"
Matt Ultra-Light Version

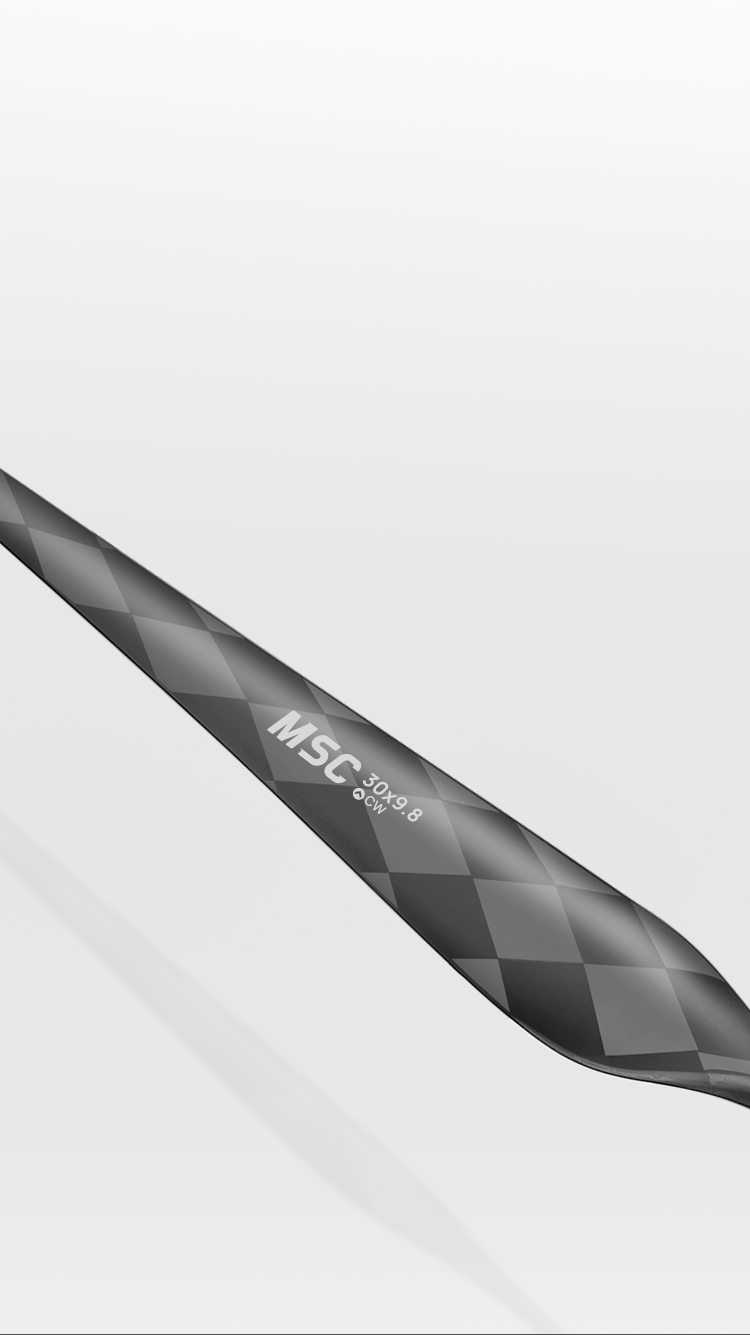

Made of Imported High-strength Carbon Fiber Material
  • high specific strength
  • corrosion resistance
  • high specific modulus
  • fatigue resistance

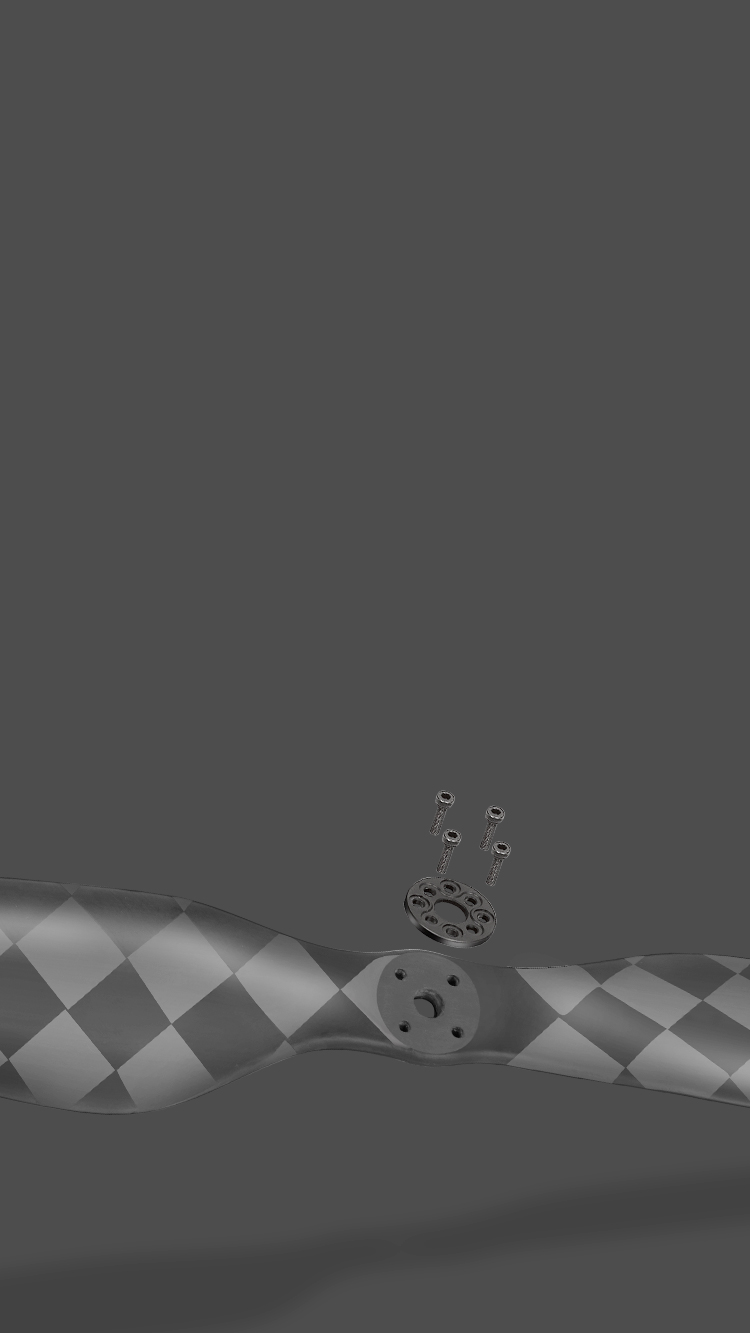

Features Extremely light Weight
and Low Moment of Inertia.

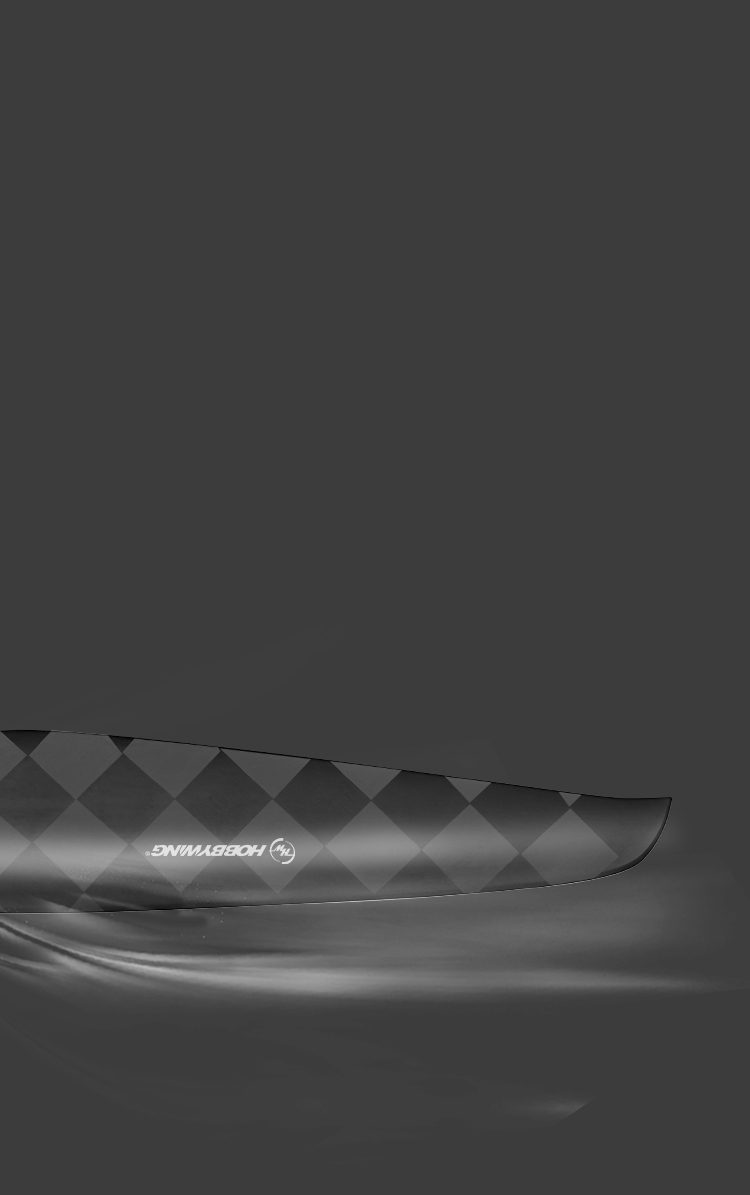

Excellent Aerodynamic Airfoil
and Blade tip Winglet Design
Delaying airflow separation, and improving blade efficiency by 3%-5%
Satisfy the pursuit of high-efficiency applications,
and also meet the use of high-altitude scenarios.
The Power Output is Better With
Hobbywing H Series Motor
Together with the ultimate magnetic circuit matching design.
ML 30*9.8" CAD
Product Name
ML 30*9.8"
Specifications
Blade model ML 30*9.8" Matte ultra-light version
Single weight 71g
Main material carbon fiber + epoxy resin
Surface Technology Matte
Ambient temperature -30~50℃
Storage temperature -10~35℃
Storage humidity ≦85%
Optimal speed range 2250~3300r/min
Commonly used pulling force range 3.5~8kg
Ultimate pulling force 21.1kg（5400RPM）
ML 30*9.8" Load performance parameters
