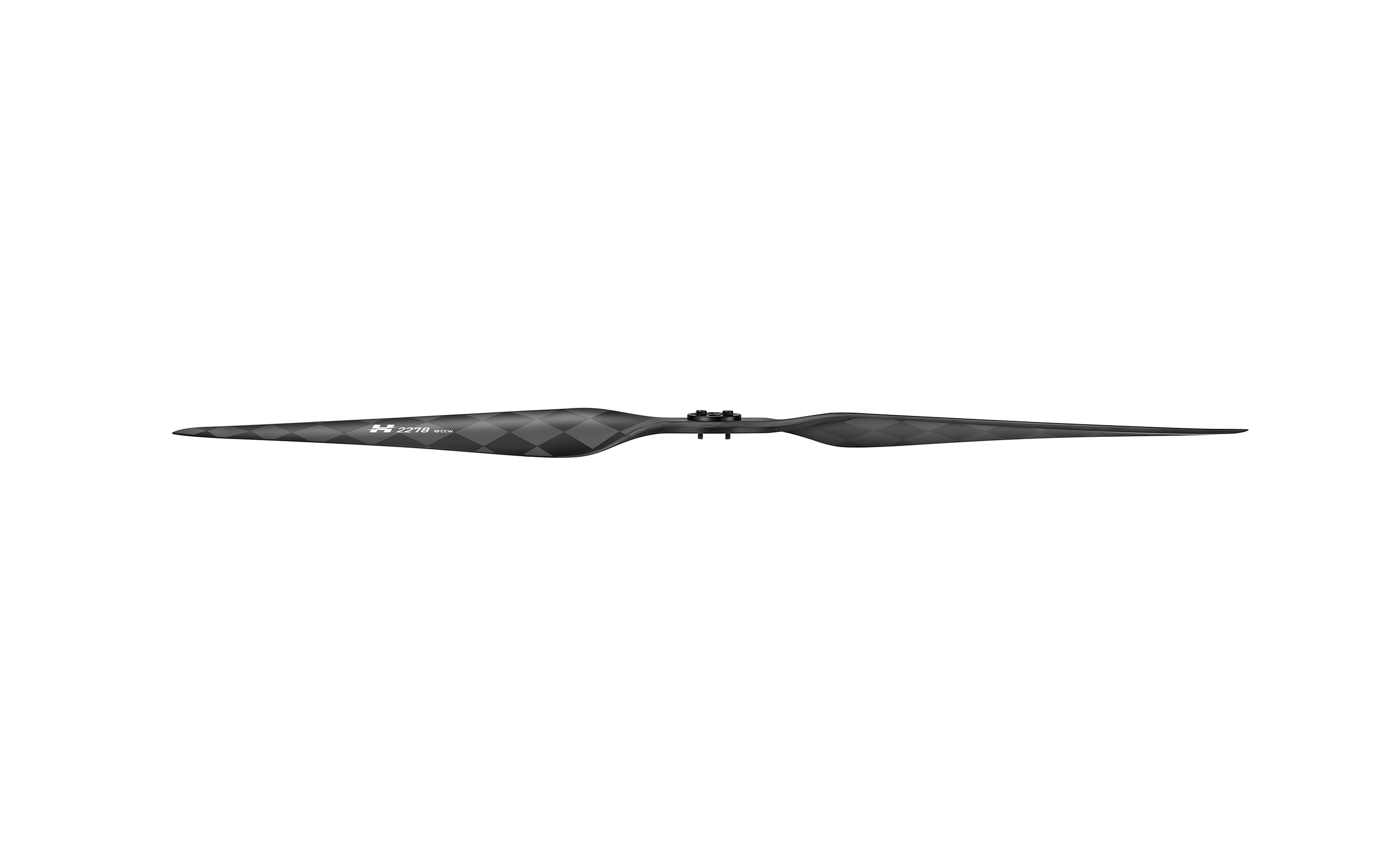

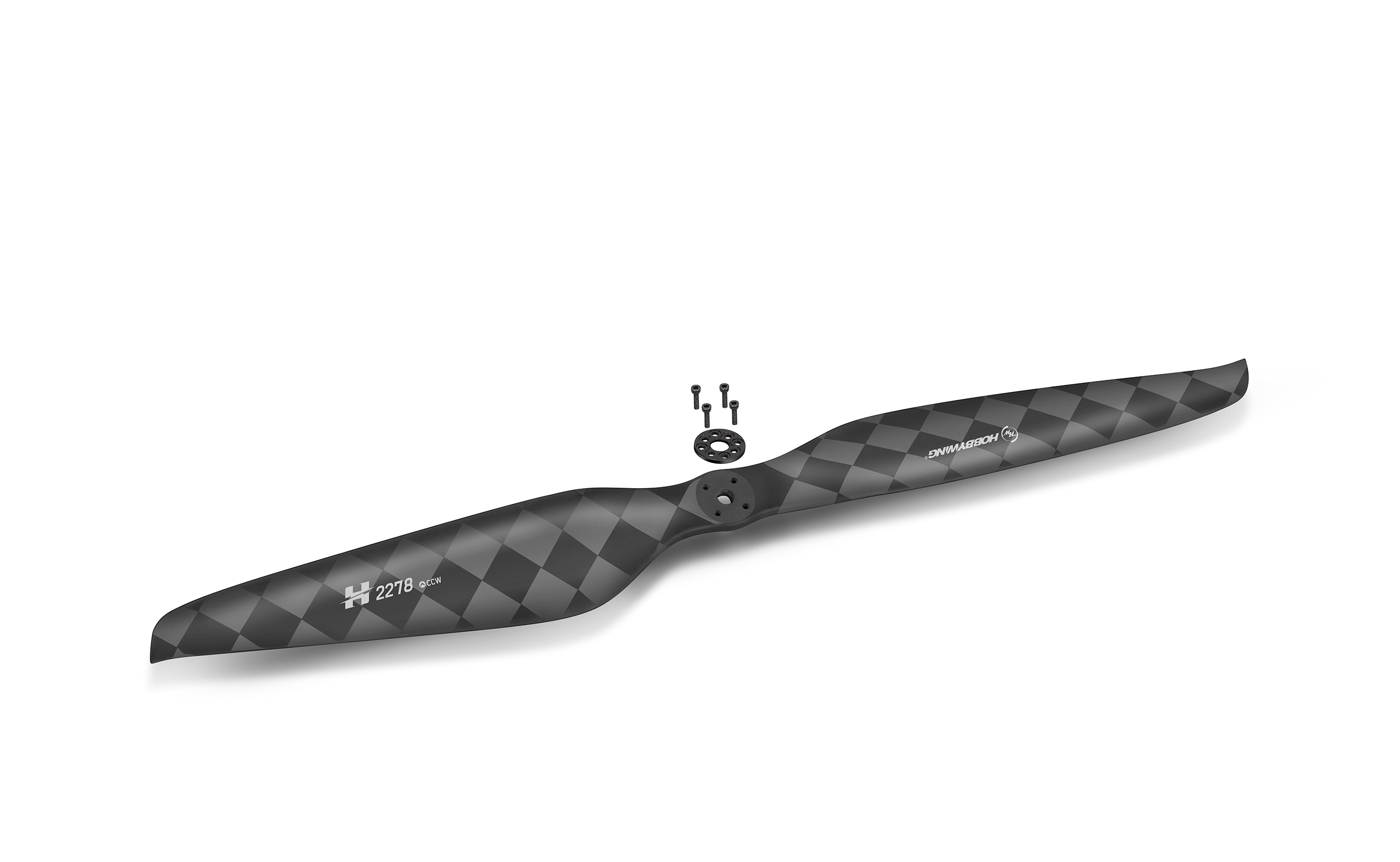

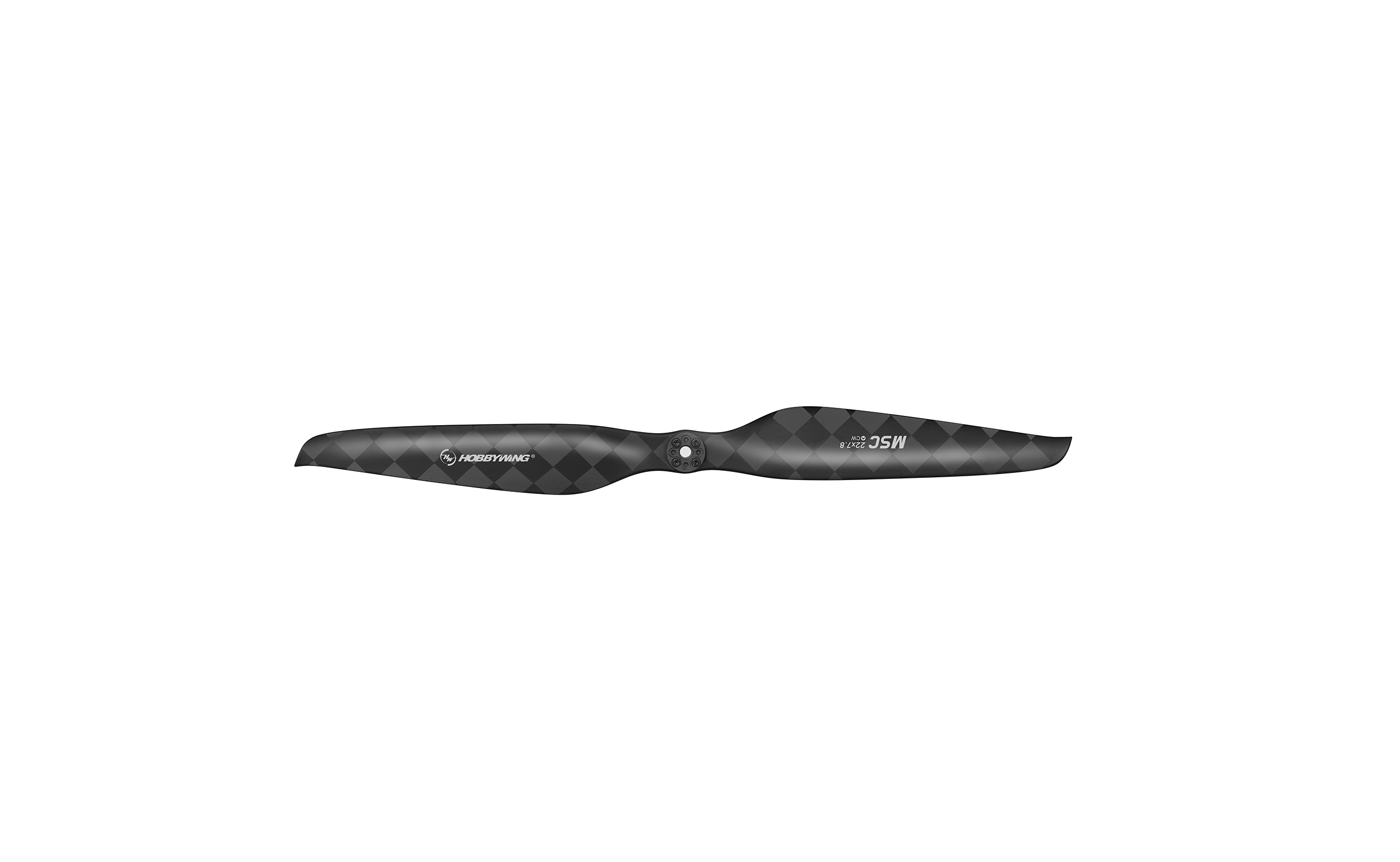

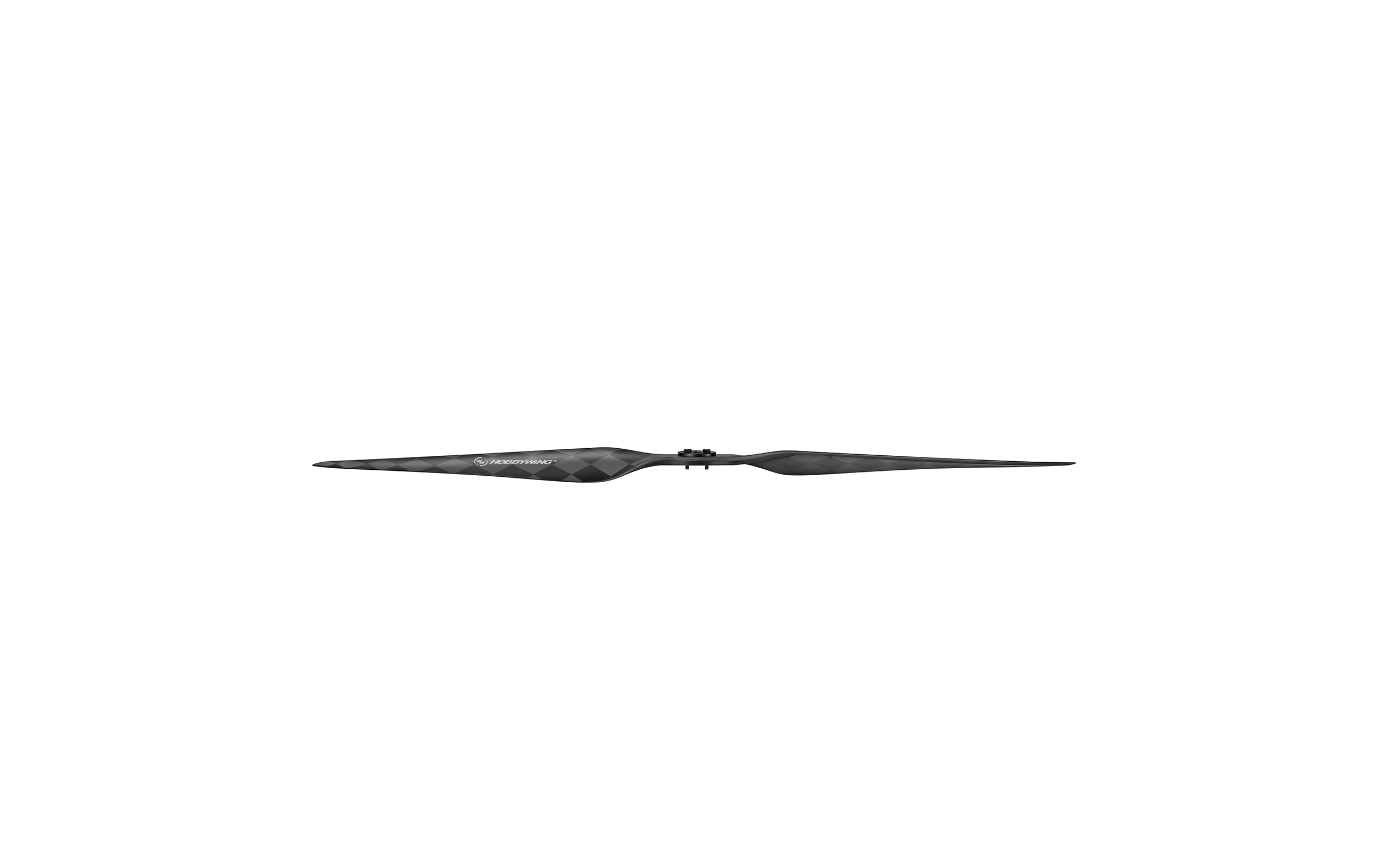

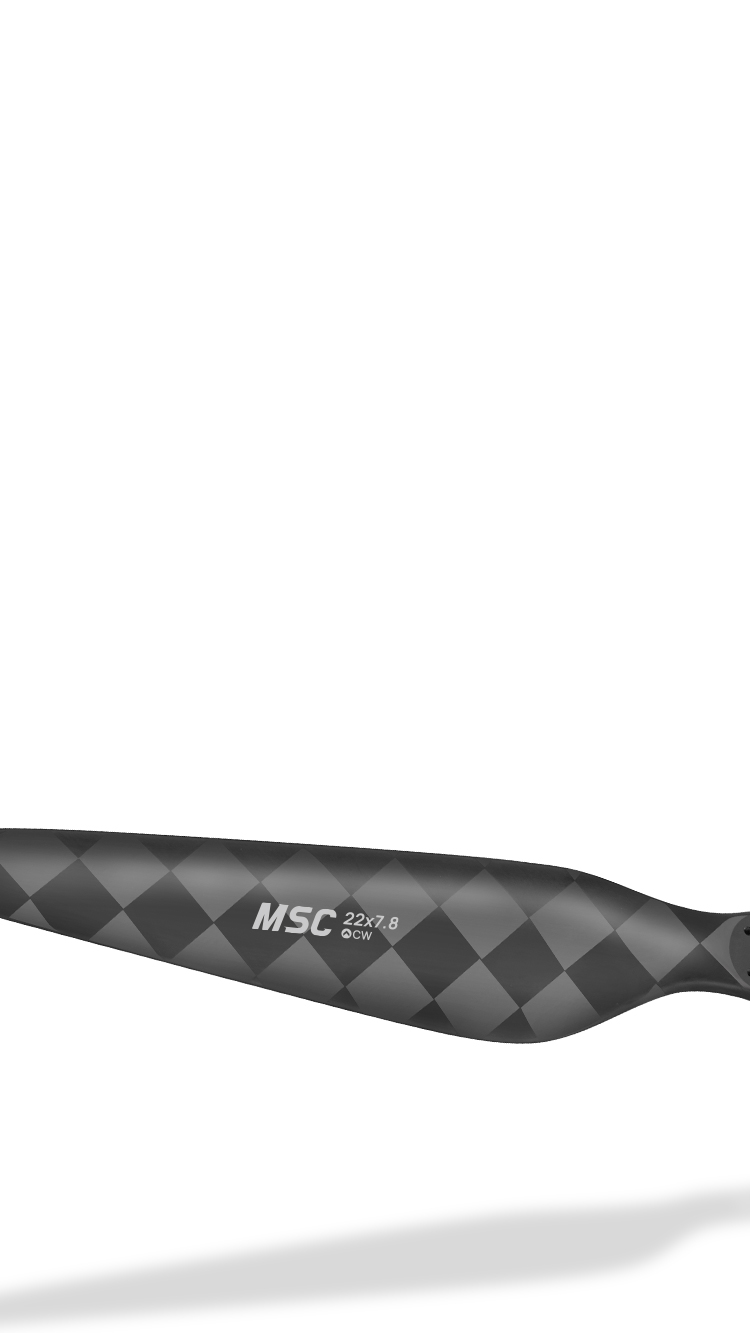

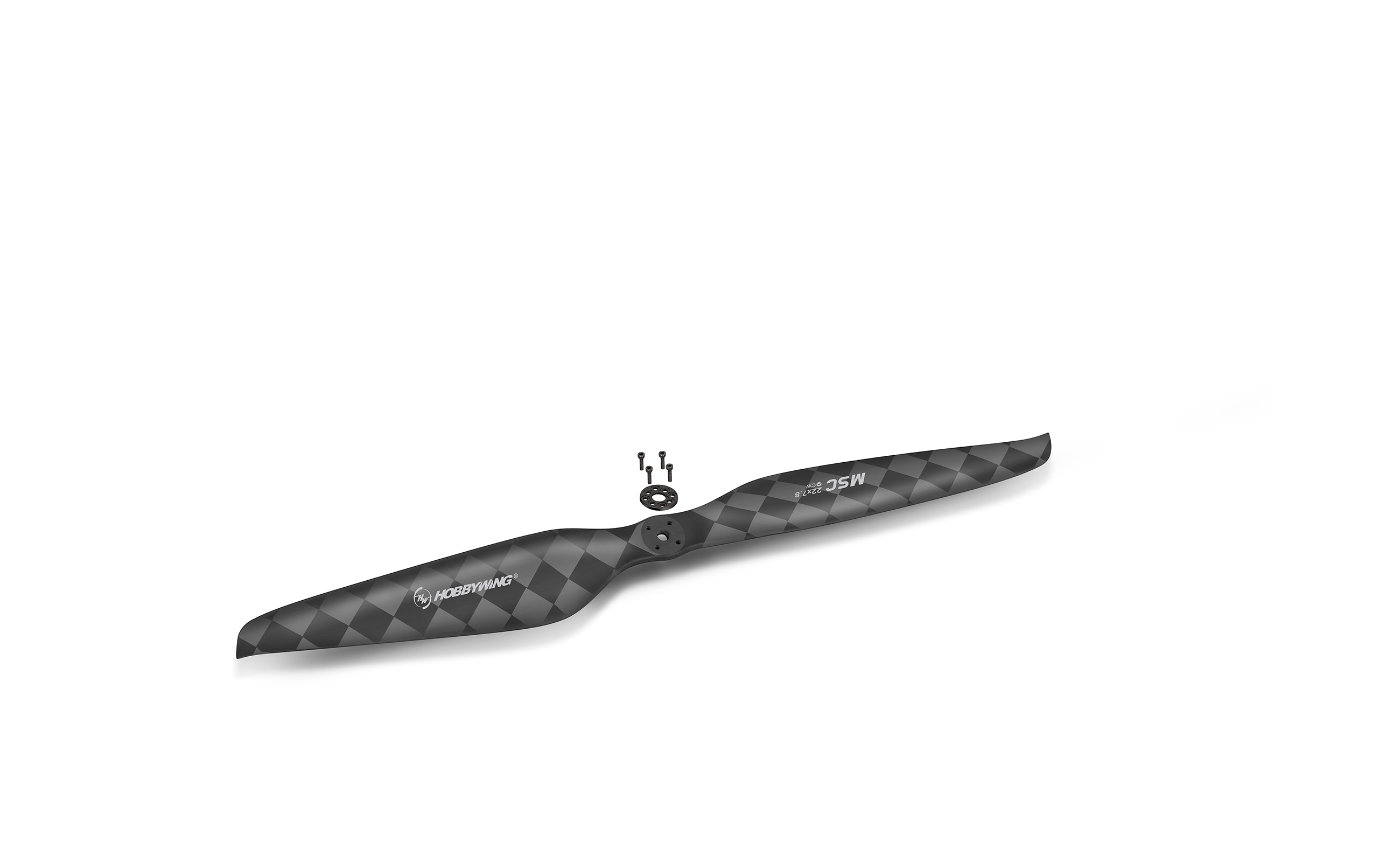

ML 22*7.8"
ML22*7.8"
Matt Ultra-Light Version
Made of Imported High-strength Carbon Fiber Material
  • High specific strength
  • Corrosion resistance
  • High specific modulus
  • Fatigue resistance
Features Extremely Light Weight
and Low Moment of Inertia.
Excellent Aerodynamic Airfoil
and Blade Tip Winglet Design
Delaying airflow separation, and improving blade efficiency by 3%-5%
Satisfy the pursuit of high-efficiency applications,
and also meet the use of high-altitude scenarios.

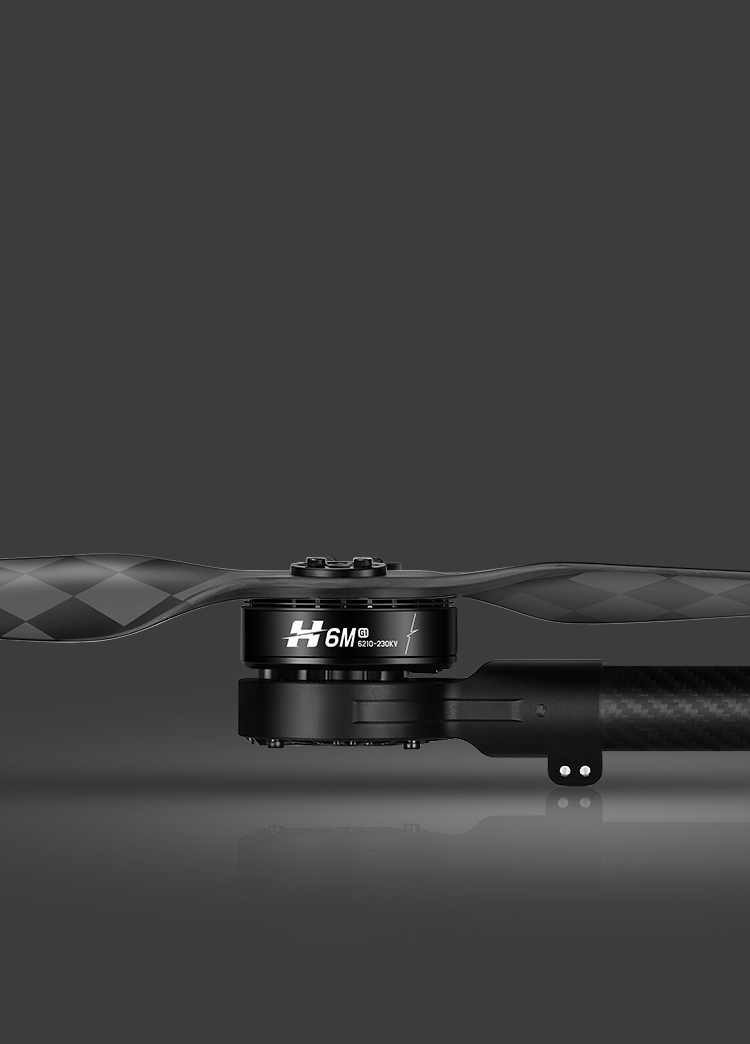

The Power Output is Better With
Hobbywing H Series Motor
Together with the ultimate magnetic circuit matching design.

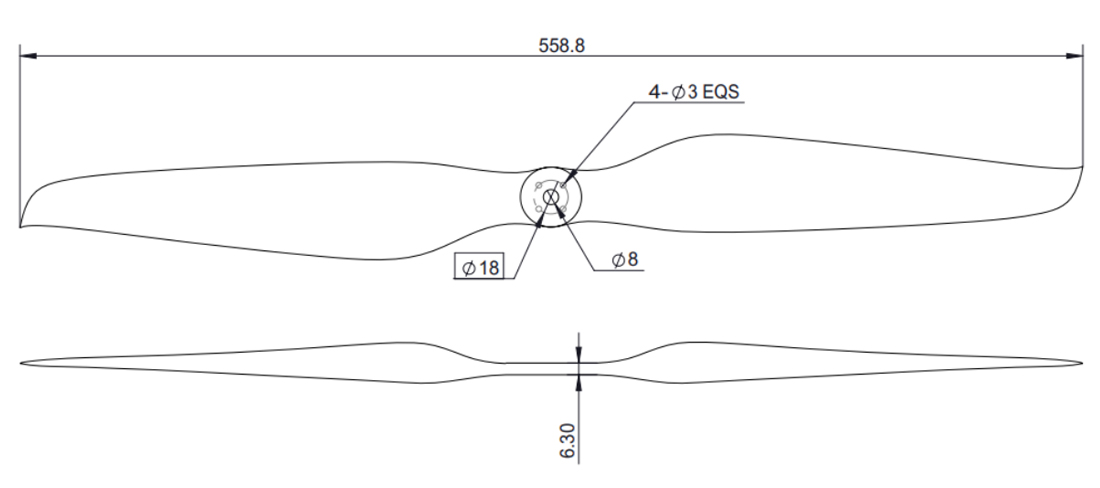

ML 22*7.8" CAD
Product Name
ML 22*7.8"
Specifications
Blade model ML 22*7.8" Matte ultra-light version
Single weight 36g
Main material carbon fiber + epoxy resin
Surface Technology Matte
Ambient temperature -30~50℃
Storage temperature -10~35℃
Storage humidity 60~90%
Optimal speed range 2800~4500r/min
Commonly used pulling force range 2~5kg
Ultimate pulling force 12kg

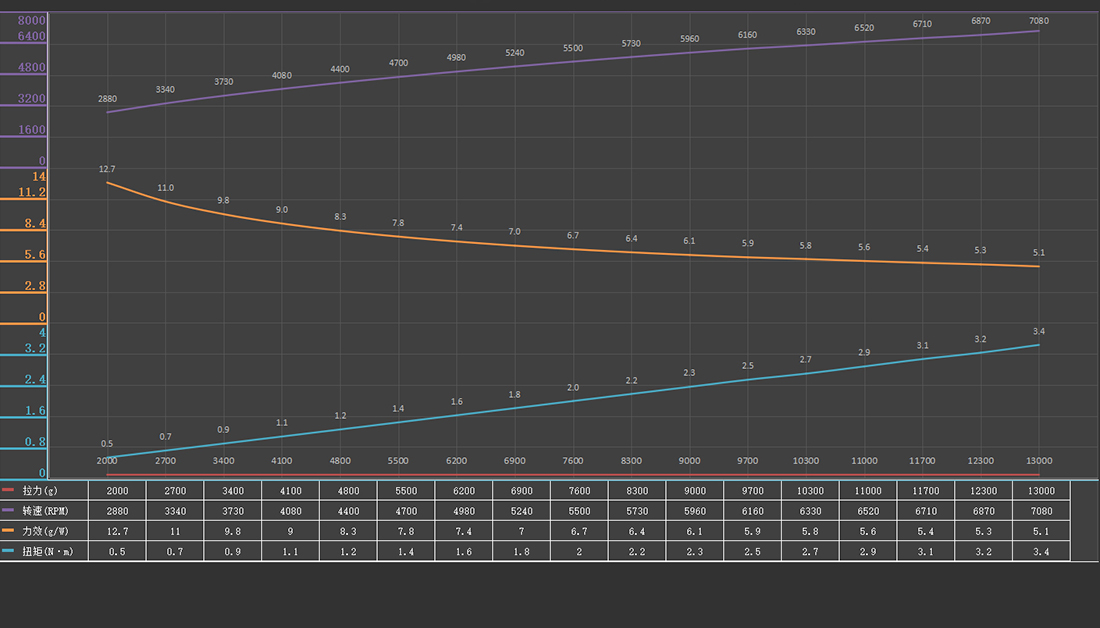

ML 22*7.8" Load performance parameters
