V-8017-160kv
The maximum thrust can reach

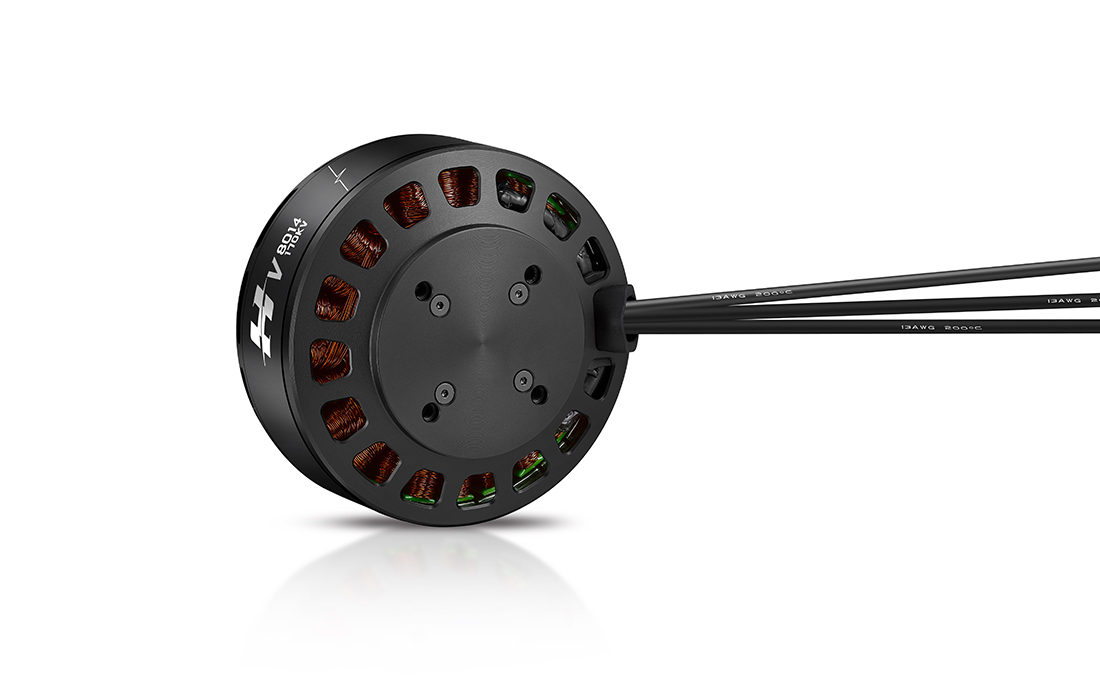

V-8014-170kv
The maximum thrust can reach
| Model |
|
|||||||||||||||||||||||||||||||||||||||
| Specification |
|
|||||||||||||||||||||||||||||||||||||||
| Specification |
|
|||||||||||||||||||||||||||||||||||||||
| Recommended combinations |
|
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
28*9.2" |
32% |
2940 |
6.2 |
283.5 |
2208 |
10.4 |
0.91 |
85°C |
|
33% |
2984 |
6.3 |
289.8 |
2224 |
10.3 |
0.92 |
|||
|
36% |
3331 |
7.4 |
340.5 |
2352 |
9.8 |
1.03 |
|||
|
39% |
3806 |
8.9 |
411.6 |
2515 |
9.2 |
1.18 |
|||
|
42% |
4387 |
10.9 |
501.8 |
2699 |
8.7 |
1.36 |
|||
|
45% |
5056 |
13.3 |
610.8 |
2894 |
8.3 |
1.57 |
|||
|
48% |
5794 |
16.0 |
738.2 |
3091 |
7.8 |
1.80 |
|||
|
51% |
6585 |
19.2 |
884.3 |
3286 |
7.4 |
2.05 |
|||
|
54% |
7415 |
22.8 |
1049.0 |
3477 |
7.1 |
2.31 |
|||
|
57% |
8273 |
26.8 |
1232.0 |
3663 |
6.7 |
2.58 |
|||
|
60% |
9146 |
31.1 |
1432.8 |
3843 |
6.4 |
2.85 |
|||
|
63% |
10028 |
35.8 |
1650.4 |
4018 |
6.1 |
3.13 |
|||
|
66% |
10911 |
40.9 |
1883.7 |
4188 |
5.8 |
3.41 |
|||
|
69% |
11790 |
46.3 |
2131.6 |
4352 |
5.5 |
3.70 |
|||
|
72% |
12664 |
52.0 |
2393.1 |
4509 |
5.3 |
3.98 |
|||
|
75% |
13530 |
57.9 |
2667.6 |
4660 |
5.1 |
4.26 |
|||
|
78% |
14391 |
64.2 |
2955.1 |
4804 |
4.9 |
4.54 |
|||
|
81% |
15250 |
70.7 |
3256.7 |
4940 |
4.7 |
4.82 |
|||
|
84% |
16110 |
77.6 |
3574.2 |
5070 |
4.5 |
5.11 |
|||
|
87% |
16981 |
84.9 |
3911.0 |
5193 |
4.3 |
5.39 |
|||
|
90% |
17870 |
92.8 |
4271.7 |
5312 |
4.2 |
5.69 |
|||
|
100% |
20947 |
123.0 |
5664.5 |
5678 |
3.7 |
6.69 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
46V (12S LiPo) |
29*9.5" |
32% |
2938 |
6.4 |
294.6 |
2066 |
10.0 |
1.01 |
78°C |
|
33% |
3196 |
7.1 |
327.4 |
2148 |
9.8 |
1.09 |
|||
|
36% |
3898 |
9.2 |
424.1 |
2359 |
9.2 |
1.32 |
|||
|
39% |
4528 |
11.3 |
519.9 |
2535 |
8.7 |
1.52 |
|||
|
42% |
5130 |
13.4 |
618.6 |
2693 |
8.3 |
1.72 |
|||
|
45% |
5738 |
15.7 |
724.7 |
2843 |
7.9 |
1.92 |
|||
|
48% |
6376 |
18.3 |
842.7 |
2993 |
7.6 |
2.13 |
|||
|
51% |
7063 |
21.2 |
976.4 |
3144 |
7.2 |
2.35 |
|||
|
54% |
7808 |
24.5 |
1129.2 |
3300 |
6.9 |
2.60 |
|||
|
57% |
8616 |
28.3 |
1303.4 |
3460 |
6.6 |
2.86 |
|||
|
60% |
9486 |
32.6 |
1500.9 |
3623 |
6.3 |
3.15 |
|||
|
63% |
10415 |
37.4 |
1722.5 |
3789 |
6.0 |
3.46 |
|||
|
66% |
11393 |
42.7 |
1968.6 |
3955 |
5.8 |
3.79 |
|||
|
69% |
12410 |
48.6 |
2239.2 |
4121 |
5.5 |
4.13 |
|||
|
72% |
13455 |
55.0 |
2533.5 |
4284 |
5.3 |
4.48 |
|||
|
75% |
14515 |
61.9 |
2850.2 |
4443 |
5.1 |
4.84 |
|||
|
78% |
15578 |
69.2 |
3187.6 |
4596 |
4.9 |
5.20 |
|||
|
81% |
16634 |
76.9 |
3543.4 |
4742 |
4.7 |
5.57 |
|||
|
84% |
17672 |
85.0 |
3915.2 |
4879 |
4.5 |
5.92 |
|||
|
87% |
18687 |
93.4 |
4300.5 |
5007 |
4.3 |
6.27 |
|||
|
90% |
19677 |
102.0 |
4697.7 |
5127 |
4.2 |
6.61 |
|||
|
100% |
22713 |
131.3 |
6047.7 |
5462 |
3.8 |
7.63 |
