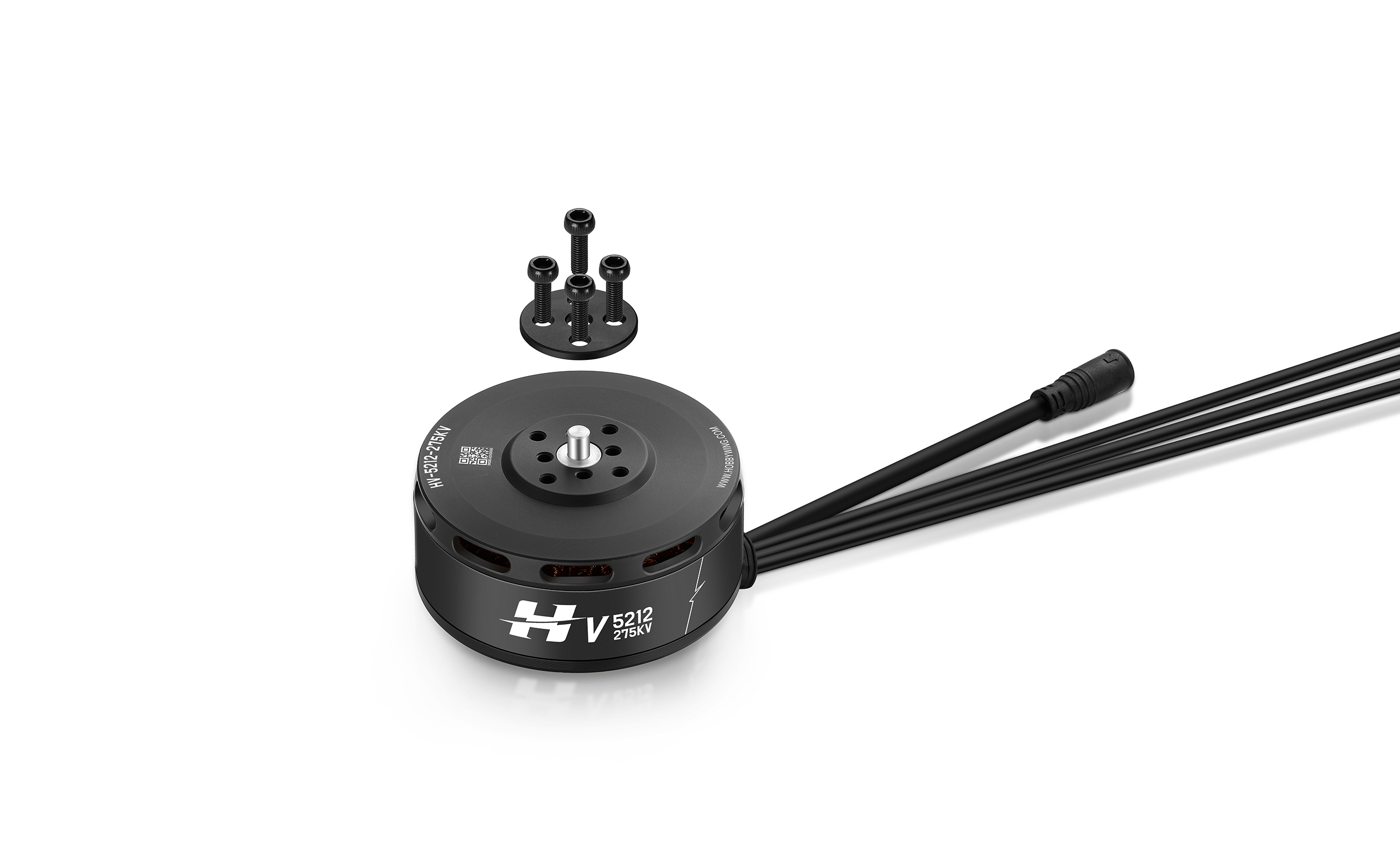

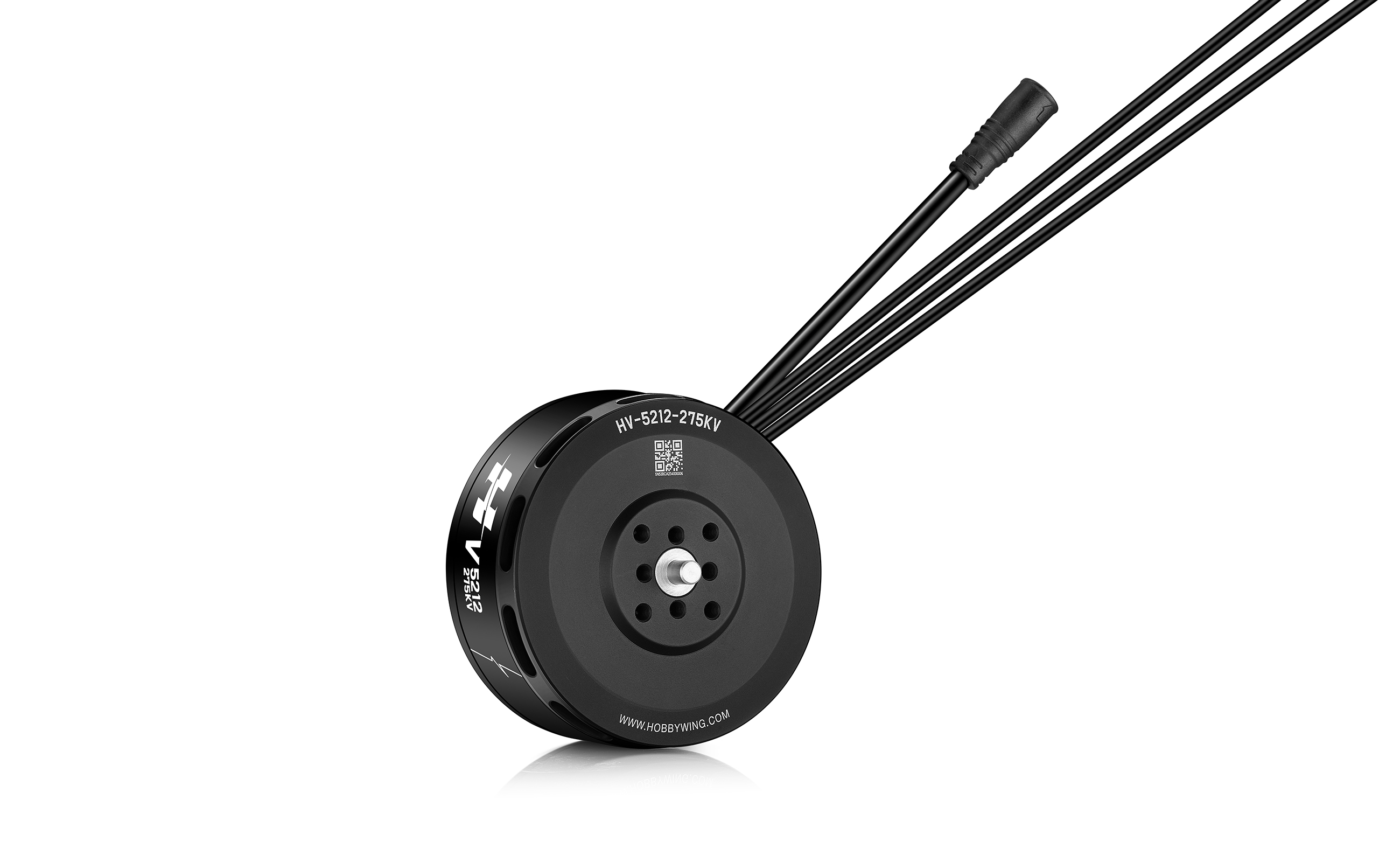

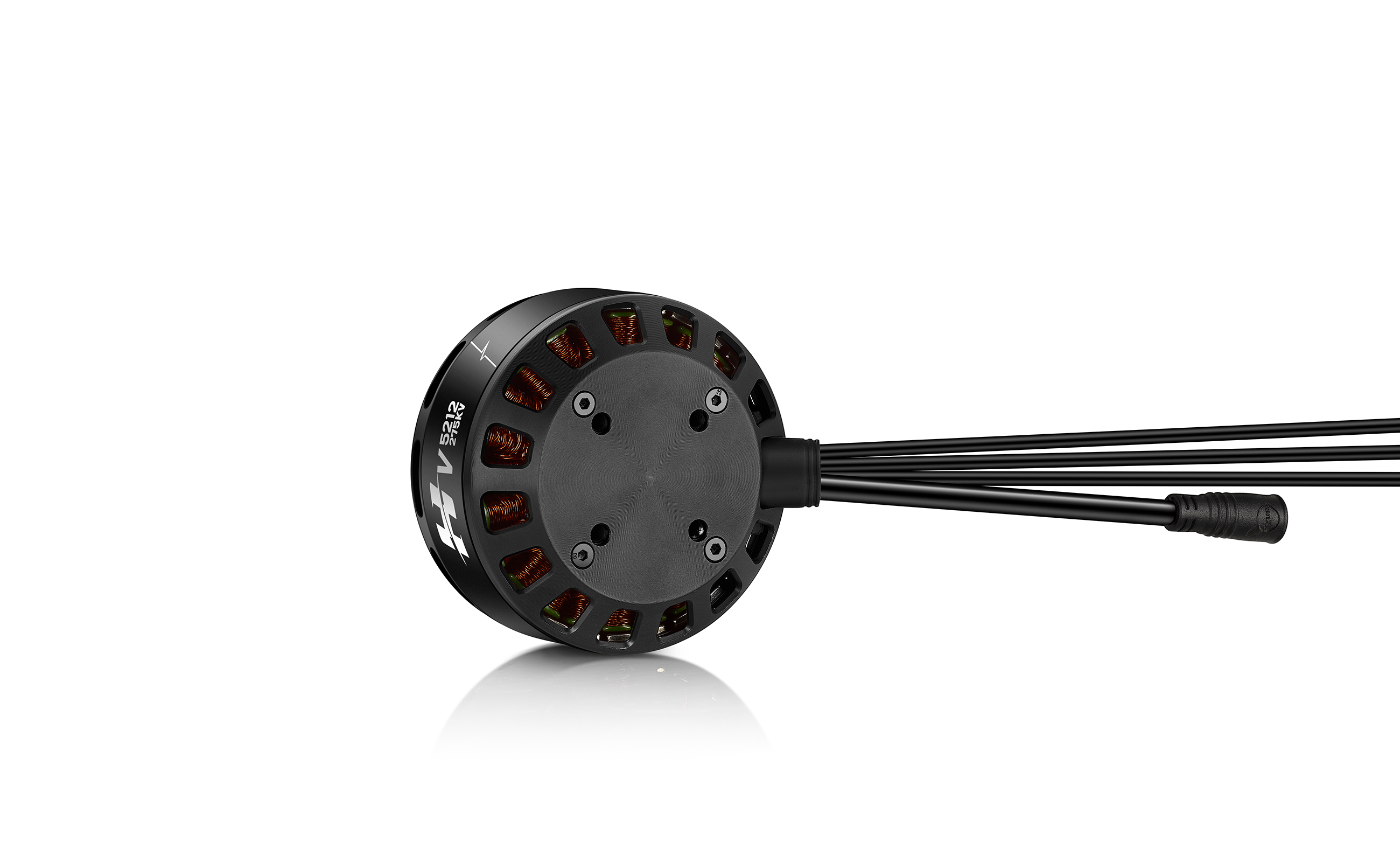

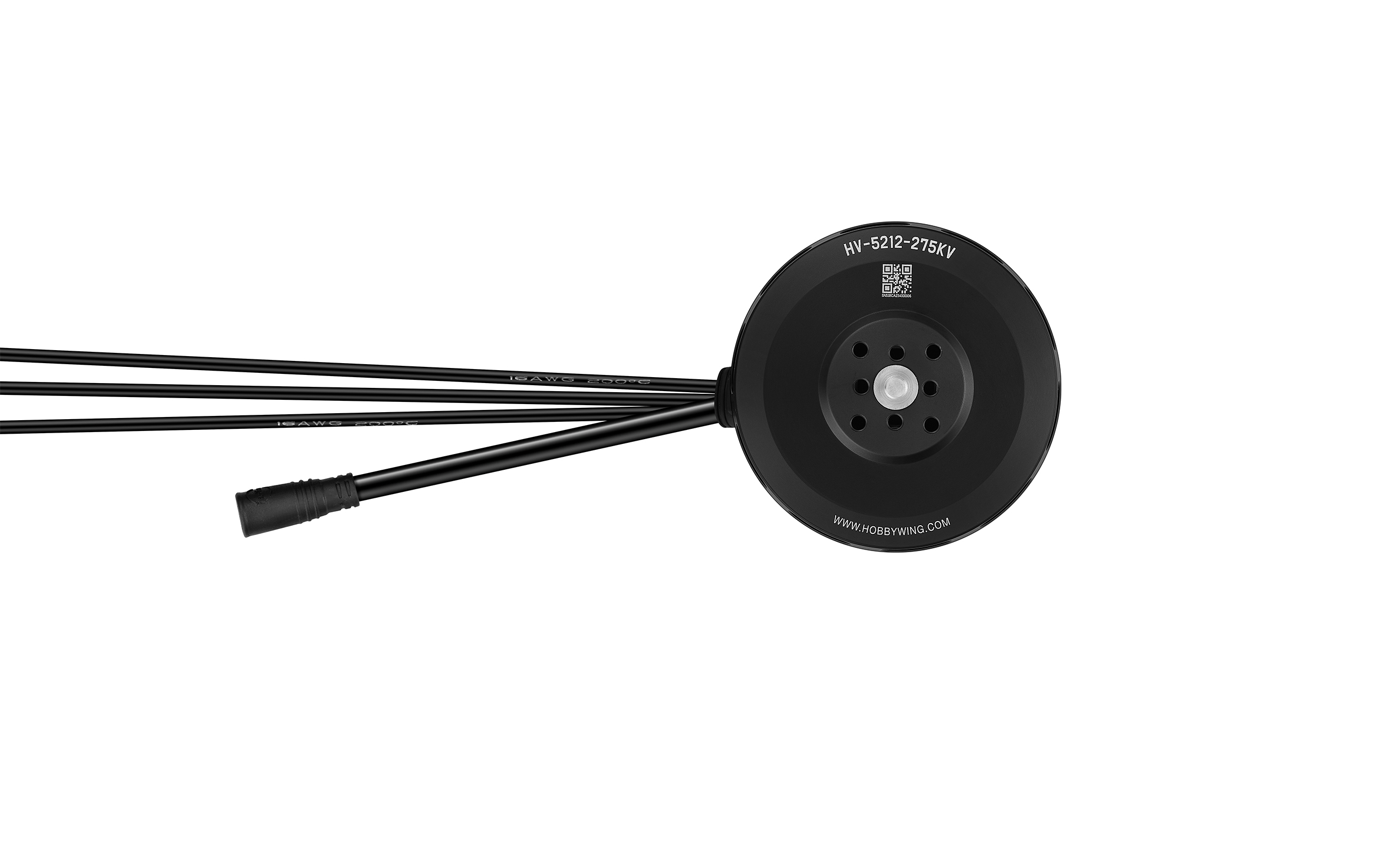

V5212 275KV
5212-275KV
V Series - Specially Designed for VTOL
It is an optimal solution for reliability and stability
based on high-performance VTOL fixed-wing platforms.
Large Thrust-to-weight Ratio,
Strong Overload Capacity
The optimized magnetic circuit design effectively increases the torque. The motor
is powerful and has a strong thrust to cope with any situation under high altitude
and strong wind conditions.

The maximum thrust-to-weight
ratio reaches .

The maximum thrust
can reach @46V

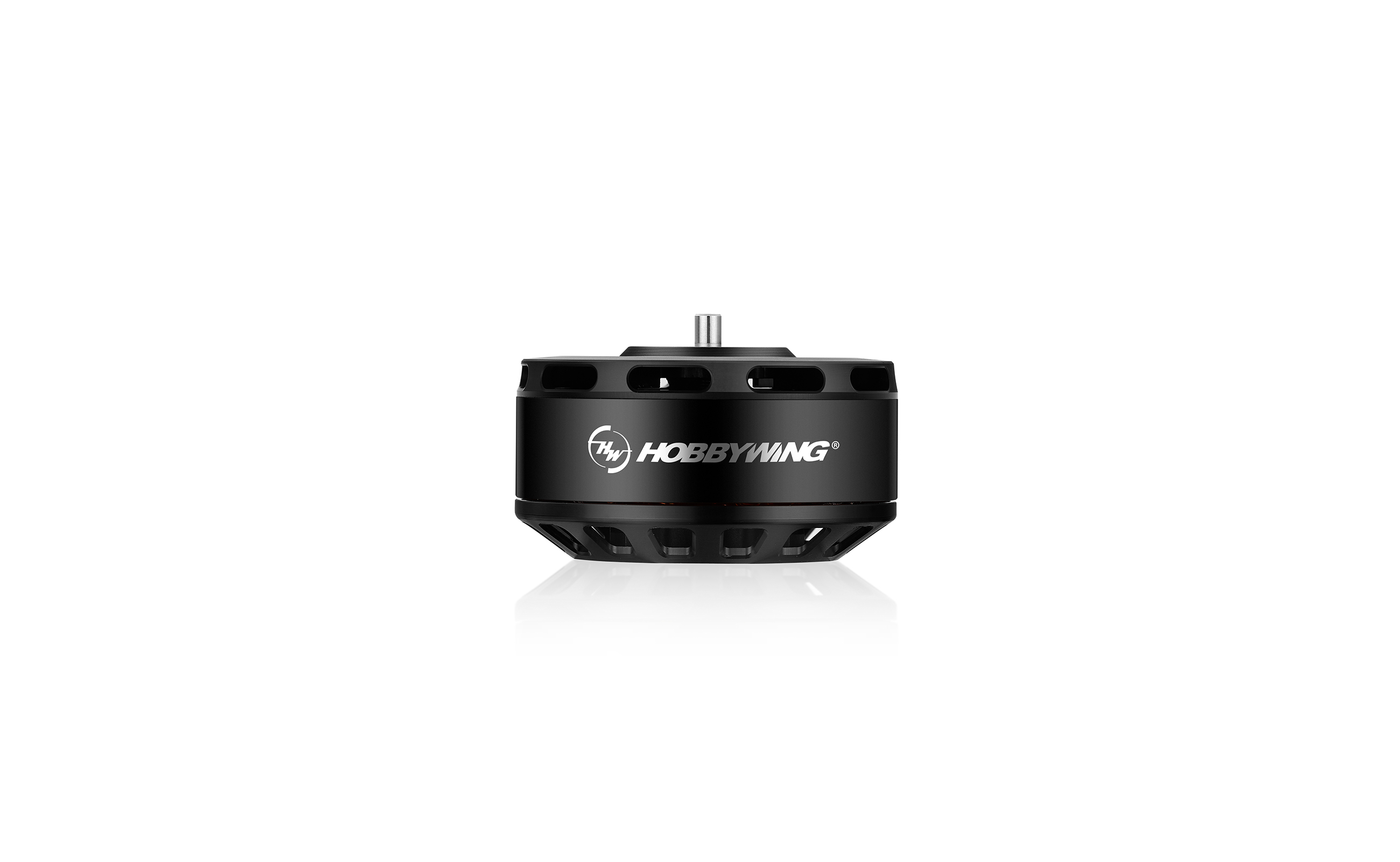

Large Air Outlet, Efficient Cooling
The bracket of the rotor adopts a large air outlet + efficient centrifugal self-heat-dissipation structure.
The high-speed rotation of the motor can continuously and efficiently dissipate internal heat. It easily copes with
high-current and high-temperature operations, extending the lifespan of the motor.
Rated operating temperature rise is 20% lower than competitive products.
High-end Materials
Rigorous Testing
Recommended
Combinations
  • Motor
    V5212 275KV
  • Propeller
    MP16*5.4"/MP17*5.8"
  • ESC
    XRotor Pro-H60A-14S
    XRotor Pro-H80A-14S-IPC
  • Battery
    12S LiPo
  • Thrust/Rotor
    2.5~3.5kg
  • Maximum Take-off Weight/Quadrotor
    10~14kg
V5212 275KV CAD
Model
V5212 275KV
Specification
Motor Size Φ58*H37.2mm
Stator Size Φ52mm
Stator process High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat
Enamelled wire 200℃
Magnet 150℃
Isolation test 500V AC high voltage resistance test
Protection level IPX5
Slot& Pole 24N28P
Dynamic balance ≤8mg
Bearing High-quality waterproof bearing
Motor axle diameter Φ4mm
Props mounting dimensions 4×M3@D12，4×M4@D18
Motor mounting dimensions 4×M4@D25
Specification
KV 275
Battery(LiPo) 12S
No-load current 2.25A
Maximum current 53A
Max power 2469W
Max thrust 9.1kg
Resistance 64mΩ
Wire Size 16AWG
Wire length 600mm
Weight（With wire） 248g
Recommended combinations
Motor V5212 275KV
Propeller MP16*5.4"/MP17*5.8"
ESC XRotor Pro-H60A-14S/H80A-14S-IPC
Battery 12S LiPo
Thrust/rotor 2.5~3.5kg
Takeoff weight of quadrotor 10~14kg

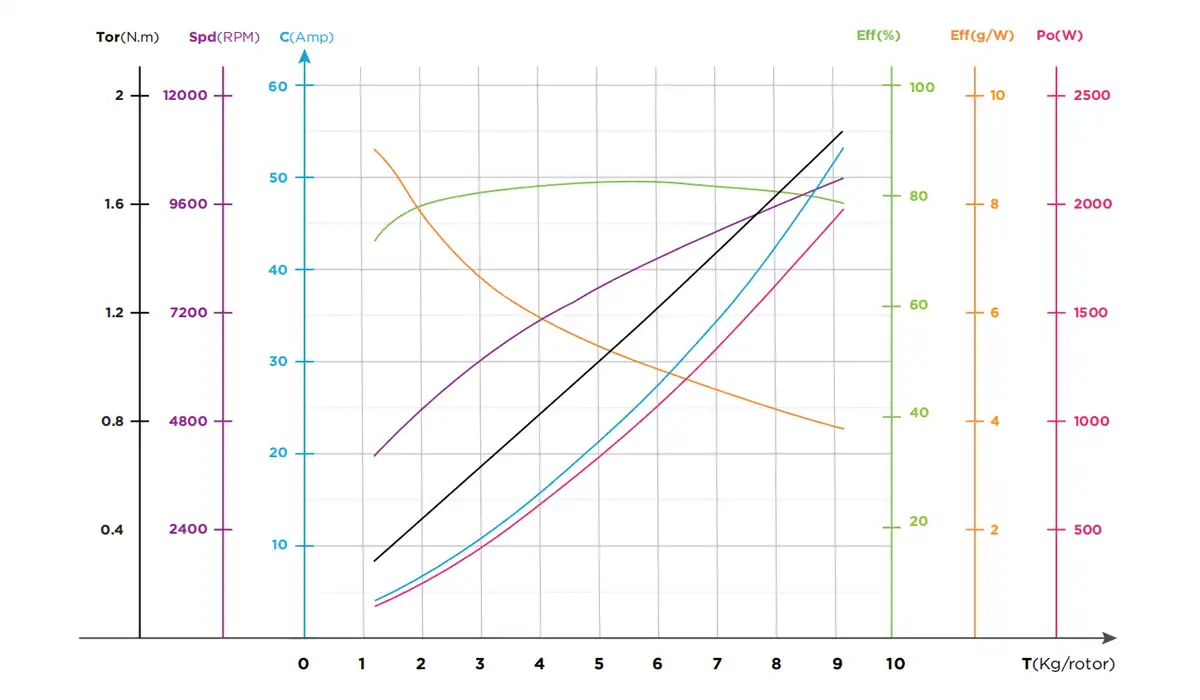

V5212 275KV & 16*5.4" Load performance parameters
V5212 275KV & 16*5.4" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Temperature(℃)

46V (12S LiPo)

MP16*5.4"

32%

1011

2.5

116.9

3913

8.6

0.20

85.4°C

33%

1049

2.6

121.5

3978

8.6

0.21

36%

1265

3.3

150.2

4333

8.4

0.25

39%

1468

3.9

180.8

4650

8.1

0.28

42%

1667

4.6

213.7

4948

7.8

0.32

45%

1871

5.4

249.6

5238

7.5

0.36

48%

2084

6.3

289.4

5527

7.2

0.40

51%

2311

7.2

333.7

5818

6.9

0.44

54%

2553

8.3

383.0

6113

6.7

0.48

57%

2810

9.5

437.4

6410

6.4

0.53

60%

3083

10.8

497.0

6707

6.2

0.58

63%

3369

12.2

562.0

7003

6.0

0.64

66%

3668

13.7

632.4

7296

5.8

0.69

69%

3977

15.4

708.3

7586

5.6

0.75

72%

4294

17.2

790.1

7873

5.4

0.81

75%

4618

19.1

877.9

8156

5.3

0.88

78%

4947

21.1

972.2

8437

5.1

0.94

81%

5283

23.3

1073.5

8717

4.9

1.01

84%

5625

25.7

1182.5

8997

4.8

1.07

87%

5977

28.2

1300.0

9276

4.6

1.14

90%

6343

31.0

1426.9

9556

4.4

1.21

100%

7684

41.0

1889.4

10363

4.1

1.47
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
V5212 275KV & 17*5.8" Load performance parameters
V5212 275KV & 17*5.8" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Temperature(℃)

46V (12S LiPo)

MP 17*5.8"

32%

1232

3.0

138.3

3857

8.9

0.25

93°C

33%

1275

3.1

143.8

3918

8.9

0.25

36%

1529

3.9

179.4

4267

8.5

0.30

39%

1774

4.7

218.3

4587

8.1

0.35

42%

2017

5.7

260.6

4889

7.7

0.40

45%

2264

6.7

306.8

5179

7.4

0.45

48%

2520

7.8

357.4

5464

7.1

0.50

51%

2787

9.0

413.1

5746

6.7

0.55

54%

3069

10.3

474.4

6026

6.5

0.61

57%

3367

11.8

541.9

6306

6.2

0.67

60%

3683

13.4

616.1

6584

6.0

0.73

63%

4018

15.1

697.5

6862

5.8

0.80

66%

4371

17.1

786.5

7138

5.6

0.87

69%

4743

19.2

883.7

7412

5.4

0.94

72%

5132

21.5

989.8

7685

5.2

1.02

75%

5536

24.0

1105.5

7956

5.0

1.10

78%

5955

26.7

1231.7

8226

4.8

1.19

81%

6385

29.7

1369.2

8496

4.7

1.27

84%

6824

33.0

1518.7

8766

4.5

1.37

87%

7271

36.5

1680.5

9035

4.3

1.46

90%

7721

40.3

1854.5

9300

4.2

1.55

100%

9140

53.6

2469.5

10067

3.7

1.85
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
