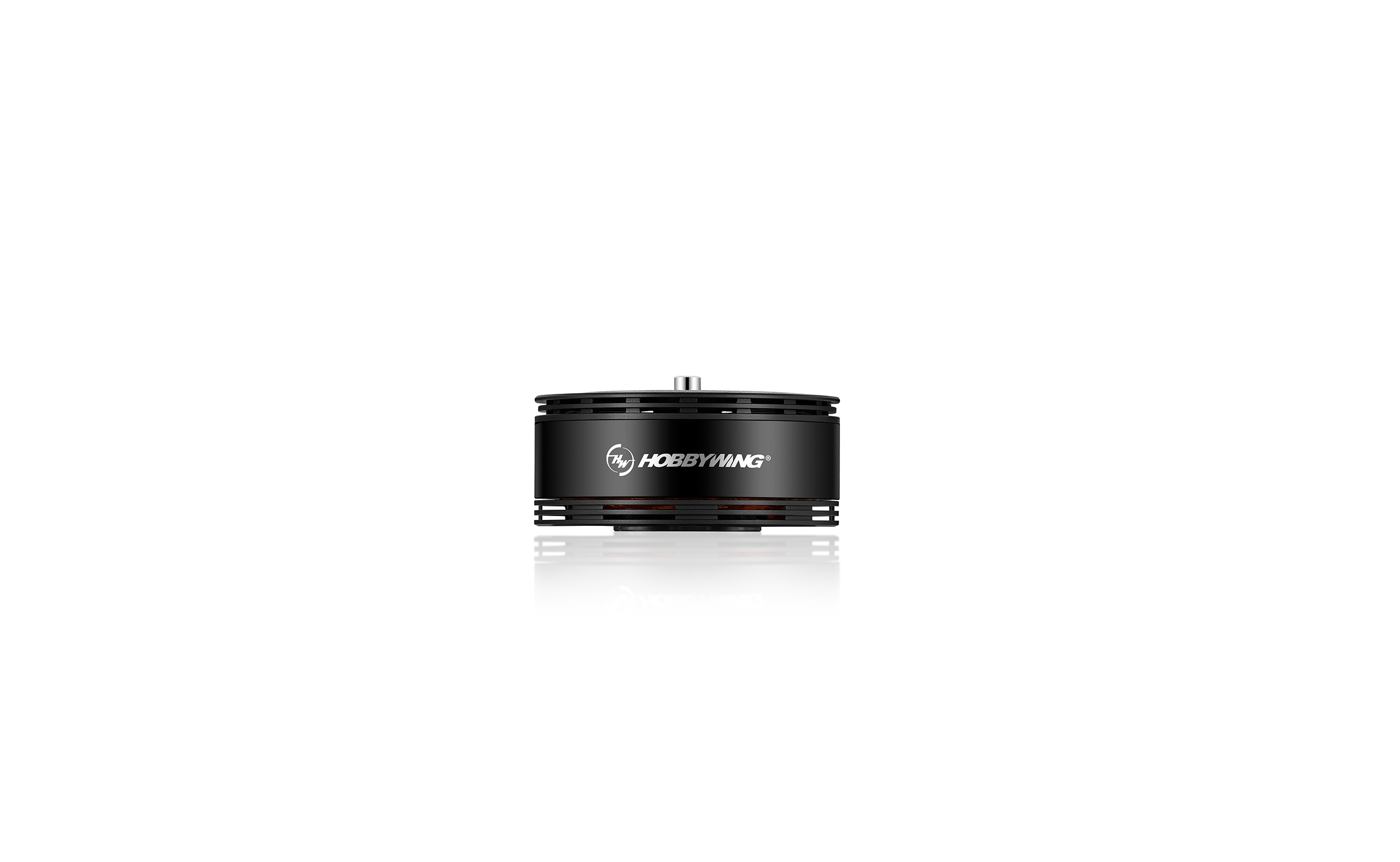

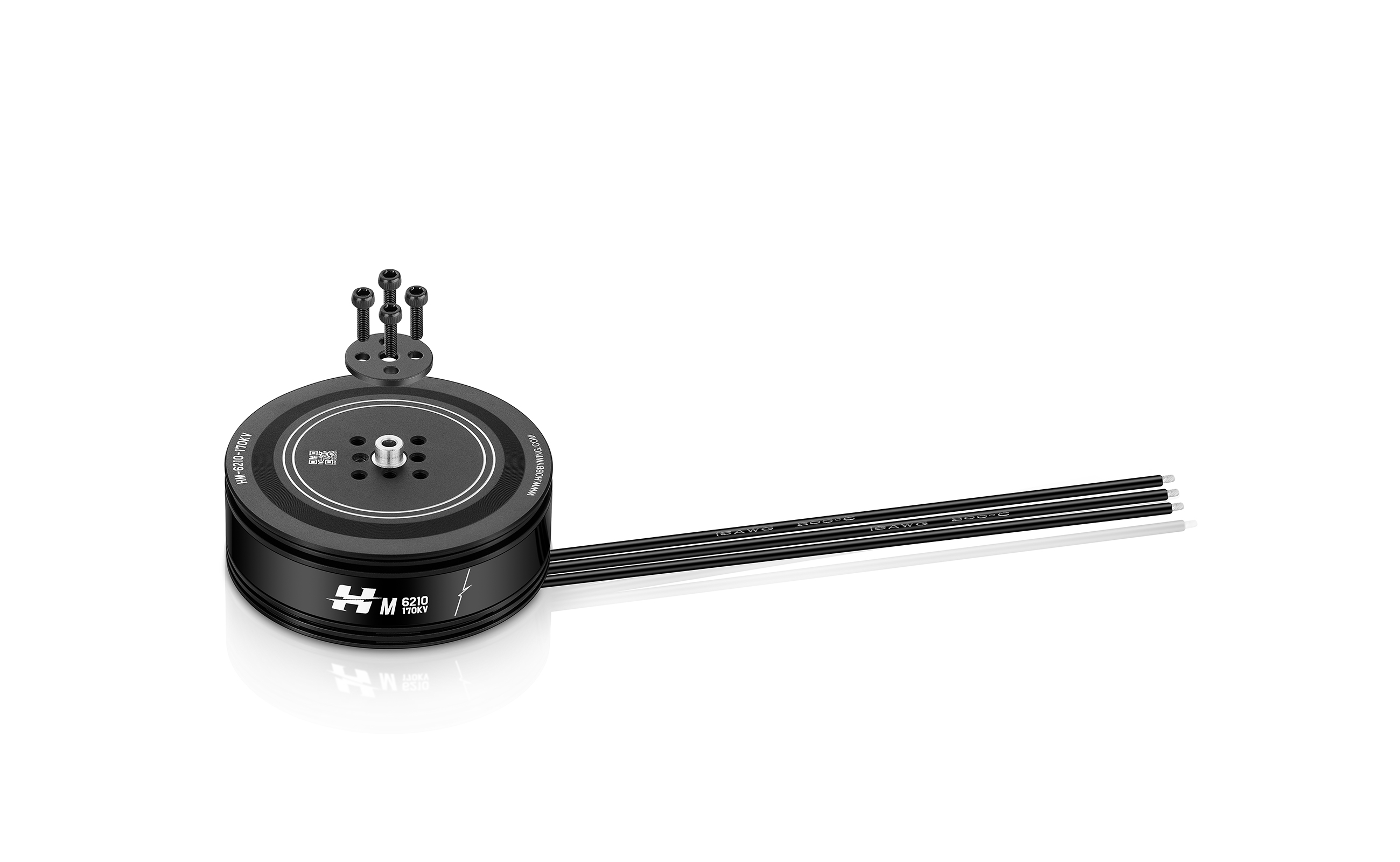

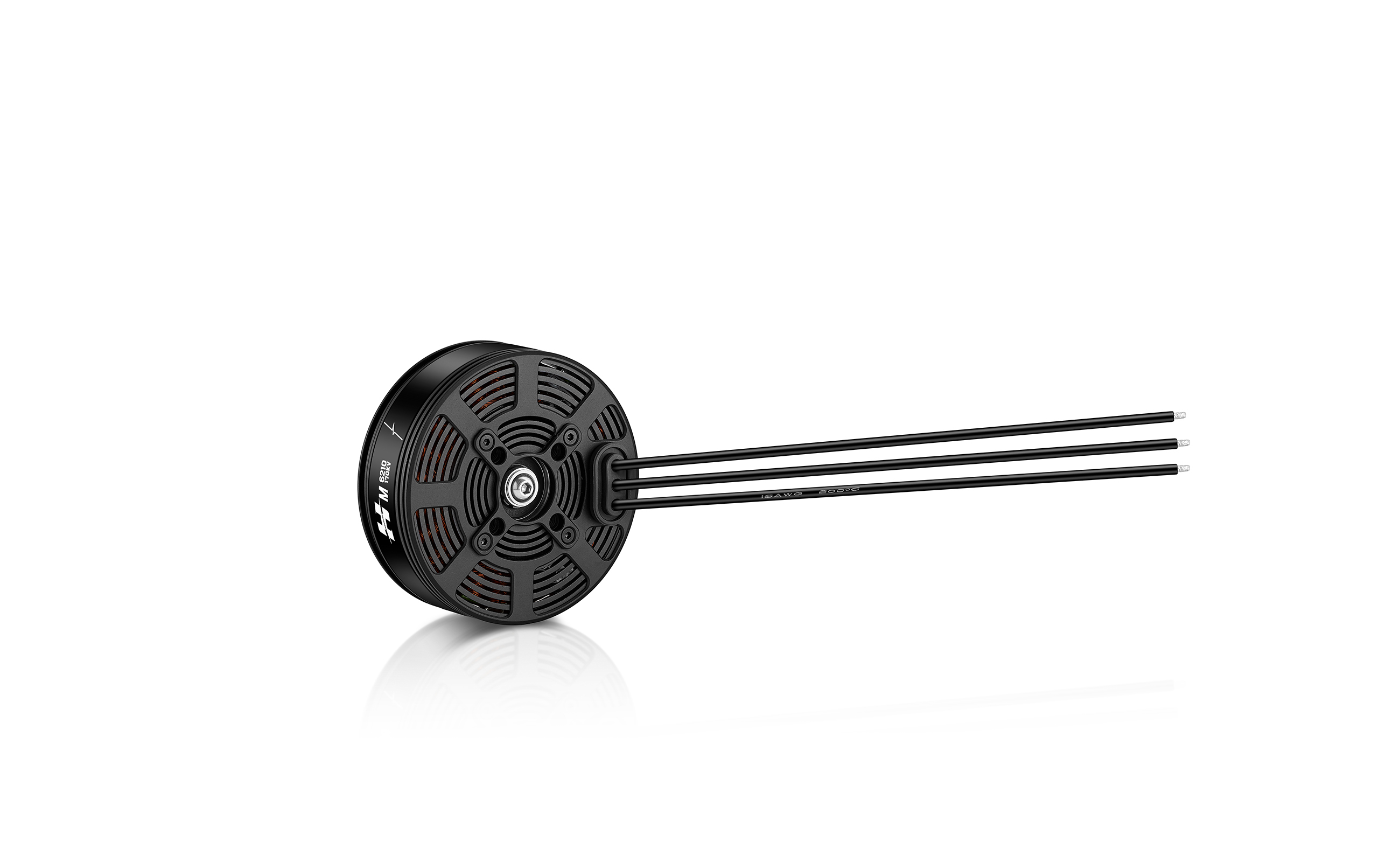

HM-6210-HP

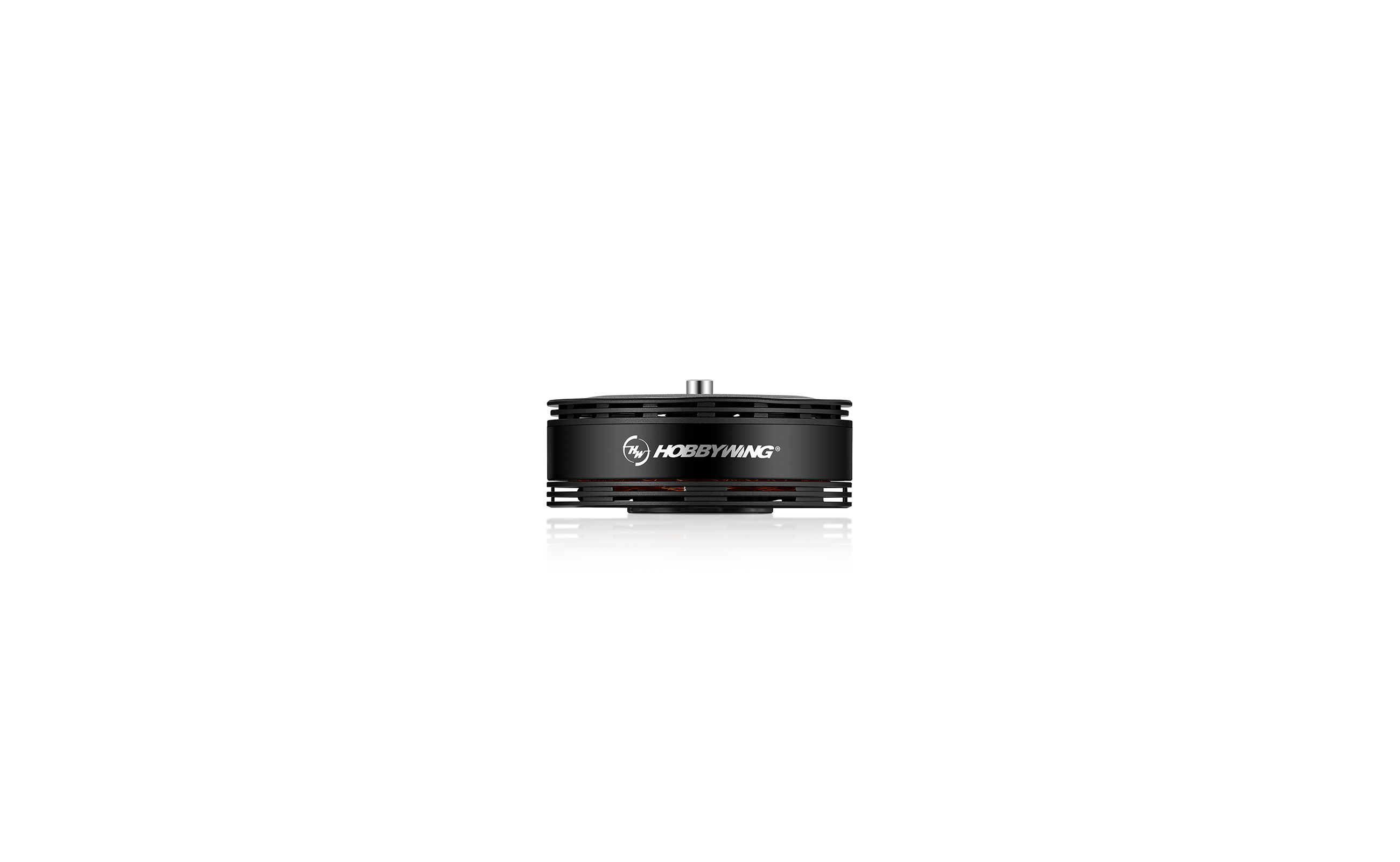

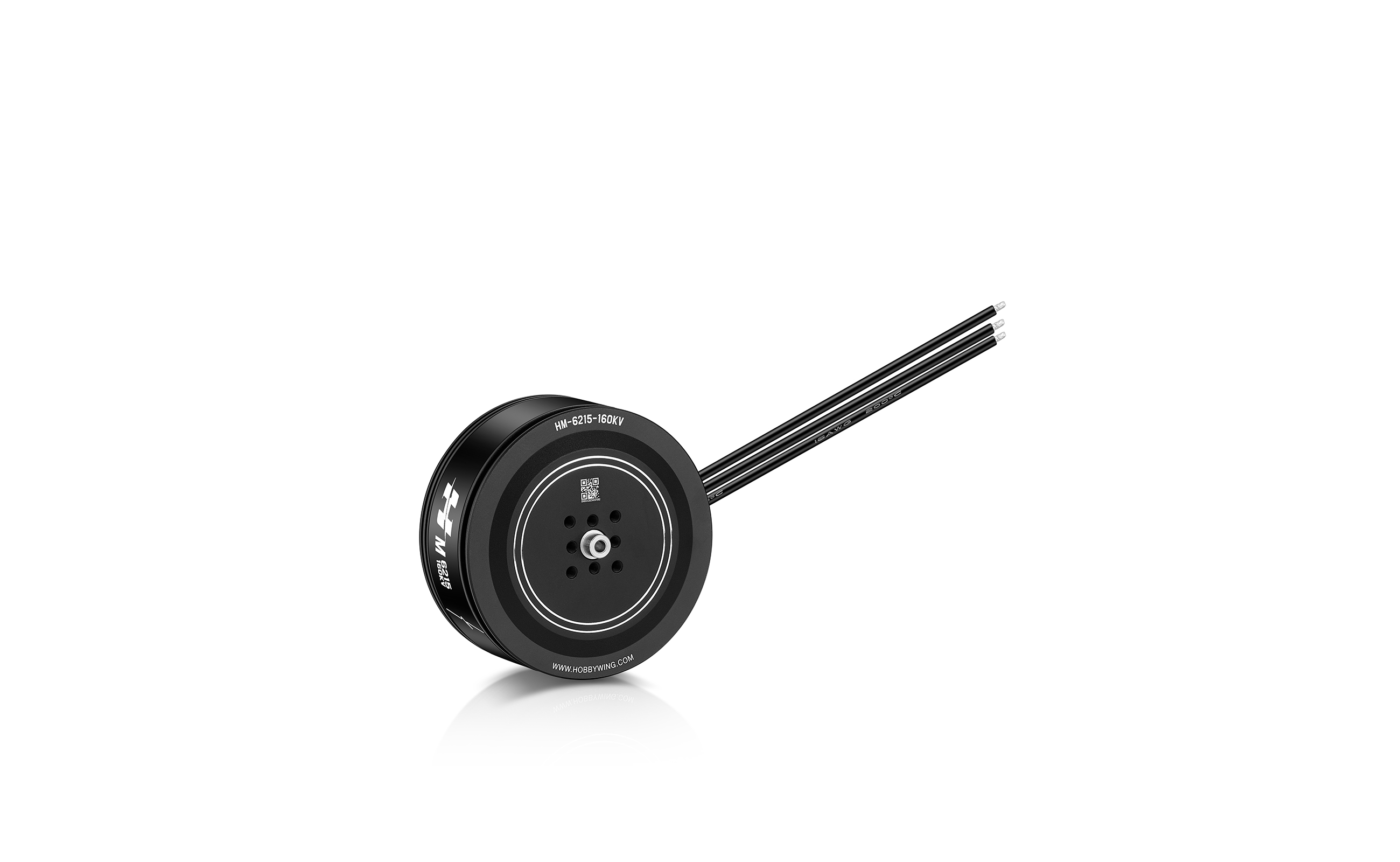

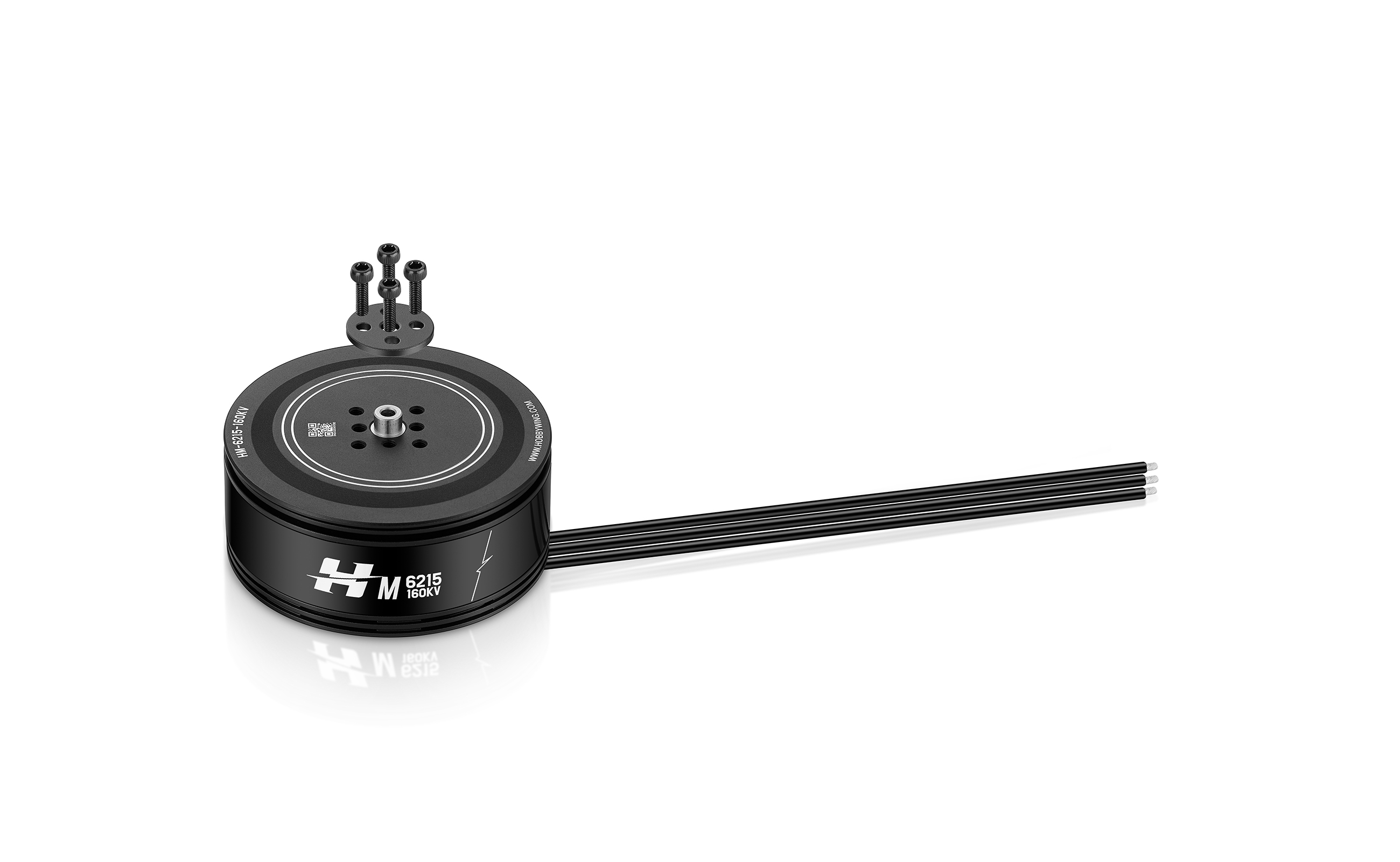

HM-6215-HP

Specially designed for multi-rotor drones,
High efficiency, strong protection, and high reliability.

6210/6215

14KG
They are suitable for UAVs (quadrotor)
with a take-off weight of 14kg.

6210 and 6215 use two different core stack thicknesses in order to meet different
take-off load application requirements.
(The 160KV version equipped with ML22*7.8'' propellers are measured in the laboratory at full throttle under 23V voltage).

An Abundance of Drone Application Scenarios.

The Brand-new Magnetic Circuit Design

optimises the electromotive force harmonics. It creates a sinusoidal motion to perfectly matched with the ESC.

High Quality Materials and
Strong Protective Capabilities

The bracket and bottom cover of the motor are designed with a semi-enclosed structure with dust-proof grilles.
Regardless of how the motor is being installed, it has great dust-proof and sand-proof effect.

Excellent nickel-plating
electrophoresis
treatment process
for the casing

High toughness
carbide main shaft

The back cover and the stator
base are designed separately,
and the outlet position is protected
by a rubber wire buckle to facilitate
waterproofing with the holes
in the motor base.

High-performance
iron core made from
low-loss silicon
steel sheets from
top-tier brands.

Silicon steel sheets
adopt new anti-rust and
anti-corrosion
treatment technology.
The motor is certified by NSS48.

The motor adopts a motor shaft end cir-clip + pressure ring + screw interlocking
structure to ensure safety and to prevent it from falling off.

Recommended Combinations

Motor
HM-6210-170KV
HM-6210-320KV

Battery
12S LiPo
6S LiPo
Propeller
MP21*6.3"
ML22*7.8"
HF22*7.0"
Thrust/rotor
2.2~2.7kg
ESC
XRotor Pro-H60A-14S
XRotor Pro-H60A-6S

Takeoff weight of quadrotor
9.0~11.0kg

Motor
HM-6215-160KV
HM-6215-320KV

Battery
12S LiPo
6S LiPo
Propeller
MP21*6.3"
ML22*7.8"
HF22*7.0"
Thrust/rotor
2.5~3.5kg
ESC
XRotor Pro-H60A-14S
XRotor Pro-H60A-6S

Takeoff weight of quadrotor
10.0~14.0kg

: Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.

By submitting this form, you agree to HOBBYWING's Privacy Policy

Thanks for reaching out!We have received your message and will get back to you shortly.: Best Regards,
HOBBYWING Team

M 6210 HP CAD

M 6215 HP CAD

Model

M 6210
170KV HP

M 6210
320KV HP

M 6215
160KV HP

M 6215
320KV HP

Specification

Motor Size	Φ68.7*H30.2mm	Φ68.7*H30.2mm	Φ68.7*H35.2mm	Φ68.7*H35.2mm
Stator Size	Φ61.5mm	Φ61.5mm	Φ61.5mm	Φ61.5mm
Stator process	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire	200℃	200℃	200℃	200℃
Magnet	150℃	150℃	150℃	150℃
Isolation test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test
Protection level	IP45	IP45	IP45	IP45
Slot& Pole	24N28P	24N28P	24N28P	24N28P
Dynamic balance	≤8mg	≤8mg	≤8mg	≤8mg
Bearing	Water proof bearing	Water proof bearing	Water proof bearing	Water proof bearing
Motor axle diameter	Φ6mm	Φ6mm	Φ6mm	Φ6mm
Props mounting dimensions	4×M3@D12mm，4×M3@D18mm	4×M3@D12mm，4×M3@D18mm	4×M3@D12mm，4×M3@D18mm	4×M3@D12mm，4×M3@D18mm
Motor mounting dimensions	4×M4@D25mm	4×M4@D25mm	4×M4@D25mm	4×M4@D25mm

Specification

KV	170	320	160	320
Battery(LiPo)	12S LiPo	6S LiPo	12S LiPo	6S LiPo
No-load current	1.31A	1.97A	1.54A	3.14A
Maximum current (Non-hermeticAmbient Temperature ≤ 25℃）	42.9A	55.2A	38.6A	74.0A
Max power	1973W	1270W	1777W	1705W
Max thrust	9.1kg	7.1kg	9.2kg	8.8kg
Resistance	98.6mΩ	33.65mΩ	67mΩ	20.95mΩ
Wire Size	16AWG	16AWG	16AWG	16AWG
Wire length	150mm	150mm	150mm	150mm
Weight（With wire）	231g	239g	307g	308g

Recommended application combinations

Motor	M-6210-170KV	M-6210-320KV	M-6215-160KV	M-6215-320KV
Propeller	MP216.3"/ML227.8"/HF22*7.0"	MP216.3"/ML227.8"/HF22*7.0"	MP216.3"/ML227.8"/HF22*7.0"	MP216.3"/ML227.8"/HF22*7.0"
ESC	XRotor Pro-H60A-14S	XRotor Pro-H60A-6S	XRotor Pro-H60A-14S	XRotor Pro-H60A-6S
Battery	12S LiPo	6S LiPo	12S LiPo	6S LiPo
Thrust/rotor(kg)	2.2~2.7kg	2.2~2.7kg	2.5~3.5kg	2.5~3.5kg
Takeoff weight of quadrotor(kg)	9.0~11.0kg	9.0~11.0kg	10.0~14.0kg	10.0~14.0kg

M 6210 170KV+MP21*6.3" Load performance parameters

M 6210 170KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP21*6.3"	33%	1104	2.0	92.3	2572	12.0	0.26	46.7°C
		35%	1235	2.3	106.6	2721	11.6	0.29
		37%	1381	2.7	123.4	2877	11.2	0.32
		39%	1537	3.1	142.2	3035	10.8	0.36
		42%	1786	3.8	173.9	3268	10.3	0.42
		45%	2044	4.5	208.9	3489	9.8	0.47
		48%	2307	5.4	246.8	3698	9.3	0.53
		51%	2572	6.2	287.1	3896	9.0	0.60
		54%	2840	7.2	330.0	4084	8.6	0.66
		57%	3111	8.2	375.6	4267	8.3	0.72
		60%	3389	9.2	424.3	4446	8.0	0.78
		63%	3677	10.4	477.0	4625	7.7	0.85
		66%	3977	11.6	534.3	4806	7.4	0.92
		69%	4293	13.0	597.0	4989	7.2	0.99
		72%	4625	14.5	665.8	5176	6.9	1.06
		75%	4974	16.1	740.9	5364	6.7	1.14
		78%	5337	17.9	822.3	5550	6.5	1.23
		81%	5709	19.8	909.3	5733	6.3	1.32
		84%	6082	21.7	1000.0	5906	6.1	1.40
		87%	6444	23.7	1091.6	6069	5.9	1.49
		90%	6778	25.6	1179.5	6215	5.7	1.56
		100%	7383	29.3	1346.5	6487	5.5	1.70

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

M 6210 170KV+MP22*7.8" Load performance parameters

M 6210 170KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP22*7.8"	33%	1525	3.0	136.5	2513	11.2	0.42	55.6°C
		35%	1719	3.4	158.5	2659	10.8	0.47
		37%	1920	4.0	184.0	2806	10.4	0.52
		39%	2128	4.6	212.5	2952	10.0	0.57
		42%	2447	5.7	260.3	3165	9.4	0.66
		45%	2770	6.8	312.7	3369	8.9	0.74
		48%	3097	8.0	368.9	3563	8.4	0.83
		51%	3425	9.3	428.3	3747	8.0	0.92
		54%	3757	10.7	490.9	3922	7.7	1.01
		57%	4094	12.1	557.1	4090	7.3	1.09
		60%	4439	13.6	627.8	4253	7.1	1.19
		63%	4795	15.3	703.9	4413	6.8	1.28
		66%	5164	17.1	786.8	4572	6.6	1.37
		69%	5548	19.1	877.6	4731	6.3	1.47
		72%	5948	21.2	977.7	4891	6.1	1.58
		75%	6361	23.6	1087.7	5052	5.8	1.69
		78%	6784	26.2	1207.8	5212	5.6	1.80
		81%	7213	29.0	1336.7	5369	5.4	1.91
		84%	7637	31.9	1471.0	5519	5.2	2.03
		87%	8045	34.9	1605.3	5656	5.0	2.14
		90%	8421	37.6	1732.0	5774	4.9	2.24
		100%	9137	42.9	1973.1	5962	4.6	2.44

M 6210 320KV+MP21*6.3" Load performance parameters

M 6210 320KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V (6S LiPo)	MP21*6.3"	33%	842	2.9	66.5	2234	12.7	0.21	49.1°C
		35%	944	3.3	75.9	2356	12.4	0.23
		37%	1056	3.8	86.9	2486	12.1	0.26
		39%	1174	4.3	99.4	2618	11.8	0.29
		42%	1363	5.2	120.8	2817	11.3	0.33
		45%	1560	6.3	144.9	3012	10.8	0.38
		48%	1764	7.4	171.2	3199	10.3	0.42
		51%	1971	8.6	199.5	3377	9.9	0.47
		54%	2182	10.0	229.7	3548	9.5	0.52
		57%	2398	11.4	261.8	3711	9.2	0.57
		60%	2618	12.8	296.0	3869	8.8	0.62
		63%	2844	14.4	332.5	4024	8.6	0.68
		66%	3077	16.1	371.8	4177	8.3	0.73
		69%	3318	18.0	414.1	4331	8.0	0.79
		72%	3568	19.9	459.9	4486	7.8	0.85
		75%	3826	22.1	509.3	4643	7.5	0.91
		78%	4091	24.4	562.4	4803	7.3	0.97
		81%	4360	26.8	618.8	4964	7.0	1.03
		84%	4629	29.4	677.5	5121	6.8	1.10
		87%	4893	32.0	736.9	5270	6.6	1.16
		90%	5143	34.5	794.6	5404	6.5	1.22
		100%	5717	40.3	928.7	5662	6.2	1.35

M 6210 320KV+MP22*7.8" Load performance parameters

M 6210 320KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V (6S LiPo)	MP22*7.8"	33%	1094	3.7	86.1	2142	12.7	0.30	62.0°C
		35%	1218	4.3	98.3	2253	12.4	0.33
		37%	1359	4.9	113.2	2373	12.0	0.36
		39%	1512	5.7	130.5	2498	11.6	0.40
		42%	1757	7.0	160.6	2687	10.9	0.47
		45%	2015	8.4	194.8	2874	10.3	0.54
		48%	2280	10.1	232.3	3053	9.8	0.61
		51%	2549	11.8	272.5	3223	9.4	0.68
		54%	2819	13.7	315.0	3384	9.0	0.75
		57%	3091	15.6	359.7	3538	8.6	0.82
		60%	3367	17.7	407.0	3687	8.3	0.89
		63%	3646	19.8	457.0	3831	8.0	0.96
		66%	3932	22.2	510.6	3973	7.7	1.03
		69%	4226	24.7	568.1	4115	7.4	1.11
		72%	4530	27.4	630.4	4256	7.2	1.18
		75%	4843	30.3	697.8	4397	6.9	1.27
		78%	5165	33.4	770.4	4538	6.7	1.35
		81%	5492	36.8	847.9	4677	6.5	1.44
		84%	5821	40.3	928.9	4811	6.3	1.53
		87%	6143	43.9	1011.1	4935	6.1	1.62
		90%	6448	47.4	1090.9	5047	5.9	1.70
		100%	7124	55.2	1270.0	5261	5.6	1.88

M 6215 160KV+MP21*6.3" Load performance parameters

M 6215 160KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP21*6.3"	33%	945	1.8	84.7	2388	11.2	0.23	47.8°C
		35%	1036	2.0	93.6	2495	11.1	0.25
		37%	1140	2.3	104.5	2614	10.9	0.27
		39%	1257	2.5	117.4	2743	10.7	0.30
		42%	1453	3.0	140.2	2945	10.4	0.35
		45%	1667	3.6	166.9	3153	10.0	0.40
		48%	1896	4.3	197.4	3361	9.6	0.45
		51%	2136	5.0	231.2	3565	9.2	0.51
		54%	2386	5.8	267.9	3764	8.9	0.57
		57%	2643	6.7	307.5	3957	8.6	0.63
		60%	2906	7.6	349.7	4143	8.3	0.69
		63%	3175	8.6	394.4	4325	8.1	0.75
		66%	3450	9.6	441.8	4502	7.8	0.81
		69%	3730	10.7	492.0	4676	7.6	0.88
		72%	4018	11.8	545.4	4848	7.4	0.95
		75%	4312	13 1	602.4	5019	7.2	1.02
		78%	4616	14.4	663.5	5190	7.0	1.09
		81%	4931	15.8	729.2	5361	6.8	1.16
		84%	5258	17.4	800.2	5534	6.6	1.24
		87%	5598	19.0	877.0	5708	6.4	1.32
		90%	5953	20.8	960.0	5882	6.2	1.41
		100%	7195	27.4	1262.3	6432	5.7	1.70

M 6215 160KV+MP22*7.8" Load performance parameters

M 6215 160KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP22*7.8"	33%	1244	2.3	107.9	2287	11.5	0.33	58.4°C
		35%	1370	2.6	121.1	2396	11.3	0.37
		37%	1511	3.0	136.9	2515	11.0	0.40
		39%	1666	3.4	155.2	2640	10.7	0.44
		42%	1923	4.1	187.6	2838	10.3	0.51
		45%	2205	4.9	225.8	3042	9.8	0.59
		48%	2509	5.9	269.6	3247	9.3	0.67
		51%	2832	6.9	318.5	3448	8.9	0.75
		54%	3171	8.1	372.2	3643	8.5	0.84
		57%	3521	9.3	430.2	3830	8.2	0.93
		60%	3881	10.7	492.4	4009	7.9	1.03
		63%	4249	12.1	558.4	4179	7.6	1.12
		66%	4621	13.6	628.4	4343	7.4	1.22
		69%	4997	15.3	702.5	4503	7.1	1.31
		72%	5376	17.0	781.0	4660	6.9	1.41
		75%	5758	18.8	864.1	4816	6.7	1.51
		78%	6143	20.7	952.3	4974	6.5	1.62
		81%	6532	22.7	1046.1	5134	6.2	1.72
		84%	6927	24.9	1146.1	5298	6.0	1.83
		87%	7331	27.2	1252.9	5465	5.9	1.94
		90%	7748	29.7	1367.2	5636	5.7	2.06
		100%	9215	38.6	1777.3	6130	5.2	2.46

M 6215 320KV+MP21*6.3" Load performance parameters

M 6215 320KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V(6S LiPo)	MP21*6.3"	33%	1084	4.3	100.4	2515	10.8	0.26	52.3°C
		35%	1202	4.9	113.0	2639	10.6	0.29
		37%	1333	5.5	127.7	2772	10.4	0.32
		39%	1473	6.3	144.5	2910	10.2	0.35
		42%	1696	7.5	173.1	3118	9.8	0.41
		45%	1930	8.9	205.1	3324	9.4	0.46
		48%	2170	10.4	240.0	3525	9.0	0.52
		51%	2416	12.0	277.4	3717	8.7	0.57
		54%	2666	13.7	317.1	3903	8.4	0.63
		57%	2922	15.6	359.3	4083	8.1	0.69
		60%	3184	17.5	404.3	4259	7.9	0.75
		63%	3455	19.6	452.6	4432	7.6	0.82
		66%	3736	21.9	504.6	4603	7.4	0.88
		69%	4029	24.3	561.1	4775	7.2	0.95
		72%	4334	27.0	622.7	4949	7.0	1.02
		75%	4651	29.9	689.7	5123	6.7	1.10
		78%	4979	33.0	762.1	5298	6.5	1.18
		81%	5316	36.4	839.5	5472	6.3	1.26
		84%	5655	39.9	920.3	5642	6.1	1.34
		87%	5991	43.5	1002.0	5801	6.0	1.42
		90%	6312	46.9	1081.1	5945	5.8	1.49
		100%	7070	54.7	1261.0	6230	5.6	1.65

M 6215 320KV+MP22*7.8" Load performance parameters

M 6215 320KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V(6S LiPo)	MP22*7.8"	33%	1392	5.5	127.5	2403	10.9	0.37	69.3°C
		35%	1564	6.4	146.9	2537	10.6	0.42
		37%	1745	7.3	169.1	2674	10.3	0.46
		39%	1935	8.4	193.9	2813	10.0	0.51
		42%	2230	10.2	235.5	3017	9.5	0.59
		45%	2533	12.2	281.5	3215	9.0	0.67
		48%	2844	14.3	331.1	3405	8.6	0.75
		51%	3160	16.6	384.0	3585	8.2	0.84
		54%	3481	19.1	440.1	3757	7.9	0.92
		57%	3810	21.6	499.5	3921	7.6	1.00
		60%	4147	24.4	562.6	4079	7.4	1.09
		63%	4494	27.3	630.1	4233	7.1	1.18
		66%	4853	30.4	702.7	4385	6.9	1.27
		69%	5224	33.8	781.3	4536	6.7	1.37
		72%	5608	37.5	866.4	4688	6.5	1.46
		75%	6004	41.5	958.5	4841	6.3	1.57
		78%	6408	45.8	1057.4	4995	6.1	1.68
		81%	6817	50.4	1162.2	5150	5.9	1.78
		84%	7223	55.1	1270.5	5302	5.7	1.89
		87%	7618	59.8	1378.8	5445	5.5	2.00
		90%	7988	64.3	1482.0	5573	5.4	2.09
		100%	8801	74.0	1705.3	5814	5.2	2.29

Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

M 6210 HP Specification

M 6215 HP Specification

M 6210 HP Load performance parameters

M 6215 HP Load performance parameters

M 6210 HP 3D Model Drawing

M 6215 HP 3D Model Drawing

M 6210 HP CAD

M 6215 HP CAD

RC Systems

RC Cars Power System

XeRun

Professional Competition Level, Extreme Performance and Craftsmanship

EzRun

High-end Product, Balanced Performance

QuicRun

Budget-friendly, Cost-effective

RC Plane Power System

Platinum

Professional Competition, Extreme Flight

FlyFun

High-end Product, Comprehensive Performance

SkyWalker

Entry Level, Budget-friendly Product

FPV Racing

Racing Flight, The Choice of Flying

RC Boat Power System

SeaKing V3

High-end Product, Comprehensive Performance

SeaKing Pro

Built for Competition, Powerful Performance in Small Volumes

SeaKing V4

High-end Product, Comprehensive Performance

Accessories

RC Car

RC Boat

RC Aircraft

Drone Systems

Multirotor

INTEGRATED PROPULSION SYSTEM

Innovation and Performance for a simplified assembly.

MOTOR

Endurance born from efficiency.

ESC

Accurate control, trusted performance.

PROPELLER

Superior efficiency, exceptional stability.

WATER PUMP

Minimal maintenance, long service life.

ACCESSORIES

VTOL

MOTOR

Superior performance for unmatched flights.

ESC

Precise control, maximum performance.

PROPELLER

Powerful burst, high intensity.

Carbon Fiber Propeller

FPV

MOTOR

High efficiency, extended flight time.

28XX
31XX

ESC

Optimized performance, trusted reliability.

FLIGHT CONTROLLER

Simplicity and reliability combined.

STACK

Personal Travel Systems

Electric Skateboard

Skateboard Controller

Controlled and Silky Smooth Operation

Skateboard Motor

Robust Power System With a Single Step

Electric Scooter

Scooter Controller

Transporting Each Trip in a Safe Manner

Personal Travel Accessories

Skateboard Accessories

Scooter Accessories

Service and Support

M 6210 / 6215 HP

Overview Specifications Support Accessories Detail Contact us Shop

Buy

: Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.

By submitting this form, you agree to HOBBYWING's Privacy Policy

Thanks for reaching out!We have received your message and will get back to you shortly.: Best Regards,
HOBBYWING Team

M 6210 HP CAD

M 6215 HP CAD

Model

M 6210
170KV HP

M 6210
320KV HP

M 6215
160KV HP

M 6215
320KV HP

Specification

Motor Size	Φ68.7*H30.2mm	Φ68.7*H30.2mm	Φ68.7*H35.2mm	Φ68.7*H35.2mm
Stator Size	Φ61.5mm	Φ61.5mm	Φ61.5mm	Φ61.5mm
Stator process	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire	200℃	200℃	200℃	200℃
Magnet	150℃	150℃	150℃	150℃
Isolation test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test	500V AC high voltage resistance test
Protection level	IP45	IP45	IP45	IP45
Slot& Pole	24N28P	24N28P	24N28P	24N28P
Dynamic balance	≤8mg	≤8mg	≤8mg	≤8mg
Bearing	Water proof bearing	Water proof bearing	Water proof bearing	Water proof bearing
Motor axle diameter	Φ6mm	Φ6mm	Φ6mm	Φ6mm
Props mounting dimensions	4×M3@D12mm，4×M3@D18mm	4×M3@D12mm，4×M3@D18mm	4×M3@D12mm，4×M3@D18mm	4×M3@D12mm，4×M3@D18mm
Motor mounting dimensions	4×M4@D25mm	4×M4@D25mm	4×M4@D25mm	4×M4@D25mm

Specification

KV	170	320	160	320
Battery(LiPo)	12S LiPo	6S LiPo	12S LiPo	6S LiPo
No-load current	1.31A	1.97A	1.54A	3.14A
Maximum current (Non-hermeticAmbient Temperature ≤ 25℃）	42.9A	55.2A	38.6A	74.0A
Max power	1973W	1270W	1777W	1705W
Max thrust	9.1kg	7.1kg	9.2kg	8.8kg
Resistance	98.6mΩ	33.65mΩ	67mΩ	20.95mΩ
Wire Size	16AWG	16AWG	16AWG	16AWG
Wire length	150mm	150mm	150mm	150mm
Weight（With wire）	231g	239g	307g	308g

Recommended application combinations

Motor	M-6210-170KV	M-6210-320KV	M-6215-160KV	M-6215-320KV
Propeller	MP216.3"/ML227.8"/HF22*7.0"	MP216.3"/ML227.8"/HF22*7.0"	MP216.3"/ML227.8"/HF22*7.0"	MP216.3"/ML227.8"/HF22*7.0"
ESC	XRotor Pro-H60A-14S	XRotor Pro-H60A-6S	XRotor Pro-H60A-14S	XRotor Pro-H60A-6S
Battery	12S LiPo	6S LiPo	12S LiPo	6S LiPo
Thrust/rotor(kg)	2.2~2.7kg	2.2~2.7kg	2.5~3.5kg	2.5~3.5kg
Takeoff weight of quadrotor(kg)	9.0~11.0kg	9.0~11.0kg	10.0~14.0kg	10.0~14.0kg

M 6210 170KV+MP21*6.3" Load performance parameters

M 6210 170KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP21*6.3"	33%	1104	2.0	92.3	2572	12.0	0.26	46.7°C
		35%	1235	2.3	106.6	2721	11.6	0.29
		37%	1381	2.7	123.4	2877	11.2	0.32
		39%	1537	3.1	142.2	3035	10.8	0.36
		42%	1786	3.8	173.9	3268	10.3	0.42
		45%	2044	4.5	208.9	3489	9.8	0.47
		48%	2307	5.4	246.8	3698	9.3	0.53
		51%	2572	6.2	287.1	3896	9.0	0.60
		54%	2840	7.2	330.0	4084	8.6	0.66
		57%	3111	8.2	375.6	4267	8.3	0.72
		60%	3389	9.2	424.3	4446	8.0	0.78
		63%	3677	10.4	477.0	4625	7.7	0.85
		66%	3977	11.6	534.3	4806	7.4	0.92
		69%	4293	13.0	597.0	4989	7.2	0.99
		72%	4625	14.5	665.8	5176	6.9	1.06
		75%	4974	16.1	740.9	5364	6.7	1.14
		78%	5337	17.9	822.3	5550	6.5	1.23
		81%	5709	19.8	909.3	5733	6.3	1.32
		84%	6082	21.7	1000.0	5906	6.1	1.40
		87%	6444	23.7	1091.6	6069	5.9	1.49
		90%	6778	25.6	1179.5	6215	5.7	1.56
		100%	7383	29.3	1346.5	6487	5.5	1.70

M 6210 170KV+MP22*7.8" Load performance parameters

M 6210 170KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP22*7.8"	33%	1525	3.0	136.5	2513	11.2	0.42	55.6°C
		35%	1719	3.4	158.5	2659	10.8	0.47
		37%	1920	4.0	184.0	2806	10.4	0.52
		39%	2128	4.6	212.5	2952	10.0	0.57
		42%	2447	5.7	260.3	3165	9.4	0.66
		45%	2770	6.8	312.7	3369	8.9	0.74
		48%	3097	8.0	368.9	3563	8.4	0.83
		51%	3425	9.3	428.3	3747	8.0	0.92
		54%	3757	10.7	490.9	3922	7.7	1.01
		57%	4094	12.1	557.1	4090	7.3	1.09
		60%	4439	13.6	627.8	4253	7.1	1.19
		63%	4795	15.3	703.9	4413	6.8	1.28
		66%	5164	17.1	786.8	4572	6.6	1.37
		69%	5548	19.1	877.6	4731	6.3	1.47
		72%	5948	21.2	977.7	4891	6.1	1.58
		75%	6361	23.6	1087.7	5052	5.8	1.69
		78%	6784	26.2	1207.8	5212	5.6	1.80
		81%	7213	29.0	1336.7	5369	5.4	1.91
		84%	7637	31.9	1471.0	5519	5.2	2.03
		87%	8045	34.9	1605.3	5656	5.0	2.14
		90%	8421	37.6	1732.0	5774	4.9	2.24
		100%	9137	42.9	1973.1	5962	4.6	2.44

M 6210 320KV+MP21*6.3" Load performance parameters

M 6210 320KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V (6S LiPo)	MP21*6.3"	33%	842	2.9	66.5	2234	12.7	0.21	49.1°C
		35%	944	3.3	75.9	2356	12.4	0.23
		37%	1056	3.8	86.9	2486	12.1	0.26
		39%	1174	4.3	99.4	2618	11.8	0.29
		42%	1363	5.2	120.8	2817	11.3	0.33
		45%	1560	6.3	144.9	3012	10.8	0.38
		48%	1764	7.4	171.2	3199	10.3	0.42
		51%	1971	8.6	199.5	3377	9.9	0.47
		54%	2182	10.0	229.7	3548	9.5	0.52
		57%	2398	11.4	261.8	3711	9.2	0.57
		60%	2618	12.8	296.0	3869	8.8	0.62
		63%	2844	14.4	332.5	4024	8.6	0.68
		66%	3077	16.1	371.8	4177	8.3	0.73
		69%	3318	18.0	414.1	4331	8.0	0.79
		72%	3568	19.9	459.9	4486	7.8	0.85
		75%	3826	22.1	509.3	4643	7.5	0.91
		78%	4091	24.4	562.4	4803	7.3	0.97
		81%	4360	26.8	618.8	4964	7.0	1.03
		84%	4629	29.4	677.5	5121	6.8	1.10
		87%	4893	32.0	736.9	5270	6.6	1.16
		90%	5143	34.5	794.6	5404	6.5	1.22
		100%	5717	40.3	928.7	5662	6.2	1.35

M 6210 320KV+MP22*7.8" Load performance parameters

M 6210 320KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V (6S LiPo)	MP22*7.8"	33%	1094	3.7	86.1	2142	12.7	0.30	62.0°C
		35%	1218	4.3	98.3	2253	12.4	0.33
		37%	1359	4.9	113.2	2373	12.0	0.36
		39%	1512	5.7	130.5	2498	11.6	0.40
		42%	1757	7.0	160.6	2687	10.9	0.47
		45%	2015	8.4	194.8	2874	10.3	0.54
		48%	2280	10.1	232.3	3053	9.8	0.61
		51%	2549	11.8	272.5	3223	9.4	0.68
		54%	2819	13.7	315.0	3384	9.0	0.75
		57%	3091	15.6	359.7	3538	8.6	0.82
		60%	3367	17.7	407.0	3687	8.3	0.89
		63%	3646	19.8	457.0	3831	8.0	0.96
		66%	3932	22.2	510.6	3973	7.7	1.03
		69%	4226	24.7	568.1	4115	7.4	1.11
		72%	4530	27.4	630.4	4256	7.2	1.18
		75%	4843	30.3	697.8	4397	6.9	1.27
		78%	5165	33.4	770.4	4538	6.7	1.35
		81%	5492	36.8	847.9	4677	6.5	1.44
		84%	5821	40.3	928.9	4811	6.3	1.53
		87%	6143	43.9	1011.1	4935	6.1	1.62
		90%	6448	47.4	1090.9	5047	5.9	1.70
		100%	7124	55.2	1270.0	5261	5.6	1.88

M 6215 160KV+MP21*6.3" Load performance parameters

M 6215 160KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP21*6.3"	33%	945	1.8	84.7	2388	11.2	0.23	47.8°C
		35%	1036	2.0	93.6	2495	11.1	0.25
		37%	1140	2.3	104.5	2614	10.9	0.27
		39%	1257	2.5	117.4	2743	10.7	0.30
		42%	1453	3.0	140.2	2945	10.4	0.35
		45%	1667	3.6	166.9	3153	10.0	0.40
		48%	1896	4.3	197.4	3361	9.6	0.45
		51%	2136	5.0	231.2	3565	9.2	0.51
		54%	2386	5.8	267.9	3764	8.9	0.57
		57%	2643	6.7	307.5	3957	8.6	0.63
		60%	2906	7.6	349.7	4143	8.3	0.69
		63%	3175	8.6	394.4	4325	8.1	0.75
		66%	3450	9.6	441.8	4502	7.8	0.81
		69%	3730	10.7	492.0	4676	7.6	0.88
		72%	4018	11.8	545.4	4848	7.4	0.95
		75%	4312	13 1	602.4	5019	7.2	1.02
		78%	4616	14.4	663.5	5190	7.0	1.09
		81%	4931	15.8	729.2	5361	6.8	1.16
		84%	5258	17.4	800.2	5534	6.6	1.24
		87%	5598	19.0	877.0	5708	6.4	1.32
		90%	5953	20.8	960.0	5882	6.2	1.41
		100%	7195	27.4	1262.3	6432	5.7	1.70

M 6215 160KV+MP22*7.8" Load performance parameters

M 6215 160KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
46V (12S LiPo)	MP22*7.8"	33%	1244	2.3	107.9	2287	11.5	0.33	58.4°C
		35%	1370	2.6	121.1	2396	11.3	0.37
		37%	1511	3.0	136.9	2515	11.0	0.40
		39%	1666	3.4	155.2	2640	10.7	0.44
		42%	1923	4.1	187.6	2838	10.3	0.51
		45%	2205	4.9	225.8	3042	9.8	0.59
		48%	2509	5.9	269.6	3247	9.3	0.67
		51%	2832	6.9	318.5	3448	8.9	0.75
		54%	3171	8.1	372.2	3643	8.5	0.84
		57%	3521	9.3	430.2	3830	8.2	0.93
		60%	3881	10.7	492.4	4009	7.9	1.03
		63%	4249	12.1	558.4	4179	7.6	1.12
		66%	4621	13.6	628.4	4343	7.4	1.22
		69%	4997	15.3	702.5	4503	7.1	1.31
		72%	5376	17.0	781.0	4660	6.9	1.41
		75%	5758	18.8	864.1	4816	6.7	1.51
		78%	6143	20.7	952.3	4974	6.5	1.62
		81%	6532	22.7	1046.1	5134	6.2	1.72
		84%	6927	24.9	1146.1	5298	6.0	1.83
		87%	7331	27.2	1252.9	5465	5.9	1.94
		90%	7748	29.7	1367.2	5636	5.7	2.06
		100%	9215	38.6	1777.3	6130	5.2	2.46

M 6215 320KV+MP21*6.3" Load performance parameters

M 6215 320KV+MP21*6.3" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V(6S LiPo)	MP21*6.3"	33%	1084	4.3	100.4	2515	10.8	0.26	52.3°C
		35%	1202	4.9	113.0	2639	10.6	0.29
		37%	1333	5.5	127.7	2772	10.4	0.32
		39%	1473	6.3	144.5	2910	10.2	0.35
		42%	1696	7.5	173.1	3118	9.8	0.41
		45%	1930	8.9	205.1	3324	9.4	0.46
		48%	2170	10.4	240.0	3525	9.0	0.52
		51%	2416	12.0	277.4	3717	8.7	0.57
		54%	2666	13.7	317.1	3903	8.4	0.63
		57%	2922	15.6	359.3	4083	8.1	0.69
		60%	3184	17.5	404.3	4259	7.9	0.75
		63%	3455	19.6	452.6	4432	7.6	0.82
		66%	3736	21.9	504.6	4603	7.4	0.88
		69%	4029	24.3	561.1	4775	7.2	0.95
		72%	4334	27.0	622.7	4949	7.0	1.02
		75%	4651	29.9	689.7	5123	6.7	1.10
		78%	4979	33.0	762.1	5298	6.5	1.18
		81%	5316	36.4	839.5	5472	6.3	1.26
		84%	5655	39.9	920.3	5642	6.1	1.34
		87%	5991	43.5	1002.0	5801	6.0	1.42
		90%	6312	46.9	1081.1	5945	5.8	1.49
		100%	7070	54.7	1261.0	6230	5.6	1.65

M 6215 320KV+MP22*7.8" Load performance parameters

M 6215 320KV+MP22*7.8" Motor Propeller Pull Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature(℃)
23V(6S LiPo)	MP22*7.8"	33%	1392	5.5	127.5	2403	10.9	0.37	69.3°C
		35%	1564	6.4	146.9	2537	10.6	0.42
		37%	1745	7.3	169.1	2674	10.3	0.46
		39%	1935	8.4	193.9	2813	10.0	0.51
		42%	2230	10.2	235.5	3017	9.5	0.59
		45%	2533	12.2	281.5	3215	9.0	0.67
		48%	2844	14.3	331.1	3405	8.6	0.75
		51%	3160	16.6	384.0	3585	8.2	0.84
		54%	3481	19.1	440.1	3757	7.9	0.92
		57%	3810	21.6	499.5	3921	7.6	1.00
		60%	4147	24.4	562.6	4079	7.4	1.09
		63%	4494	27.3	630.1	4233	7.1	1.18
		66%	4853	30.4	702.7	4385	6.9	1.27
		69%	5224	33.8	781.3	4536	6.7	1.37
		72%	5608	37.5	866.4	4688	6.5	1.46
		75%	6004	41.5	958.5	4841	6.3	1.57
		78%	6408	45.8	1057.4	4995	6.1	1.68
		81%	6817	50.4	1162.2	5150	5.9	1.78
		84%	7223	55.1	1270.5	5302	5.7	1.89
		87%	7618	59.8	1378.8	5445	5.5	2.00
		90%	7988	64.3	1482.0	5573	5.4	2.09
		100%	8801	74.0	1705.3	5814	5.2	2.29

Support

Manuals & Documents

Disclaimer

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
