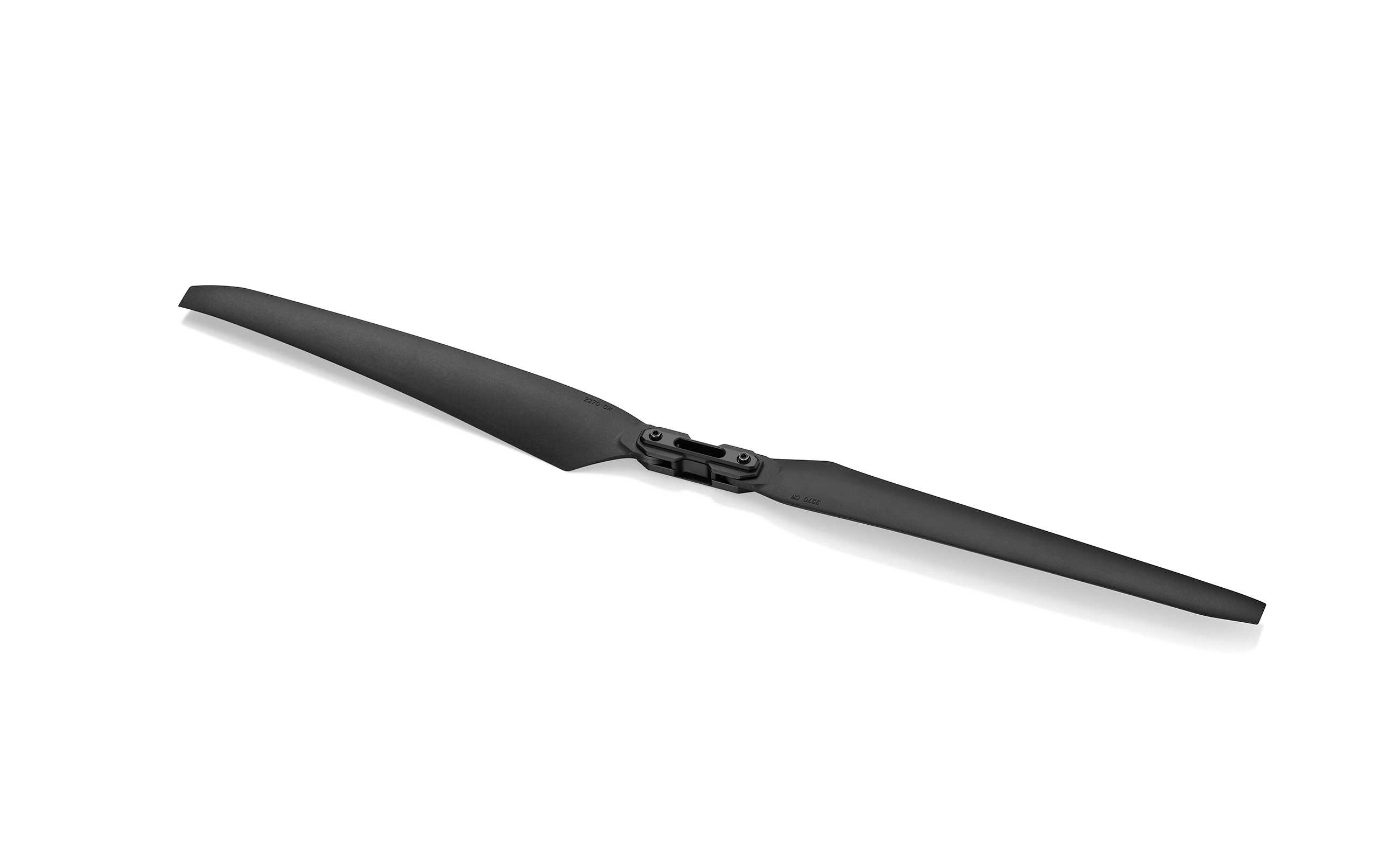

HF 22*7.0"
22*7.0
INDUSTRIAL CARBON PLASTIC

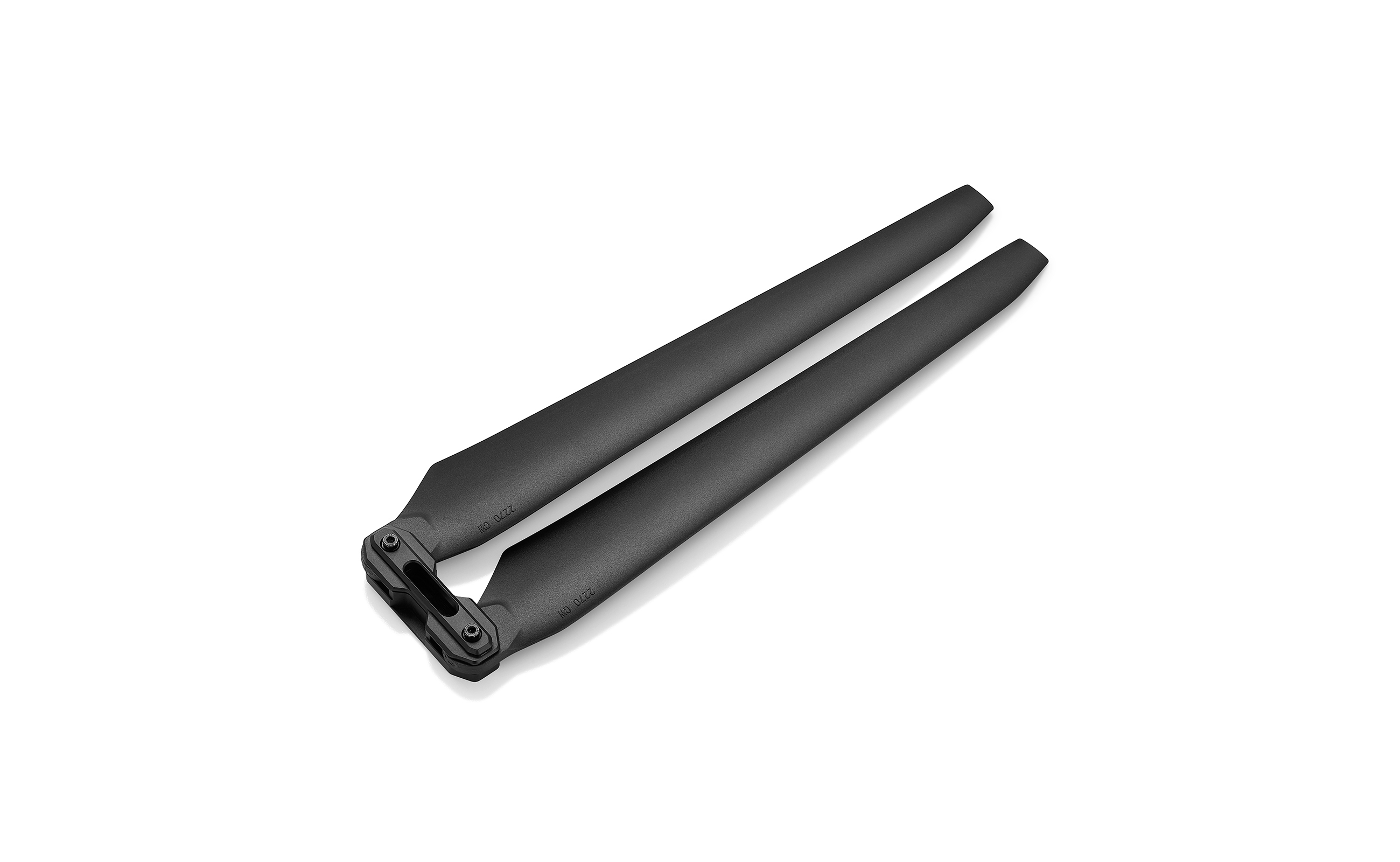

FOLDING PROPELLER
Preimum Materials
Excellent Quality
High Performance
High Reliability
High-efficiency applications in the industry.
The airfoil design meets the needs of light
load and high efficiency.
Light in Weight, it is Able to
Withstand Large Thrust
  • 66g
    Having lower weight compared to
    carbon plastic folding propeller sets of
    The thrust is able to reach 11kg
  • 11Kg
    The thrust is able to 11kg
    at the limit speed of 6700RPM

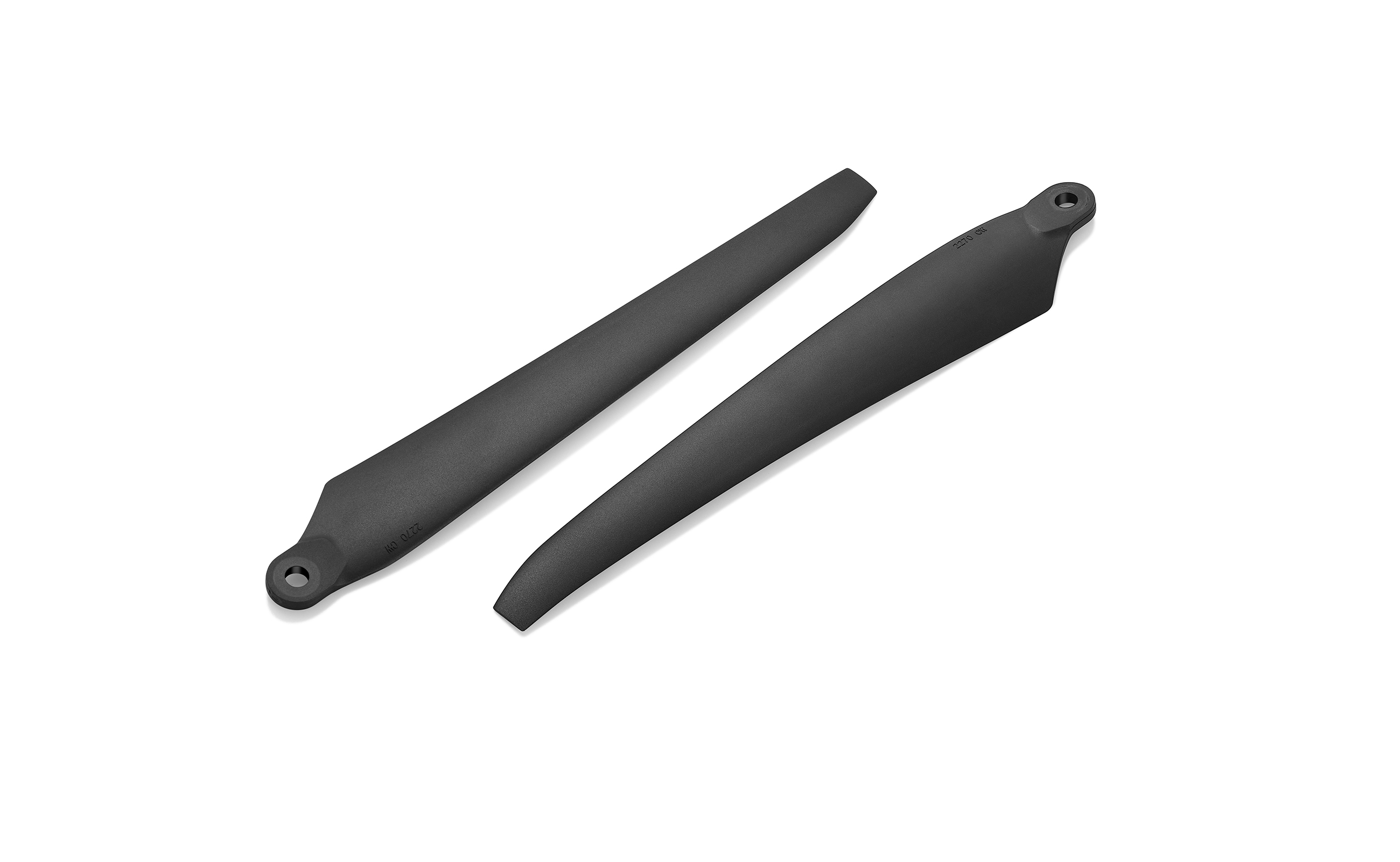

Excellent Aerodynamic Design
Brings High Propeller Efficiency
it adopts a uniaue airfoil desian with upturned blade, anhedral blade tip, and large aspect ratio, improving the
vortex structure of the blade tip. lt also enhances the aerodynamic performance under heavy-load subsonic
conditions, and ensure the aerodynamic performance and weight optimization based on high structural
strength.
Strict Testing Standards
Ensure Reliability

More than 1000
hours of strict fatique life tests

More than 200 hours of -40°C
of low temperature fatigue
life test are conducted

Exquisite Selection of Materials
and Pursuit of Ingenuity
It adopts its own unique formulated material of carbon fiber reinforced polymer and selects the most
reasonable solution through the material mixing ratio in order to meet the performance of high strength,
high toughness, anti-aging, water absorption resistance, fatigue resistance, etc., ensuring flight safety.
HF 22*7.0" CAD
Product Name
HF 22*7.0"
Specifications
Blade model HF 22*7.0" Carbon Plastic Folding Propeller
Single weight 66g
Main material Carbon Fiber Reinforced Polymer
Surface Technology Matte Texture

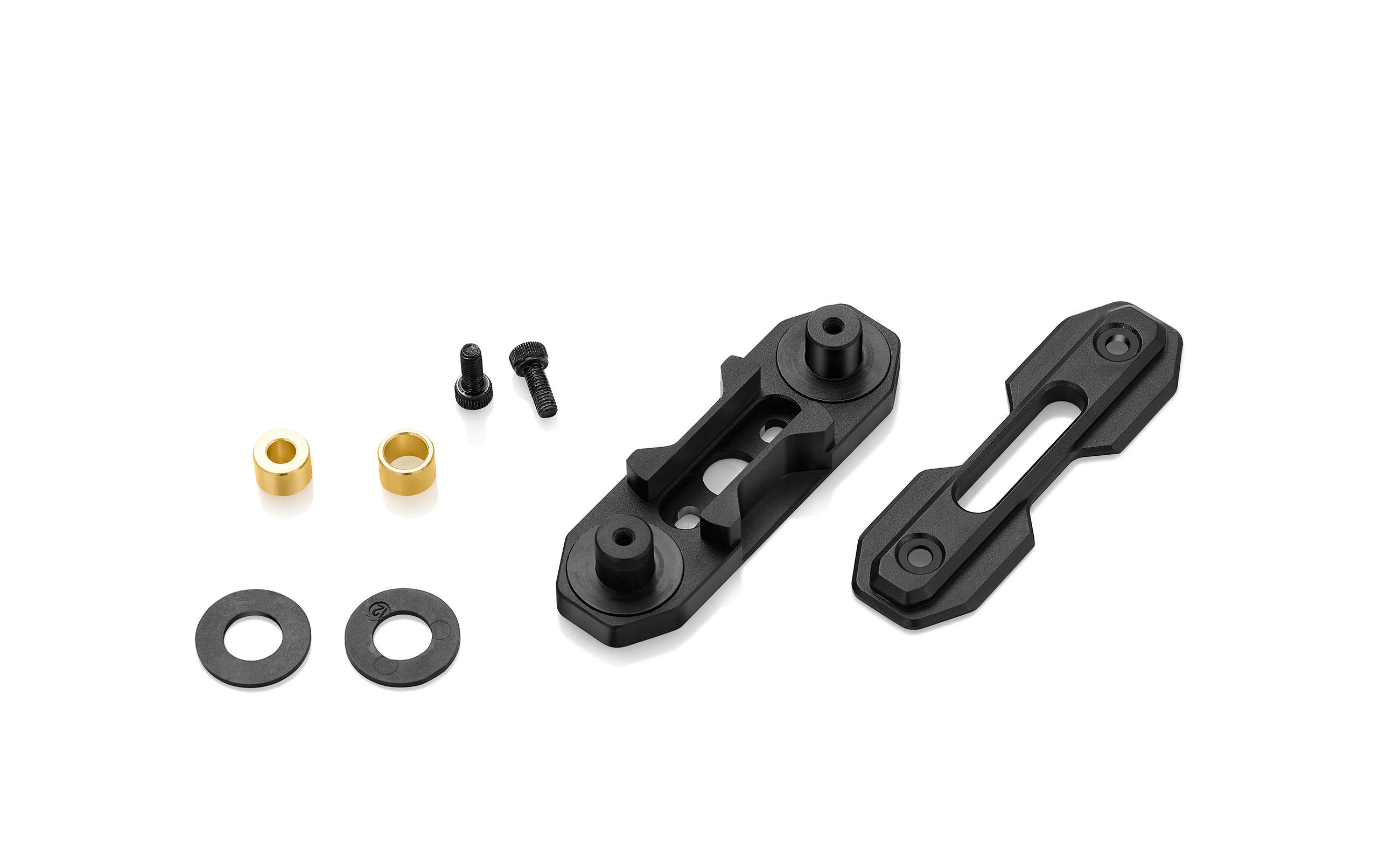

Propeller Adapter Material Aluminum Alloy
Ambient temperature -30℃~65℃
Storage temperature -10℃~45℃
Storage humidity <85%
Optimal speed range 3000RPM~4500RPM
Commonly used thrust range 2kg~5kg
Max. RPM 6500RPM
Ultimate thrust 11kg
HF 22*7.0" Load performance parameters
