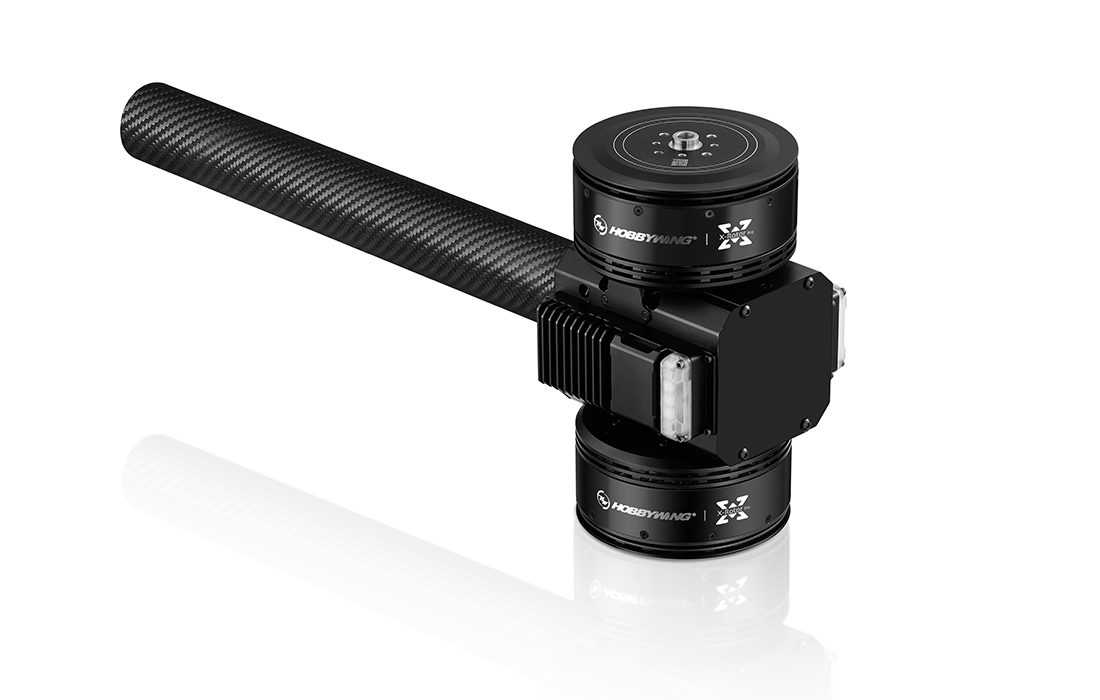

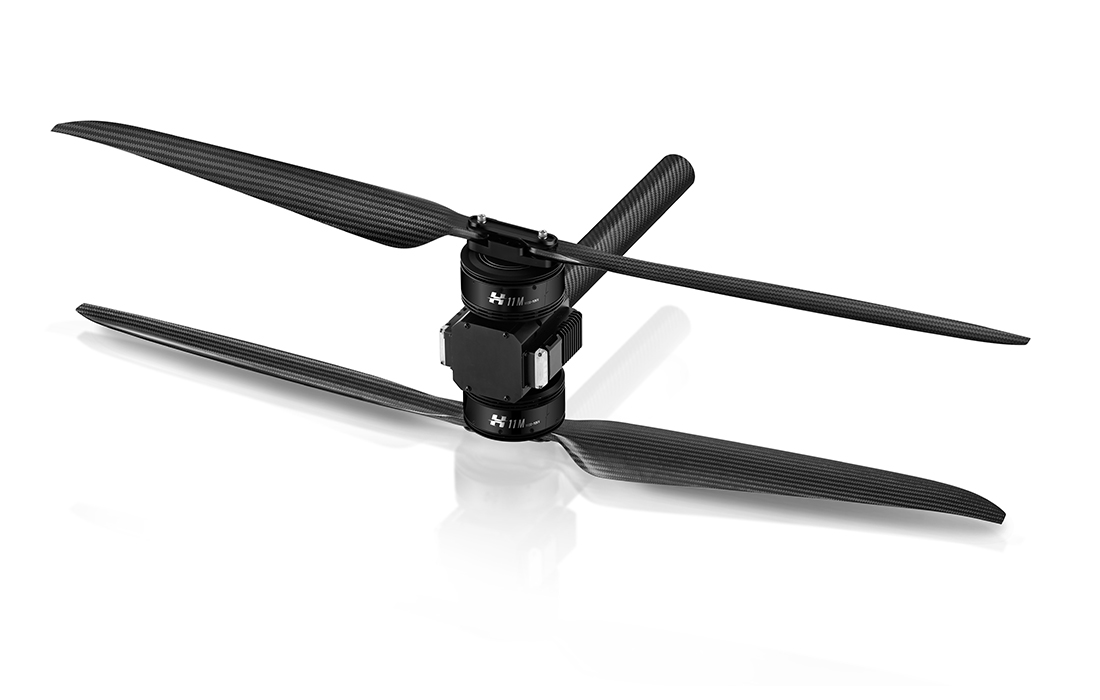

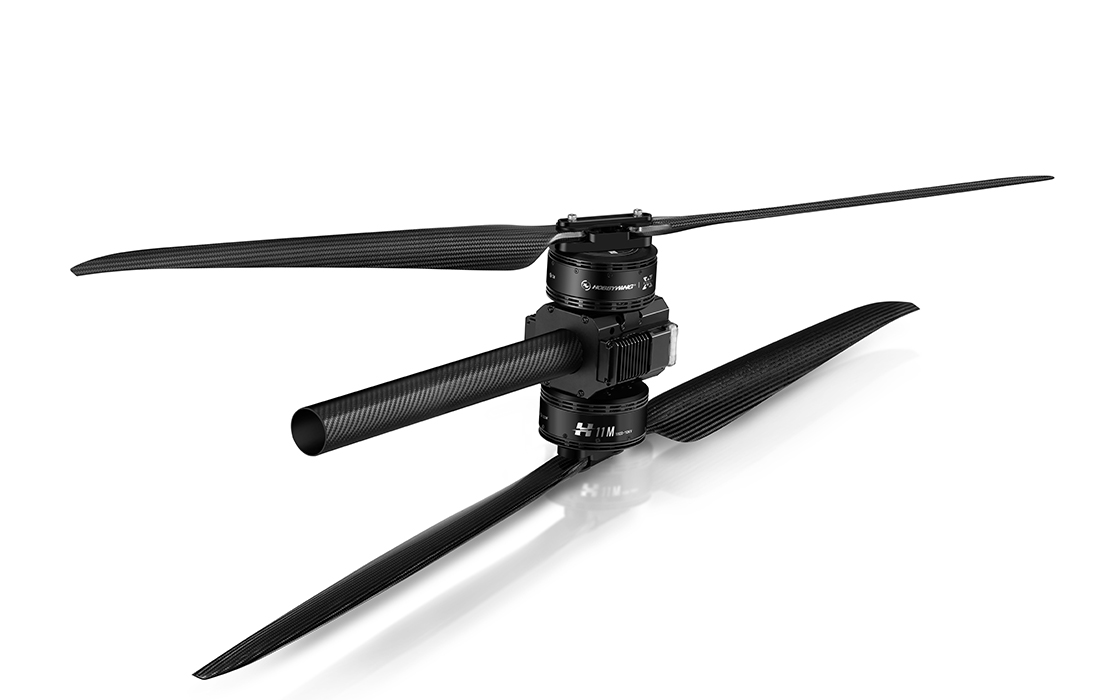

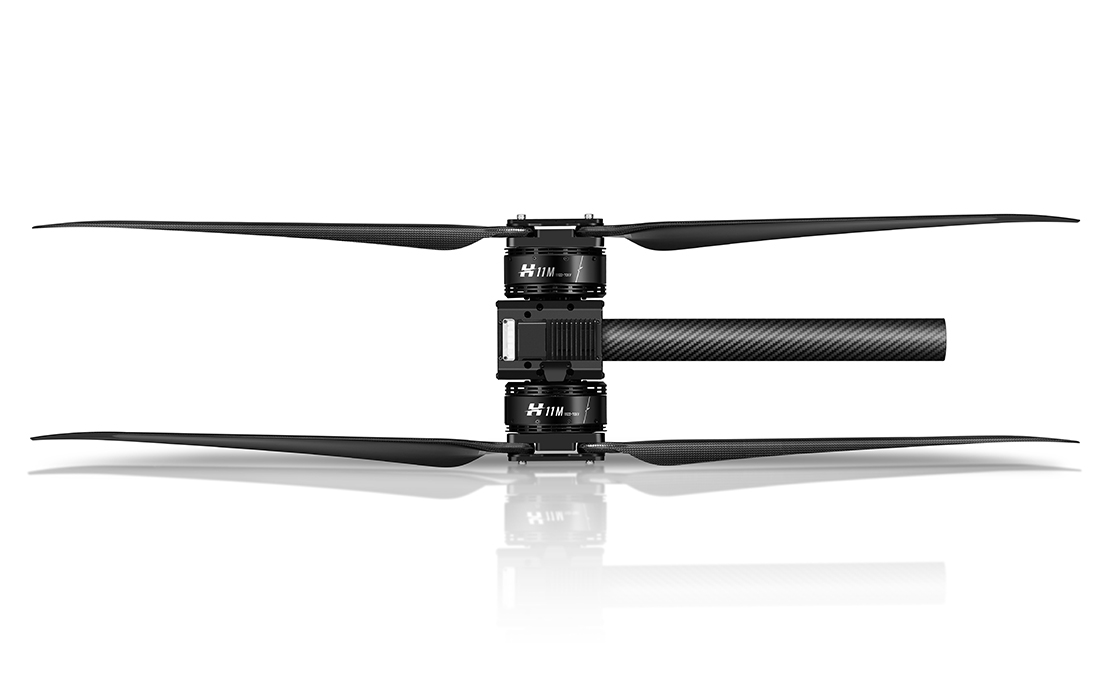

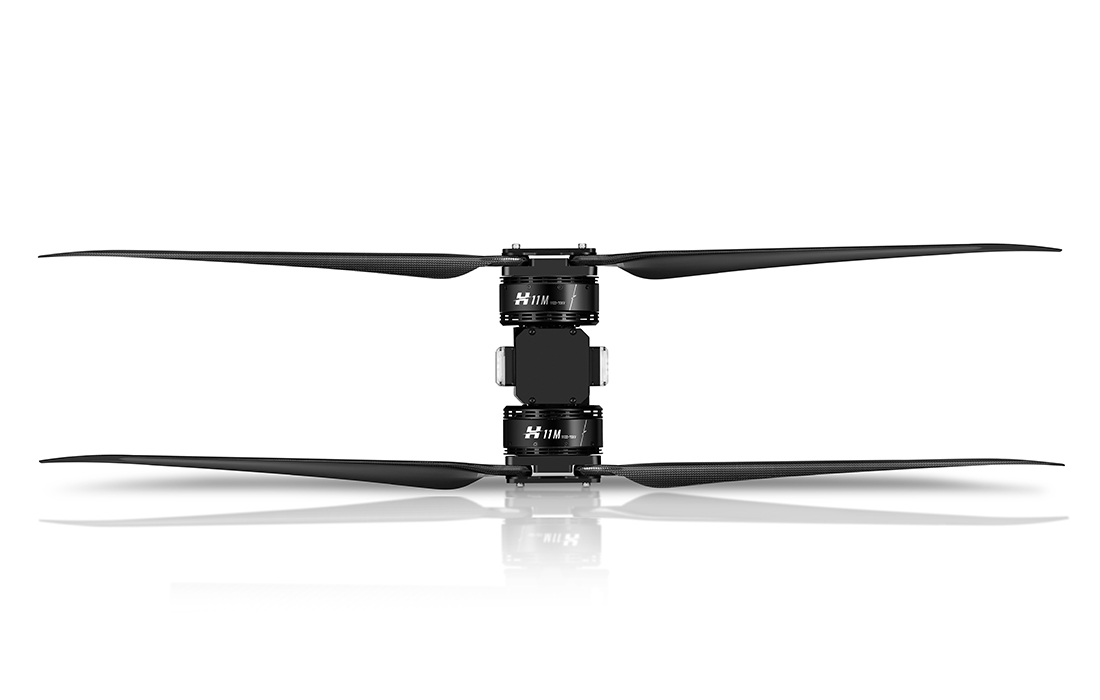

H11M
Easy to use,
wide applications
Integrated power set, "ready to fly";
It fills the power gap of 100kg multi-rotor UAV
(four-rotor eight-propeller data),
and takes into account the use of vertical
take-off and landing UAV.
It is suitable for heavy-duty and long-endurance
operations such as logistics and fire protection.
Fault storage function
The ESC is equipped with a fault storage function.
When the power fails,
the code is automatically stored to effectively
analyze subsequent faults.
Dual throttle redundancy
PWM and CAN dual-way throttle
design are mutually backup.
Switchable between them in just milliseconds
to improve reliability during flight.
Precise control, safe, and reliable
The self-developed sine wave (FOC) ESC and 48-inch carbon fiber propellers
allows precision flight control and increased in fligh efficiency.
It captures key information such as voltage, current, temperature, and ESC status in real time.
FOC ESC

48-inch carbon fiber propellers

Lifetime maintenance reminder
Custom maintenance intervals, regular reminders,
thoughtful and meticulous when busy.

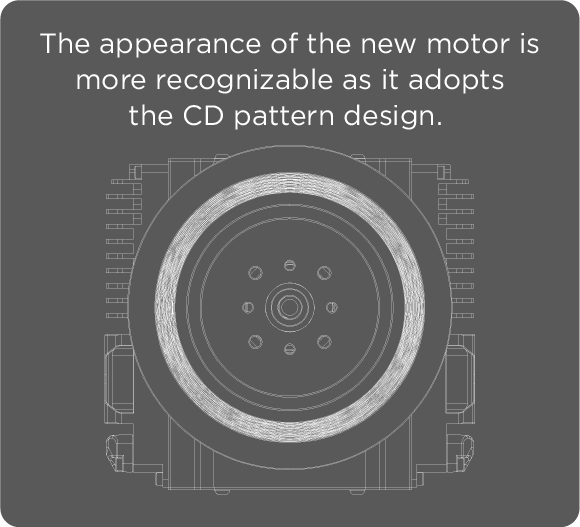

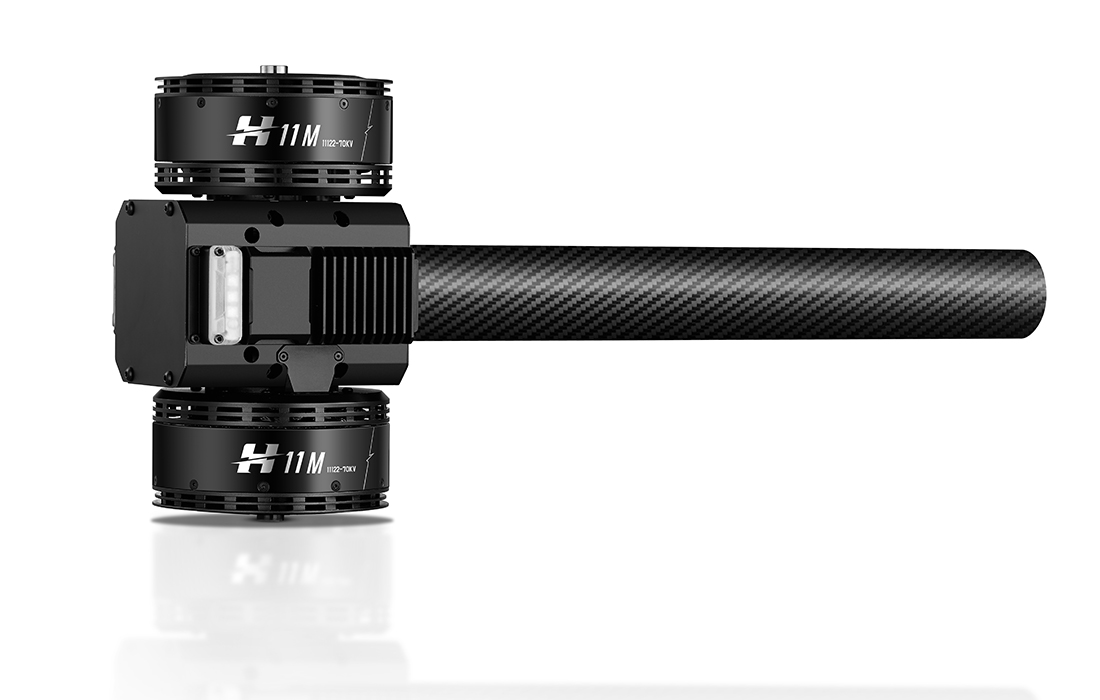

The appearance of the new
motor is more recognizable
as it adopts the CD pattern
design.

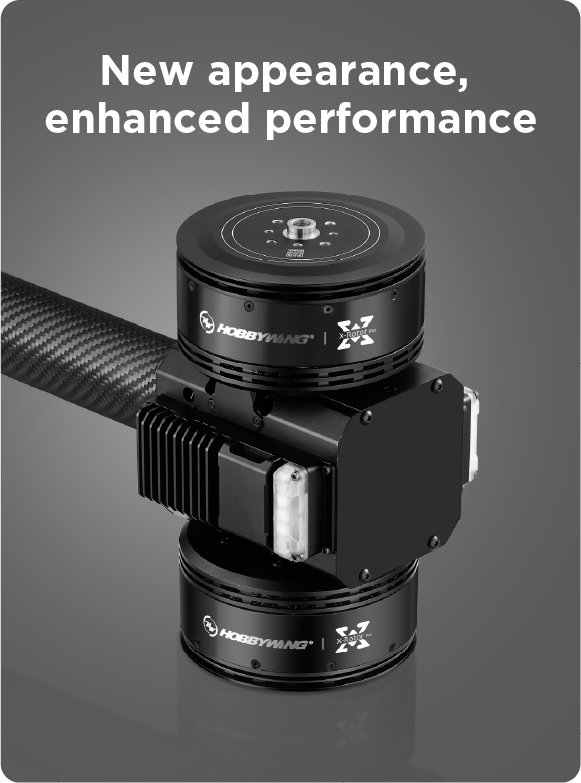

New appearance,
enhanced
performance

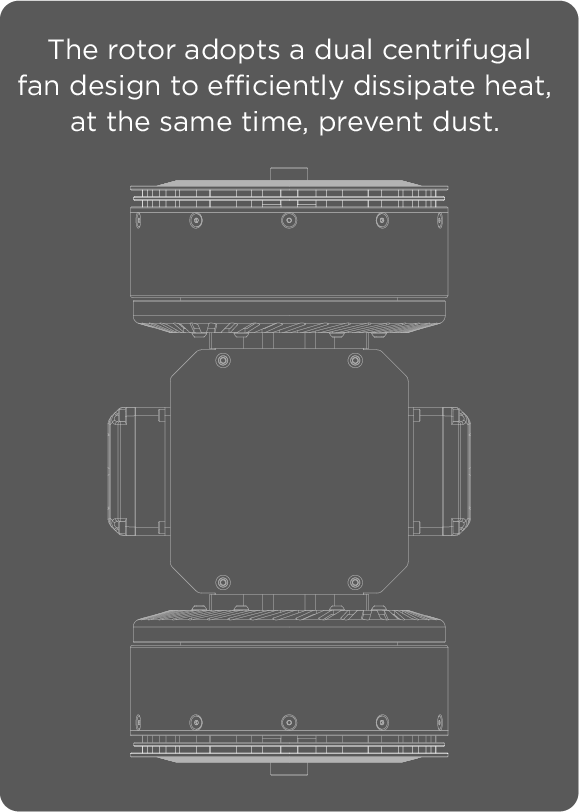

The rotor adopts a dual
centrifugal fan design to
efficiently dissipate heat,
at the same time, prevent dust.
Built with the best materials,
and well developed technology.

Enameled wire
High-quality enameled wirewith a temperature
resistance of over 200°C;

Bearings
Imported waterproof ball bearings,
the motor can be washed directly
with water.

NdFeB magnets
UH-grade high-temperature-resistant
NdFeB magnets;

Iron core
The newly designed lightweight iron core adopts a
special anti-rust treatment process, and the anti-rust
ability can pass the 48-hour salt spray test;

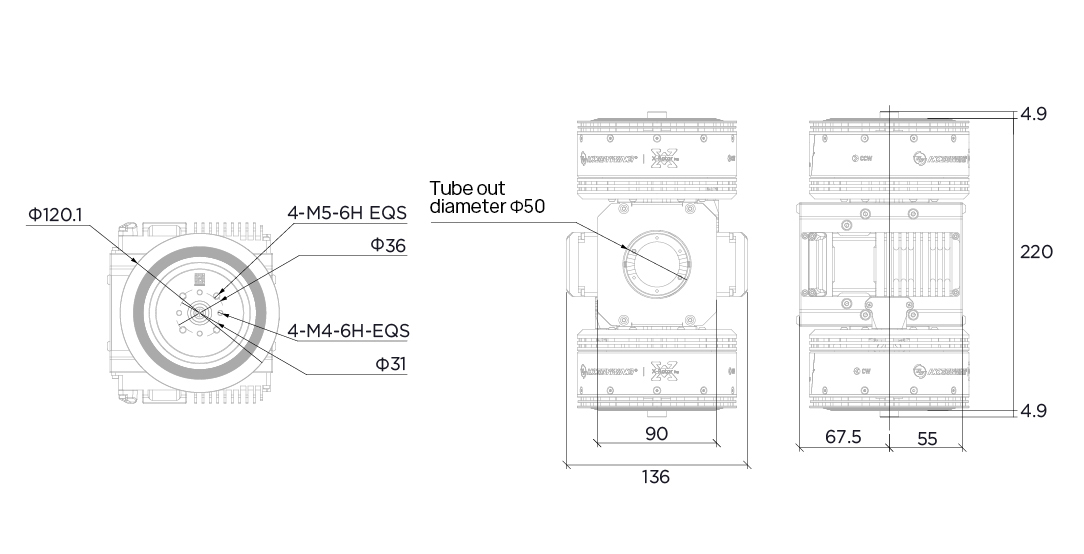

H11M CAD
Product Name
H11M
Specifications
Max Thrust 57.5kg
Recommended Battery 14S
Thrust/rotor 25-28kg/Rotor
Total Weight（without propellers） 4350g
Powertrain Arm Tube Outer Diameter φ50mm
Operating Temperature -20℃~50℃
Ingress Protection IP45
Motor
Stator Size φ111*22mm
KV Rating 70rpm/V
Motor Size Φ120.1*55.2mm
ESC
ESC 150A-FOC
PWM Input Signal Level 3.3V/5V
Throttle Pulse Width 1100-1940μs
Signal frequency 50-500HZ
Max. Input Voltage 65V
Continuous Current( Non-hermetic Ambient Temperature ≤60℃） 60A
Maximum Current( Non-hermetic Ambient Temperature ≤60℃） 150A
Communication Port CAN
Firmware Upgrade Support
Digital Throttle CAN
Propeller
Diameter X Thread Pitch 48*17.5"
Total weight( inc. adapter) 415g
Single propeller weight 117g
H11M Load performance parameters
H11M Techenical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power(W)

RPM

Efficiency(g/W)

54V (14S LiPo)

48*17.5"

32%

7464

12.2

659.1

68

11.3

34%

8465

13.8

747.2

70

11.3

36%

9379

14.2

769.1

75

12.2

38%

10406

15.1

813.8

79

12.8

40%

11633

17.0

920.7

81

12.6

42%

13072

20.3

1097.7

80

11.9

44%

14692

24.7

1334.8

80

11.0

46%

16448

29.9

1614.2

80

10.2

48%

18295

35.5

1918.2

80

9.5

50%

20200

41.3

2234.0

82

9.0

52%

22146

47.3

2556.1

84

8.7

54%

24139

53.4

2887.0

85

8.4

56%

26198

59.9

3236.8

87

8.1

58%

28354

67.0

3621.0

88

7.8

60%

30642

75.1

4057.4

88

7.6

63%

34388

89.6

4845.9

87

7.1

66%

38536

107.8

5824.7

86

6.6

69%

43007

129.2

6983.7

84

6.2

72%

47563

152.7

8251.9

83

5.8

75%

51814

175.7

9496.8

82

5.5

78%

55276

195.1

10543.1

82

5.2

100%

57481

207.0

11183.7

82

5.1
The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
