FlyFun V5 Series

DEO Technology / Active Freewheeling

The DEO technology (Driving Efficiency Optimization) implemented in the
ESC has multiple advantages:
● Rapider and smoother throttle response, better stability and flexibility during flight.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature, more reliable operation.

Rapid Throttle
Response

Longer flight
and better
throttle linearity

Lower Working
Temperature

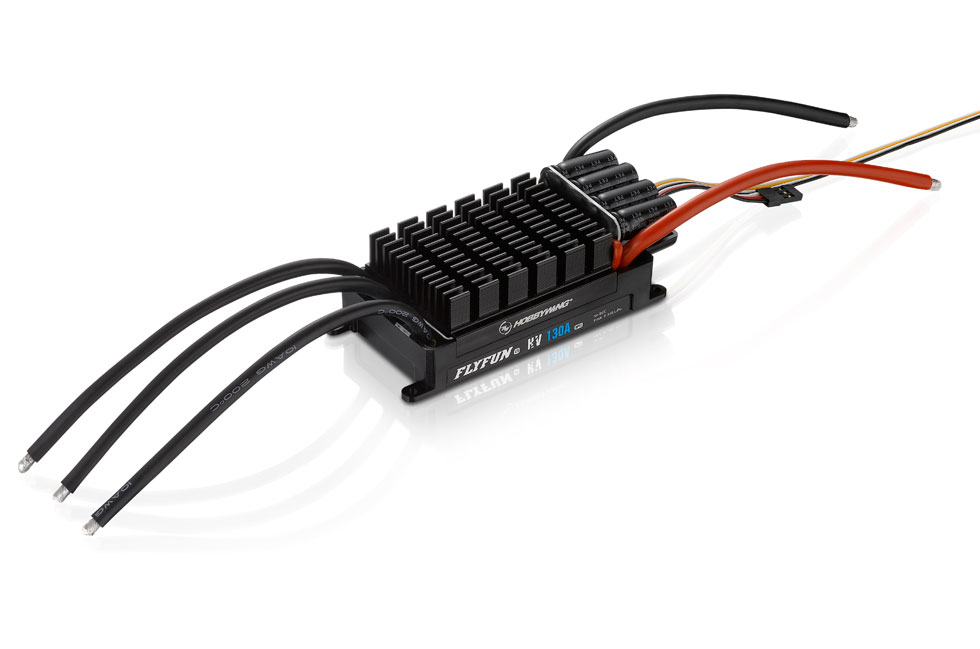

FlyFun HV 130A OPTO V5

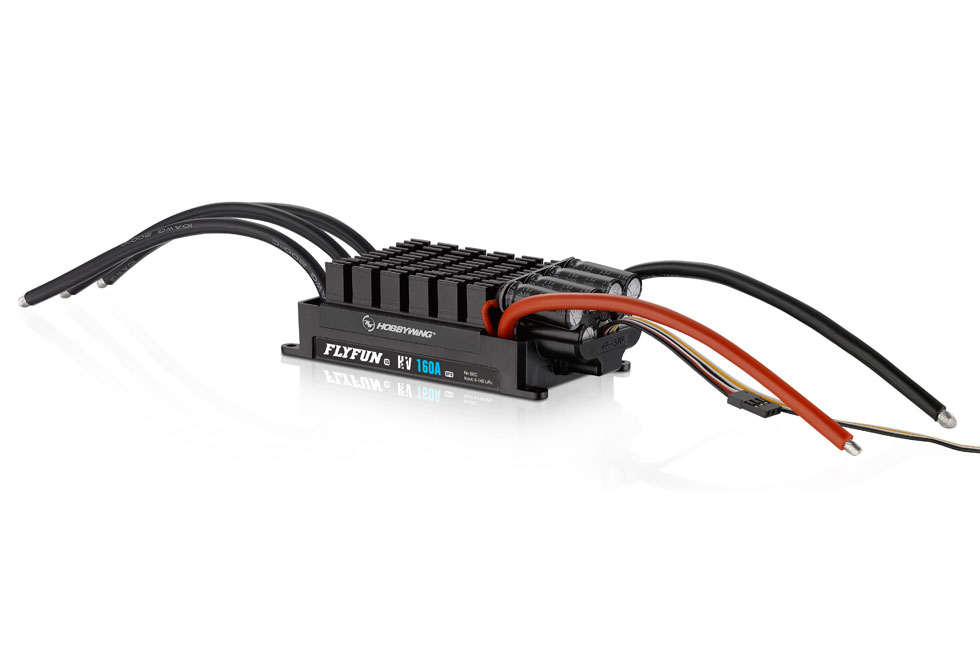

FlyFun HV 160A OPTO V5

Soft Start-ups & Reverse Brake

New soft start-up modes are applicable to regular propeller aircraft and
EDF aircraft with different sizes. With Reverse Brake mode enabled when
landing can effectively shorten the sliding distance of the aircraft to
simulate the landing of a real aircraft (within a super short distance,
the FLYFUN 130A/160A-HV-OPTO-V5 doesn’t have this function).
Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode
are also available; the brake amount is adjustable in normal brake mode
while in proportional brake mode, the brake force will be automatically
allotted on the basis of the position of radio throttle stick.
(Warning! This is Hobbywing's registered patented)

Reverse Brake

High-power BEC

High-power switch-mode BEC with continuous/peak current of
8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows
users to have more electronic devices or devices with higher power
like servo, flight controller, and on-board light on their aircraft.

High-power BEC

Multiple Protections

Multiple protection features include start-up,
over-current, ESC thermal, capacitor thermal,
overload, throttle signal loss (or Fail Safe),
and abnormal input voltage effectively
prolongs the service life of the ESC.

Multiple
Protections

Start-up Protection

Capacitor Thermal Protection

ESC Thermal Protection

Throttle Signal Loss Protection

Over-current Protection

Abnormal Input Voltage Protection

Over-load Protection

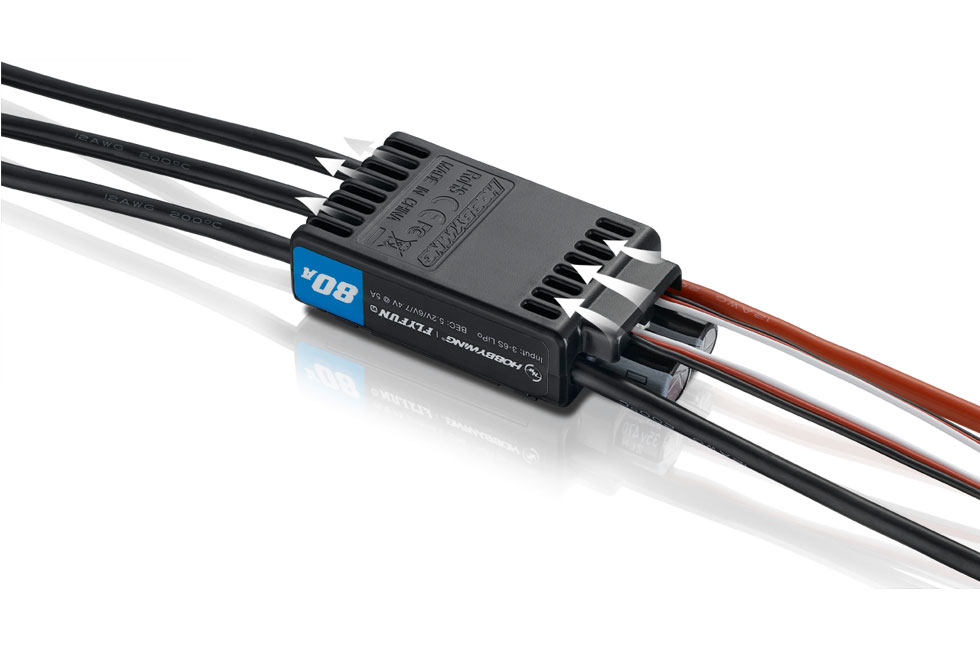

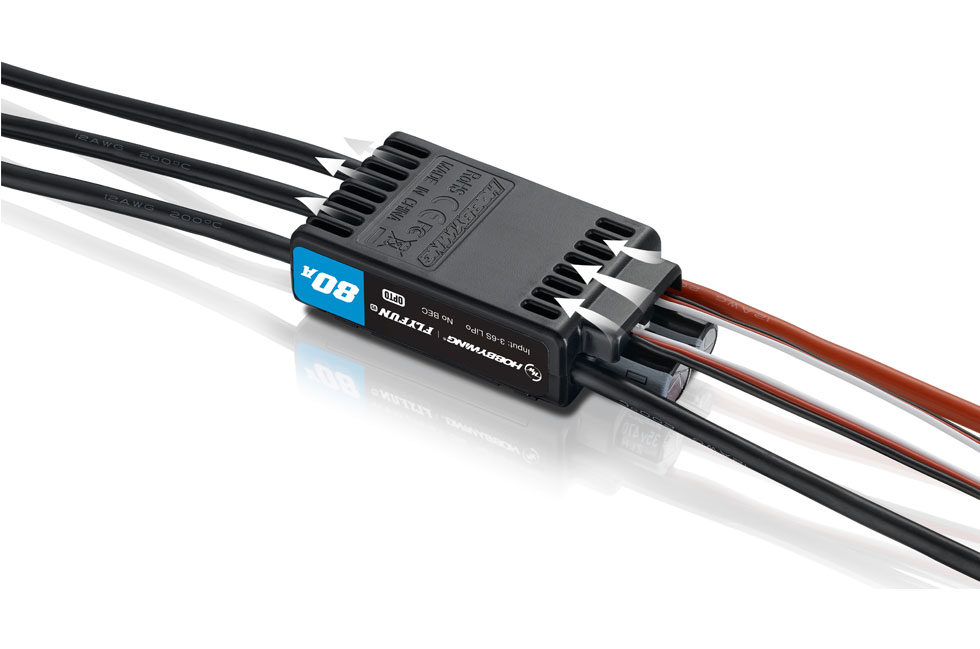

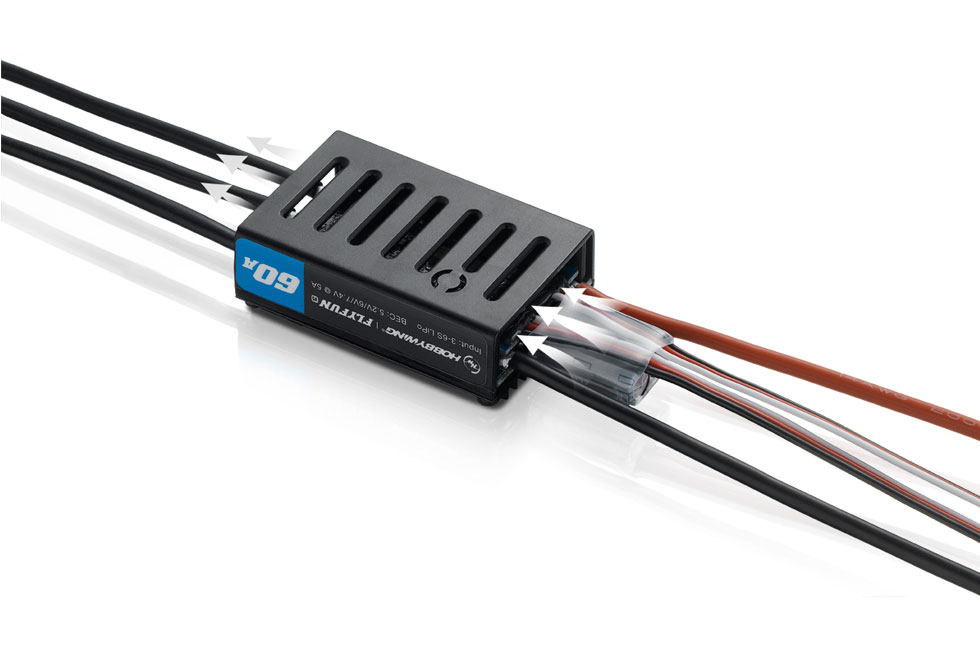

New Design & Great performance

New design brings exquisite look and good heat-dissipating performance.
Imported components, the high-performance 32-bit microprocessor, and the PCB
(printed circuit board) with extremely low impedance adopted by the ESC guarantee
great current endurance, excellent performance and high reliability. The ESC is
available in high-voltage/regular version with different Amps.

New Design &
Great performance

the high-performance
32-bit microprocessor

FlyFun HV 130A OPTO V5

Multiple Programmable Parameters

Multiple programmable parameters for setups of different fixed-wing
aircraft are adjustable via transmitter or Hobbywing LED program box.

Multiple Programmable
Parameters

FlyFun HV 130A OPTO V5

Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input

BEC Output
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight
Product Name FLYFUN 160A HV OPTO V5 FLYFUN 130A HV OPTO V5 FLYFUN 110A HV V5 FLYFUN 110A HV OPTO V5 FLYFUN 30A Mini V5 FLYFUN 20A V5
Product Number 30201650 30201500 30201700 30201701 30202307 30202308
Type Brushed/Brushless

High Voltage/Regular
BL

HV
BL

HV
BL

HV
BL

HV
BL

Regular
BL

Regular
Specifications Cont./Peak Current

Input

BEC Output
160A/200A

6-14S LiPo

No
130A/160A

6-14S LiPo

No
110A/140A

6-14S LiPo

Switch Mode: 5.2V/6V/7.4V, 10A/25A
110A/140A

6-14S LiPo

No
30A/45A

2-4S LiPo

Switch Mode: 5.2V,3.5A/5A
20A/30A

2-4S LiPo

Switch Mode: 5.2V/2.5V, 4A
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connecotors
Red-10AWG-150mm*1

Black-10AWG-150mm*1

Black-10AWG-150mm*3

No

No
Red-10AWG-150mm*1

Black-10AWG-150mm*1

Black-10AWG-150mm*3

No

No
Red-10AWG-150mm*1

Black-10AWG-150mm*1

Blue-10AWG-150mm*3

No

No
Red-10AWG-150mm*1

Black-10AWG-150mm*1

Blue-10AWG-150mm*3

No

No
Red-16AWG-150mm*1

Black-16AWG-150mm*1

Blue-16AWG-100mm*3

No

3.5 Gold Connectors (Female)
Red-18AWG-150mm*1

Black-18AWG-150mm*1

Black-18AWG-100mm*3

No

2 Gold Connectors (Female)
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Separate Program Wire
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Separate Program Wire
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Separate Program Wire
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Separate Program Wire
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Separate Program Wire
Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Separate Program Wire
Firmware Firmware Upgrade Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
Size & Weight Size

Weight
110x50.3x33.3mm

221.5g
110x50.3x33.3mm

221.5g
92.7x45.6x27mm

180g
92.7x45.6x27mm

170g
37x17x5mm

23g
25x15x5mm

13g
