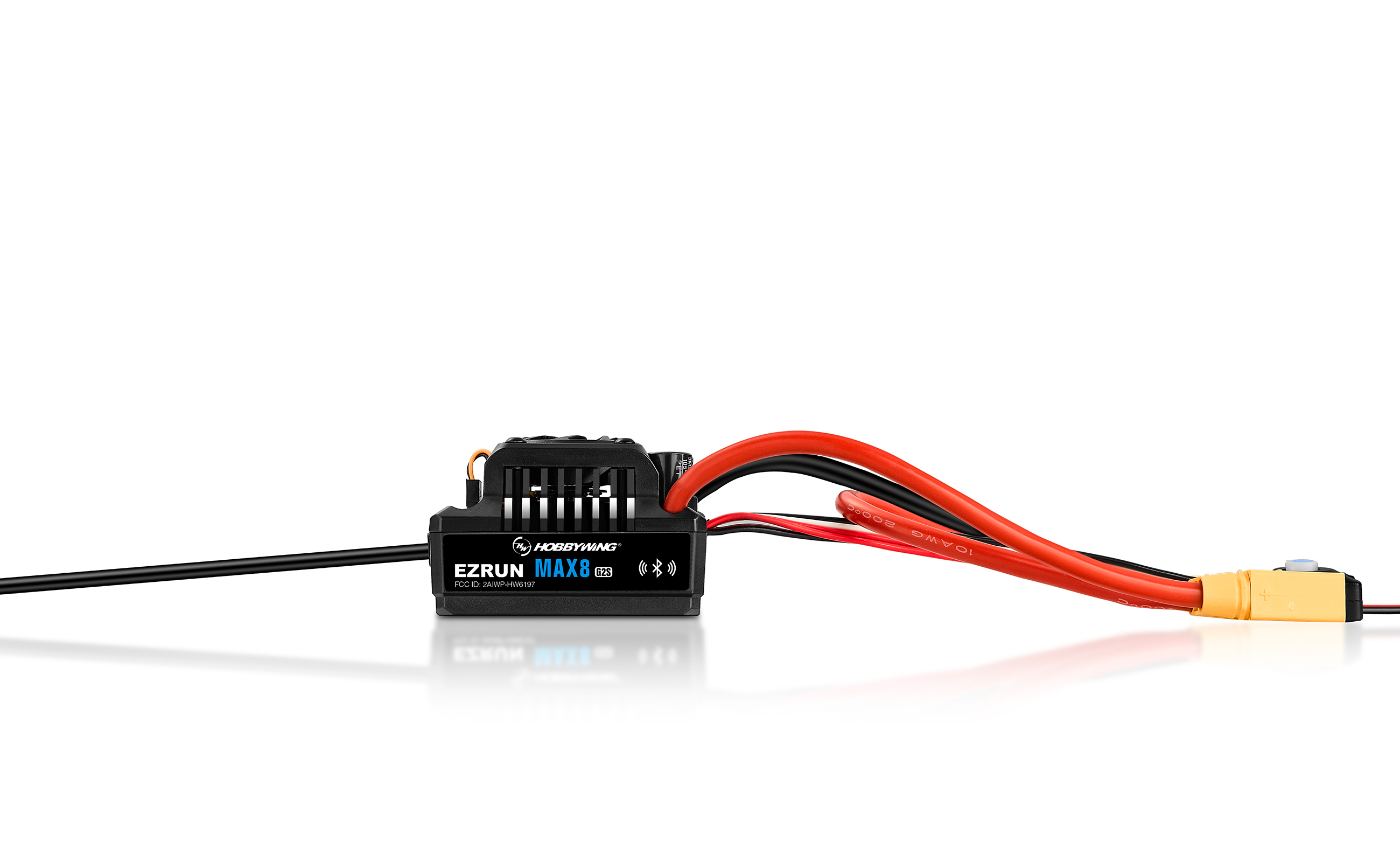

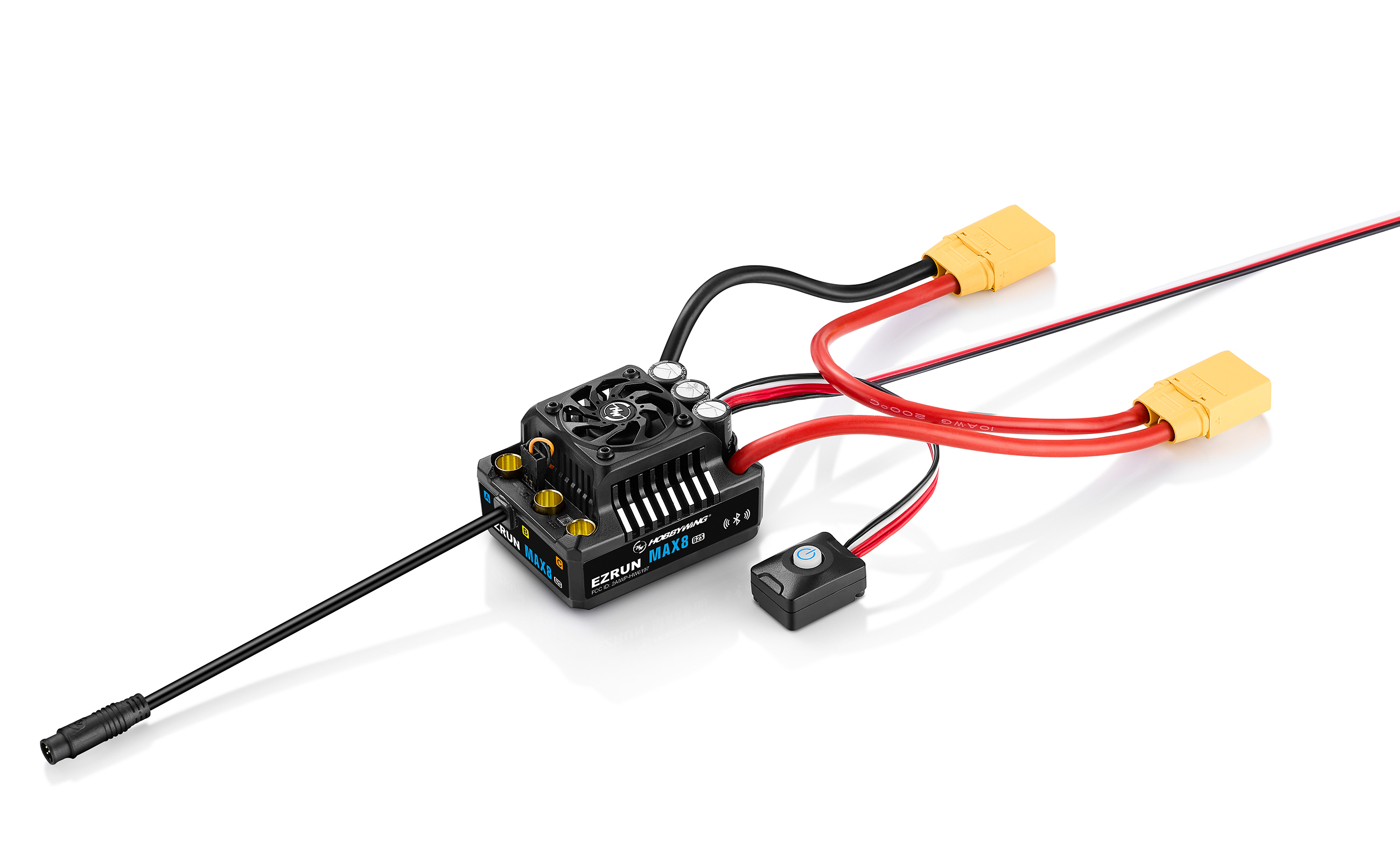

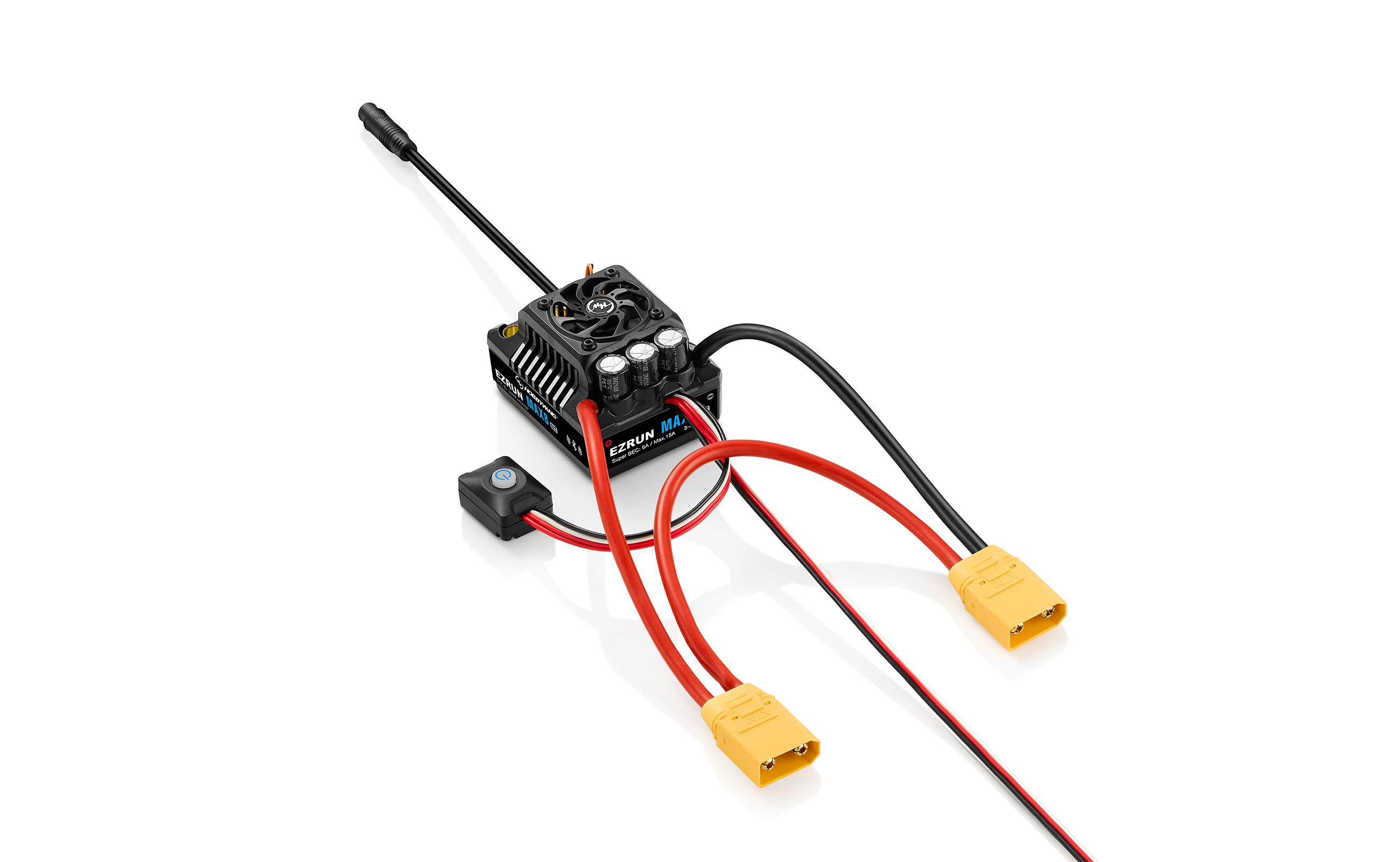

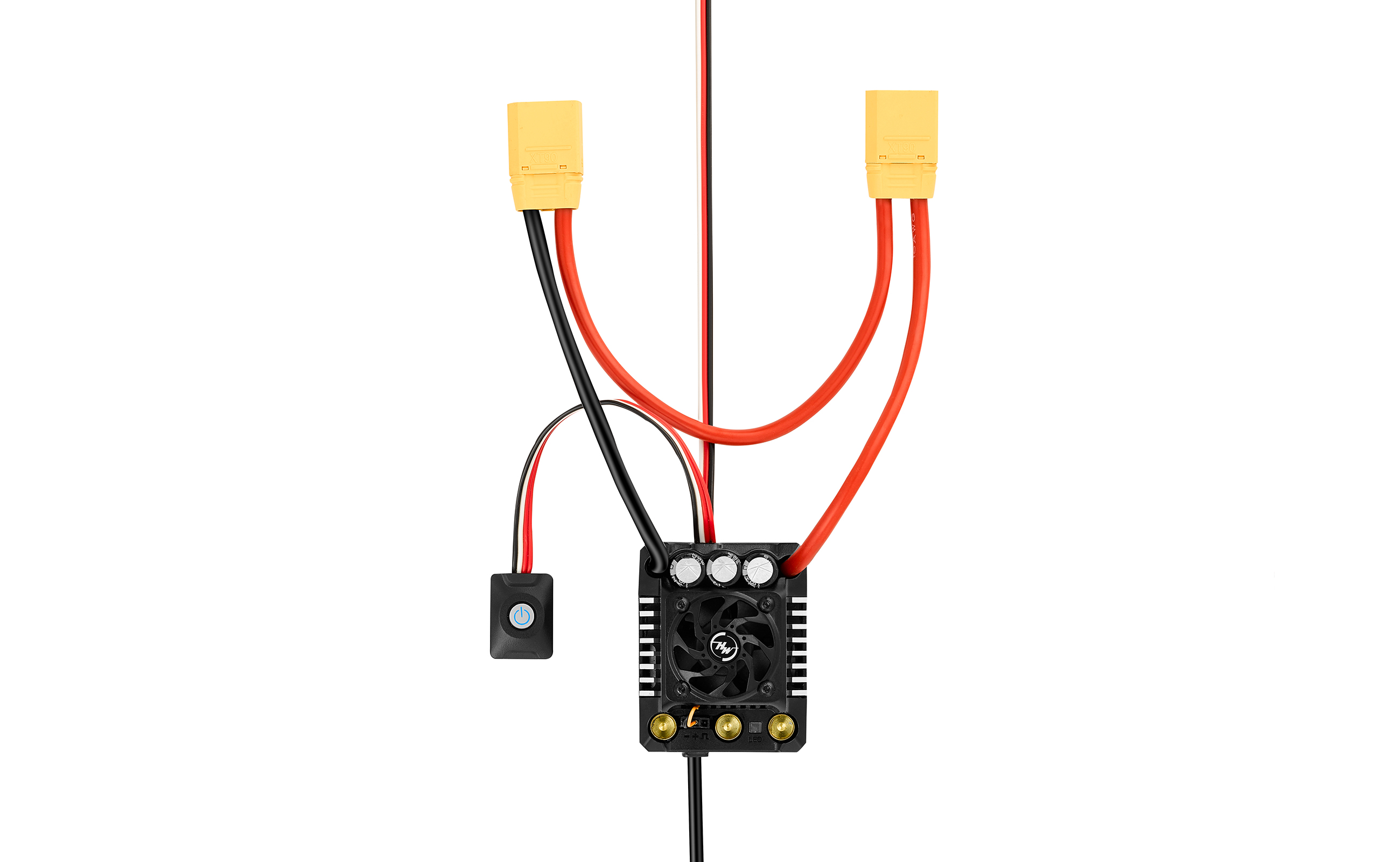

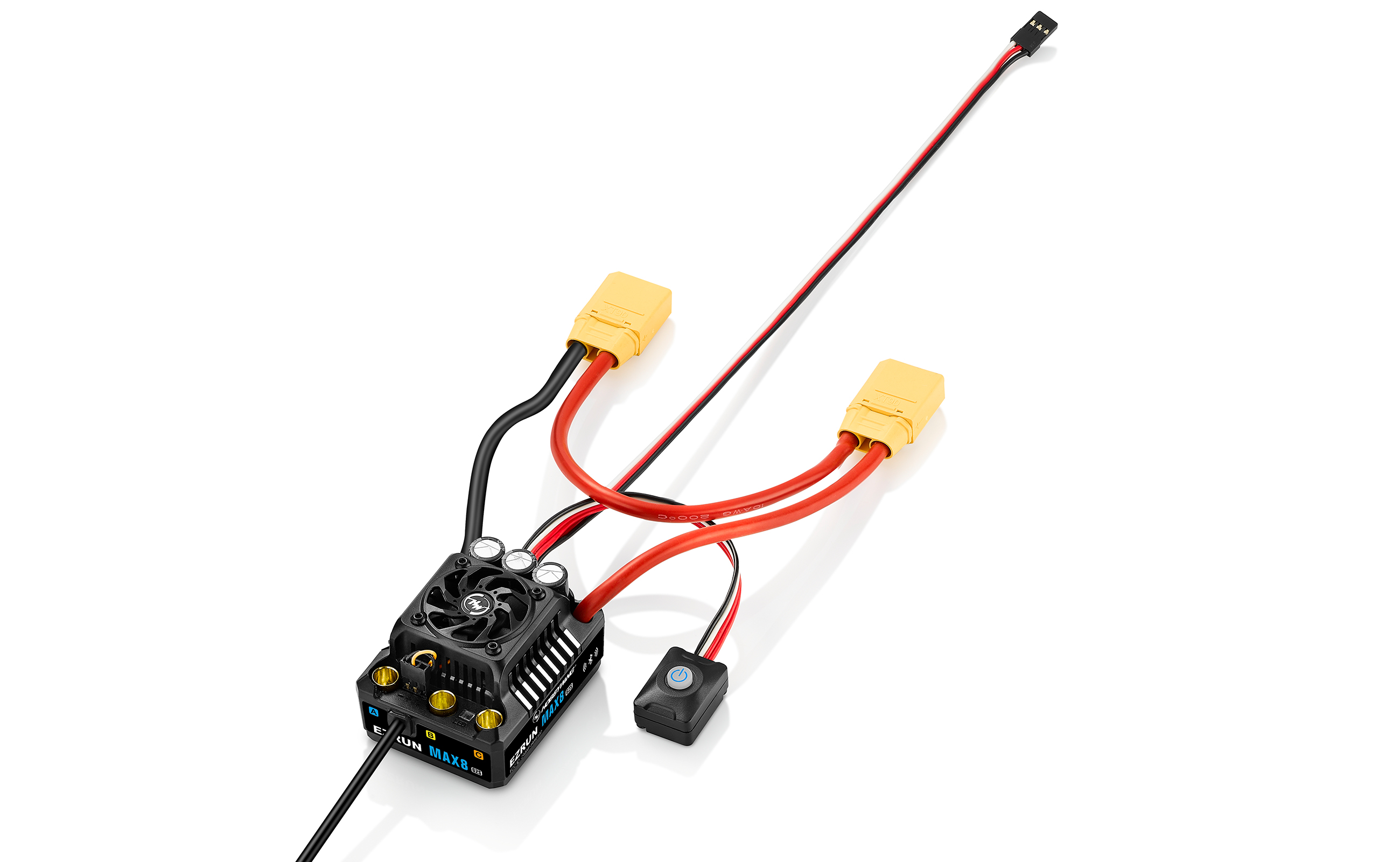

EzRun MAX8 G2S
Extreme output, easy to control
The ESC has power, yet smooth and linear throttle response.
This balance of power and control allows drivers to
drive their vehicles at the limit comfortably.
Optimized hardware,
increases in stability
and reliability
Based on the MAX8 G2 ESC, the brand new G2S ESC is
equipped with optimized hardware design application
such as intelligent freewheeling technology. The stability
and reliability of the ESC has been further improved.

optimized
hardware design

intelligent
freewheeling
technology

Built-in Bluetooth,
directly connected to
the mobile APP
The ESC has a built-in Bluetooth module. It allows you to
connect to the mobile APP directly without plugging any device.
It is simple and convenient to perform parameter settings,
data reading, firmware upgrades other operations.
Note: The data includes throttle amount, voltage, current, temperature, speed, etc.
Built-in data logging function,
ease of obtaining power
operating status
The ESC has a built in data rcoerding module. Store up to 10 minutes
of your most recent run. Using the HW Link V2 App, you can view the data
saved to the ESC. In addition, the module allows you to view Real Time
Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!
Fan intelligent start and stop function
The ESC fan does not run when the ESC temperature is low.The fan automatically turns on when the
ESC temperature reaches the preset value. The intelligent start and stop function of the fan not only
reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
Efficient cooling
system
A frameless fan with patented technology is used.
The large flow of air from the side of the fan
effectively blows the heat away from the
integrated housing radiator to ensure that
the ESC is always in the optimal operating temperature.
High level of protection

excellent waterproof and
dust-proof performance
IP67

cope with harsh environments,
various climate conditions
all-weather
operation capabilities
1/8th power system
turbo timing technology
Turbo timing that is adjustable up to 32 degrees.
Using turbo allows motor RPM to be increased through
advanced ESC electronic timing.
Capacitor
overheating
protection
The Capacitor protection prevents damage
to the power caps from overheating from
overloads or extreme conditions.
This protects the ESC from damage.
  • A maximum output current of
    up to15A
  • The output voltage can be switched in
    three levels of 6V/7.4V/8.4V

The built in super BEC allows builders to use high power, high voltage servos.

Waterproof
Sensor Harness
The proven Hobbywing waterproof sensor harness
provides an element proof solution for sensor based systems.
Using a Hobbywing Adaptor (optional) normal/standard
sensor motors can be used as well.
Note: Supports normal adaptor sensored motors,
it requires an additional adapter wires for other motors.
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

LCD PRO

OTA Programmer

Program Port
Fan Size

Voltage Range

Powered by
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

KV Rating/T Count
Product Name EzRun Max8 G2S
Product Number 30103205
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/8th

BL

SD

Yes
Specifications Cont./Peak Current

Input Voltage

BEC Output		 160A/1050A

3-6S Lipo

6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors		 Black-10AWG-150mm*1 Red-10AWG-150mmX1

NO

XT90

6.5 Bullet Connectors (Female)
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

LCD PRO

OTA Programmer

Program Port		 Not Supported

Not Supported

Not Supported

Not Supported

Not Supported

Built-in Bluetooth
Fan Size

Voltage Range

Powered by		 30x30x10mm

6V/7.4V/8.4V

BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)		 Supported

Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight

 60*48*40.5mm40.5mm

192g(w/Wires)
Applications Motors

Vehicles

KV Rating/T Count		 Sensored brushless motors / Sensorless brushless motors

1/8thOn-road, Short course truck, Monster truck

With 4S Lipo: KV≤3000;

With 6S Lipo: KV≤2400 4278 size motor
