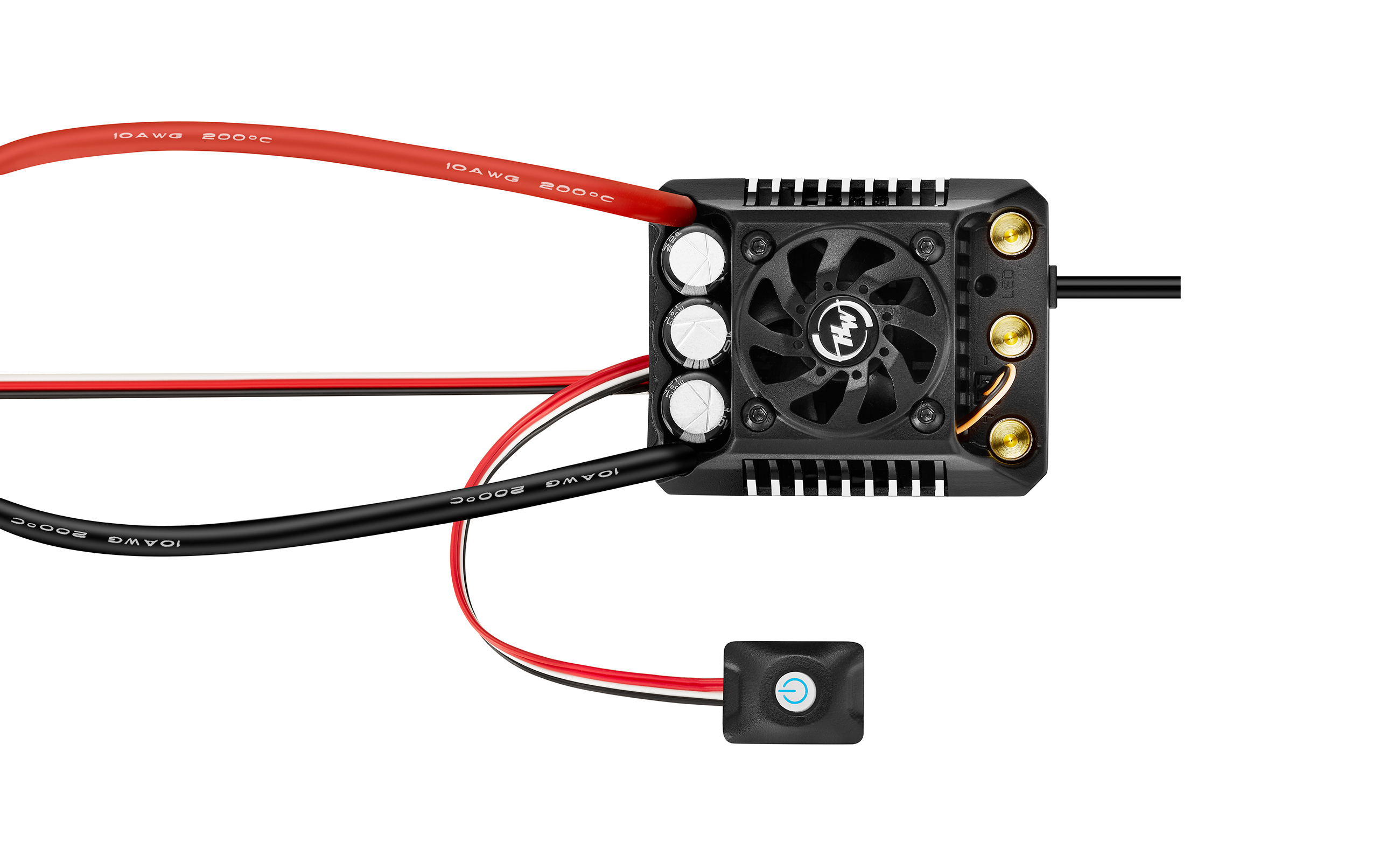

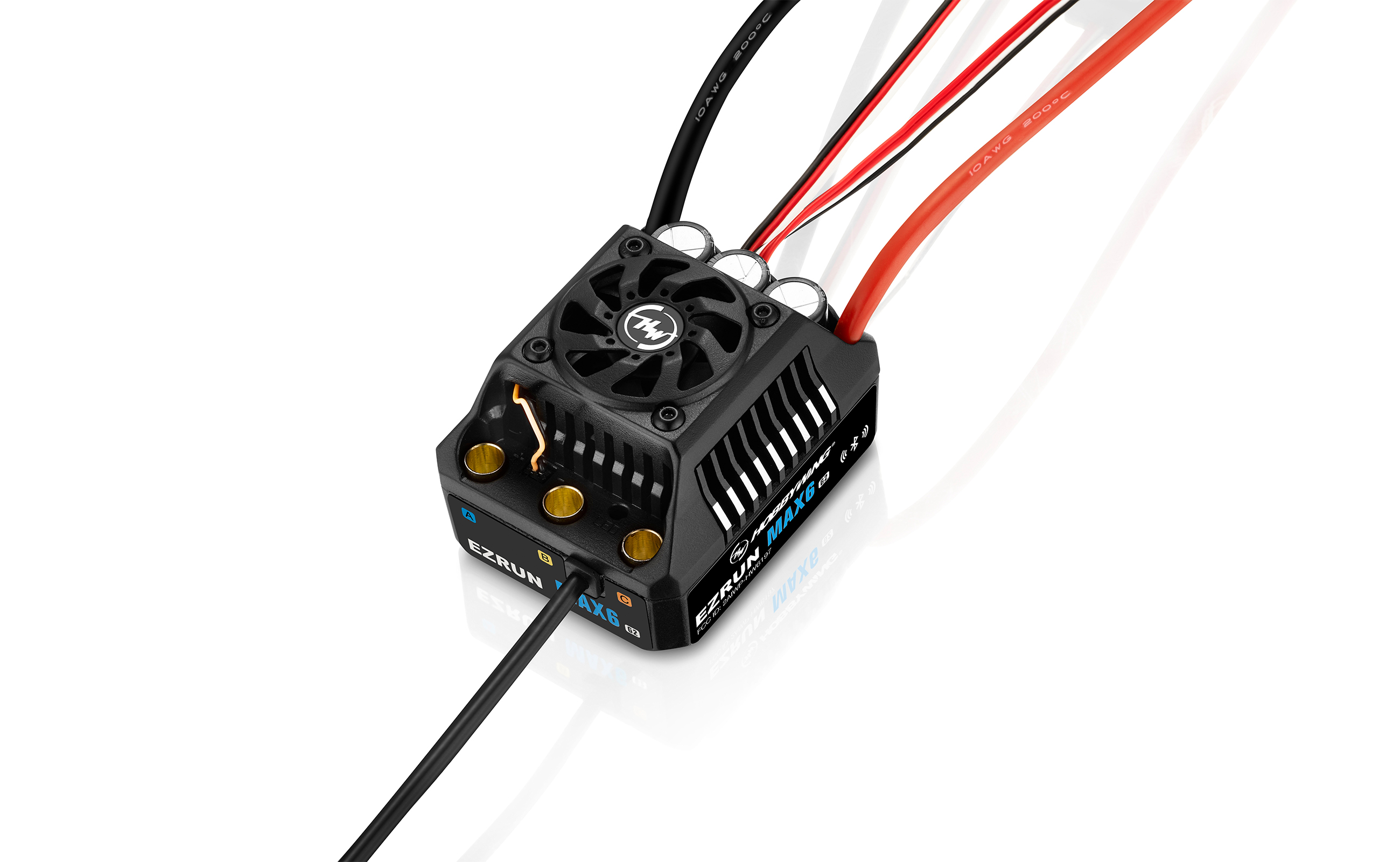

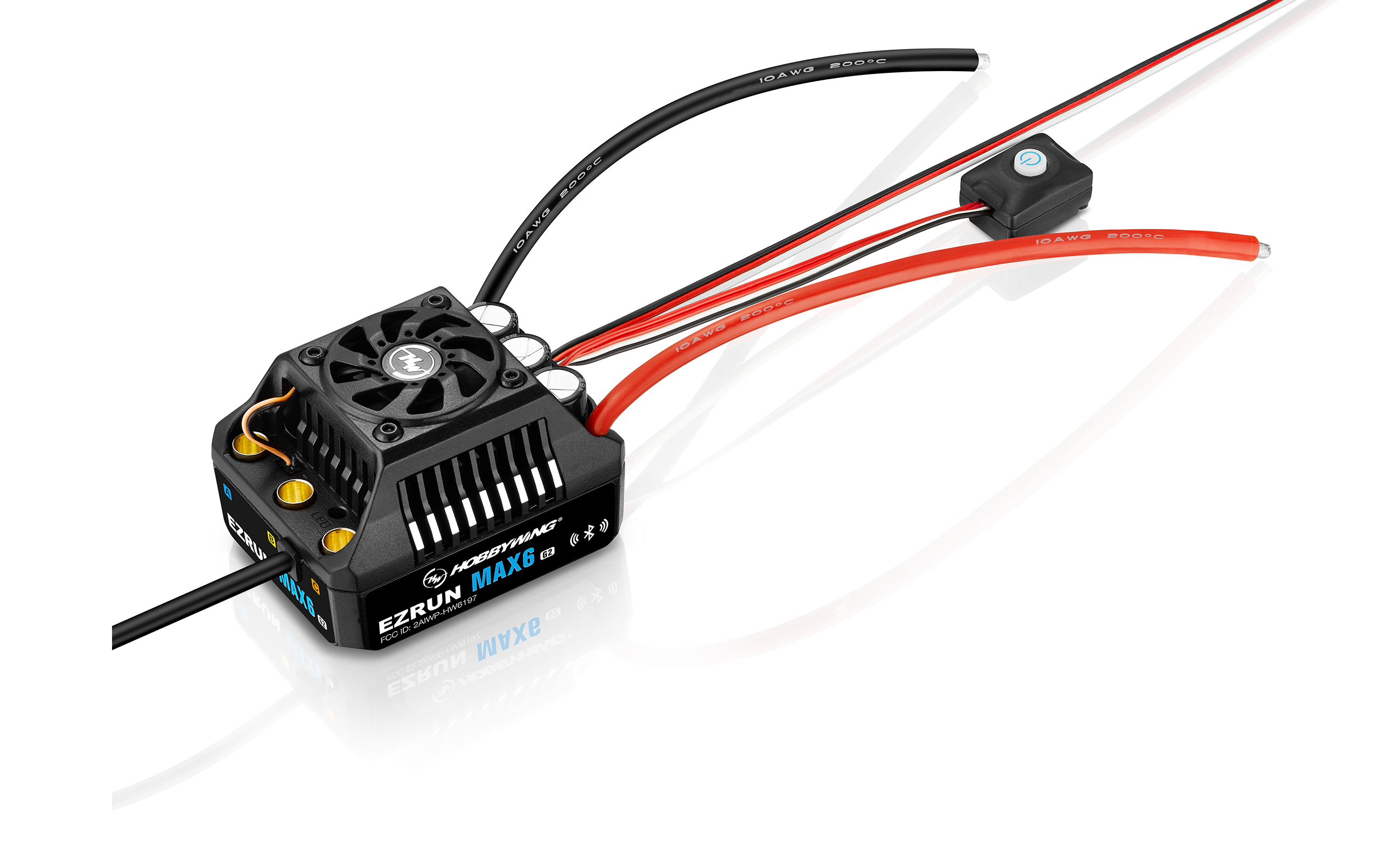

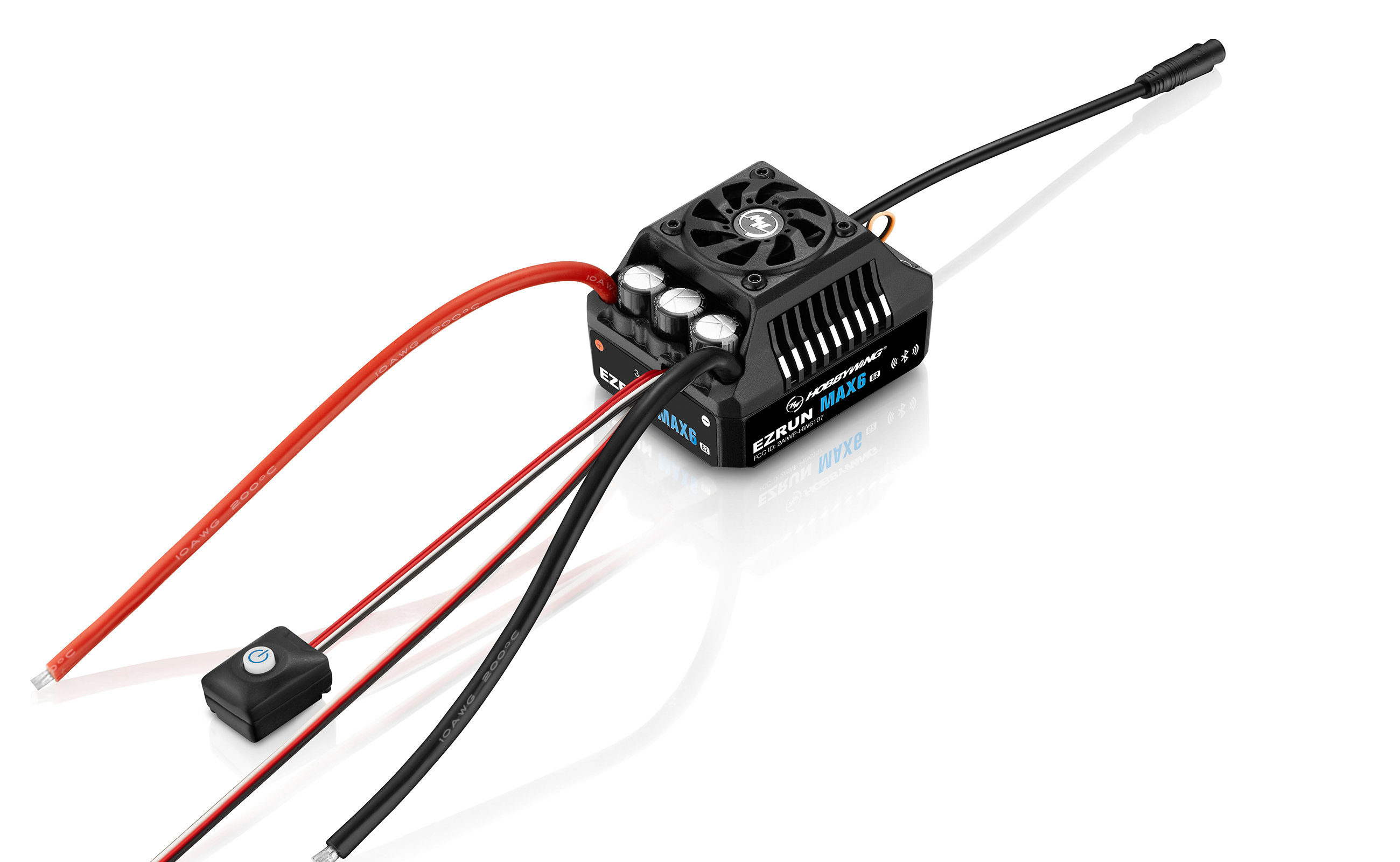

EzRun MAX6 G2
Sensored 8S ESC,
Fully upgraded performance
The Max6 G2 features Hobbywings new water proof sensor system,
and also supports sensorless operation. Rated at up to 200 amps
the Max6 G2 is ready to take on your high powered 8s builds.
Powerful, smooth, with linear control through the entire RPM range.
The ESC is suited for everything from hard starts, high speed runs,
and low speed response that is unmatched.

  • The motor supports up to

    8S LiPo

  • The maximum continuous
    output current is as high as
    200A

  • Allow the vehicle to easily perform various maneuvers
    Agressive Launches, Staight line speed,
    Jump control (mid air feel)

Intelligent freewheeling technology,
strong drive, low temperatures

  • Higher
    Driving
    Efficiency

  • Lower
    Operating
    Temperature

  • Ultra
    Dynamic
    Design

The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency.
At the same time, operating temperature is drastically lowered to improve overall stability and reliability of the ESC.
Remarks: Under heavy load conditions, the temperature of MAX6 G2 is comparable to that of MAX5 generation。
Built-in Bluetooth, connect
directly to mobile APP
The ESC has a built-in Bluetooth module.
It is able to connect directly to the mobile phone APP
without other devices for parameter setting, data reading,
firmware upgrade and other operations.
User friendly ESC made simpler and convenient for users.
Remarks: The data includes
throttle, voltage, current, temperature, rpm, etc.

The ESC has a built-in
Bluetooth module.

The ESC is able to connect directly
to the mobile phone APP
without other devices.

Build in Data Recording with Graph
The Max6 G2 has built in data recording and can record up to 10 minutes of Data. Using the HW Link V2 app,
you will be able to review the saved data and review the runs complete with data Graph.
Note: Due to transmission distance of bluetooth, the effective distance is approximately 5m!
Intelligent fan start-stop function
The Max 6 G2 features a smart fan circuit that only runs the fan when needed.
The fan will remain "off" unless the ESC temperature requires air flow.

  • fan is off
    when the temperature of the ESC is low

  • When the temperature of the ESC reaches the preset value
    The fan automatically turns on

Applicable to All Weather Conditions
The IP-67 waterproof rating guarantees excellent waterproof and dust-proof protection.
The whole power system is able to drive on a variety of surfaces including mud,
sand, ice, snow and water without damaging the power unit.

The overall protection level of the motor reaches
IP67
Splash-proof Water-proof Dust-proof

Remarks: The IP67 protection level mentioned above is splash-proof, waterproof, and dust-proof under
normal usage. However, it is not permanently effective, and the protection performance may decline due
to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.
1/6thscale power system
Turbo timing technology
The ESC is able to support up to24degrees ofTurboTiming adjustment.
There is an approximate of 20% increase in performance and is recommended to pair with the new
HOBBYWING EzRun 4990/5690 G2 motors to get the best performance.
Note: For non-Hobbywing EZRUN 4990/5690 G2 motors, Turbo timing cannot be turned on.
Powerful BEC
The ESC has a built-in super BEC with a maximum output current
of up to 25A.The output voltages are switchable between
6V/7.4V/8.4V.This ensures that the ESC is able to support the
demanding high-torque servos in the market.

  • With a maximum output
    current of up to
    25A

  • The output voltages are
    switchable between
    6V/7.4V/8.4V

Built-in anti-
spark design
The ESC has a built-in anti-spark circuit to
protect the battery plug from damaging
upon using a higher voltage battery(6-8S)
and avoids any injuries.
EzRun 4990 G2

EzRun Max6 G2

Perfect combination with
EzRun 4990/5690 G2 motor
Achieve the perfect compatibility using it together with EzRun 4990/5690 G2 motors.
Avoid damaging the motor from overheating with the software protection function.
Note: Non-Hobbywing EZRUN 4990/5690 G2 motors is unable to detect motor overheat protection
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Input Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Program Port
Fan Size

Output Wires

Input Connectors
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

Product Name EzRun MAX6 G2
Product Number 30105100
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/6th,1/7th

BL

SD

Yes
Specifications Cont./Peak Current

Input Voltage

BEC Output		 200A/1200A

3-8S Lipo

Switch-mode 6V/7.4V/8.4V @8A
Wires & Connectors Input Wires

Input Connectors		 Black-10AWG-200MMmm*1 Red-10AWG-200MMmm*1

6.5mm Connectors (Female)
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Program Port		 Not Supported

Not Supported

Not Supported

Not Supported

Built-in Bluetooth
Fan Size

Output Wires

Input Connectors		 35x35x10mm

5-8.4V

Powered by BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)		 Supported

Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight		 70*56*45.5mm

245g (Included input wires)
Applications Motors

Vehicles

4990/5690 size motors

1/6th&1/7th On-road,Truck,Monster Truck

Examples: Losi 1/6 Super Baja Rey/Super Rock Rey，Traxxas XRT/X-MAXX/XO-1

ARRMA 1/7 Limitless/Fireteam/Felony/Infraction/Mojave，Cen 1/7 Reeper

ARRMA Kraton 8S/Outcast 8S，HPI Baja 5B
