EzRun 4985 5687 56113

Strong Power

With a fast acceleration response and a rock-solid, stable output, the
EZRUN 4985/5687/56113 motor can handle instant full-torque start-ups
for wheelies, high-speed racing on straightaways and powering
throught the bumpiest terrain.

Strong Power

High Efficiency

Hobbywing’s temperature control technology has been designed to
protect the motor from being damaged by heat thus less heat more
efficient the motor will run and perform. The output performance of this
motor has an efficiency rate of up to 90% (an industry-leading level).

High Efficiency

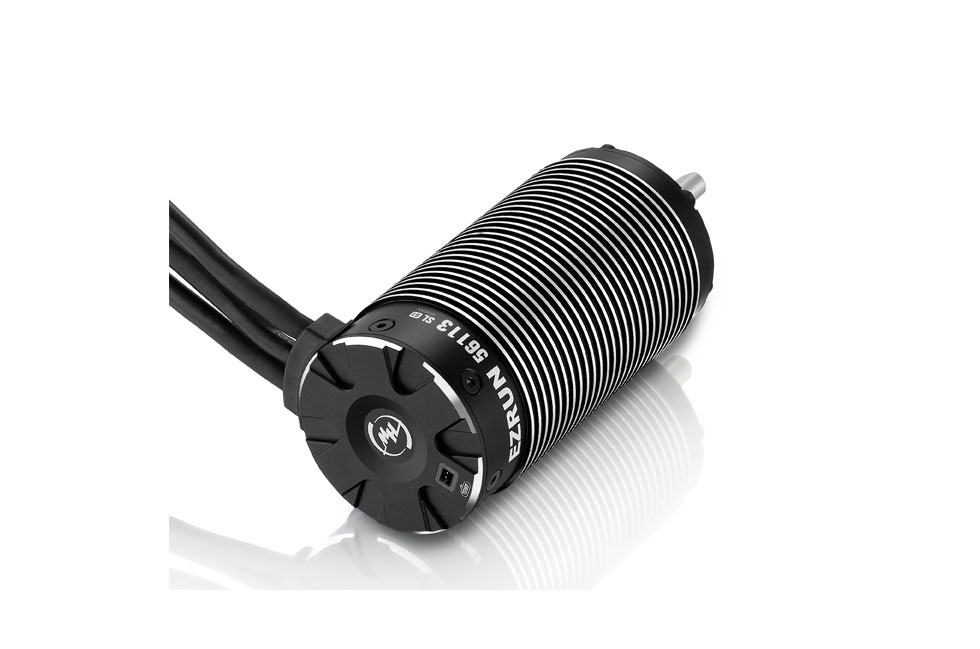

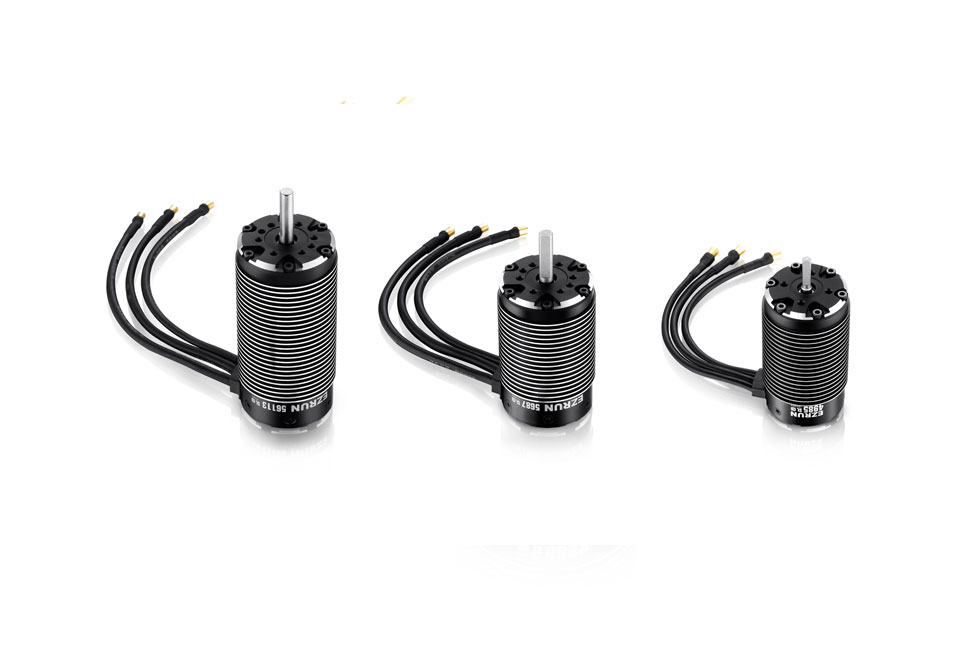

EzRun 56113

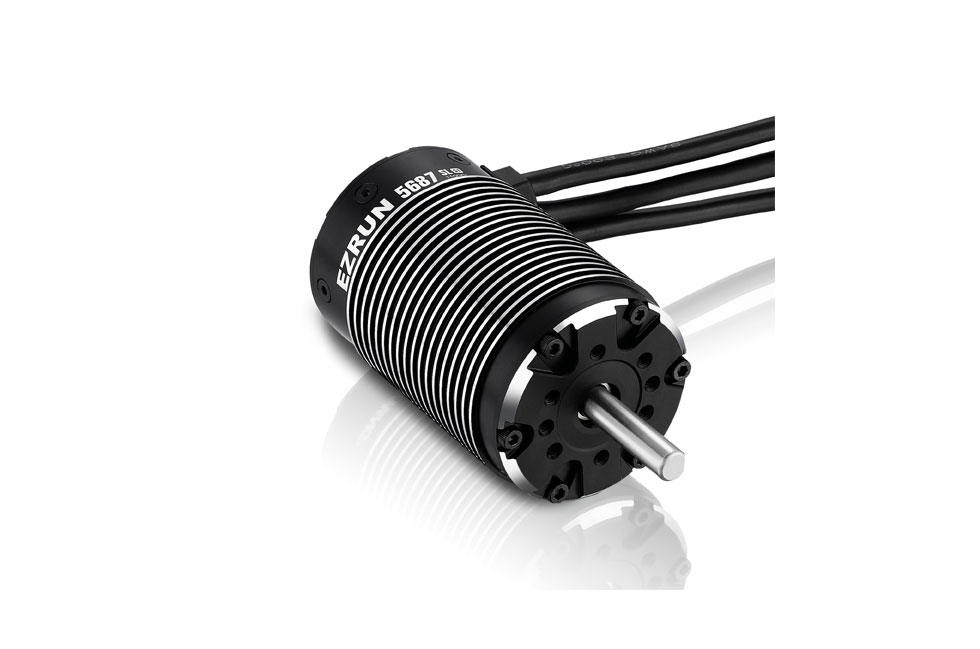

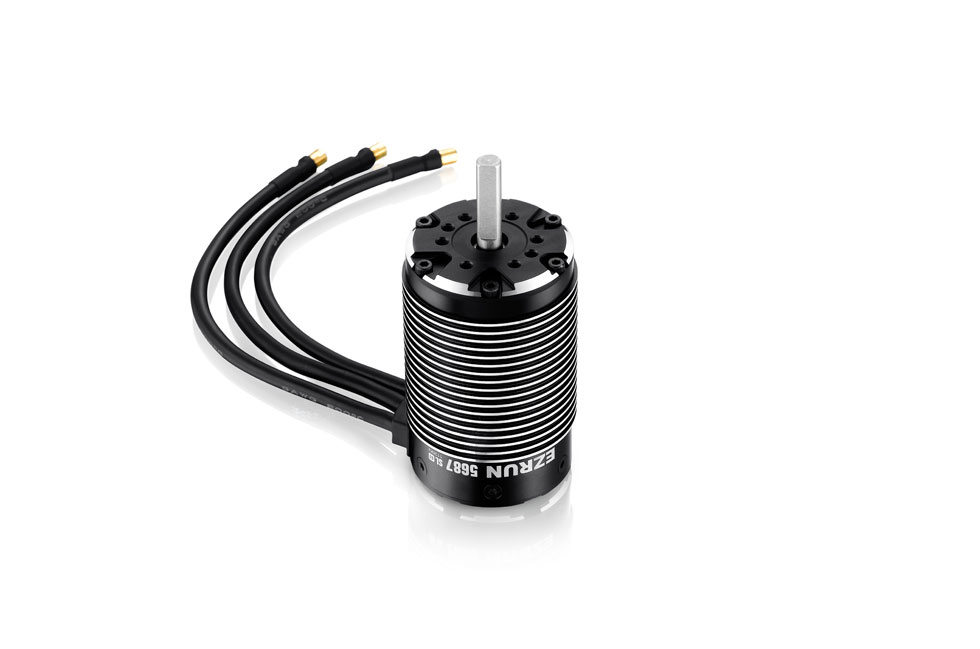

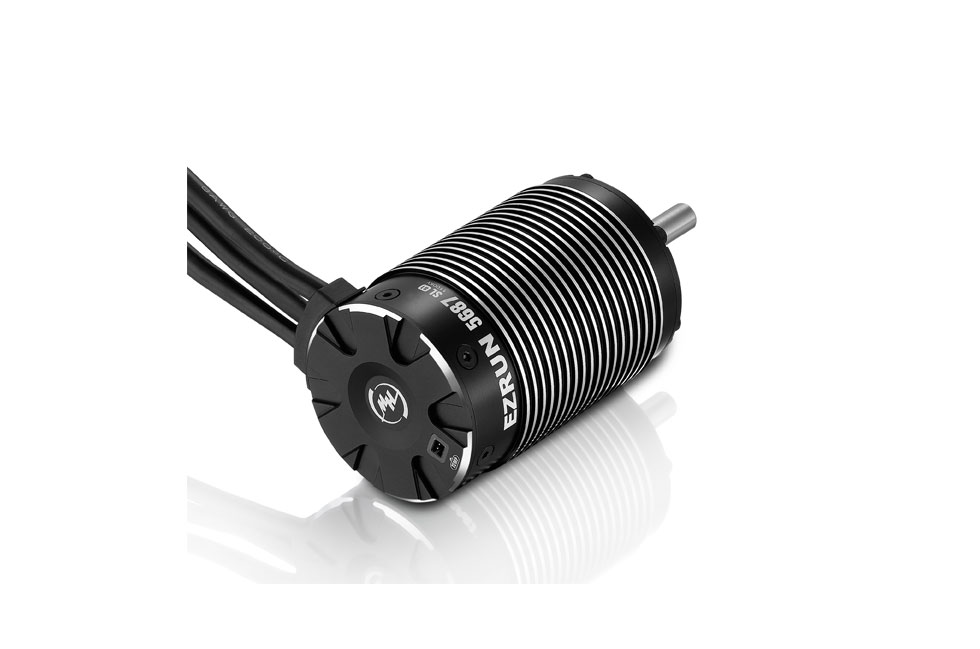

EzRun 5687

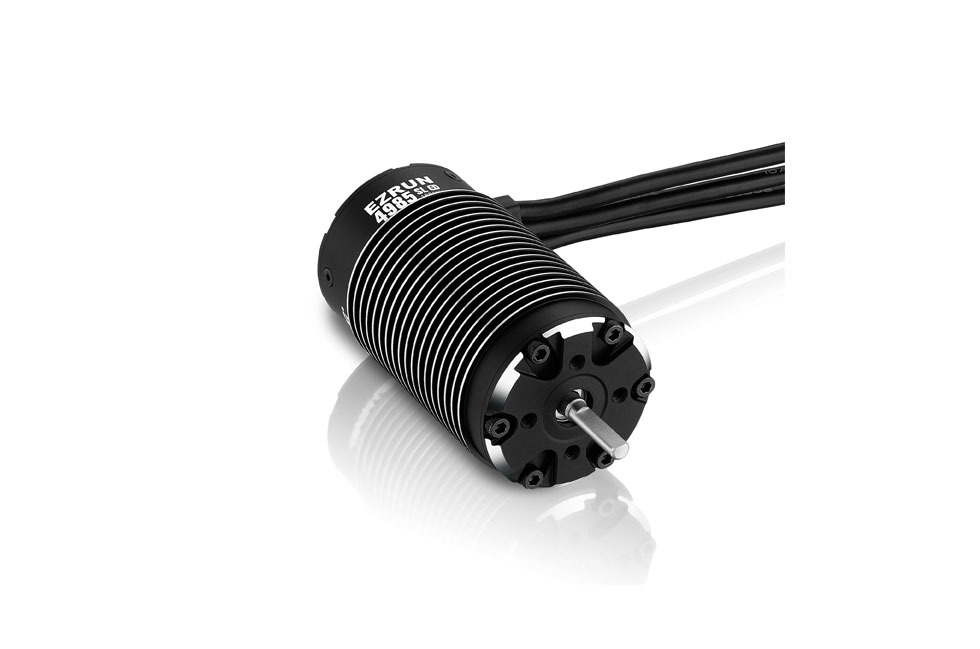

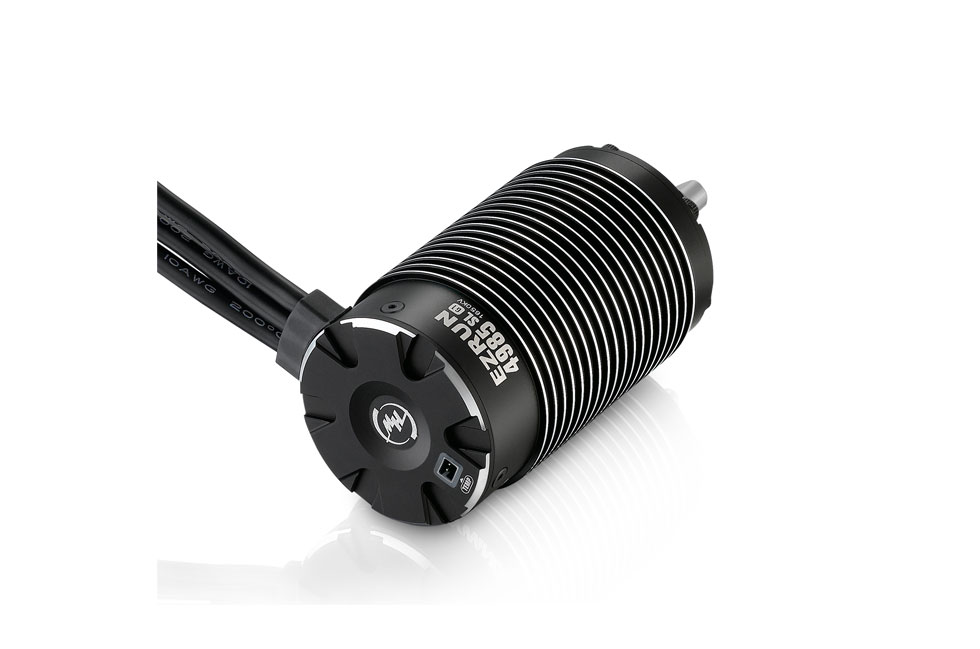

EzRun 4985

Compatible with EZRUN MAX5/MAX6 ESC

When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing
EZRUN MAX5/MAX6 ESC, the excellent match between ESC and motor
will give you large torque plus a very smooth and linear power band.
(*Note: MAX5 pairs with 5687/56113, MAX6 pairs with 4985)

Compatible with
EZRUN MAX5/MAX6 ESC

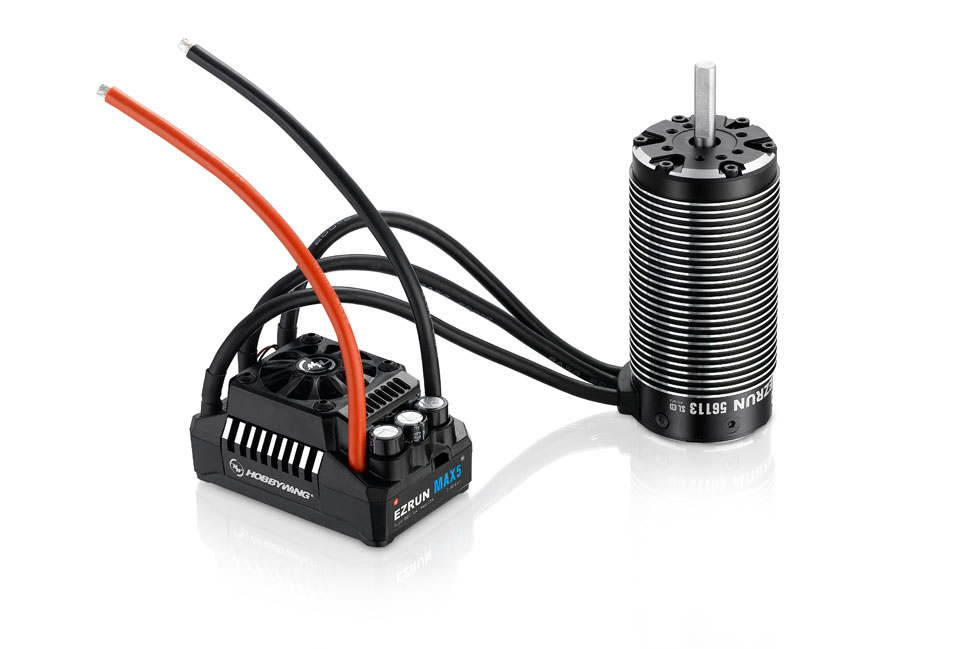

EzRun MAX5 & EzRun 56113

EzRun MAX6 & EzRun 4985

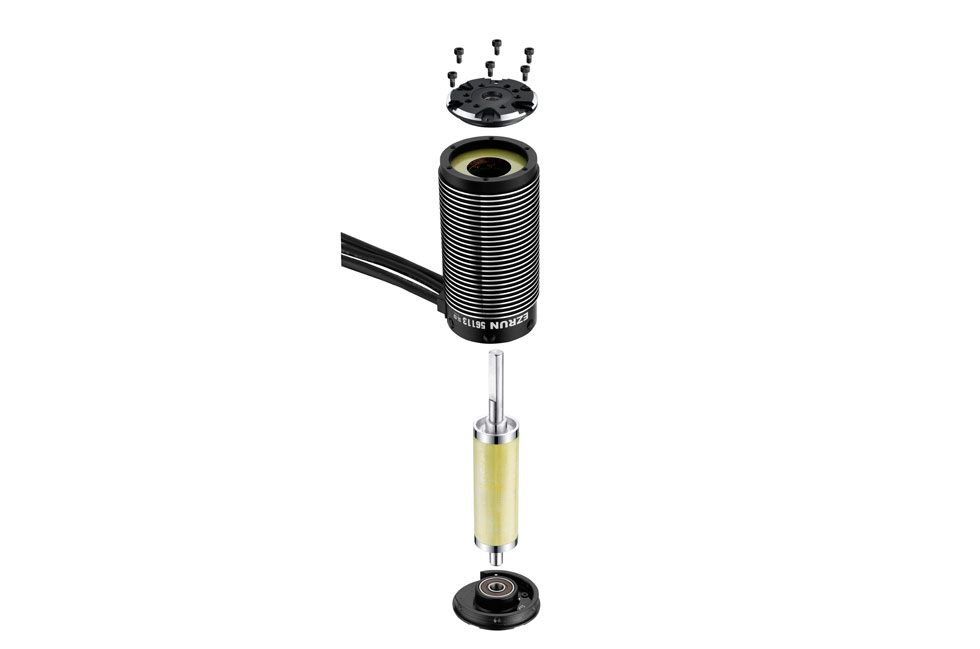

Great Construction

The use of CNC-machined hard anodized aluminum case, ultra-thin silicon steel laminations,
heat-resistant oxygen-free double insulated windings, high quality Japanese bearings, rotor
with a strong structure and output shaft made from high quality polished alloy steel
guarantees outstanding performance and super durability.

Great Construction

Alloy Steel Output Shaft

Explosion-proof Rotor

High-quality Japanese Bearing

CNC Machined Hard
Anodized Aluminum Case

Ultra-thin Silicon
Steel Lamination

Heat-resistant Oxygen-free
Double-insulated Winding



Installation & Connection

1. How to Mount the Motor into a RC vehicle
M4 mounting screws are needed there (four for the 4985 motor, eight for the 5687/56113 motor), as
the mounting holes are 8mm in depth, so we don’t recommend using the M4 screws with the length
exceeds 10mm to mount the motor into your vehicle.
Please choose the right mounting screws as per your chassis.
2. How to Connect the Motor to an ESC
There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect
them initially. You may find it necessary to swap two wires if the motor runs in reverse.
3. Recheck the Installation & Connections
Recheck the installation and all the connections before turning on the power.



Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors (mm)

Weight (g)

Front Bearing

Rear Bearing
Other Parameters Timing

Applications
Product Name EzRun-56113SL-800KV EZRUN-5687SL-1100KV EZRUN-4985SL-1250KV EZRUN-4985SL-1650KV
Product Number 30402900 30402550 30402951 30402950
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
1/5th

BL

SL

4
1/5th

BL

SL

4
1/6th&1/7th

BL

SL

4
1/6th

BL

SL

4
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
800

3-8S

3.2
1100

3-8S

4.1
1250

3-8S

5.2
1650

3-6S

5.4
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors (mm)

Weight (g)

Front Bearing

Rear Bearing
56(2.20in)

113(4.45in)

8.0(0.31in)

6.5(male)

1210(42.68oz)

D8*D22*t7(608DD/608ZZ)

D8*D22*t7
56(2.20in)

87(3.43in)

8.0(0.31in)

6.5(male)

916(32.31oz)

D8*D22*t7(608DD/608ZZ)

D8*D22*t7
49(1.92in)

86.5(3.41in)

5.0(0.20in)

6.5(male)

636(20.71oz)



D19*D6*T6
49(1.92in)

86.5(3.41in)

5.0(0.20in)

6.5(male)

587(20.71oz)



D19*D6*T6
Other Parameters Timing

Applications
0

1/5th RC Vehicles
0

1/5th Light-duty & 1/6th RC Vehicles
0

1/6th & 1/7th RC Vehicles
0

1/6th & 1/7th RC Vehicles
