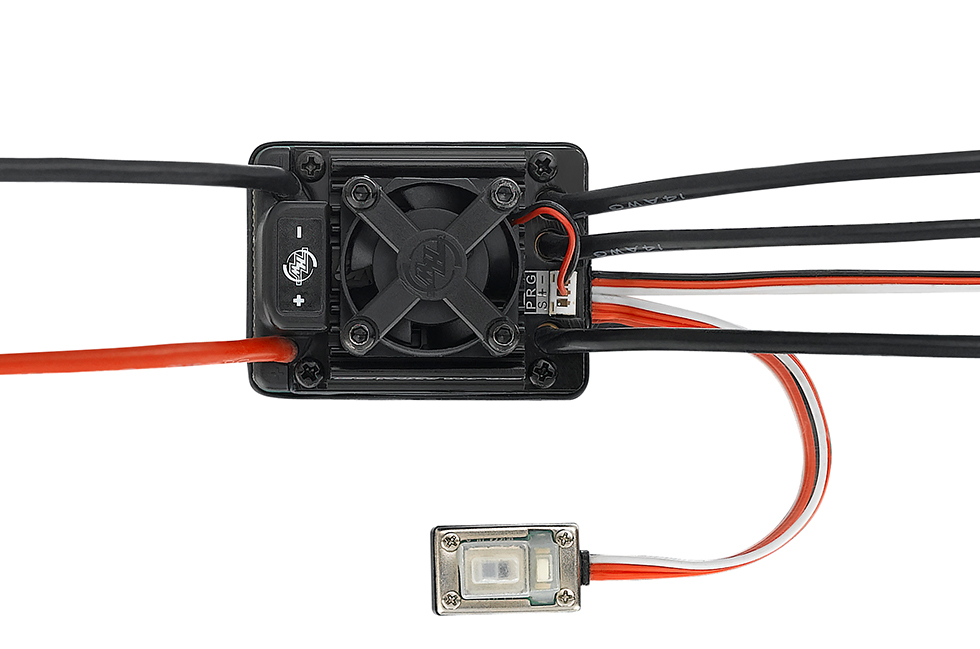

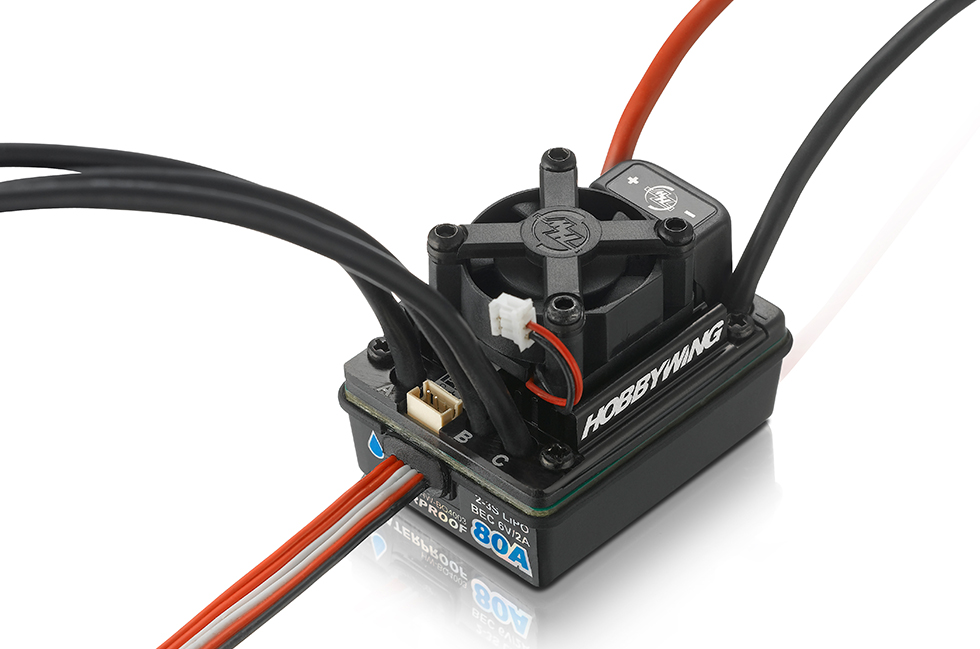

EzRun WP 80A

Overview
Specifications
Support
Accessories
Detail

High Reliability & Durability

Reliable hardware combined with advanced software technology allows
the EZRUN WP-80A to not only provide high power output but also
overload protection of the ESC circuit.

High Reliability & Durability

Great Flexibility & Versatility

With the strong torque and excellent output,
the EZRUN WP-80A can definitely cater for all the power hungry requirements
that professional drivers need.
The highly adjustable parameters of the ESC will allow drivers
to enjoy smooth throttle response when the throttle/brake linearity is utmost required.

Great Flexibility
& Versatility

Ways of ESC Programming

Multiple ways of ESC programming supported:
basic settings via SET button on the ESC,
advanced settings via LED program box/multifunction
LCD program box & Hobbywing USB LINK software.

Ways of ESC
Programming

Efficient Cooling System

Hobbywing patented heat-conductive copper bar cover
on the power board of the EZRUN WP 80A,
which can efficiently and effectively transfer heat to
the integrated CNC machined billet aluminum heat
sink housing, combined with high-performance cooling
fan can keep your ESC as cool as possible.

Efficient Cooling System

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Single-button Programming
& Factory Reset

Regular Firmware Updates
----Free of Charge

You can upgrade the EZRUN WP 80A with the Hobbywing USB
LINK software, a multifunction LCD program box and
a laptop. Hobbywing updates its ESC firmware regularly
giving you upgraded features more
often when available.

Regular Firmware Updates
----Free of Charge

Wide Applicability

This EZRUN WP-80A ESC is applicable for all-weather sport of various 1/10^th scale vehicles
like touring cars, buggies, short-course trucks, monster trucks.

Wide Applicability

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module Program Port
Fan	Size Voltage Range Powered by
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		EzRun WP 80A
Product Number		81010390
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th BL SL Partially WP
Specifications	Cont./Peak Current Input BEC Output	80A/540A 2-3S LiPo/6-9 Cells NiMH Linear Mode:6V/2A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-14AWG-150mm1/Black-14AWG-150mm1 Black-14AWG-200mm*3 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module Program Port	Supported Supported Supported Supported FAN/Program Port
Fan	Size Voltage Range Powered by	25.0x25.0x10.0mm 5-8.4V Powered by Battery
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	46.0x34.0x35.0mm 82g
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors/SD BL Motors(only in SL mode) 1/10^th Touring Cars/Buggies/SCTs/ Monster Trucks 2S LiPo: Touring Cars/Buggies≥5.5T, SCTs/Monster TrucksKV≤6000 3S LiPo: Touring Cars≥8.5T, SCTs/Monster Trucks KV≤4000 36XX Series of Motors

Support

Manuals & Documents

Manuals

Software Download

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

WiFi Express

STOPPED

WiFi Express

Product Number: 30503000
Working Voltage: 5V-12.6V
WiFi Protocol: IEEE802.11 b/g/n
WiFi Signal Effective Range: 0-10m
(Open Field) Applications: work on
the XeRun series, EzRun series
of car ESCs, and the Platinum series
of aircraft ESCs, and Seaking Pro
series of boat ESCs.

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
