EzRun MiNi28
Sensored Brushless ESC
  • Small size, light weight
  • High power, strong power
  • Abundance of parameter items
  • Two profiles
  • Built-in adjustable BEC
  • OTA support

MINI28

Built specifically for 1/28 scaleracing model
The powerful software and hardware are built into the Mini28 ESC.
It features new programmable parameters
and is optimized for 1/28 competitions.
  • Small size
  • light weight
  • High power
  • low temperature
  • Abundance of
    parameter items
  • Two profiles
  • Built-in
    adjustable BEC
  • OTA support

MINI28

Built specifically for 1/28 scaleracing model
The powerful software and hardware are built into the Mini28 ESC.
It features new programmable parameters
and is optimized for 1/28 competitions.
  • Small size
  • light weight
  • High power
  • low temperature
  • Abundance of parameter items
  • Two profiles
  • Built-in adjustable BEC
  • OTA support
Petite and
lightweight
The ESC is extremely small(22mm by 14mm)and lightweight (5g). The shape is designed for ease of welding and reducing unnecessary tweak. Essentially, this is an an important factor for a 28th-scale-size racing car.
Petite and
lightweight
The ESC is extremely small(22mm by 14mm)and lightweight (5g). The shape is designed for ease of welding and reducing unnecessary tweak. Essentially, this is an an important factor for a 28th-scale-size racing car.

weight5g

  • Length22mm
  • Width14mm
14mm
22mm
High power,
low temperature
The fully-alloy heat sink ensures that
the ESC can dissipate heat and
operates at a healthy temperature
range while the maximum output
current can be up to 30A
The maximum output
current can be up to
30A
High power, low temperature
The fully-alloy heat sink ensures that the ESC can dissipate heat and operates at a healthy temperature range while the maximum output current can be up to 30A
The maximum output
current can be up to
30A
The fully-alloy
heat sink
The fully-alloy heat sink

  •

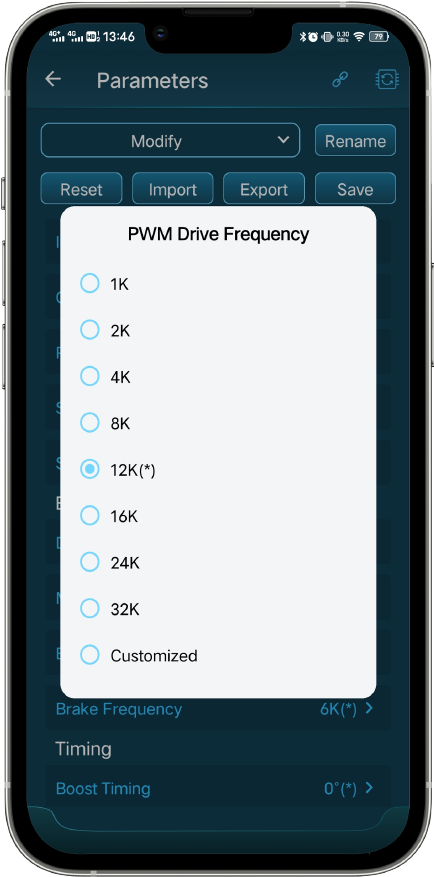

    PWM frequency
  •

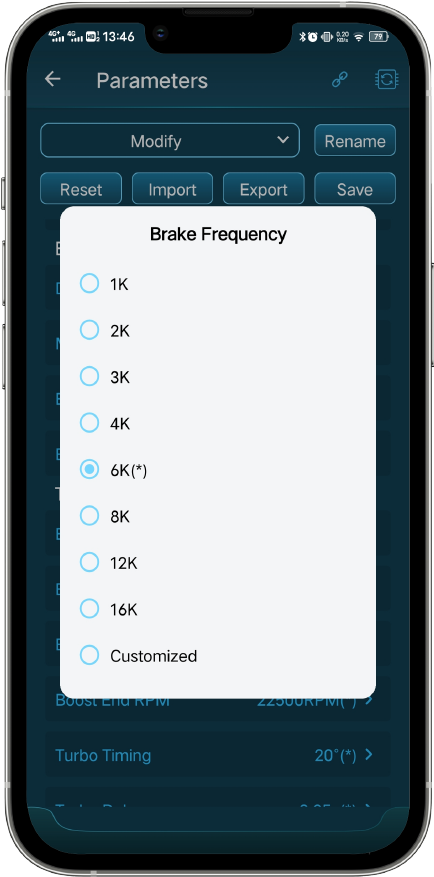

    Brake frequency
  •

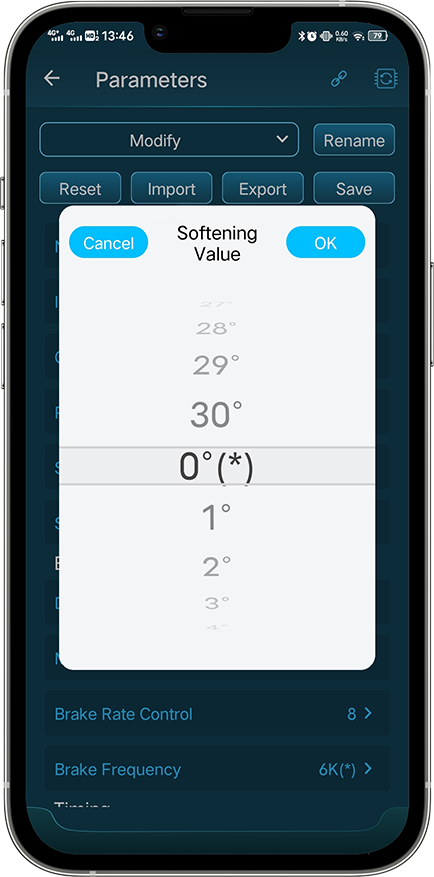

    Softening
  •

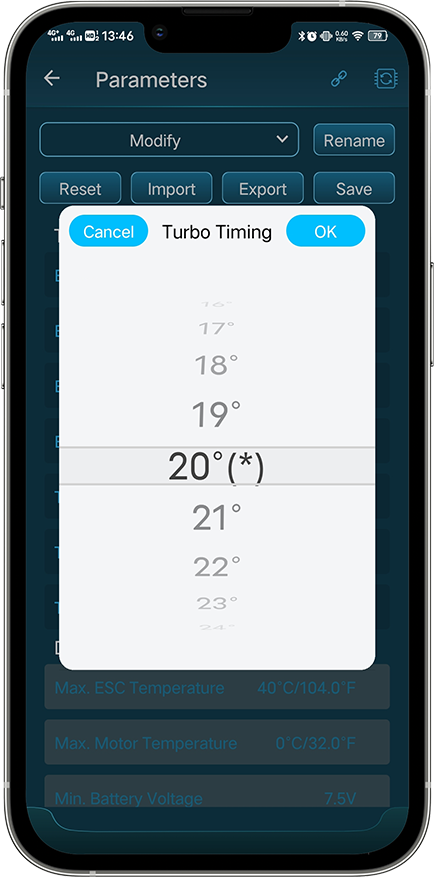

    Turbo
Enrich applicable
parameter items
26Items
Adjustable Parameter
Including
PWM frequency, brake
frequency, softening,
Boost, Turbo, and etc.
The software parameters are inherited from the
proven World championship winning ESC from
the XR10 pro series. They can accurately adjust
the power demand and let users enjoy the
ultimate control experience.
Note: Please read the manual carefully. As
the wrong setting may damage the power system.
Enrich applicable parameter items
26Items
Adjustable Parameter
Including
PWM frequency, brake frequency, softening, Boost, Turbo, and etc.
The software parameters are inherited from the proven World championship winning ESC from the XR10 pro series. They can accurately adjust the power demand and let users enjoy the ultimate control experience.
Note: Please read the manual carefully. As the wrong setting may damage the power system.

Built-in dual app mode
The ESC is equipped with two modes of application usage;
The Zero-Timing which is more commonly known as "blinky"
and the “modified” modewhich allows power-hungry users to
increase additional turbo timing in the software.
The ESC is equipped with two modes of application usage; The Zero-Timing which is more commonly known as "blinky" and the “modified” modewhich allows power-hungry users to increase additional turbo timing in the software.
Built-in BEC supporting
high-voltage servo
The ESC has a built-in BEC which can support a maximum output current of up to 3.5A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

The ESC has a built-in BEC which can support a maximum output current of up to
3.5A

OTA Bluetooth module






Seamless connectivity with OTA module and mobile phone
Simple and convenient, parameter settings, firmware upgrading and other operations can be established using Hobbywing’s OTA Bluetooth module and your mobile phone via the HOBBYWING app.
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Program Port
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Size

Vehicles
Product Name EzRun MiNi28
Product Number 30101300(Black)
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/28th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output		 30A/80A

2S Lipo

6V/7.4V @Max 3.5A
Wires & Connectors Input Wires

Output Wires		 Black-20AWG-55mm*1 Red-20AWG-55mm*1

Black-22AWG-80mm*3
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Program Port		 Not Supported

Not Supported

Supported

Supported

Throttle Wire
Data Recording Extreme value

Real-time Data

Historical data (Graph)		 Supported

Not Supported

Not Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight

 22.7x14.2x11.8mm

5g (without wires)
Applications Size

Vehicles		 1626 Size Motors

1/28th&1/27th
Support

Manuals & Documents

Manuals

Software Download

FAQ

Multifunction LCD Program Box

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

+
OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
