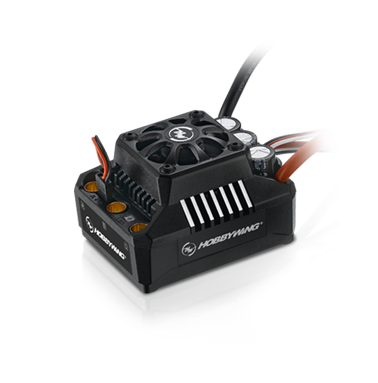

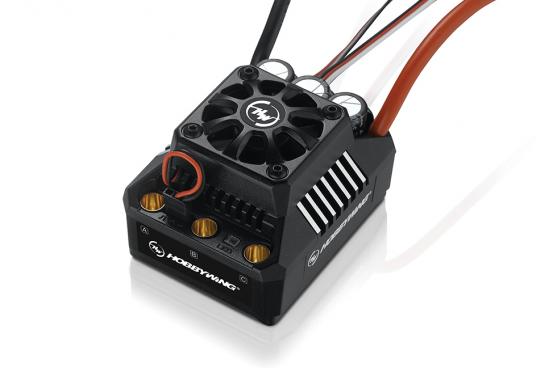

EzRun Max6

Overview
Specifications
Support
Accessories
Detail

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with
cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power
and performance for even the most hardcore of racing applications, but is also
responsive enough to protect itself from damage due to overloading due to physical
abuse, overuse or even human error.

Multiple Real-time
Overload Protections

Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable
output, the MAX6 can handle instant full-torque start-ups for
wheelies, high-speed racing on straightaways and powering
through the bumpiest terrain. The user will have the choice of
adjusting the ESC parameters as per his preference and ability.

Powerful Accleration &
Abundant Output

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX6 to be used in all weather
conditions without any issue of damage caused to the ESC from water or dust.

Applicable to Al
Weather Conditions

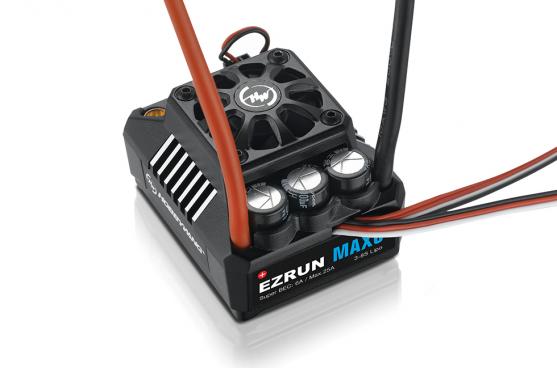

High Voltage Built-in BEC

The MAX6 has adopted the world’s first HV built-in BEC with an
output current of up to 25Amp and a switchable output voltage of
6V-7.4V. The high voltage BEC is designed to handle today’s high
voltage servos on demand used by large scale vehicles.

High Voltage
Built-in BEC

Advanced and Secure
Electronic Switch

The MAX6 features an electronic switch with a lifespan of over
50000 on/off cycles, housed in a completely waterproof,
dust-proof and shock-resistant design.

Advanced and Secure
Electronic Switch

Regular Firmware Updates
Free of Charge

You can upgrade the MAX6 with the Hobbywing USB
LINK software, a multifunction LCD program box and a laptop.
Hobbywing updates its ESC firmware regularly giving you
upgraded features more often when available.

Regular Firmware Updates Free of Charge

Maintenance Free

The ESC minus the cooling fan is basically maintenance free. The cooling fan is
designed to be shockproof, which in turn will reduce damage brought on by
frequent vehicle high jumps and landings on hard surfaces.

Maintenance Free

Built-in Anti-Spark System

The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors
from damage but helps to prevent physical injury due to burnt fingers from the inevitable
issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

Sparkproof
Circuit

Wide Range of Applications

MAX6 Applications:
This ESC is applicable to various 1/6^th & 1/7^th scale vehicles like the Traxxas XO-1, and also
suitable to various 1/8^th scale heavy vehicles like the CEN GST-E. It's the ideal option for
high-end aggressively powered builds.

Wide Range of Applications

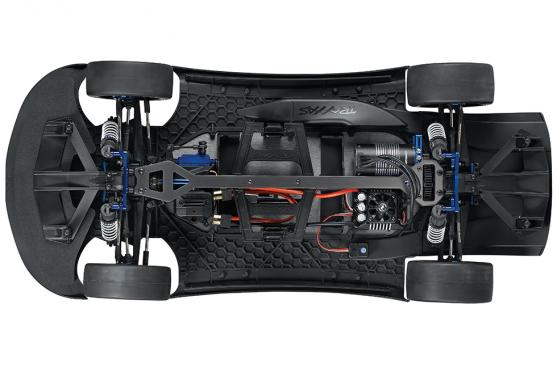

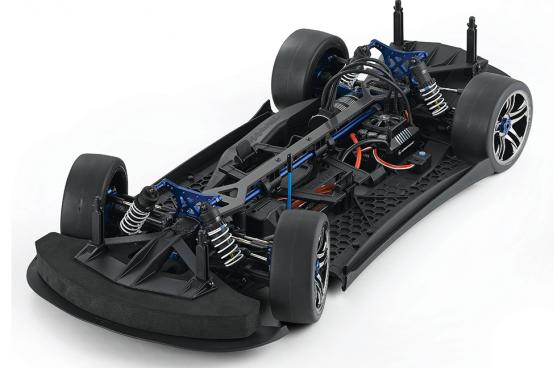

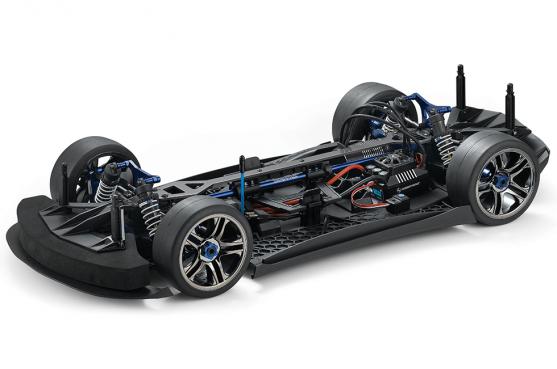

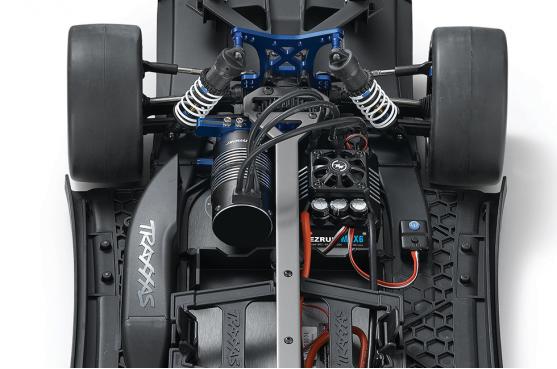

Traxxas XO-1

CEN GST-E

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Fan	Size Voltage Range Powered by
Data Recording	Extreme value Real-time Data Historical data (Graph)
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		EzRun MAX6
Product Number		30105000
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/6^th,1/7^th BL SL WP
Specifications	Cont./Peak Current Input BEC Output	160A/1050A 3-8S LiPo/9-24 Cells NiMH Switch Mode:6V/7.4V,6A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-10AWG-200mm1/Black-10AWG-200mm1 Black-10AWG-200mm*3 No 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port	Supported Supported Supported Supported Supported FAN/Program Port
Fan	Size Voltage Range Powered by	35.0x35.0x10.0mm 5-7.4V Powered by BEC
Data Recording	Extreme value Real-time Data Historical data (Graph)	Not Supported Not Supported Not Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	70.0x56.0x46.5mm 240g
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors/SD BL Motors(only in SL mode) 1/6^th,1/7^th Touring Car/Buggy/Truck 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)

Support

Manuals & Documents

Manuals

Brochure

Software Download

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

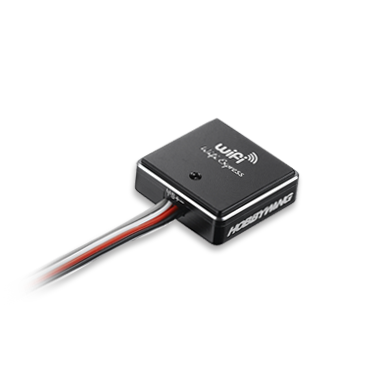

WiFi Express

STOPPED

WiFi Express

Product Number: 30503000
Working Voltage: 5V-12.6V
WiFi Protocol: IEEE802.11 b/g/n
WiFi Signal Effective Range: 0-10m
(Open Field) Applications: work on
the XeRun series, EzRun series
of car ESCs, and the Platinum series
of aircraft ESCs, and Seaking Pro
series of boat ESCs.

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
