EzRun MAX10 G2
Max10 G2 & 3652/3665 G3
Sensor Upgrade, Great Throttle Response
  • Upgraded sensor mode, great throttle response
  • Smart technology increases heat dissipation effectiveness
  • Large capacitor built-in, double explosion-proof
  • Smart freewheeling technology, higher efficiency
  • Data logging, convenient
  • IP67 protection, all-weather operational
Max10 G2 &
3652/3665 G3
Sensor Upgrade,
Great Throttle Response
  • Upgraded sensor mode, great throttle
  • response Smart technology increases heat
  • dissipation effectiveness Large
  • capacitor built-in, double explosion-proof
  • Smart freewheeling technology,
  • higher efficiency Data logging, convenient
  • IP67 protection, all-weather operational
Upgraded sensor mode
great throttle response

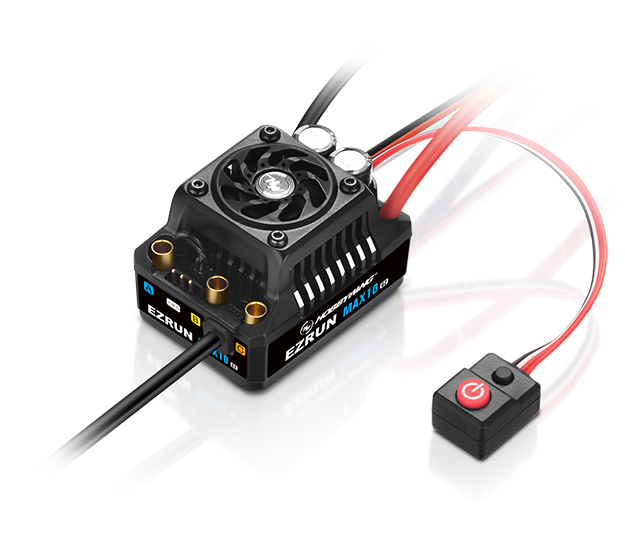

The EzRun Max10 G2 features an improved waterproof
sensored cable interface and an upgraded sensored
mode to achieve a great sense of throttle response and
perfectly matches the EzRun 3652/3665 SD G3 motors.
Note: Overheating protection is
ONLY possible when it is paired with
Hobbywing EzRun 3652/3665 G3 motor.
Upgraded sensor mode
great throttle response
The EzRun Max10 G2 features an improved
waterproof sensored cable interface and an
upgraded sensored mode to achieve a great
sense of throttle response and perfectly
matches the EzRun 3652/3665 SD G3 motors.
Note: Overheating protection is
ONLY possible when it is paired with
Hobbywing EzRun 3652/3665 G3 motor.
Supports Turbo timing adjustment of up to 32 degrees,
and in combination with the EzRun 3652/3665 G3, the
maximum speed is 25% more.
Supports Turbo timing
adjustment of up to 32 degrees,
and in combination with
the EzRun 3652/3665 G3,
the maximum speed is 25% more.
  • Turbo timing
    adjustment
    32 Degrees
  • The speed is significantly
    increased up to
    The speed is
    significantly
    increased up to
    25%
Video
Compared to the previous generation, the MAX10 G2
has a stronger explosive force and a more stable
output power , and at the same time, it has excellent
low-speed linearity.
Compared to the previous generation,
the MAX10 G2 has a stronger
explosive force and a more stable
output power, and at the same time,
it has excellent low-speed linearity.
HEAT
DISSIPATION
Smart technology increases
heat dissipation effectiveness
The addition of the patented frameless fan allows a
large flow of air outlet on the side of the fan to blow
the heat away from the integrated case.
Smart technology
increases heat
dissipation effectiveness
The addition of the patented frameless
fan allows a large flow of air outlet on
the side of the fan to blow the heat
away from the integrated case.
The patented frameless fan
The patented
frameless fan
Large capacitor built-in,
double explosion-proof
Compared with the previous generation of the
MAX10 ESC, the total capacitance of the
capacitor is increased by 74% and is
overheating protected. The functions
improve the power delivery from the battery
to the ESC to avoid it from overloading and
causing capacitors to explode.
Large capacitor built-in,
double explosion-proof
Compared with the previous generation of
the MAX10 ESC, the total capacitance of
the capacitor is increased by 74% and is
overheating protected. The functions
improve the power delivery from the battery
to the ESC to avoid it from overloading
and causing capacitors to explode.
74%
EzRun Max10 G2 total capacity
of the capacitor has increased by
EzRun Max10 G2 total
capacity of the capacitor
has increased by
EzRun Max10
Smart freewheeling technology,
higher efficiency
Smart freewheeling technology enables the MAX10 G2 to have
higher drive efficiency than the previous generation, resulting in
lower operating temperatures and a minimum temperature of
approximately 25°C lower than the previous generation.
Smart freewheeling
technology,
higher efficiency
Smart freewheeling technology enables the
MAX10 G2 to have higher drive efficiency
than the previous generation, resulting in
lower operating temperatures and a
minimum temperature of approximately
25°C lower than the previous generation.
25℃
EzRun Max10 G2 maximum
temperature has reduced by about
EzRun Max10 G2
maximum temperature
has reduced by about
EzRun Max10
Data logging,
convenient

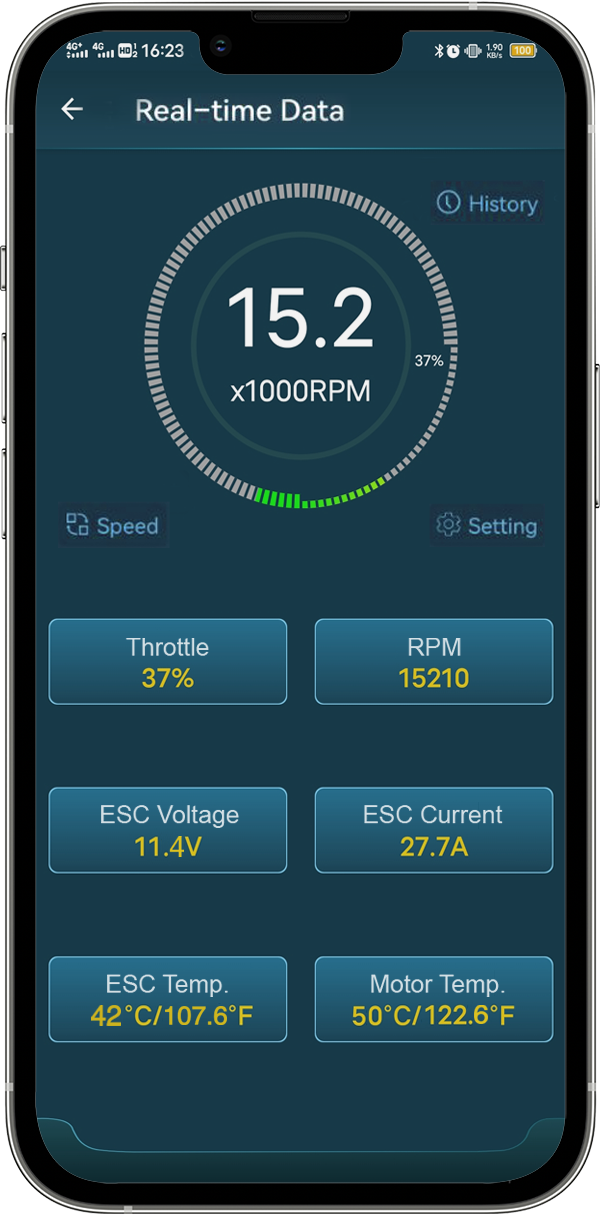

After connecting the ESC with the OTA Bluetooth
module, you can view the data (throttle amount,
voltage, current, temperature, speed and etc) in
real time through the mobile app to know the
running status; The history of the running
status can also be viewed by data logging.
Note:
Effective distance of the Bluetooth
transmission is widthin 5m.
Note:
Effective distance of the Bluetooth
transmission is widthin 5m.
Data logging,
convenient
After connecting the ESC with the OTA Bluetooth
module, you can view the data (throttle amount,
voltage, current, temperature, speed and etc) in
real time through the mobile app to know the
running status; The history of the running
status can also be viewed by data logging.
  • Excellent waterproof and
    dustproof performance
IP67 protection,
all-weather operational
The IP-67 waterproof system guarantees excellent
waterproofing and dustproofing protection. The whole power
system is able to drive on a variety of surfaces including mud,
sand, ice, snow and water without damaging the power unit.
Note: The ESC also supports motor with
ordinary sensored mode interface.
Cables to be purchased separately
IP67 protection, all-weather operational
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The ESC also supports motor with ordinary sensored mode interface. Cables to be purchased separately
  • Excellent waterproof and
    dustproof performance
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Fan Size

Voltage Range

Powered by
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

KV Rating/T Count
Product Name EZRUN MAX10 G2-140A EZRUN MAX10 G2-80A
Product Number 30102603 30102604
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/10th

BL

SD

Waterproof		 1/10th

BL

SD

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output







 140A/880A

2-4S Lipo

6/7.4V,5A

Note: 7.4V voltage can be output

only when input ≥ 3S Lipo		 80A/520A

2-3S Lipo

6/7.4V,5A

Note: 7.4V voltage can be output

only when input ≥ 3S Lipo
Wires & Connectors Input Wires

Input Connectors

Output Connectors		 Red-12AWG-150mm*1 Black-12AWG-150mm*1

XT60

4.0mm Gold (female)		 Red-12AWG-150mm*1 Black-12AWG-150mm*1

XT60

4.0mm Gold (female)
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port		 No

Supported

Supporte(G2)

Supported

Separate		 No

Supported

Supporte(G2)

Supported

Separate
Fan Size

Voltage Range

Powered by		 30x30x10mm

5-7.4V

Powered by BEC		 25x25x10mm

5-7.4V

Powered by BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)		 Supported(LCD)

Supported

Supported		 Supported(LCD)

Supported

Supported
Firmware Firmware Upgrade Supported Supported
Size & Weight Size

Weight

 53mm*39.5mm*37.2mm

120g(w/Wires)		 53mm*39.5mm*37.2mm

120g(w/Wires)
Applications Motors

Vehicles

KV Rating/T Count		 SL BL Motors / SD BL Motors

1/10th Short Course Truck,Truck and Monster Truck

With 3S Lipo: KV ≤ 4000 3665 size motor;

With 4S Lipo: KV ≤ 2600 4268 size motor		 SL BL Motors / SD BL Motors

1/10th On-road/Off-road Short Course Truck(Light-duty)

With 2S Lipo: KV ≤ 6000

With 3S Lipo: KV ≤ 4200 3652 size motor
Support

Manuals & Documents

Manuals

Software Download

FAQ

Multifunction LCD Program Box

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

+
OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
