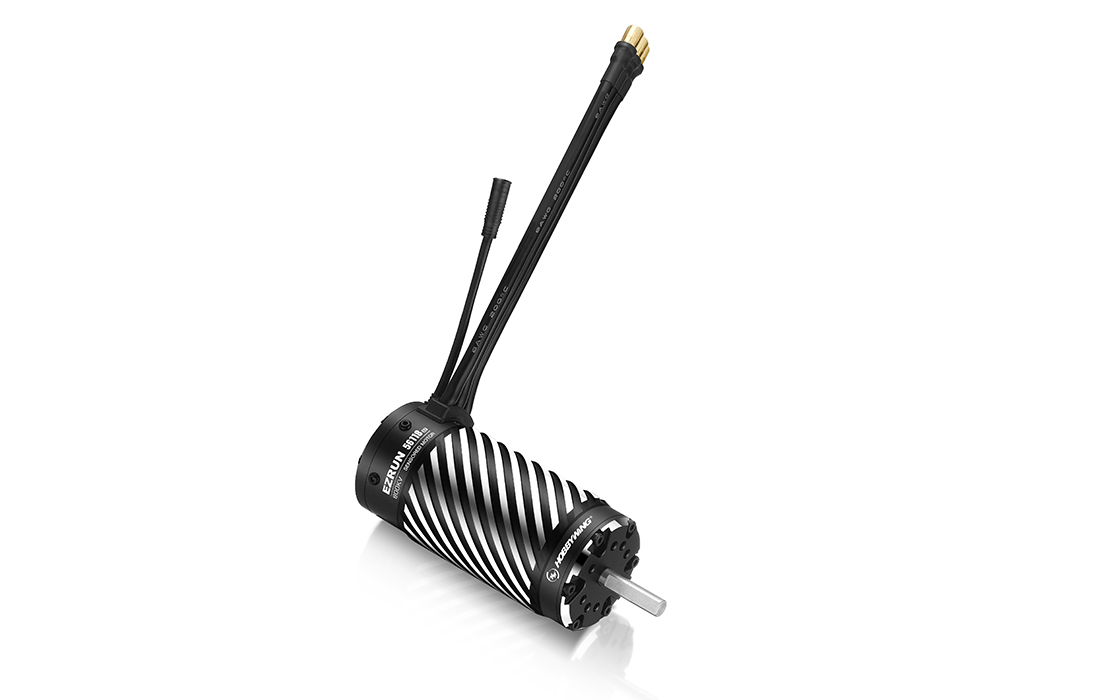

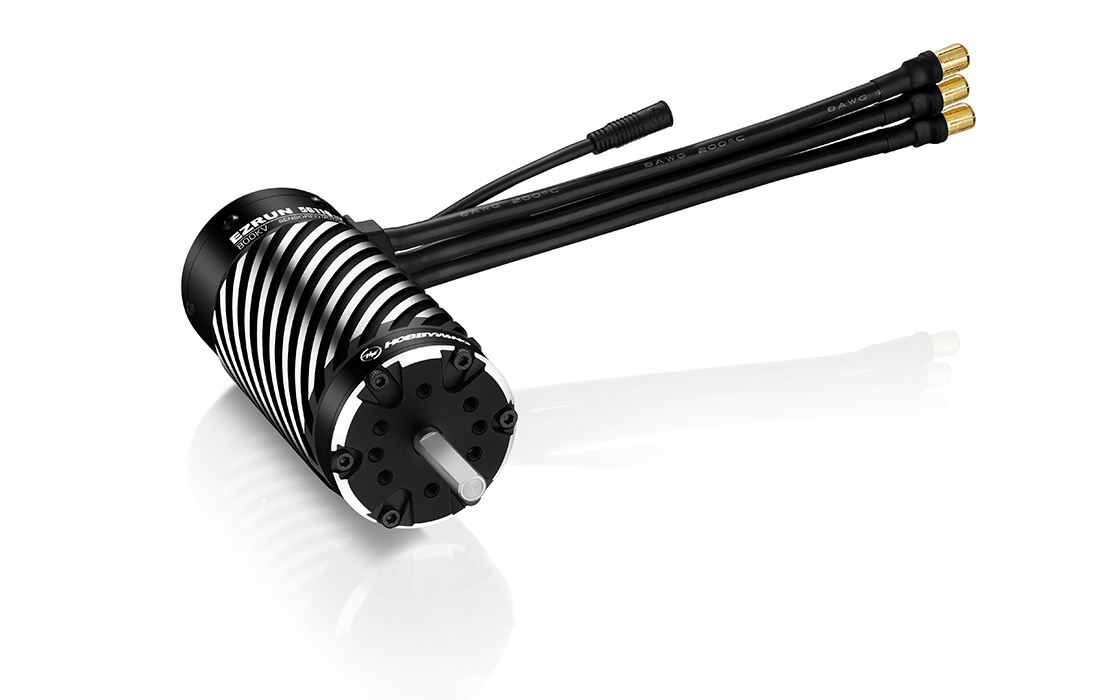

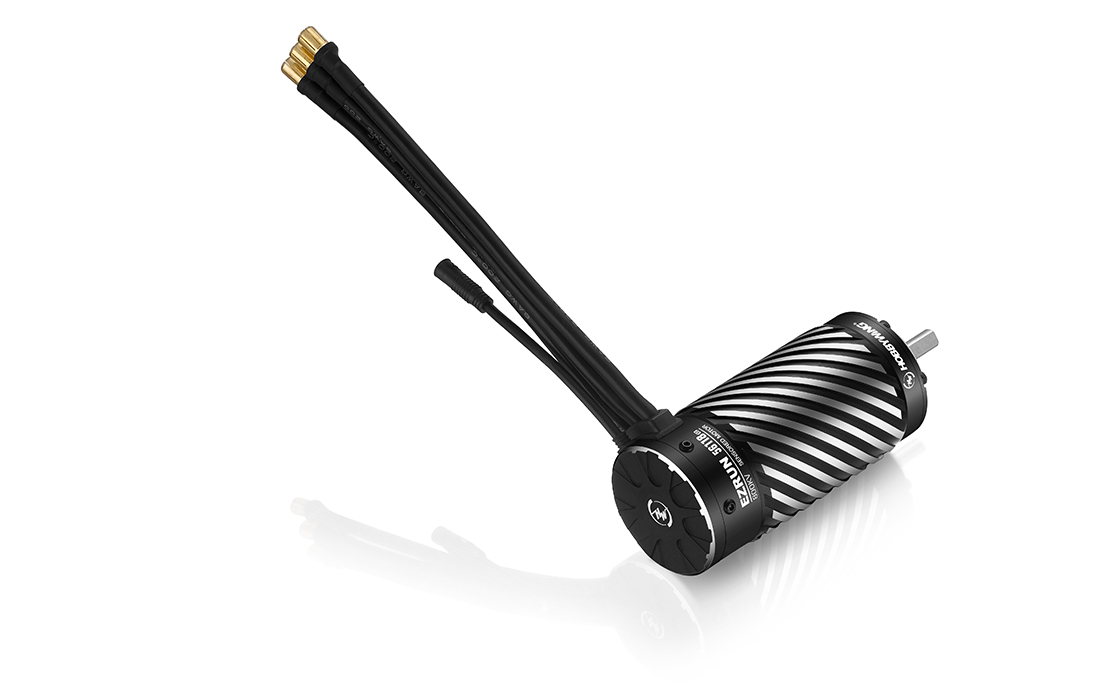

EzRun 56118 SD G2
EzRun 56118 SD G2
Sensored Brushless Motor
Sensored mode，
enhanced performance
The motor is strong, explosive, and has a stable output power
with an excellent linearity at low speed to allow the vehicle to easily realize various maneuvers.
The control is easy when there power is limitless
be it violent start-up, straight-line high-speed, flying slopes, etc.
Perfect match for
EzRun MAX5 HV G2 ESC
The motor achieves perfect compatibility when used together with the EzRun MAX5 HV G2 ESC.
The ESC/Motor combination is sensored and provides a smooth
and percise control experience to the users.
It is equipped with overheat thermal protection function to avoid overheating the motor.
High protection level,
all-weather operation
IP67 Rating provides,
excellent waterproof and dustproof performance,
and can easily cope with various weather conditions and harsh environments.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use,
and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging.
Do not soak for a long time to avoid damaging the product.
New sensor wire interface,
upgraded waterproof protection
The new sensor wire interface enhances the motor protection level
and solves waterproof problems faced by traditional interfaces.
Detachable module
design for easy
maintenance
The motor adopts a modular detachable structure design,
which is convenient for daily cleaning and maintenance,
effectively prolonging the service life of the motor
and maintaining the working efficiency of the motor.

Front End Bell

Stator Set

Rotor

Rear End Bell
A variety of KV values,
you can choose
There are three options of

650KV 800KV 1100KV

to choose from. Find the ideal KV to suit the size of different terrains.
The materials are checked
layer by layer to
ensure durability
and provide excellent performance for the motor.

  • adopts
    high-hardness
    aluminum
    CNC shell

  • high-quality
    bearings
    top of the line brands

  • high-strength Kevlar
    fiber-wound
    explosion-proof
    rotors

  • high temperature-
    resistant
    oxygen-free
    copper wires

  • ultra-thin silicon
    steel sheets
    top of the line brands

  • durable
    alloy output shafts

Functional and elegant
The motor casing adopts an innovatively
spiral groove heat dissipation structure.
not only for good heat dissipation,
but is visually appealing.
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors (mm)

Weight (g)

Front Bearing

Rear Bearing
Other Parameters ESC

Vehicles

Product Name EzRun 56118SD G2-650KV EzRun 56118SD G2-800KV EzRun 56118SD G2-1100KV
Product Number 30402902 30402901 30402903
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole		 1/5th

BL

SD

4		 1/5th

BL

SD

4		 1/5th

BL

SD

4
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)		 650KV

8-12S LIPO

5.5A		 800KV

8-12S LIPO

6.9A		 1100KV

6-8S LIPO

8.0A
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors (mm)

Weight (g)

Front Bearing

Rear Bearing		 56

119.2

8

8.0mm (male)

1272g

D22*D8*T7

D19*D8*T6		 56

119.2

8

8.0mm (male)

1277g

D22*D8*T7

D19*D8*T6		 56

119.2

8

8.0mm (male)

1287g

D22*D8*T7

D19*D8*T6
Other Parameters ESC

Vehicles

EZRUN MAX5 HV G2

1/5th Buggy, Truck

Examples: Losi DBXL-E、 Losi 5T Electrified
