EzRun 3652 & 3665 SD G3
EzRun 3652/3665 SD G3
The new generation adds performance.
EzRun 3652/3665 SD G3
The new generation
adds performance.
The evolution of a sensored motor,
increases performance.
The EzRun 3652/3665 SD G3 features an improved
waterproof sensored cable interface and
an upgraded sensored mode to achieve motor temperature
protection and perfectly matches
the EzRun MAX10 G2 ESC.
The evolution of a
sensored motor,
increases performance.
The EzRun 3652/3665 SD G3 features
an improved waterproof sensored cable
interface and an upgraded sensored
mode to achieve motor temperature
protection and perfectly matches
the EzRun MAX10 G2 ESC.
Powerful hardware configuration,
efficiency is greatly improved
The high-precision Hall sensor components ensures
that the rotor position output is always accurate and consistent,
achieving excellent linearity and a great throttle control.
The EzRun 3652/3665 G3 motor adopts a high precision bearing
that is waterproof in the front end of the motor.
The rear end of the motor uses precision iron cover
with a smaller structure to improve the capacity,
and at the same time,
provides a higher bearing speed while keeping resistance low.
The operation is smoother and more reliable.
Powerful hardware
configuration, efficiency
is greatly improved
The high-precision Hall sensor components
ensures that the rotor position output
is always accurate and consistent,
achieving excellent linearity and a great
throttle control.
The EzRun 3652/3665 G3 motor adopts
a high precision bearing that is waterproof
in the front end of the motor.
The rear end of the motor uses precision
iron cover with a smaller structure to
improve the capacity, and at the same time,
provides a higher bearing speed while
keeping resistance low.
The operation is smoother and more reliable.
Compared to the G2 motor
  •
    The overall efficiency is
    3%
  •
    more effective while the maximum
    output power has increased by
    5%
  •
    the motortemperature
    is greatly reduced under the same load conditions
EzRun 3652 SD G3

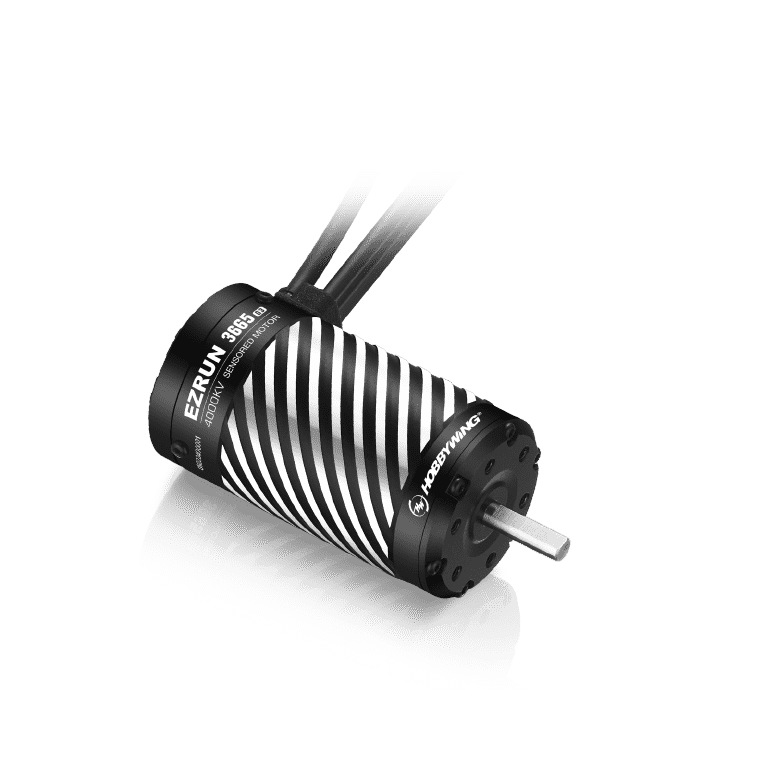

EzRun 3665 SD G3
The stable power and high output of the motor,
makes throttle control for maneuvers (power
wheelies, straight line power,
and clearing jumps) much easier.
Video
The stable power and high
output of the motor,
makes throttle control
for maneuvers
(power wheelies,
straight line power,
and clearing jumps)
much easier.
Design, quality materials, durable
All the materials used on the EZRUN 3652/3665 G3 motor (Motor casing, bearings, ultra-thin silicon steel sheets, high temperature-resistance copper wire, explosion-proof rotor, high-tolerance alloy shaft) are carefully selected and approved by our in-house engineers. Hobbywing is serious in providing users with an extraordinary performance for a long period of time.
Design, quality materials,
durable
All the materials used on the EZRUN
3652/3665 G3 motor (Motor casing,
bearings, ultra-thin silicon steel sheets,
high temperature-resistance copper wire,
explosion-proof rotor, high-tolerance
alloy shaft) are carefully selected and
approved by our in-house engineers.
Hobbywing is serious in providing users
with an extraordinary performance
for a long period of time.
The motor adopts a modular
detachable structure design
The motor adopts a modular detachable structure design
for easy disassembly and daily maintenance.
This helps to prolong the lifespan of the motor
and maintaining the efficiency of the motor simple.
The motor adopts a
modular detachable
structure design
The motor adopts a modular detachable
structure design for easy disassembly
and daily maintenance.
This helps to prolong the lifespan of
the motor and maintaining
the efficiency of the motor simple.
Applicable to All Weather
& Track Conditions
The IP-67 waterproof system guarantees excellent
waterproofing and dustproofing protection.
The whole power system is able to drive on a variety of surfaces
including mud, sand, ice, snow and water without damaging the power unit.
Applicable to All Weather
& Track Conditions
The IP-67 waterproof system guarantees
excellent waterproofing and dustproofing
protection. The whole power system is able
to drive on a variety of surfaces
including mud, sand, ice, snow and water
without damaging the power unit.


Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors (mm)

Weight (g)

Front Bearing

Rear Bearing
Other Parameters Applications
Product Name EZRUN 3652SD-3300KV G3 EZRUN 3652SD-4100KV G3 EZRUN 3652SD-5400KV G3 EZRUN 3665SD-2400KV G3 EZRUN 3665SD-3200KV G3 EZRUN 3665SD-4000KV G3
Product Number 30402603 30402605 30402606 30402604 30402607 30402608
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
1/10th

BL

SD

4
1/10th

BL

SD

4
1/10th

BL

SD

4
1/10th

BL

SD

4
1/10th

BL

SD

4
1/10th

BL

SD

4
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
3300KV

2-3S

≤3.9A
4100KV

2-3S

≤5.0A
5400KV

2S

≤6.8A
2400KV

2-4S

≤5.2A
3200KV

2-3S

≤7.1A
4000KV

2-3S

≤8.2A
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Connectors (mm)

Weight (g)

Front Bearing

Rear Bearing
37

53

3.175(0.125in)

4.0(male)

228g

D13*D5*T4

D11*D5*T5
37

53

3.175

4.0(male)

228g

D13*D5*T4

D11*D5*T5
37

53

3.175

4.0(male)

227g

D13*D5*T4

D11*D5*T5
37

65.8

5

4.0(male)

304g

D16*D5*T5

D11*D5*T5
37

65.8

5

4.0(male)

304g

D16*D5*T5

D11*D5*T5
37

65.8

5

4.0(male)

297g

D16*D5*T5

D11*D5*T5
Other Parameters Applications 1/10th On-road/Off-road Short Course Truck(Light-duty) 1/10th On-road/Off-road Short Course Truck(Light-duty) 1/10th On-road/Off-road Short Course Truck(Light-duty) 1/10th On-road/Off-road Short Course Truck(Light-duty) 1/10th Short Course Truck Truggy/Monster 1/10th Short Course Truck Truggy/Monster
