Electronic Power Switch

Electronic Power Switch

Overview

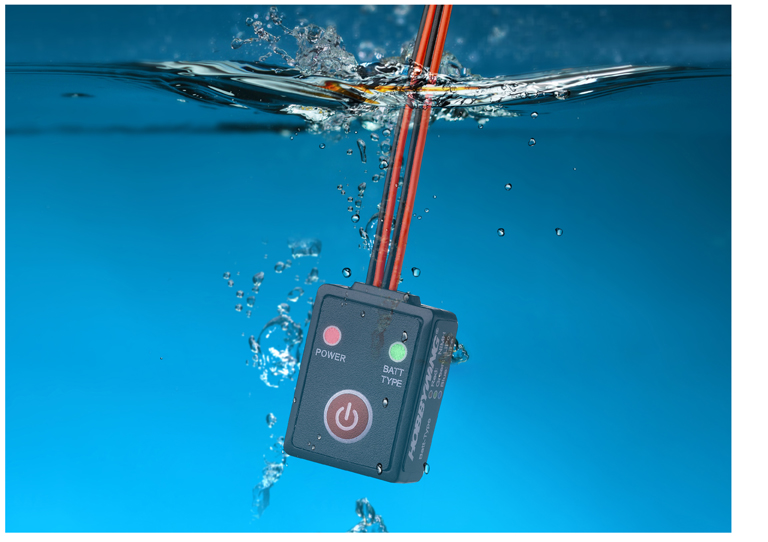

This switch features multiple functions like low voltage indication, battery capacity indication, over-current protection, short-circuit protection and thermal protection; it can control the ON/OFF of current flow to the receiver, and it is operated by only one button, this helped to solve problems like bad contact caused by vibration or oxidation of contacts conventional mechanical switches have. As its case is made of plastic, it can be easily mounted at any place via the double-faced adhesive tape. Besides, the waterproof design makes it applicable for all weather conditions.

Part Number

30850000

Specifications

Battery Type: Lipo / LiFe / NiMH
Input Voltage: 2S Lipo、2S LiFe / 5 Cells NiMH
Max. Current: 12A
Size: 26.5x19.7x10.5mm (LxWxH)
Weight: 7.5g

Downloads

Manual
