E-Skateboard ESC

E-Skateboard ESC

Overview

Ultra-high reliability

The product adopts the full filling process to isolate erosion from sewage and dust. The waterproof, dustproof and shockproof protections help to prolong the lifespan of the product.

FOC drive mode

As an industry leader, the whole series adopts FOC drive scheme and can perfectly support Hall-free Zero-speed start.

Self-learning function

The product supports self-learning function. It automatically detects the motor parameters through simple operation to simplify the difficulty of sample adaptation, and overcomes the debugging cycle problem.

Fail-safe function

Rich and detailed self-protection functions including; throttle protection, brake protection, high and low voltage protection, communication fault protection, motor fault protection, overheating protection and etc. Maximum protection of the controller for driving safety.

Rich product adaptability

Through the selection of different controllers, the single-drive, dual-wheel drive and even four-wheel drive of 6-14S lithium batteries can be realized. The full range of coverage from children's boards to high-power off-road boards can be realized.

Excellent immunity to interference

The power system comes with a frequency hopping function to prevent crosstalk of other radio equipment and improves the reliability and stability of operation.



Specifications

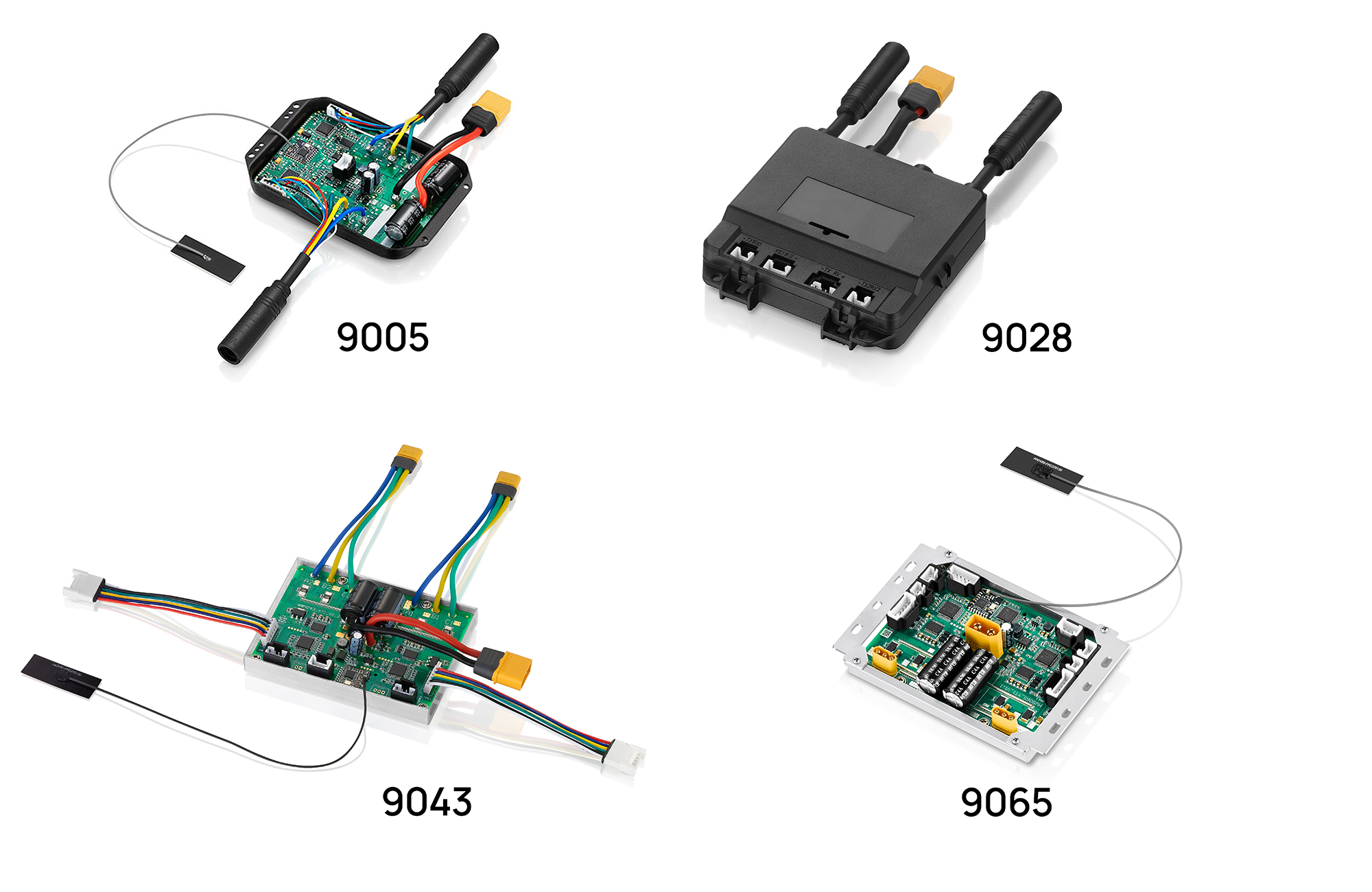

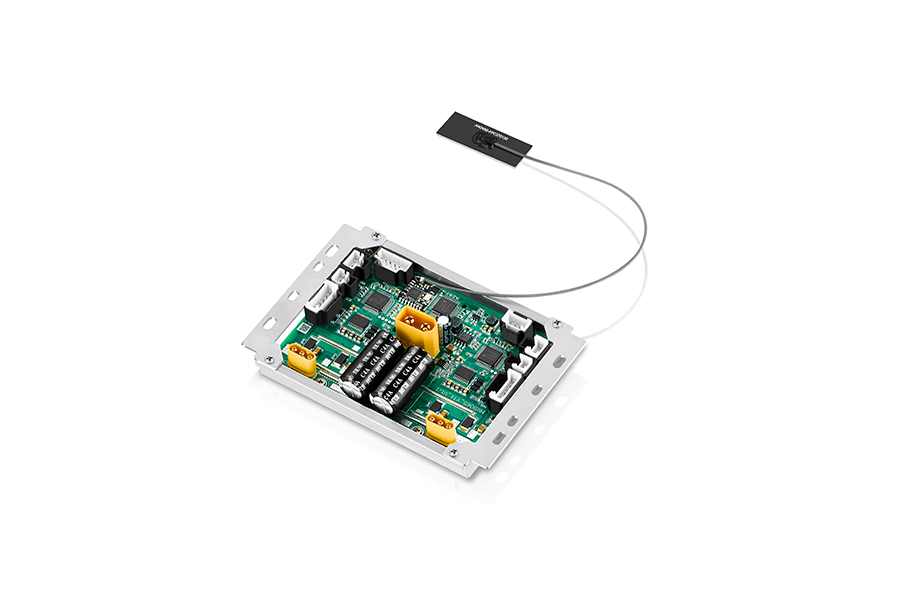

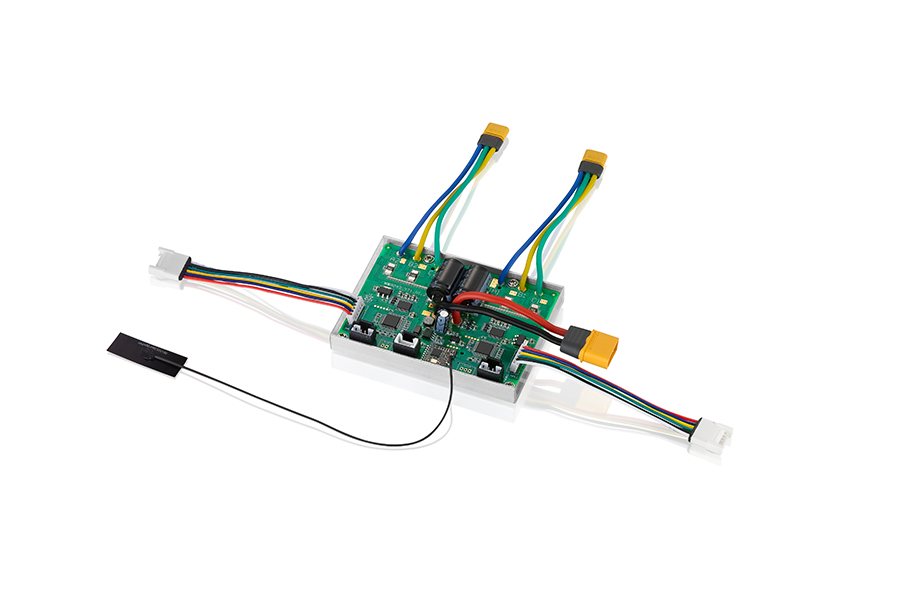

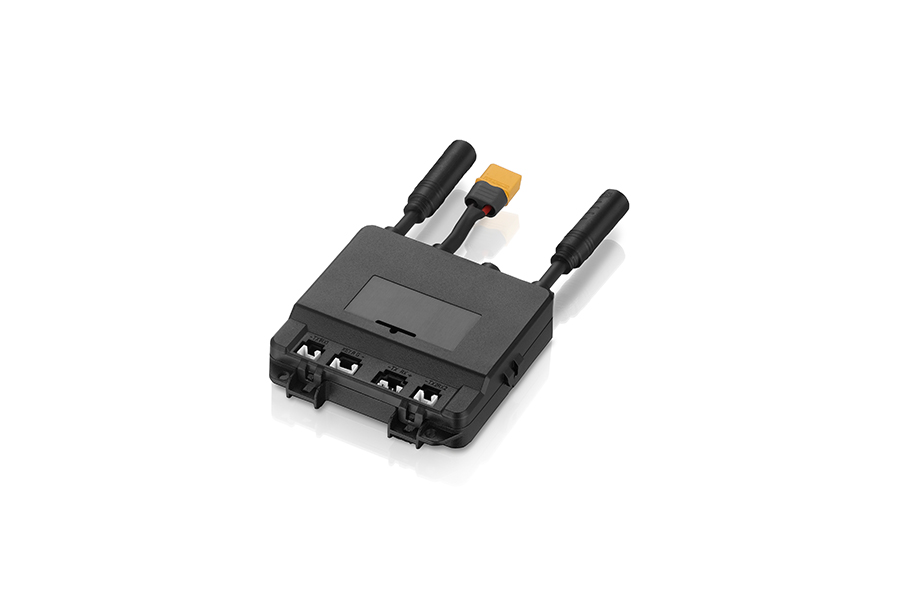

Model: 9005 9028 9043 9065
Operating voltage: 36/48V 36/52V 36/48V 36/48V
Maximum continuous current: 15A*2 25A*2 15A*2 12A*2
Size/mm: 108*70*18 98*94*20 92*68*20 109*74*22
Weight/g: 203 252 200 156
Full glue assembly process:
Meter supply voltage: \ \ \ \
Headlight interface: \ \
Tail light connector:
Signal light connector: \ \ \ \
SPI ambient light interface: \ \ \
Sensorless start:
IoT support: \ \ \ \
BMS support: \
IP65 waterproof level:
Motor adaptive learning: \

●      \  unacceptable

Application: E-Skateboard
