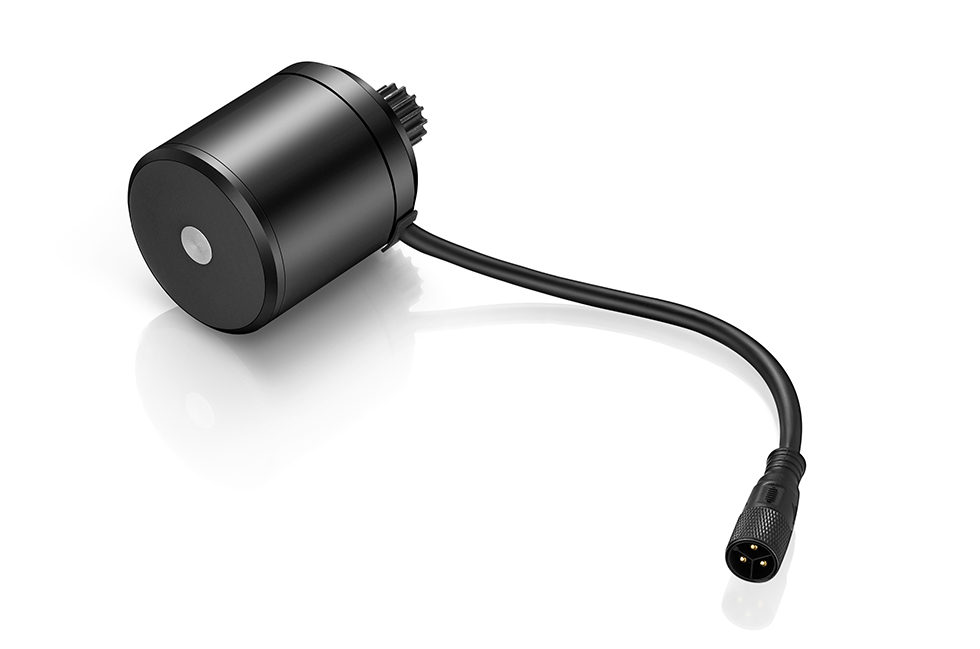

E-Skateboard 5340 Belt Drive Motor

E-Skateboard 5340 Belt Drive Motor



Overview

The solid material and large torque motor allows users to experience a different feeling on the skateboard.

1,6 series aviation aluminum alloy precision CNC bracket, stator seat, black anodized treatment on the surface

2,Cemented carbide D8 spindle, excellent anti-torsion, bearing, rust resistance

3,Domestic first large factory 0.2mm cold-rolled electrical steel strip, very low loss, improve efficiency

4,Sintered NdFeB strong magnetic material, special electromagnetic platform optimized by FEA calculation, high efficiency

5,One-piece waterproof harness for easy assembly and reliable linking

6,Japanese high-precision bearings

7,Vehicle-grade Hall components

13,The weight of the motor is much lower than the industry average!

Specifications



Test voltage(V): 5340SD-W-A1-145KV 5340SD-W-A1-155KV
Diameter X length: 63.3*70 63.3*70
KV: 145 156
Rated Voltage: 10-12S LiPo 10-14S LiPo
Test Voltage: 48 52
Maximum output power and torque/speed: 2763W/6.12N·m/4311RPM 3641W/6.70N·m/5193RPM
Power and torque/speed at Highest efficiency point: 1388W/2.20N·m/6032RPM 1316W/1.70N·m/7405RPM
Maximum efficiency: 88.72% 89.11%
Size and color: No tire skin No tire skin
Changing of tire skin:
Weight(g): 925 925
Out of the shaft: D10mm stainless steel flat shaft + 5M14 tooth /13T/15T synchronous wheel D10mm stainless steel flat shaft + 5M14 tooth /13T/15T synchronous wheel
Waterproof level: IPX3 IPX3
Built-in temperature sensor: Y Y
Highest temperature resistance (internal magnetic sheet): 110℃ 110℃
Application: E-Skateboard
