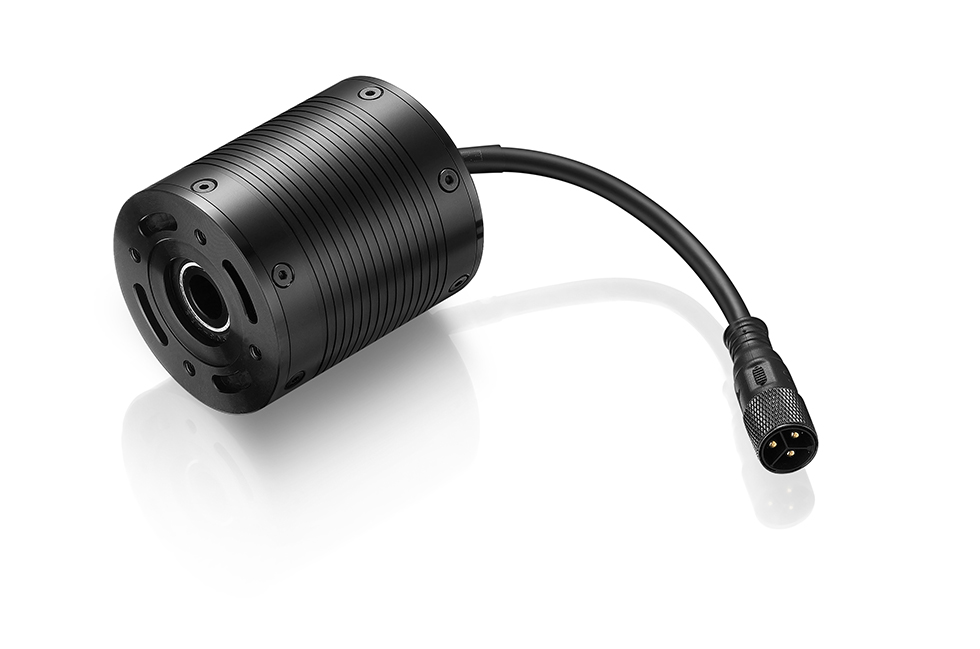

E-Skateboard 5240 Direct Drive Motor

E-Skateboard 5240 Direct Drive Motor

Overview

1,6 The aviation aluminum alloy precision CNC creates the front and rear covers. The surface is anodized in black.

2,6 Aviation aluminum alloy precision CNC spindle, The surface is anodized in black .

3,Domestic first large factory 0.2/0.35mm cold-rolled electrical steel strip, improve efficiency

4,Sintered NdFeB strong magnetic material, using a special electromagnetic platform optimized by FEA calculation, high efficiency

5,Wear-resistant Teflon Hall harness + enameled wire directly leads out of the motor phase line or integrated waterproof harness, easy to assemble, reliable link

6,Large diameter thick-walled bearings provide extremely strong dynamic and static load capacity

7,Vehicle-grade Hall components

13,The weight of the motor is much lower than the industry average!

Specifications



Test voltage(V): 5240-70KV Direct Drive Motor
Diameter X length: 63.5*73.2
KV: 70
Rated Voltage: 10-12S LiPo
Test Voltage: 42
Maximum output power and torque/speed: 1288W/7.62N·m/1614RPM
Power and torque/speed at Highest efficiency point: 493W/1.82N·m/2590RPM
Maximum efficiency: 86.59%
Size and color: No tire skin
Changing of tire skin:
Weight(g): 1010
Out of the shaft: 12mm square hole D8 hollow aluminum shaft
Waterproof level: IP55
Built-in temperature sensor: Y
Highest temperature resistance (internal magnetic sheet): 110℃
Application: E-Skateboard
