HW 9L-Spray
HW 9L-SPRAY
Efficient Atomizing
and Precise Spraying

HOBBYWING centrifugal nozzle utilizes state-of-the-art atomizing technology to
maximize the effectiveness of every drop of the spray.

Max. Flow Rate
9L/min
Spraying Width
12m
Spraying Efficiency
0.99 hectare (2.45 acres)/min
(Measured at the flight speed of 13.8 m/s)
Outstanding
Atomizing Effect
The centrifugal nozzle features a high-speed
rotating spray disc to produce uniform and fine droplets.
This ensures deep penetration of sprays into
the bottom leaves of crops, covering every plant while spraying.
A Minimum Diameter of
35μm
(Measured under laboratory conditions. The final atomizing effect is related to the flow rate and rotation speed. The speed of the rotation will determine the size of the spray droplets. Faster rotation will yield a finer droplet.)
Excellent Spray Type
Compatibility
Regardless of aqueous solutions, emulsifiable concentrates,
or suspension concentrates, the centrifugal nozzle can adapt
to them without the need to change.
Aqueous Solutions
Pentazole prochloraz
Pyraclostrobin
Thiamethoxam
Tebuconazole
Profenofos
Prochloraz
Amino acid-containing
water-soluble fertilizer
Brassinolide
Suspension
Concentrates
Emamectin benzoate
Pyraclostrobin
Mancozeb
Thiamethoxam
Tebuconazole
Prochloraz
Emulsifiable
Concentrates
Pyraclostrobin
Profenofos
Auxiliary
Efficient and Precise
Flow Control
With a maximum flow rate of 9 L/min and visualized CAN data transmission,
the centrifugal nozzle can adjust to the optimal flow rate
and atomizing effect based on different crops and types of sprays.
This ensures precise spraying and minimizes chemical and water waste,
thereby cutting costs and increasing farmers’ income.

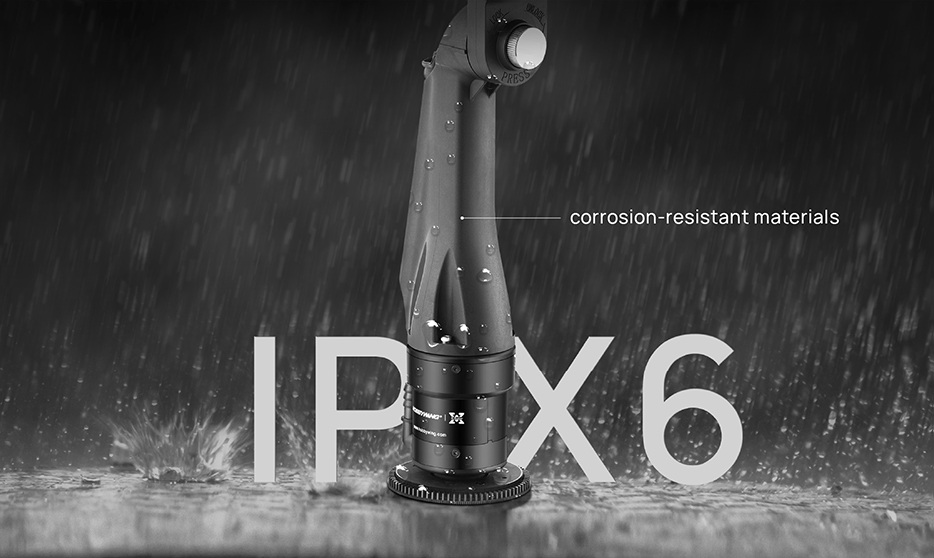

Enhanced
Durability
  • Made of corrosion-resistant
    materials with an IPX6
    protection rating
  • Easy to clean and prevents
    clogging and motor burningThus ensuring less maintenance and
    longer service life
Compatible Structure
and Easy to Use

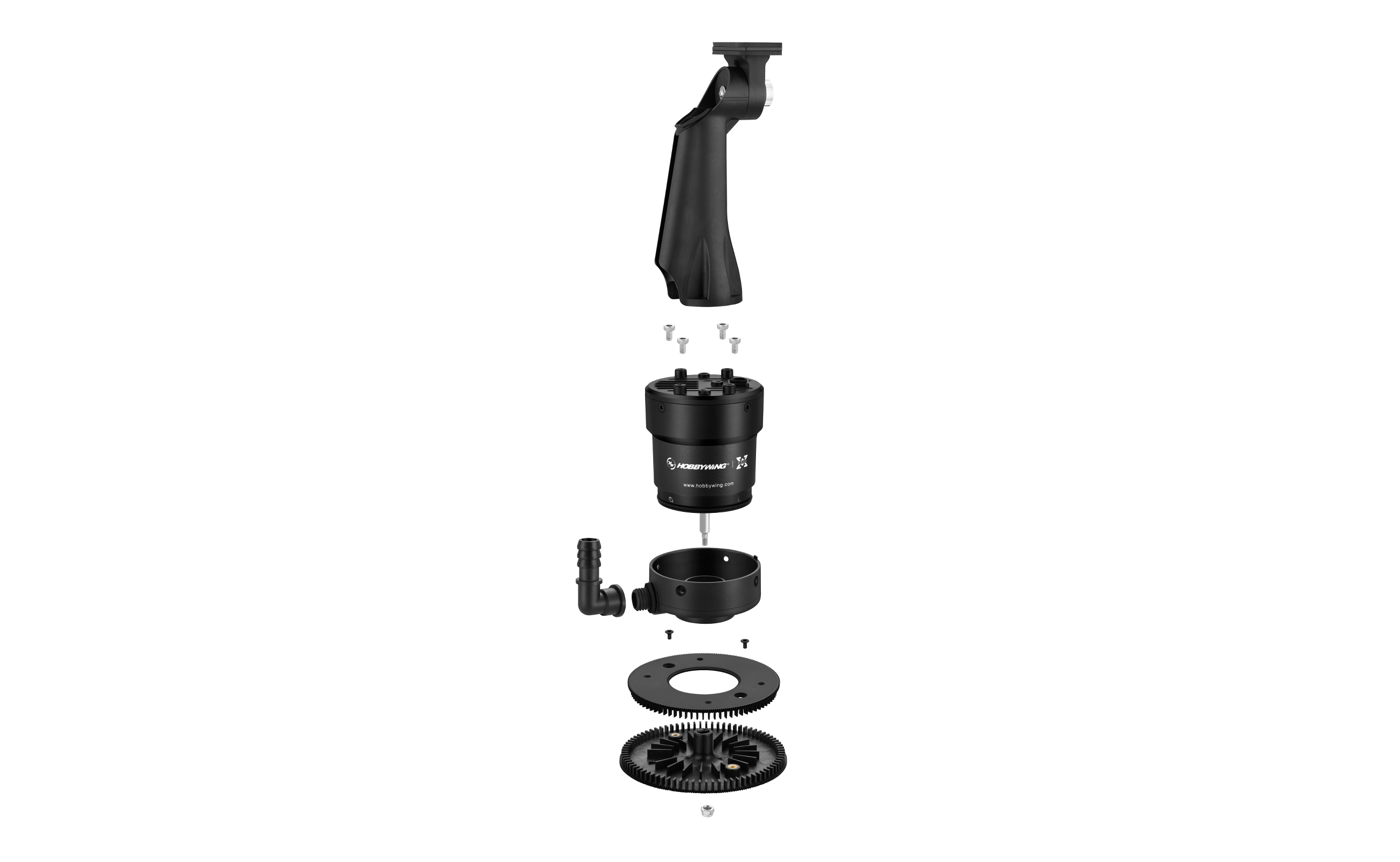

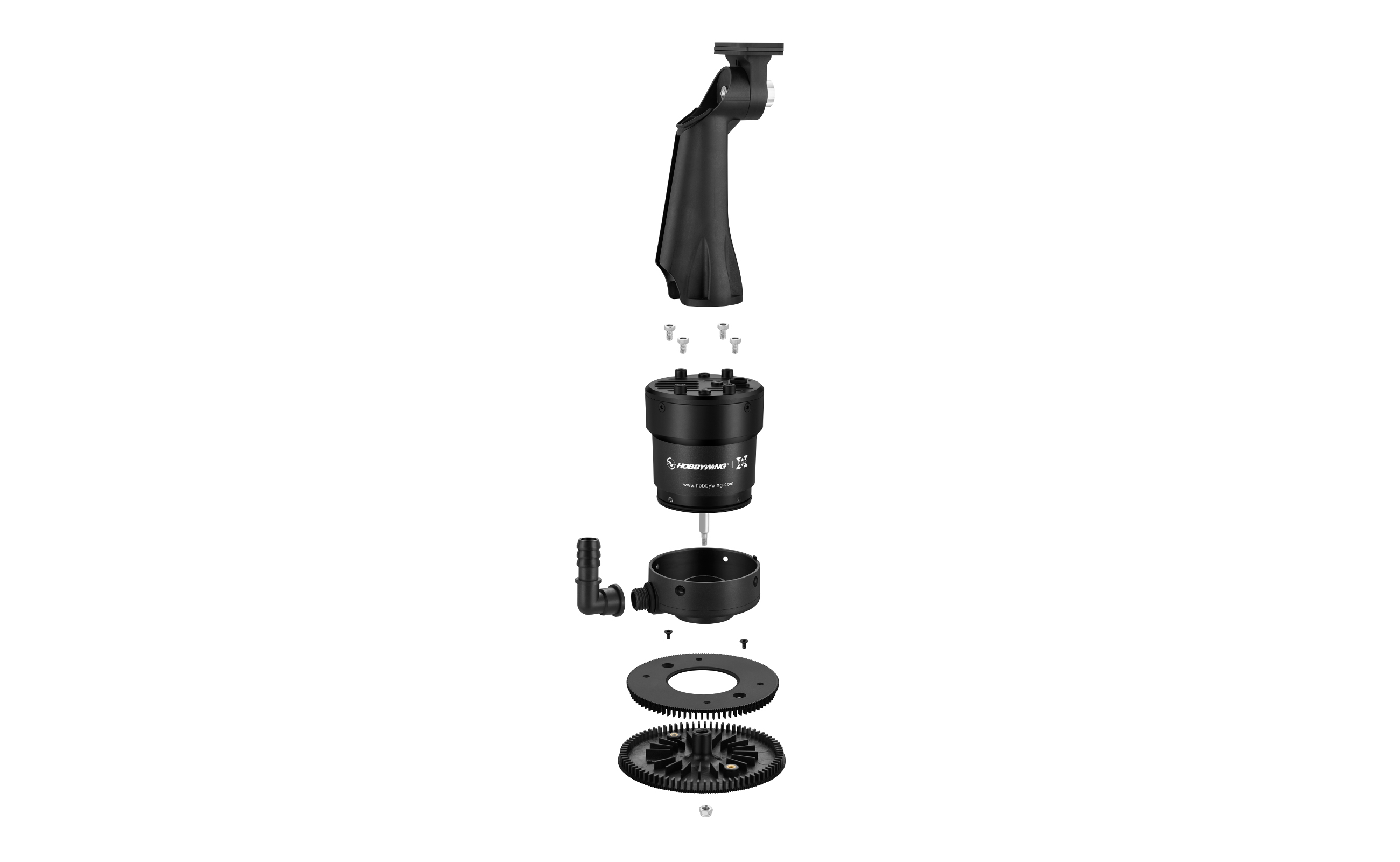

  • The modular folding design facilitates installation and handling.
  • In addition, it is compatible with the installation sizes of
  • HOBBYWING X9 / X11 / X13 / X15 propulsion systems,
  • making it ready to use upon installation without the need to evacuate air inside the nozzle.
Product name
HW 9L-Spray
Specifications
Compatible battery 12~18S
Spraying width 4~12m
Droplet granularity 35~500μm
Maximum flow rate 9L/min
Maximum power 500W (54V)
Rated flow rate 5L/min
Rated power 350W (54V)
Throttle stroke 1050-1950μs
Throttle stroke calibration Not available
Control mode PWM/CAN
Communication mode CAN
Dimensions 97.8*75*278.3mm(Unfolded) \ 97.8*271*76.5mm(Folded)
Weight 495g
Wiring Order Red--+, Black--GND Yellow--GND,Purple--Signal Blue--CAN High, Green--CAN Low
  *Due to measurement errors, the actual product shall prevail.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

FAQ

HW 9L-Spray
HW 9L-SPRAY
Efficient Atomizing
and Precise Spraying

HOBBYWING centrifugal nozzle utilizes
state-of-the-art atomizing technology
to maximize the effectiveness of every
drop of the spray.

Max. Flow Rate
9L/min
Spraying Width
12m
Spraying Efficiency
0.99 hectare (2.45 acres)/min
(Measured at the flight speed of 13.8 m/s)
Outstanding
Atomizing Effect
The centrifugal nozzle features a
high-speed rotating spray disc to produce
uniform and fine droplets. This ensures
deep penetration of sprays into the
bottom leaves of crops, covering every
plant while spraying.
A Minimum Diameter
of 35μm
(Measured under laboratory conditions. The final atomizing effect is related to the flow rate and rotation speed. the speed of the rotation will determine the size of the spray droplets. Faster rotation will yield a finer droplet.)

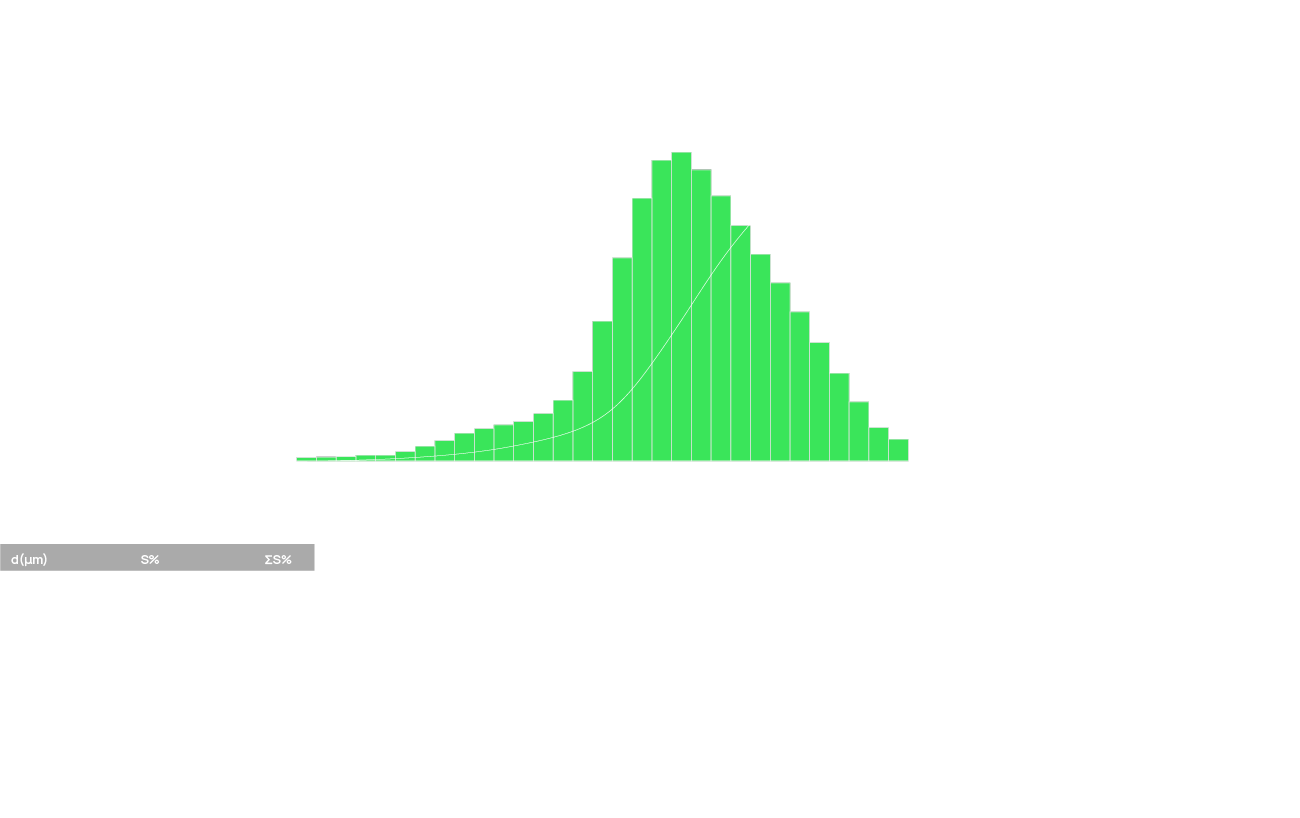

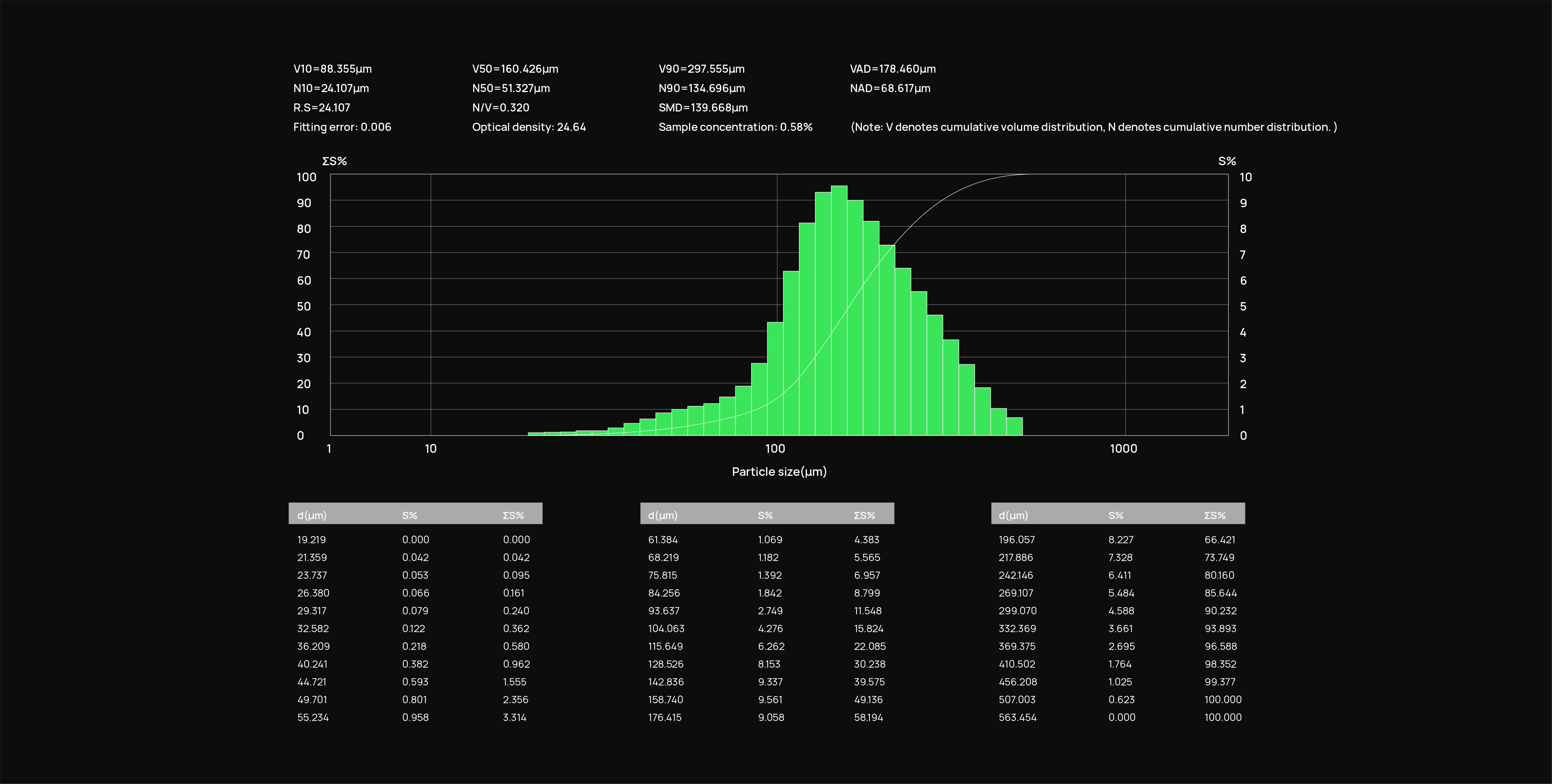

Analysis results
