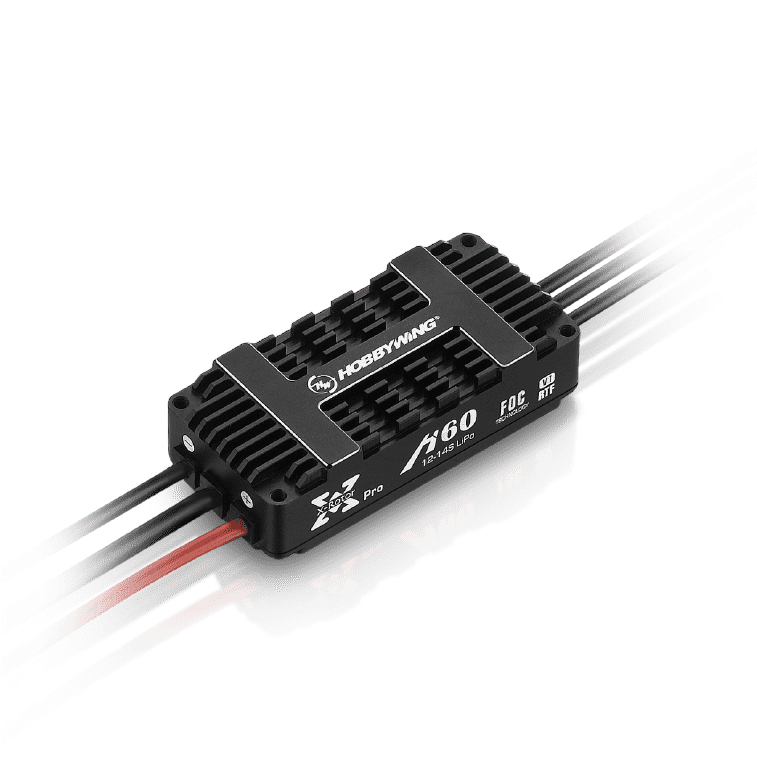

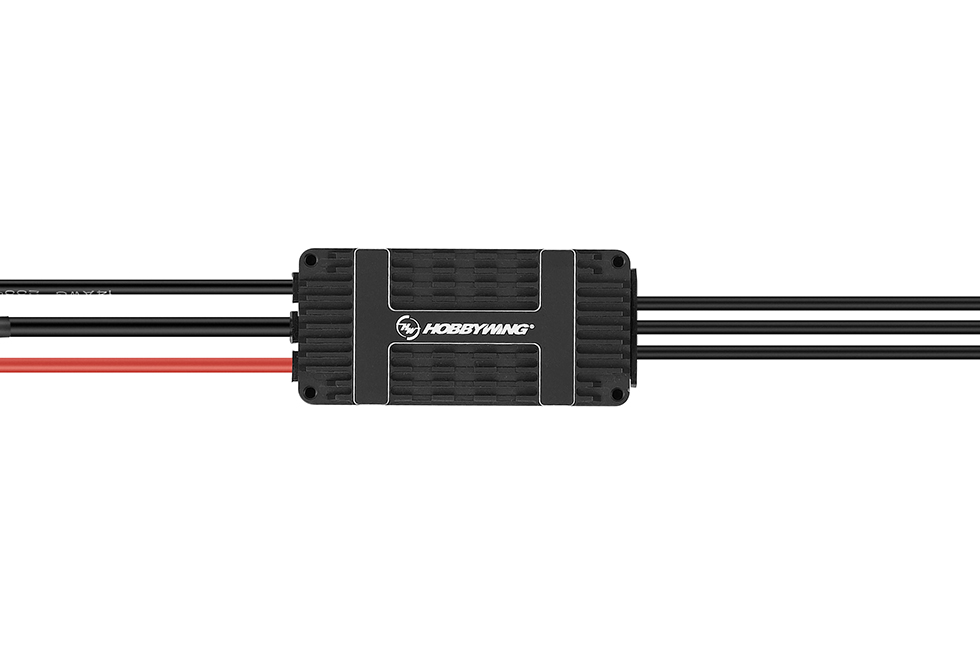

XRotor H60A 14S FOC & BLDC V1

Two types of drivers, free to match

BLDC - High Efficiency Compatible with square wave drive technology, plug and play.
FOC - Precise and efficient vector control, low temperature, fast response, low noise,
low interference, linear throttle, precise control, kinetic energy recovery.

High efficiency

BLDC——The DEO synchronous rectification technology ensures better efficiency by 10%.
The temperature will be reduced further by 10℃ than with the use of traditional square wave ESC.
FOC——FOC drive is field-oriented control (vector control).
The efficiency is higher, and the throttle linearity is better.

Protection class IP55

By using lightweight nano-coating, together with an integrated aluminum alloy shell,
the waterproof and dustproof is graded at IP55 class.
*Customizable IP67 protection

Intelligent protection, fault storage

Power-on self-test, undervoltage protection, overvoltage protection, overcurrent protection,
throttle signal loss protection, infinite restart, etc. According to the real-time working
conditions, the ESC intelligently protect the flight safety of the drone.
*The ESC has its own fault storage function for fault analysis.

Undervoltage
protection

Overvoltage
protection

Infinite
restart

Power-on
self-test

Fault
storage

Excellent heat dissipation performance

Heat is dissipated quickly with large-area of heat sinks on the aluminum alloy
case and an excellent layout of the hardware.

Anti-interference protection

The throttle signal can be fully isolated. The shielded cable on the BLDC to isolate external interference
FOC is compatible with the above functions and has CAN digital throttle + PWM throttle.

Information and Communication

Fast data transmission and real-time acquisition of key information such as ESC status, speed, throttle,
current, voltage, MOSFET temperature, and capacitor temperature can be achieved using the black box function.
Data analysis is clear at a glance with the use of DATALINK box.
BLDC serial communication, high transmission rate, can be used quickly.
FOC-CAN bus communication has a strong performance in real-time, long transmission
distance and strong anti-interference ability, and is able to communicate with
flight control in real-time.

Quick upgrade

The latest software from Hobbywing can be updated with the use of DATALINK box equipment.

*Support flight control remote upgrade (optional)

XRotor H60A 14S Foc & Bldc V1 CAD
Product Name
XRotor H60A 14S Foc & Bldc V1
Specifications

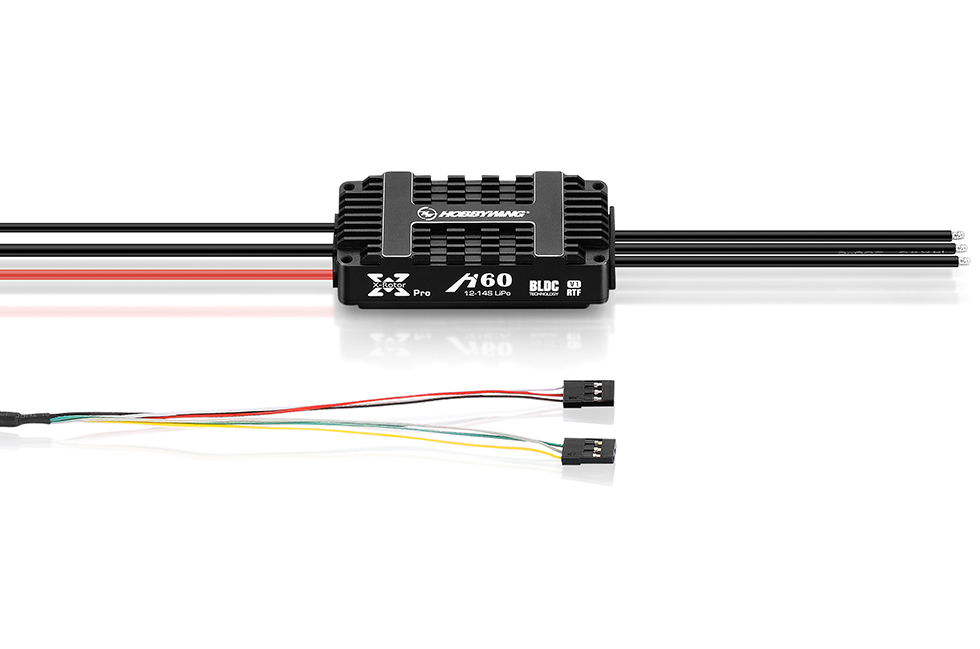

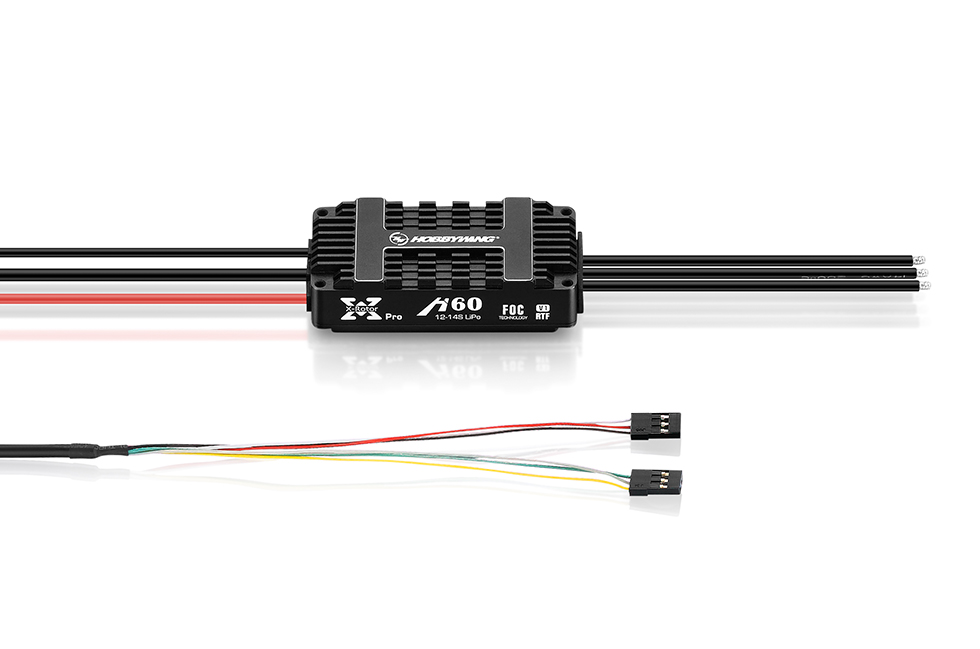

ESC XRotor-Pro-H60A-14S-BLDC-RTF-HW-H-V1 XRotor Pro-H60A-14S-FOC-RTF-HW-H-V1
Input Voltage 12-14S(44-63V) 12-14S(44-63V)
Continuous current 25A(Good heat dissipation) 25A(Good heat dissipation)
Peak Current (3s) 60A（3s） 60A（3s）
Operating Temperature -20℃~50℃ -20℃~50℃
Compatibility Good One motor, one program
Magnetic encoder NO NO
Waterproof Rating IP55(Custom IP67) IP55(Custom IP67)
Weight 67g(Without wires) 73g(Without wires)
Size 75*35.5*20.3mm 75*35.5*20.3mm
Communication protocol Serial port CAN(Custom Serial port)
TThrottle signal isolated Isolated(Custom non-isolated) Isolated(Custom non-isolated)
PWM Input Signal Level 5V/3.3V 5V/3.3V
Throttle Signal Frequency 50-500Hz 50-500Hz
Operating Pulse Width 1100us-1940us 1100us-1940us
Throttle travel calibration Yes No
Specifications DEO No
Double throttle signal No Yes(CAN)
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
XRotor H60A 14S FOC Manuals
XRotor H60A 14S BLDC Manuals
XRotor H60A 14S Foc & Bldc V1 3D Model Drawing
XRotor H60A 14S Foc & Bldc V1 Specification
JR cable(interface) definition
How to set ESC ID-8.16
Datalink CAN upgrade guide
Datalink UART upgrade guide
About motor beep sound& ESC LED blinking

Software Download

FAQ

DATALINKV2

DATALINKV2

DATALINKV2

Name: DATALINKV2
Telemetry: USB, CAN, Serial
Voltage: 6-81V
Size: 57*40*13mm(without wires)
Weight: 27g

+
