SkyWalker Series

Overview
Specifications
Support
Accessories
Detail

SkyWalker 60A UBEC

SkyWalker 30A

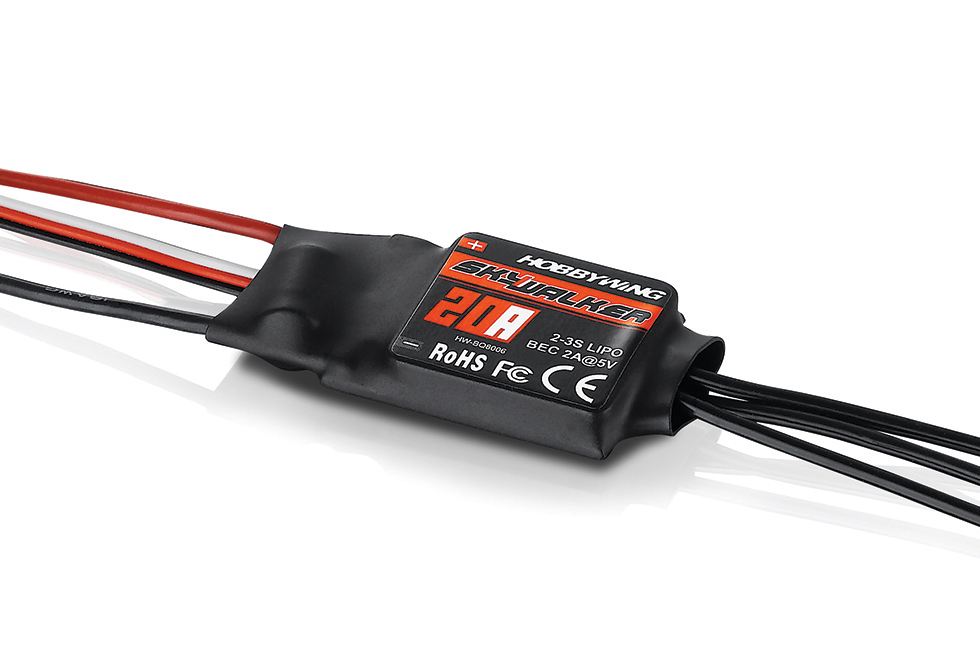

SkyWalker 20A

SkyWalker 12A (RTF)

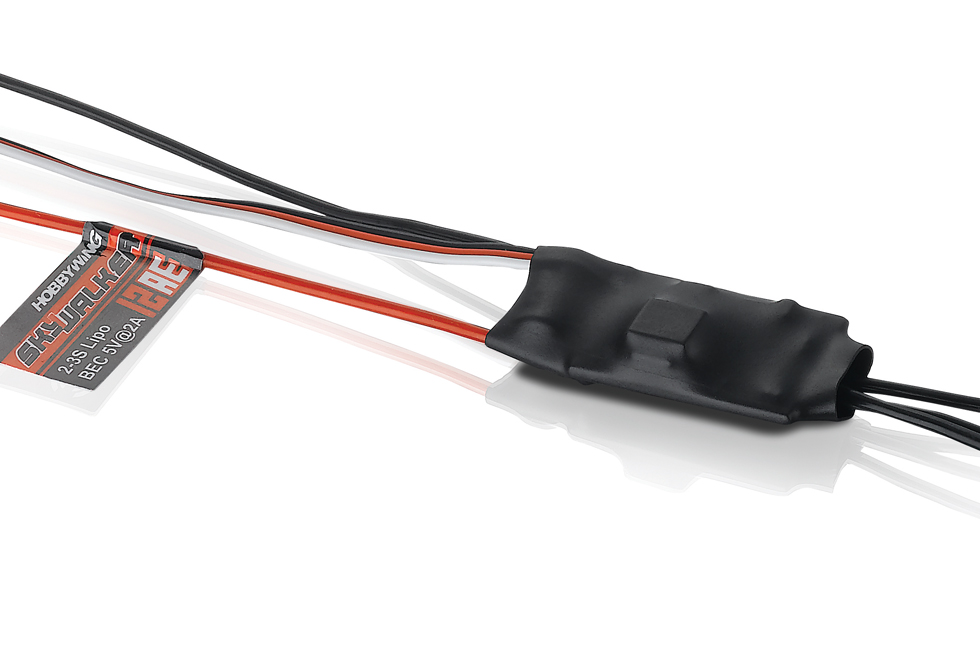

SkyWalker 12AE (RTF)

SkyWalker Quattro 25AX4

High Quality & Reliability

Good quality comoponents guarantees the high quality and reliability of
SkyWalker series of aircraft ESCs.

High Quality
& Reliability

Programmable Parameters

With a LED program card, then you can program relevant
parameters on your Skywalker to your personal preference.

Programmable Parameters

SkyWalker 60A UBEC

Multiple Protections

Multiple protection features include abnomal input voltage,
ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively
prolongs the service life of the ESC.

Multiple Protections

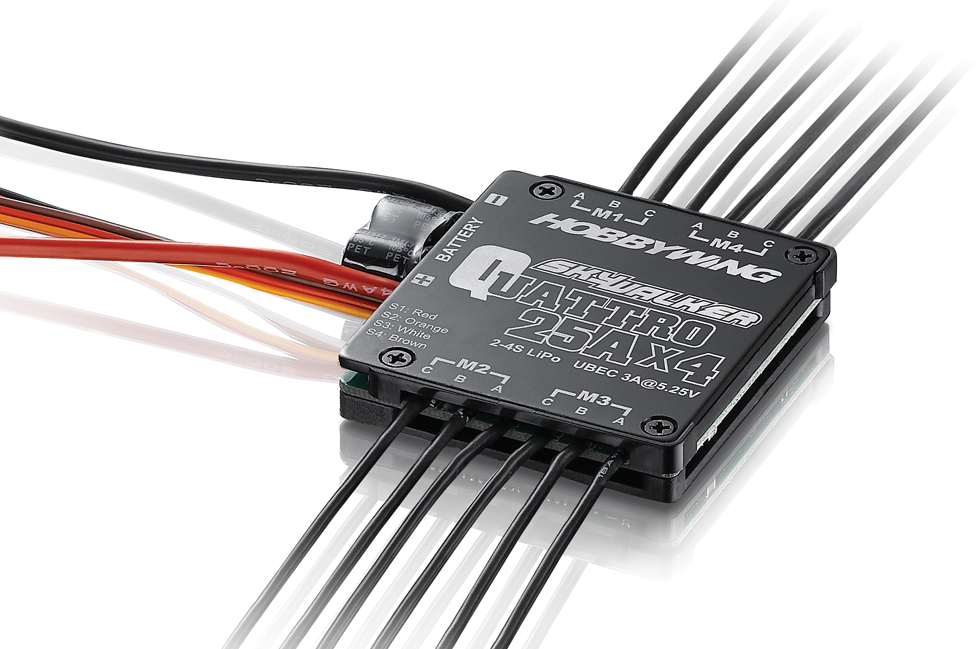

SkyWalker Quattro 25AX4

Besisdes all the good qualities of SkyWalker series,
this ESC also has something other SkyWalker ESCs don’t have
----the 4-in-1 desgin, which greatly simplifies wiring,
is very applicable to fixed-wing aircraft driven by
multiple motors and entry-level multirotors.

Product Name
Product Number
Type	Brushed/Brushless High Voltage/Regular
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Firmware	Firmware Upgrade
Size & Weight	Size Weight

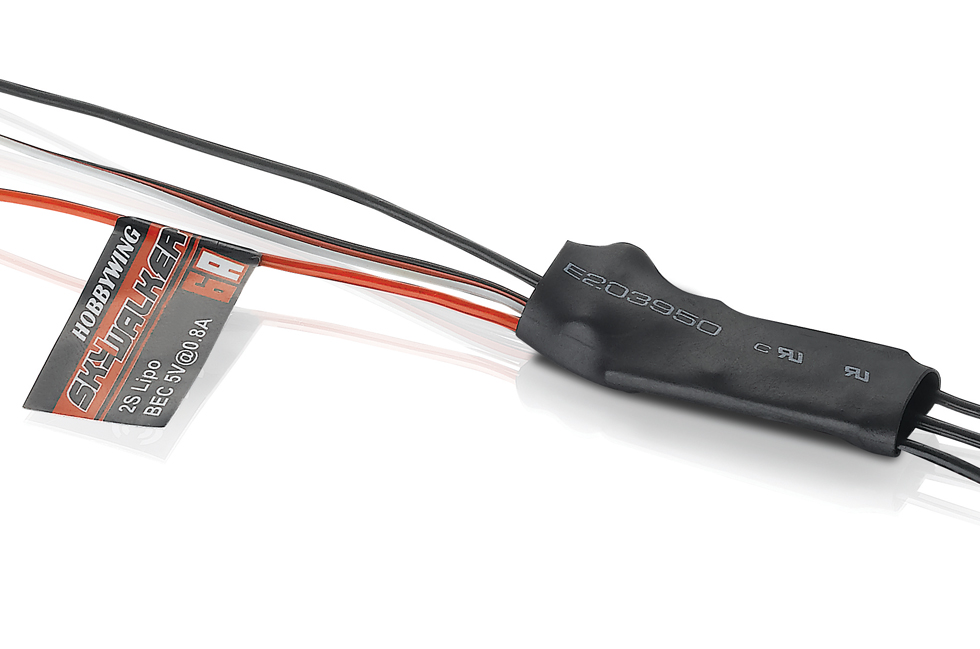

Product Name		SkyWalker 60A UBEC	Skywalker 30A	SkyWalker 20A		SkyWalker 12A	SkyWalker 6A
Product Number		30216100	30205350	80060010	80060170	80060160	80060150
Type	Brushed/Brushless High Voltage/Regular	BL Regular	BL Regular	BL Regular	BL Regular	BL Regular	BL Regular
Specifications	Cont./Peak Current Input BEC Output	60A/80A 3-6S LiPo Switch Mode:5V,7A	30A/40A 2-3S LiPo Linear mode:5V,2A	20A/25A 2-3S LiPo Linear mode:5V,2A	12A/15A 2-3S LiPo Linear mode:5V,2A	12A/15A 2-3S LiPo Linear mode:5V,1A	6A/8A 2S LiPo Linear mode:5V,0.8A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-14AWG-100mm1 Black-14AWG-100mm1 Black-14AWG-100mm*3 No No	Red-16AWG-100mm1 Black-16WG-100mm1 Black-16AWG-75mm*3 No 3.5 Gold Connectors (Female)	Red-18AWG-100mm1 Black-18AWG-100mm1 Black-18AWG-75mm*3 No 3.5 Gold Connectors (Female)	Red-20AWG-100mm1 Black-20AWG-100mmBlack-20AWG- 100mm*31 No No	Red-20AWG-100mm1 Black-20AWG-100mm1 Black-20AWG-100mm*3 No No	Red-22AWG-100mm1 Black-22AWG-100mm1 Black-22AWG-40mm*3 No No
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port	Supported Not Supported Supported Not Supported Not Supported Not Supported Program Wire Firmware	Supported Not Supported Supported Not Supported Not Supported Not Supported Program Wire Firmware	Supported Not Supported Supported Not Supported Not Supported Not Supported Program Wire Firmware	Supported Not Supported Supported Not Supported Not Supported Not Supported Program Wire Firmware	Supported Not Supported Supported Not Supported Not Supported Not Supported Program Wire Firmware	Supported Not Supported Supported Not Supported Not Supported Not Supported Program Wire Firmware
Firmware	Firmware Upgrade	Not Supported	Not Supported	Not Supported	Not Supported	Not Supported	Not Supported
Size & Weight	Size Weight	77.0x35.0x14.0mm 63g	68.0x25.0x8.0mm 37g	42.0x25.0x8.0mm 19g	38.0x18.0x7.0mm 10g	38.0x18.0x6.0mm 9g	32.0x12.0x4.5mm 6g

Support

Manuals & Documents

Skywalker Quattro Manuals

Skywalker V2 Manuals

LED Program Card

Part Number: 86020041
Size: 88x58x14mm(LxWxH)
Applications: FlyFun series & SkyWalker
series of aircraft ESCs
