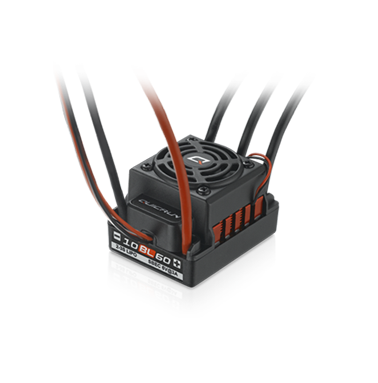

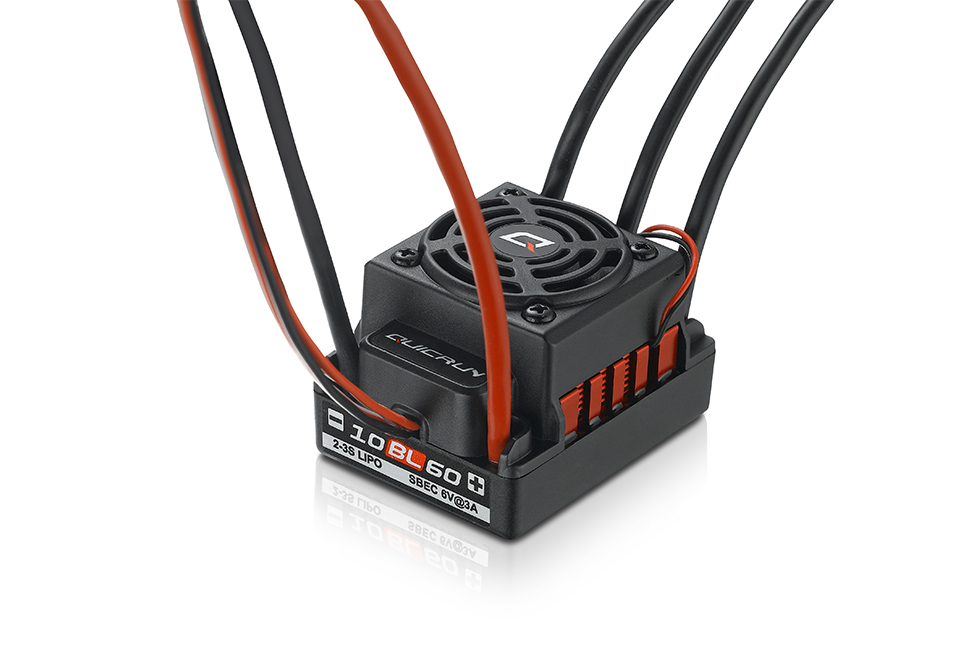

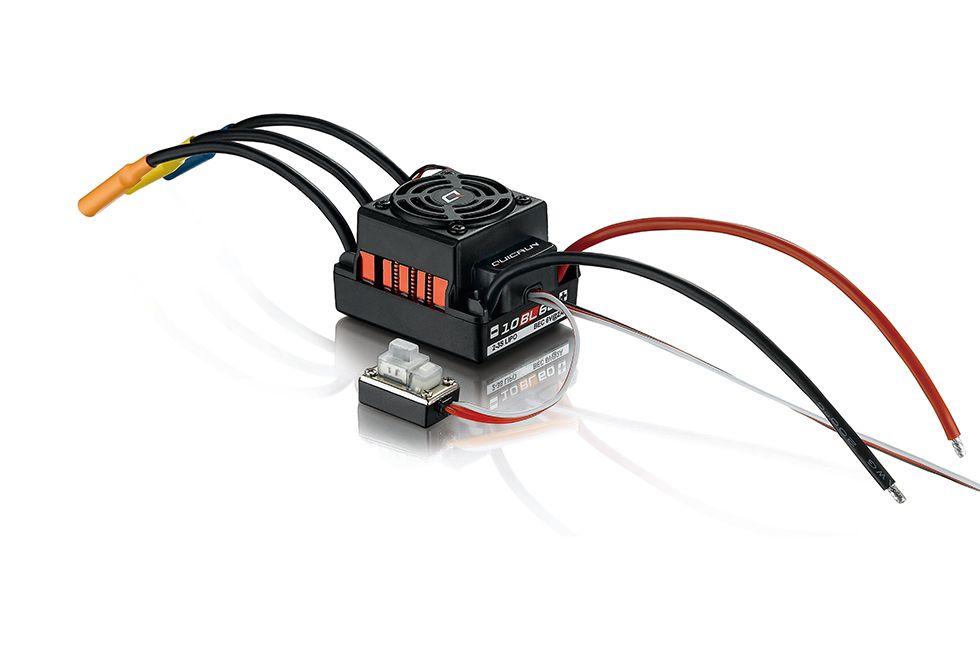

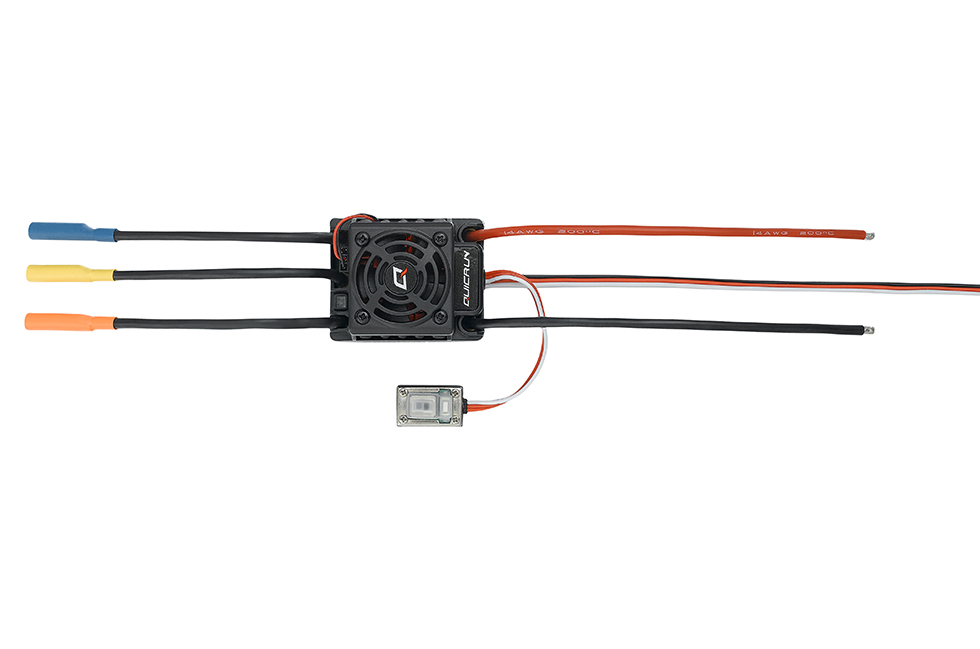

QuicRun WP 10BL60



Easy Operation

This ESC is specially designed for new beginners and intermediate modelers;
it not only carries forward the outstanding quality of HOBBYWING products
but simplifies the operation.

Easy Operation

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QUICRUN WP-10BL60
to be used in all weather conditions without any issue of damage
caused to the ESC from water or dust.

Applicable to All
Weather Conditions

High Reliability & Durability

Reliable hardware combined with advanced software technology
allows the QUICRUN 10BL60 to not only provide high power output but
also overload protection of the ESC circuit.

High Reliability
& Durability

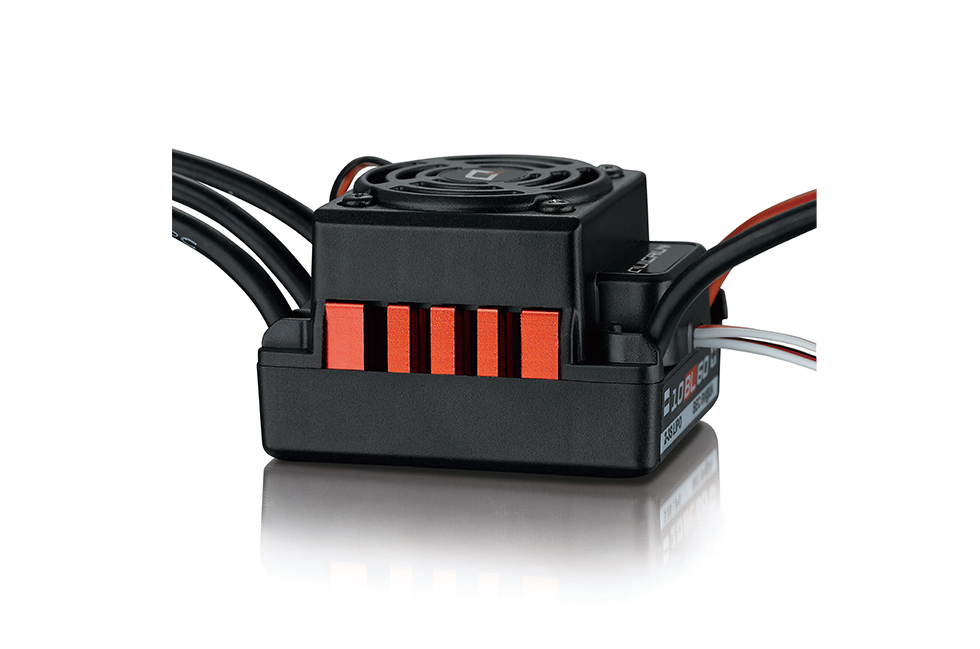

Efficient Cooling System

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN WP-10BL60,
which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum
heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep
your ESC as cool as possible.

Efficient Cooling System

Built-in BEC

The built-in switch mode BEC with a maximum output of 6Amp and voltage
of 6V make this ESC compatible with various servos.

Built-in BEC

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Single-button Programming
& Factory Reset

Wide Applicability

This ESC is applicable to all-weather sport of 1/10th short course trucks,
buggies, trucks, and monster trucks.

Wide Applicability

Programmable Items

Installation & Connection

This brushless system is powerful and dangerous, for the safety of your own and those people around you, please turn on the ESC while keeping all the wheels in the air.

Packaging

Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Fan Size

Voltage Range

Powered by
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

KV Rating/T Count
Product Name QuicRun WP 10BL60
Product Number 30107100
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/10th

BL

SL

WP
Specifications Cont./Peak Current

Input

BEC Output		 60A/360A

2-3S LiPo/6-9 Cells NiMH

Switch Mode:6V/3A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors		 Red-14AWG-150mm*1/Black-14AWG-150mm*1

Black-14AWG-100mm*3

No

4.0 Gold Connector (Female)
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port		 Supported

Supported

Not Supported

Not Supported

Not Supported

FAN/Program Port
Fan Size

Voltage Range

Powered by		 30.0x30.0x10.0mm

5-7.4V

Powered by BEC
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight		 48.5x38.0x32.0mm

90g
Applications Motors

Vehicles

KV Rating/T Count		 SL BL Motors/SD BL Motors(only in SL mode)

1/10th Touring Cars/Buggies/Trucks/Monster Trucks

2S LiPo: 1/10th Touring Cars KV≤6000, 1/10th Buggies KV≤4000

3S LiPo: 1/10th Touring Cars KV≤4000, 1/10thBuggies KV≤3000

(36XX Series of Motors)
