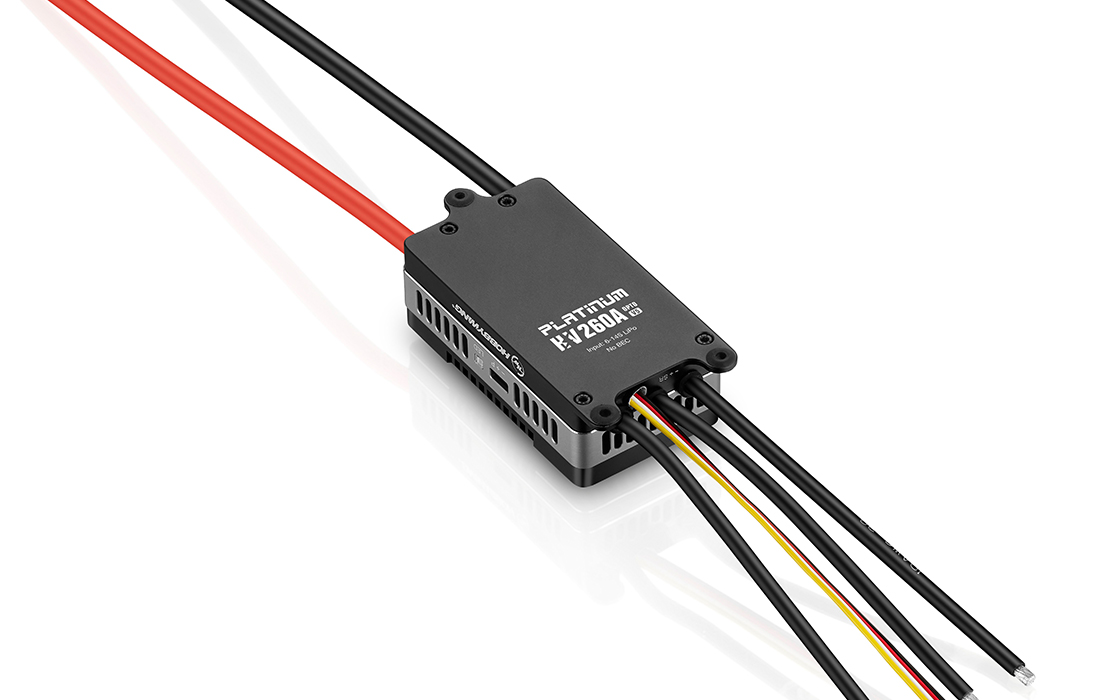

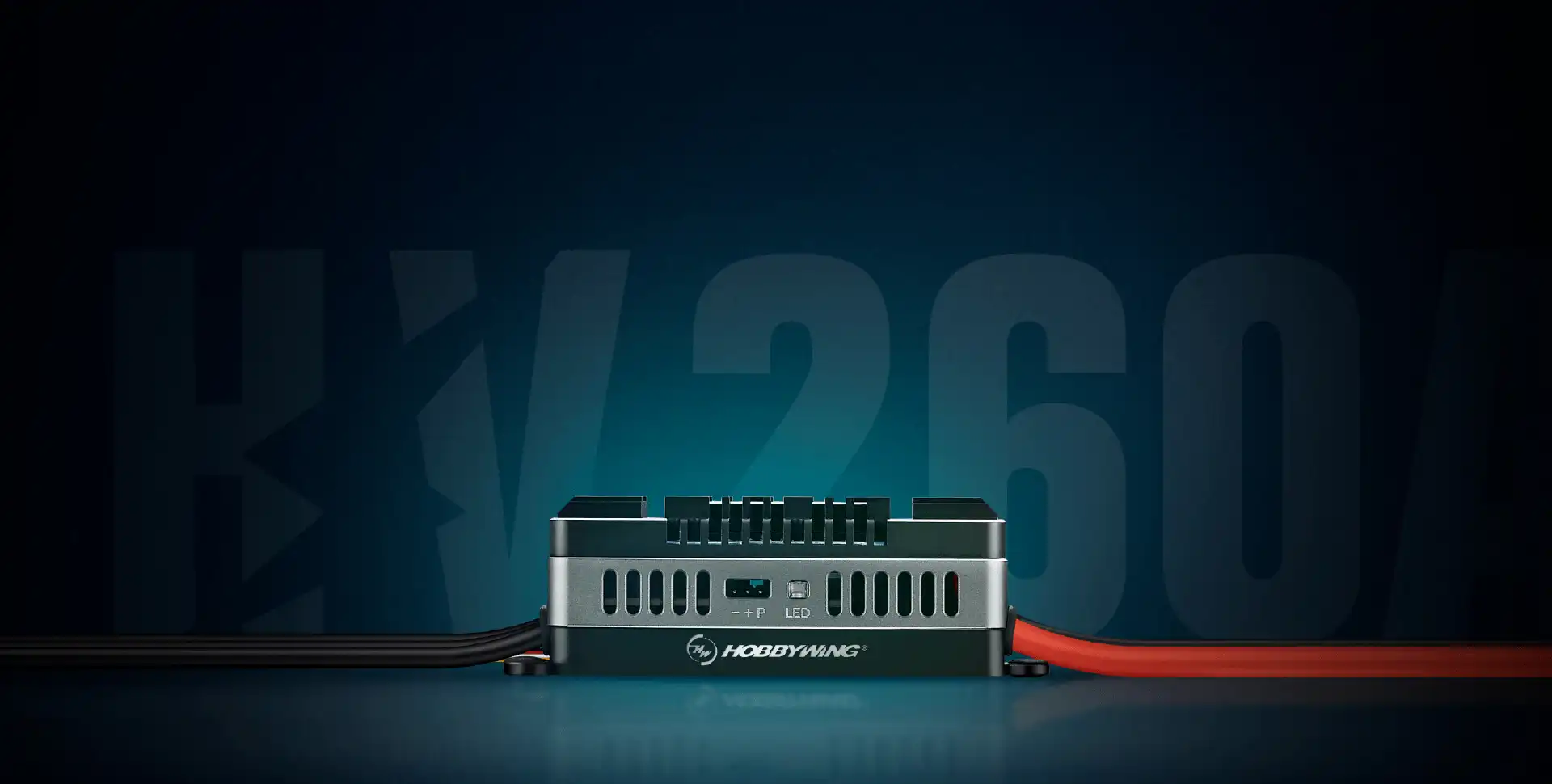

Platinum HV 260A V5
New double-sided hollow design,
significantly improved
heat dissipation

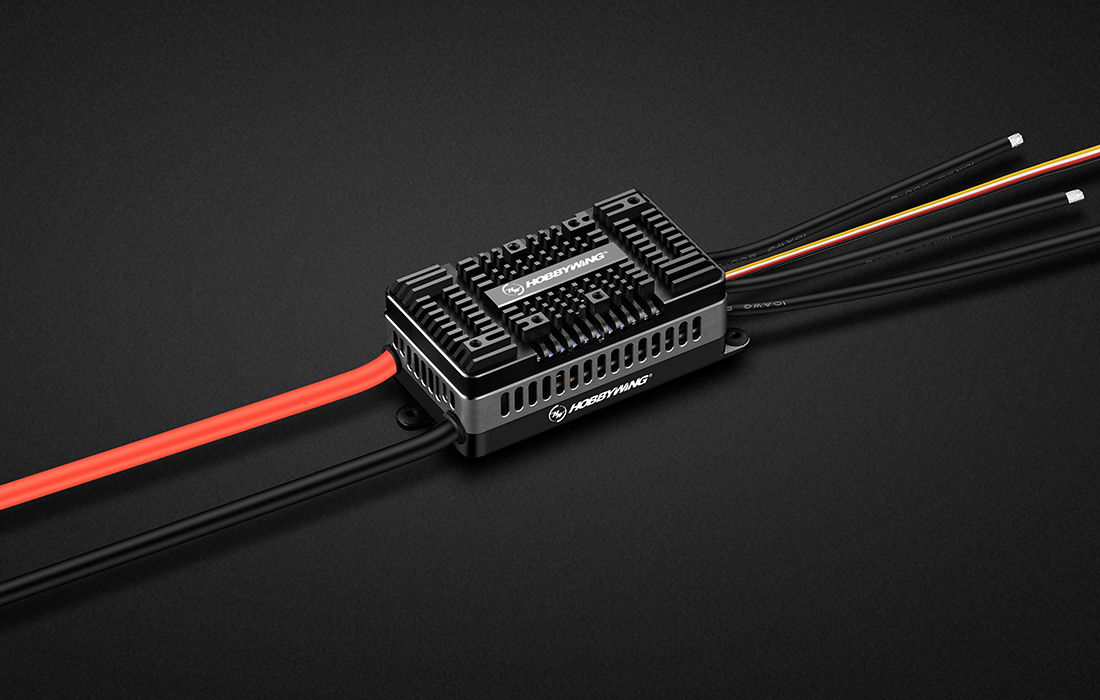

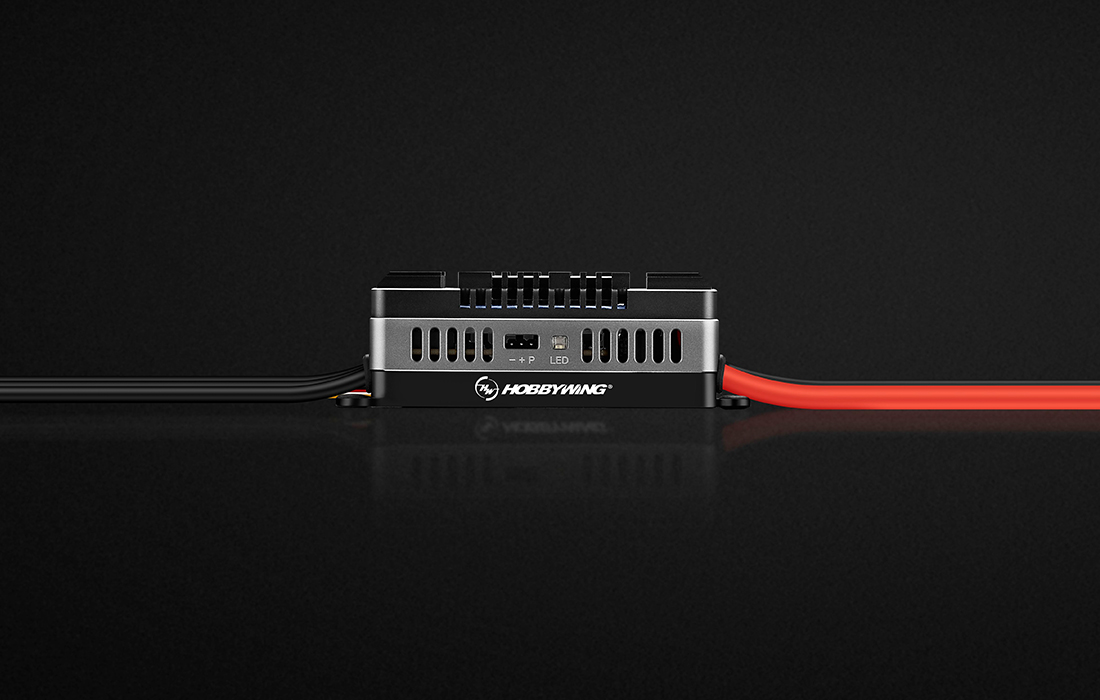

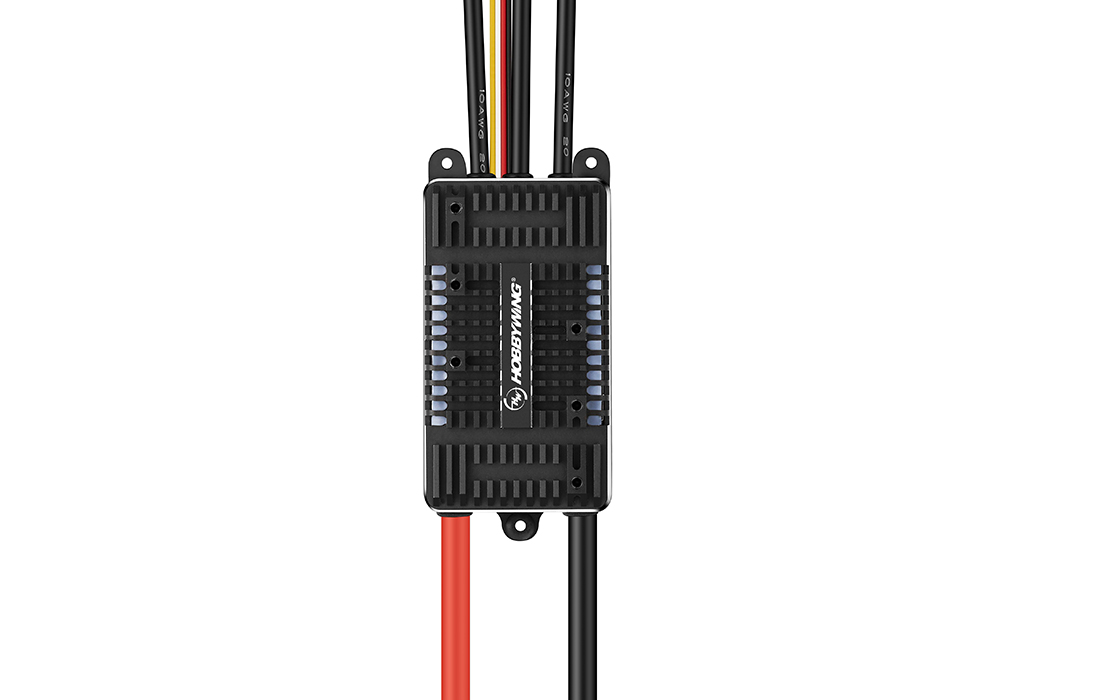

The ESC is redesigned
with a double-sided hollow heat dissipation
structure as well as an addition side "window" design.
The air is able to quickly pass through
the inside of the ESC and take away the
heat generated by the internal circuit board.
This innovative air duct design is able to generate
airflow on the entire ESC from the cooling fan.
Overall, significantly improving
the capability of heat dissipation;

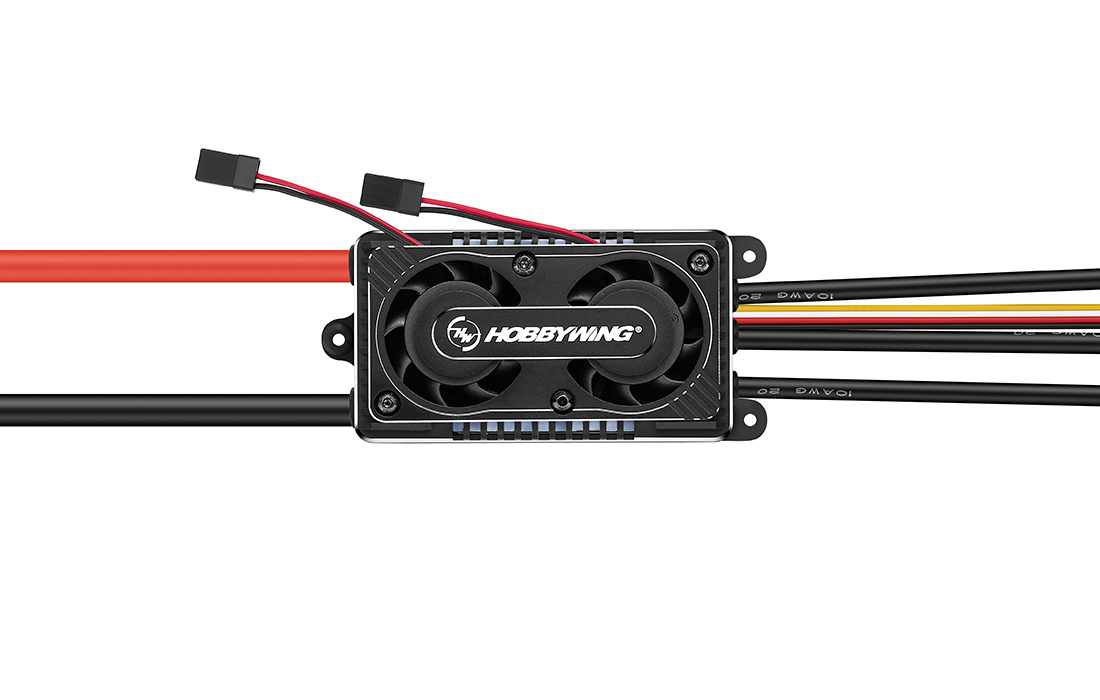

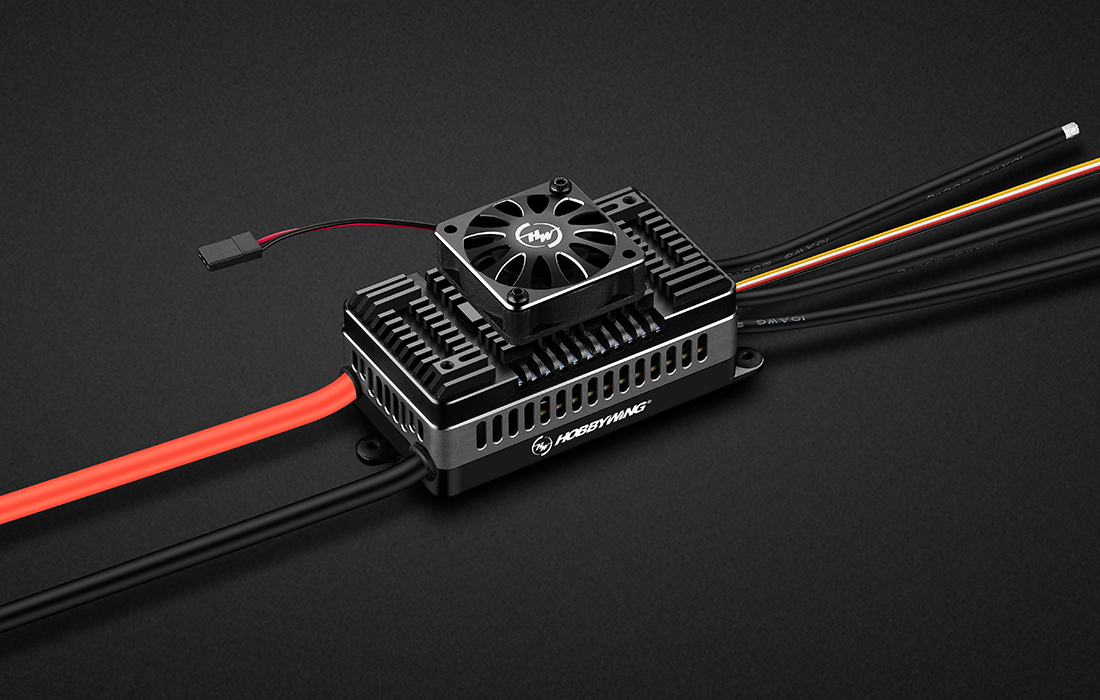

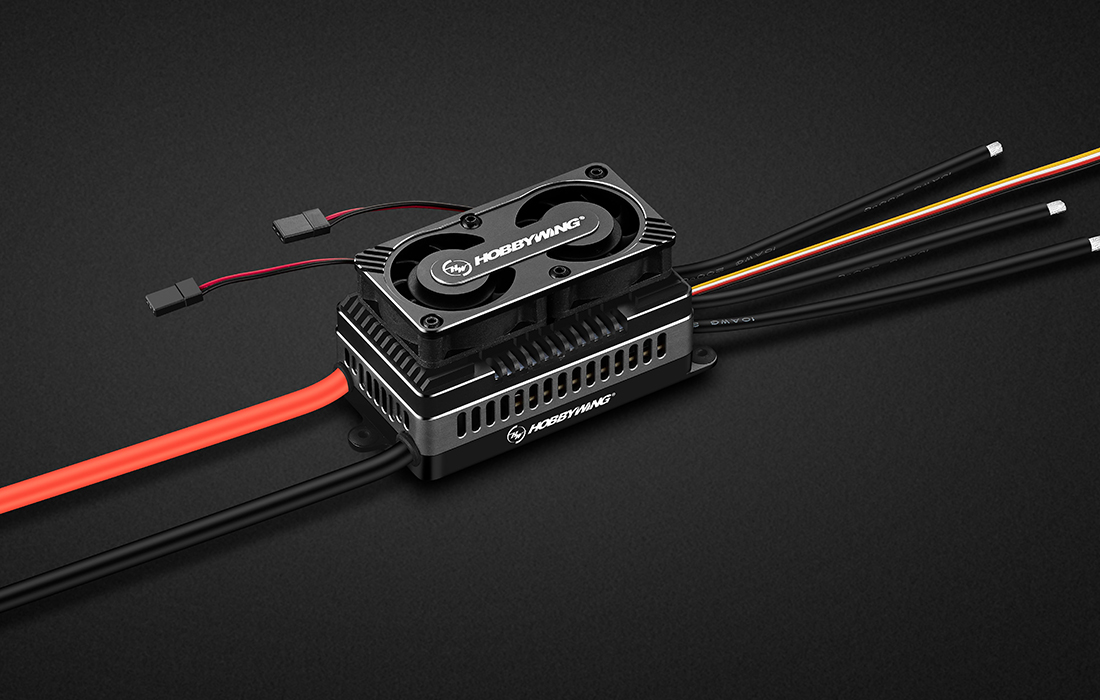

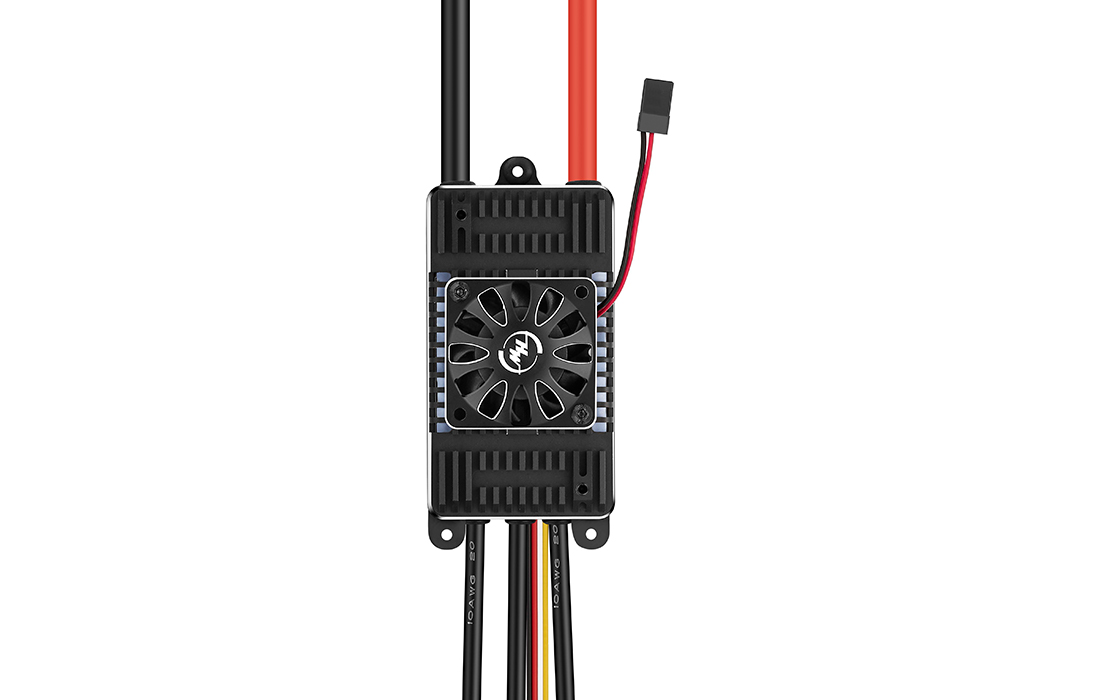

The switchable no/single/double fan installation design
allows users to switch between extreme weight
and extreme heat dissipation.
Note:The double-sided hollow heat dissipation structure is patent pending.
Constant speed performance upgrade,
ultimate flight experience
  • The32-bit processor
    combined with the
    RPM accuracy algorithm
    further maximizes the
    RPM accuracy to
    enhance overall performance.
  • Compared with the previous ESC (Platinum 200A),
    The RPM accuracy algorithm makes the ESC
    more powerful and more consistent.
    The adjustable constant speed sensitivity
    allows every pilot to easily find a setting
    that suits them personally!
Built-in 12V Switch BEC,
stronger output capability
  • instantaneous high
    current with a built-in 12V
    programmable BEC
  • The additional buffers enhances the
    output capability from 8.4V to 12V
    (5-12V adjustable)
  • The high-power BEC has added an anti-reverse circuit
    to use parallel with external 2S batteries at
    the same time to provide double protection.
Support multiples backhaul protocols,
strong adaptability.
Support
Mikado VBar System, Futaba S.BUS2, MSH Brain, iKON and other devices' data return protocols.
Users are able to adjust parameters on the remote-control device (VBar protocol support)
or check the working status of the ESC at any time.
Synchronous rectification technology,
multiple advantages
The ESC has synchronous rectification driving efficiency optimization technology
(DEO-Driving Efficiency Optimization, Active Freewheeling)
which brings multiple advantages
  • 1
    Faster throttle response,
    enhanced flight stability
    and flexibility
  • 2
    Higher driving efficiency
    and longer battery life-span
  • 3
    Lower ESC temperature rise,
    more reliable
Built-in anti-spark circuitry
The built-in anti-spark circuitry effectively eliminates
the electric spark generated during the connectors
are plugged to a battery, and prolongs
the life-span of the connectors.
Multiple protections,double security
It has multiple protection functions,
to effectively prolonging the lifespan of the ESC.
  • start-up
    protection
  • current
    protection
  • temperature
    protection
  • overload
    protection
  • throttle signal
    loss protection
  • capacitor temperature
    protection
input voltage
abnormality protection
Product Name
Product Number
Type Brushed/Brushless

High Voltage/Regular
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Firmware Firmware Upgrade
Telemetry Function



Size & Weight Size

Weight
Application scope
Product Name Platinum 260A HV SBEC V5 Platinum 260A HV OPTO V5
Product Number 30203100 30203101
Type Brushed/Brushless

High Voltage/Regular
BL

High Voltage
BL

High Voltage
Specifications Cont./Peak Current

Input Voltage

BEC Output
260A / 400A

6-14S LiPo

Switch Mode:5-12V/10A
260A / 400A

6-14S LiPo

No
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connecotors
1 x black and 1x red 8AWG silicone wires

3 x black 10AWG silicone wires

No

No
1 x black and 1x red 8AWG silicone wires

3 x black 10AWG silicone wires

No

No
ESC Programing via Transmitter

LED Program Card

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Not Supported

Not Supported

Not Supported

Supported

Supported

Separate Program Port
Not Supported

Not Supported

Not Supported

Supported

Supported

Separate Program Port
Firmware Firmware Upgrade Supported Supported
Telemetry Function



Mikado VBar;Futaba S.Bus2;

MSH Brain; iKon and etc.
Mikado VBar;Futaba S.Bus2;

MSH Brain; iKon and etc.
Size & Weight Size

Weight
89 x 50 x 34mm

297g (With wires)
89 x 50 x 34mm

287g (With wires)
Application scope 700-800 class electric helicopter

(main rotor length 690-880mm),or fixed-wing
700-800 class electric helicopter

(main rotor length 690-880mm),or fixed-wing
