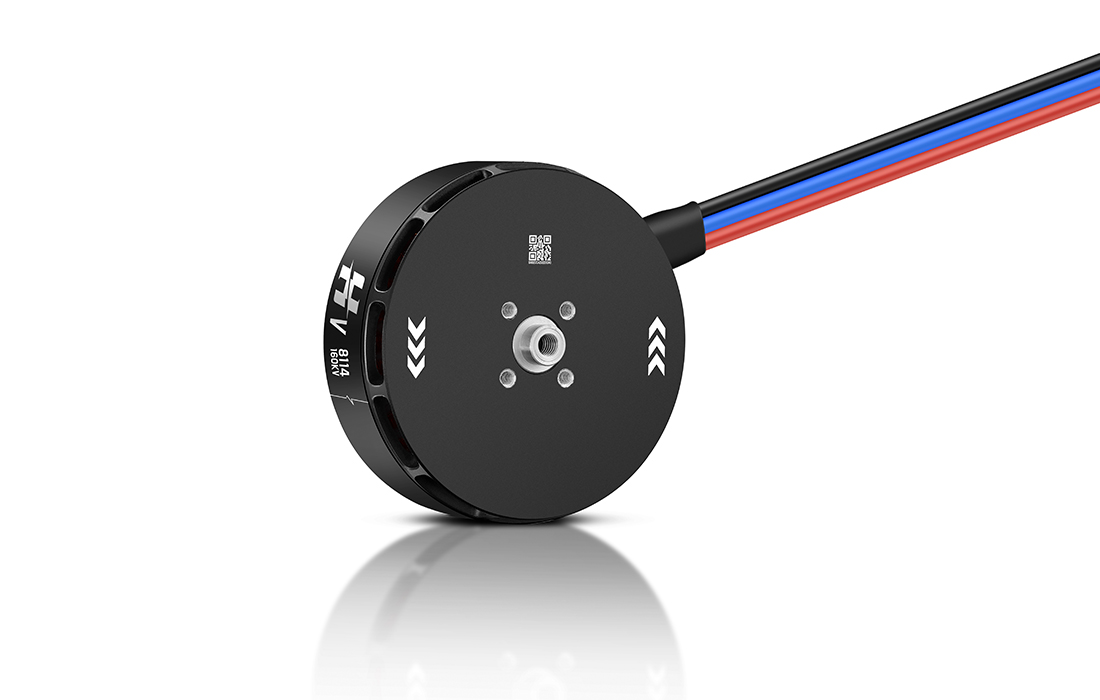

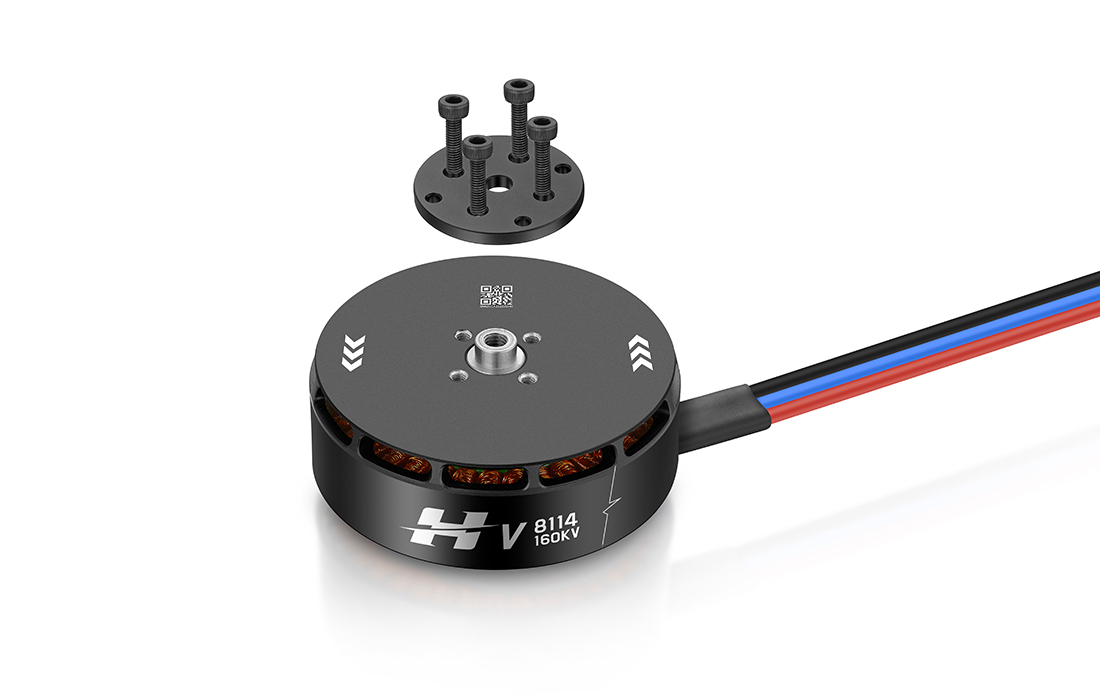

V8114 160KV & 8120 160KV
A one-stop power solution based on a high-performance vertical take-off and landing
fixed-wing platform, reliable and stable, specially designed for VTOL drone applications.
Load performance parameters
Large Thrust-to-weight Ratio, Responsive Under Any Conditions
The unique motor magnetic circuit design, coupled with the control
optimization of Hobbywing's self-developed ESC, can effectively
increase the torque, allowing the motor to respond with powerful
thrust on demand, easily meeting the requirements of aggressive
ascents and descents under high altitude and strong wind conditions.

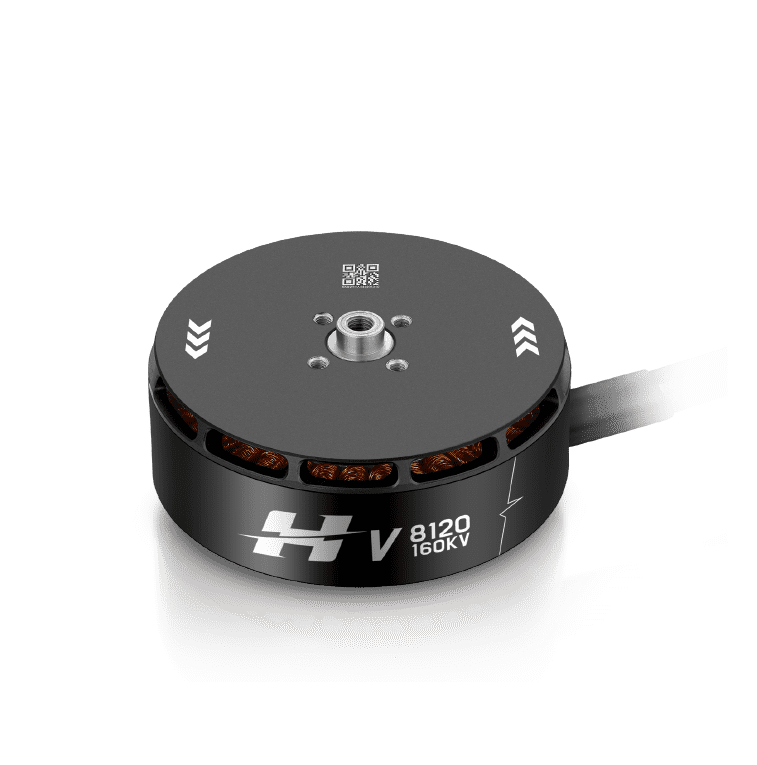

HV-8120-160kv

The maximum thrust can reach

HV-8114-160kv

The maximum thrust can reach

Centrifugal Air Cooling,
Efficient Cooling
The rotor bracket is equipped with a high-efficiency centrifugal air-cooling system
and a large-area of heat sink built-in. It is able to continuously and efficiently
dissipate the internal heat with the motor rotating at high speed, making it fully
prepared for high-current and high-temperature operations.
Excellent Design,
Versatile and Reliable
The motor mounting base reserves the installation position for the
propeller positioning sensor.
The thread direction of the rotating shaft screw is opposite to the
direction of propeller rotation to ensure the assemblies reliability.
The rotating shaft locking mechanism adopts double protection,
for better safety and reliability.
Top Quality Materials, Substantial and
Well-made
Imported
High-precision Bearings
The custom
tile magnet
fitted with the aviation aluminum
alloy shell
Seamless steel motor bell
with nickel-electrophoresis
coating design
providing excellent magnetic conductivity and
corrosion resistance for the outer rotor casing
45UH-Sintered
NdFeB magnet
temperature resistant up to 150~180℃
Recommended
Combinations
  • Motor
    V8114 160KV
    Battery
    12S LiPo
  • Propeller
    GP29*9.5
    Thrust/Rotor
    6~8kg
  • ESC
    XRotor Pro-H80A-14S / XRotor Pro-H100A-14S
    Maximum Take-off Weight/Quadrotor
    24~32kg
  • Motor
    V8120 160KV
    Battery
    12S LiPo
  • Propeller
    GP32*10.5
    Thrust/Rotor
    10~12kg
  • ESC
    XRotor Pro-H130A-14S
    Maximum Take-off Weight/Quadrotor
    40~50kg
V8114 CAD
V8120 CAD
Model
V8114 160KV V8120 160KV
Specification
Motor Size Φ87.7mm*H42.7mm Φ87.7mm*H47.9mm
Stator Size Φ81mm Φ81mm
Protection level IPX5 IPX5
Slot& Pole 36S40P 36S40P
Dynamic balance ≤10mg ≤10mg
Bearing Water proof bearing Water proof bearing
Props mounting dimensions 4×M3@D32mm 4×M4@D23mm
Motor mounting dimensions 4×M4@D40mm 4×M4@D40mm
Specification
KV 160 160
Battery(LiPo) 12S 12S
No-load current 2.9A 4.1A
Maximum current 105.9A 170A
Weight（With wire） 482g 630g
Recommended combinations
Motor V8114 V8120
Propeller GP29*9.5 GP32*10.5
ESC XRotor Pro-H80A-14S XRotor Pro-H100A-14S XRotor Pro-H130A-14S
Battery 12S LiPo 12S LiPo
Thrust/rotor 6~8kg 10~12kg
Takeoff weight of quadrotor 24~32kg 40~50kg
V-8114-160KVLoad performance parameters
V-8114-160KV Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Temperature(℃)

46V (12S LiPo)

29*9.5"

32%

3068

6.5

300.7

2119

10.2

1.04

107℃

33%

3125

6.7

306.4

2138

10.2

1.06

36%

3536

7.7

353.2

2270

10.0

1.19

39%

4046

9.2

423.1

2424

9.6

1.36

42%

4626

11.2

515.6

2587

9.0

1.56

45%

5256

13.6

627.7

2753

8.4

1.77

48%

5916

16.4

755.3

2916

7.8

2.00

51%

6594

19.4

894.1

3073

7.4

2.23

54%

7281

22.6

1040.8

3225

7.0

2.46

57%

7969

25.9

1193.2

3370

6.7

2.70

60%

8658

29.4

1350.4

3509

6.4

2.93

63%

9346

32.9

1512.8

3643

6.2

3.17

66%

10035

36.6

1681.5

3771

6.0

3.40

69%

10731

40.4

1858.9

3894

5.8

3.64

72%

11436

44.5

2047.8

4014

5.6

3.88

75%

12157

48.9

2251.9

4131

5.4

4.13

78%

12901

53.8

2475.3

4245

5.2

4.39

81%

13673

59.2

2722.4

4356

5.0

4.66

84%

14479

65.2

2997.6

4466

4.8

4.95

87%

15324

71.8

3304.4

4574

4.6

5.25

90%

16209

79.2

3644.5

4682

4.4

5.57

100%

19284

105.9

4871.4

5078

4.0

6.61
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
V8120 160KV Load performance parameters
V8120 160KV Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N-m)

Temperature(℃)

46V (12S LiPo)

32*10.5"

32%

3750

7.3

334.7

1917

11.2

1.36

12.75kg-110℃

33%

3902

7.8

357.5

1953

10.9

1.42

36%

4784

10.6

487.5

2154

9.8

1.74

39%

5637

13.3

614.4

2334

9.2

2.05

42%

6486

16.2

747.6

2502

8.7

2.36

45%

7350

19.4

894.0

2662

8.2

2.68

48%

8245

23.0

1059.1

2816

7.8

3.01

51%

9177

27.1

1246.9

2966

7.4

3.36

54%

10150

31.7

1459.6

3113

7.0

3.72

57%

11165

36.9

1697.6

3256

6.6

4.09

60%

12216

42.6

1959.6

3396

6.2

4.48

63%

13296

48.7

2242.7

3532

5.9

4.87

66%

14396

55.3

2544.3

3664

5.7

5.28

69%

15504

62.2

2862.8

3792

5.4

5.69

72%

16608

69.5

3199.5

3915

5.2

6.10

75%

17693

77.3

3558.6

4033

5.0

6.51

78%

18746

85.7

3947.6

4145

4.7

6.91

81%

19754

95.0

4374.9

4248

4.5

7.29

84%

20704

105.3

4847.6

4343

4.3

7.66

87%

21586

116.6

5368.2

4427

4.0

8.00

90%

22391

128.9

5932.6

4499

3.8

8.30

100%

24391

170.5

7848.9

4657

3.1

9.06
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
