EzRun MAX8 G2
Aggressive launch
High speed on the straight line
Flying slopes
video
Sensored mode,
Flexible、Retract freely

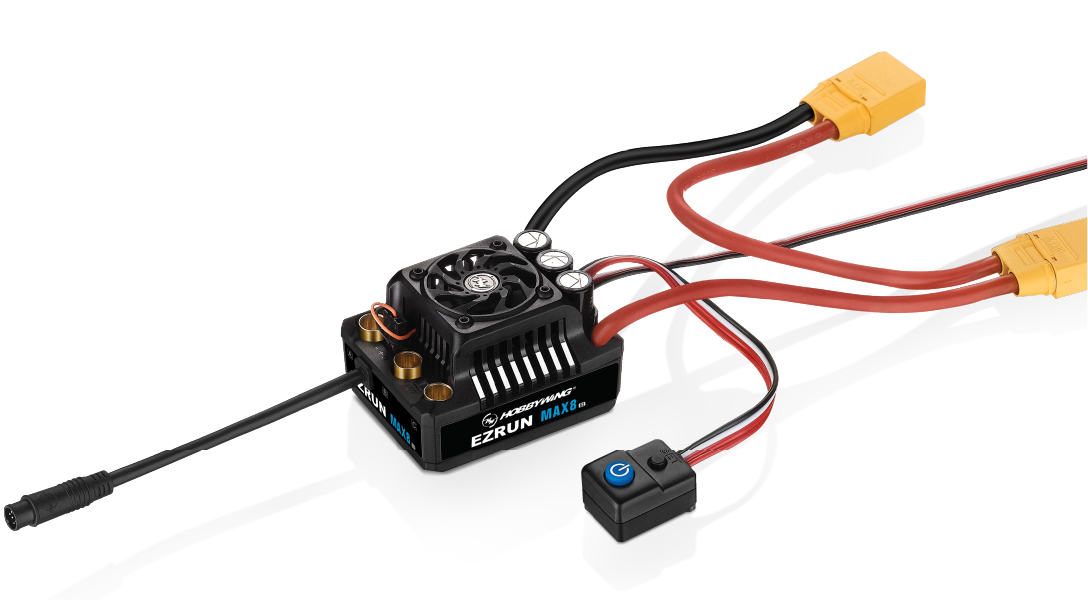

The Max8 G2 ESC is the most sought-after ESC on the market. It’s
dynamic and dominant specifications meets the needs of power-hungry
users. It has a strong output power with excellent linearity at low speed
and is operating on full-sensored mode.
Sensored Mode
Powerful Accleration &
Abundant Output
Sensored mode,Flexible、Retract freely
The Max8 G2 ESC is the most sought-after ESC on the market. It’s dynamic and dominant specifications meets the needs of power-hungry users. It has a strong output power with excellent linearity at low speed and is operating on full-sensored mode.
Aggressive launch
High speed on the straight line
Flying slopes
Sensored Mode
Powerful Accleration &
Abundant Output
SMART technology effectively
reduces overall temperature
SMART technology, developed by Hobbywing, creates higher
drive efficiency and a lower operating temperature.
The temperature is now 25°C cooler compared to the previous generation
of the MAX8.This increases the overall reliability of the ESC.
SMART technology effectively reduces overall temperature
SMART technology, developed by Hobbywing, creates higher drive efficiency and a lower operating temperature. The temperature is now 25°C cooler compared to the previous generation of the MAX8.This increases the overall reliability of the ESC.
EzRun Max8
VS
The EzRun Max8 G2
can be reduced
by approximately
25°C
Highest
Temperature

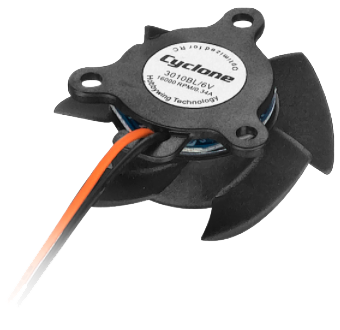

Efficient cooling system
The frameless fan design is a patented technology. The rapid transmission of internal heat to the integrated housing radiator are made up of high airflow from the side of the fan and a copper thermal conduction sink on the internal power plate. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition.
Frameless fan design
1/8th Brushless System Turbo Technology
The current brushless system is best paired with the EzRun 4268/4278 SD G2 to achieve the maximum performance. The turbo parameter is adjustable from up to 32 degrees and the speed is significantly increased by up to 25%.
The speed is significantly
increased by up to
25%
Capacitor Thermal
Protection
Capacitor thermal protection implemented
by the ESC will effectively prevent
capacitors from exploding
and causing irreversible damage to
the ESC due to overload.
Real-time data & data logging
function, easy to get the power
running status.
After connecting the OTA module, turn on real-time
data recording function to access the operating status.
Real-time data & data logging function, easy to get the power running status.
After connecting the OTA module, turn on real-time data recording function to access the operating status.
Bluetooth transmission distance is
most effective within the 5m radius.
A perfect combination EzRun 4268/4278 G2 Motor
Perfect compatibility when used with EzRzun 4268/4278 G2 motors.
Ensures motor is protected against overheating to avoid damage.
A perfect combination EzRun 4268/4278 G2 Motor
Perfect compatibility when used with EzRzun 4268/4278 G2 motors. Ensures motor is protected against overheating to avoid damage.
MAX8 G2
4268 SD G2
A perfect combination
aeglos-p1
Applicable to All Weather Track Conditions
The IP-67 system guarantees excellent waterproofing and dustproofing protection.
The whole power system is able to drive on a variety of surfaces including muddy,
sandy, icy, snowy and water without damaging the power unit.
video
Applicable to All Weather
Track Conditions
Excellent waterproof and
dustproof performance
Applicable to All Weather Track Conditions
The IP-67 system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.
Applicable to All Weather
Track Conditions
Excellent waterproof and
dustproof performance
Super Built-in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 15A and the output voltages are switchable between 6V, 7.4V and 8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
The output voltages are
switchable between
  • 6v
  • 7.4v
  • 8.4v
Super Internal BEC
Built-in Big Capacitor
The ESC has three built-in 680uF capacitors, which increases the
performance by 74% (870uF) compared to the MAX8 ESC. The
ultra-large capacitors built onto the ESC also ensures users do not
need to install external capacitors on for most vehicles.
Built-in Big Capacitor
Built-in Big Capacitor
The ESC has three built-in 680uF capacitors, which increases the performance by 74% (870uF) compared to the MAX8 ESC. The ultra-large capacitors built onto the ESC also ensures users do not need to install external capacitors on for most vehicles.
Built-in Big Capacitor
EzRun Max8 G2
enhanced by
74%
VS
EzRun Max8
Capacitor Volume
Three built-in 680uf capacitors

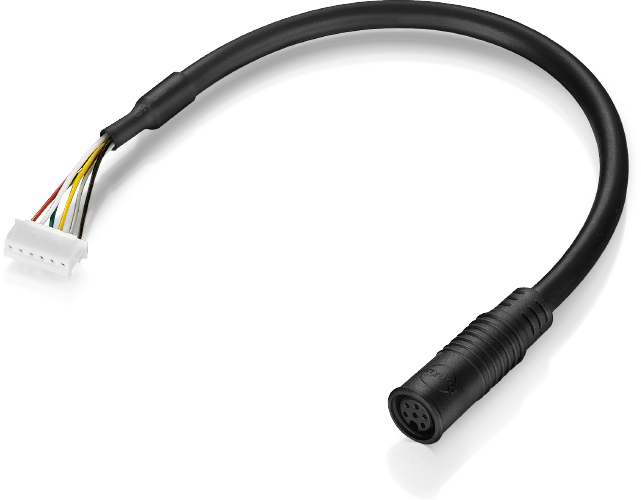

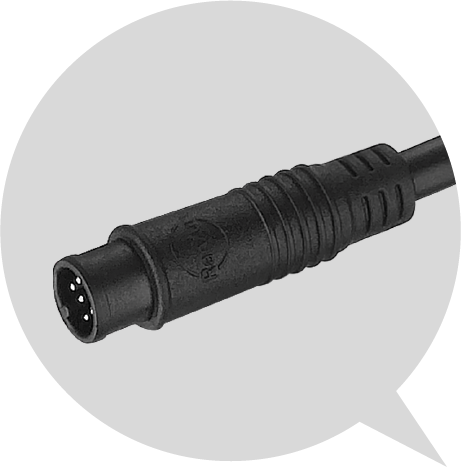

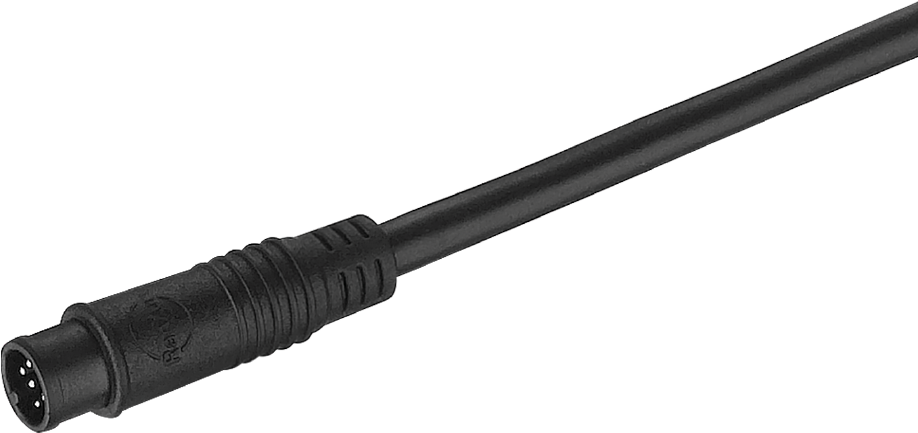

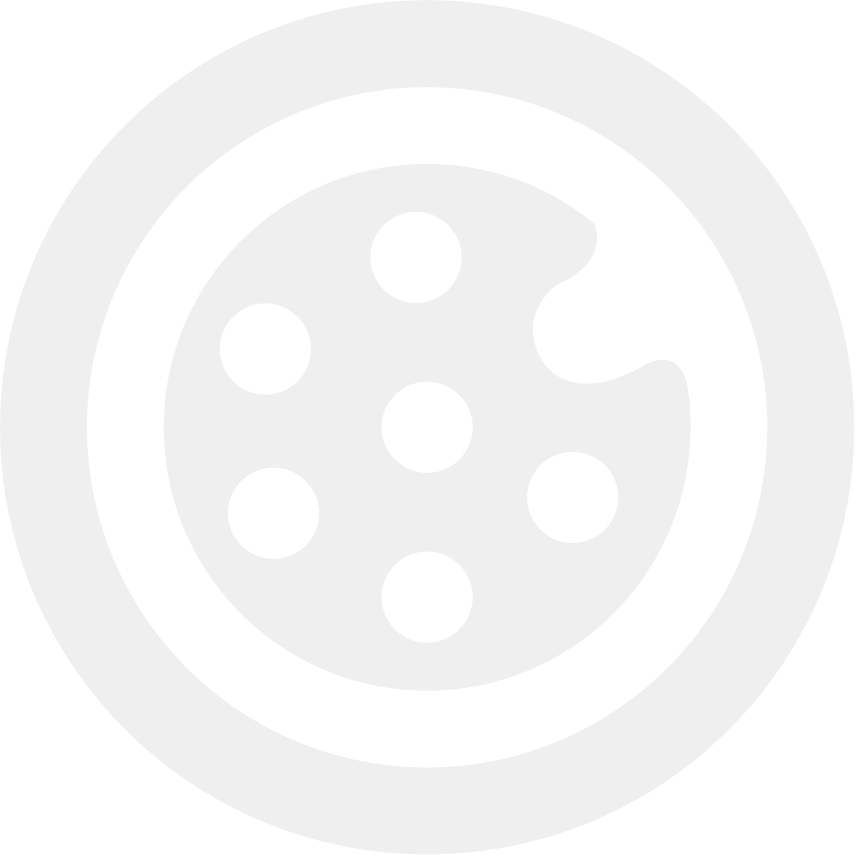

New sensored cable interface
The Max8 G2 ESC is equipped with a new type of sensored cable interface. It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67).
New sensored cable interface
Note:
This ESC also supports wires with the
standard interfaces on the market.
New sensored cable interface
New sensored cable interface
The Max8 G2 ESC is equipped with a new type of sensored cable interface. It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67).
Note:
This ESC also supports wires with the
standard interfaces on the market.
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Fan Size

Voltage Range

Powered by
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles

KV Rating/T Count
Product Name EzRun Max8 G2
Product Number 30103203
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/8th

BL

SD

Yes
Specifications Cont./Peak Current

Input Voltage

BEC Output		 160A/1050A

3-6S Lipo

6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors		 Red-10AWG-150mm*1/Black-10AWG-150mm*1/Red-10AWG-200mm*1



XT90

6.5 Bullet Connectors (Female)
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port		 Not Supported

Supported

Supported (G2)

Supported

PRG/Fan Port
Fan Size

Voltage Range

Powered by		 30x30x10mm

6-8.4V

BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)		 Supported

Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight

 60mm*48mm*40.5mm

192g
Applications Motors

Vehicles

KV Rating/T Count		 Sensored brushless motors / Sensorless brushless motors

1/8thTruck, Monster Truck

With 4S Lipo: KV≤3000;

With 6S Lipo: KV≤2400 4278 size motor
Support

Manuals & Documents

Manuals

Software Download

FAQ

Multifunction LCD Program Box

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

+
OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
