Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature℃ |
|---|---|---|---|---|---|---|---|---|---|
|
69V (18S LiPo) |
63*24" |
33% |
13281 |
17.8 |
1226.2 |
1008 |
10.8 |
8.76 |
/ |
|
35% |
14471 |
19.7 |
1358.7 |
1051 |
10.7 |
9.51 |
|||
|
37% |
15808 |
21.9 |
1513.4 |
1096 |
10.4 |
10.36 |
|||
|
39% |
17259 |
24.5 |
1688.7 |
1144 |
10.2 |
11.28 |
|||
|
42% |
19595 |
28.8 |
1986.3 |
1217 |
9.9 |
12.77 |
|||
|
45% |
22065 |
33.6 |
2321.1 |
1289 |
9.5 |
14.33 |
|||
|
48% |
24627 |
38.9 |
2687.7 |
1360 |
9.2 |
15.95 |
|||
|
51% |
27257 |
44.7 |
3086.1 |
1429 |
8.8 |
17.62 |
|||
|
54% |
29949 |
50.9 |
3515.5 |
1497 |
8.5 |
19.32 |
|||
|
57% |
32707 |
57.6 |
3979.5 |
1564 |
8.2 |
21.08 |
|||
|
60% |
35544 |
64.9 |
4482.7 |
1630 |
7.9 |
22.89 |
|||
|
63% |
38474 |
72.9 |
5030.3 |
1696 |
7.6 |
24.77 |
|||
|
66% |
41511 |
81.5 |
5630.3 |
1763 |
7.4 |
26.72 |
|||
|
69% |
44664 |
91.1 |
6289.8 |
1831 |
7.1 |
28.76 |
|||
|
72% |
47933 |
101.6 |
7012.7 |
1901 |
6.8 |
30.89 |
|||
|
75% |
51305 |
113.0 |
7802.0 |
1970 |
6.6 |
33.08 |
|||
|
78% |
54748 |
125.3 |
8652.7 |
2040 |
6.3 |
35.32 |
|||
|
81% |
58209 |
138.3 |
9550.3 |
2108 |
6.1 |
37.55 |
|||
|
84% |
61611 |
151.6 |
10470.1 |
2173 |
5.9 |
39.71 |
|||
|
87% |
64844 |
164.7 |
11372.5 |
2231 |
5.7 |
41.71 |
|||
|
90% |
67766 |
176.8 |
12205.3 |
2281 |
5.6 |
43.46 |
|||
|
100% |
72647 |
197.1 |
13608.4 |
2358 |
5.3 |
46.19 |
-
RC Systems
RC Cars Power SystemRC Plane Power SystemRC Boat Power SystemAccessories
-
Drone Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
-
-
Personal Travel Systems
Electric SkateboardElectric ScooterPersonal Travel Accessories
- Service and Support

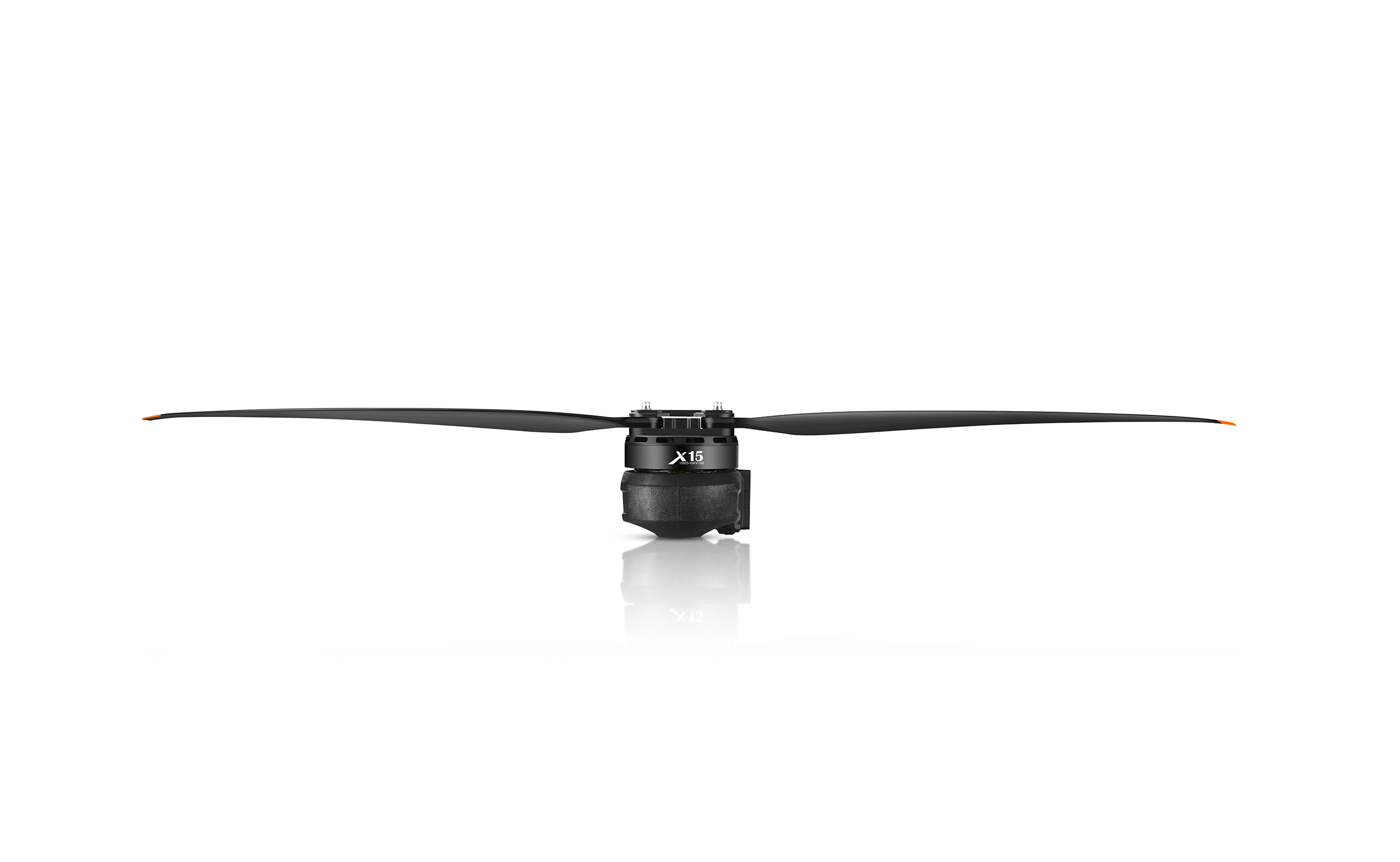

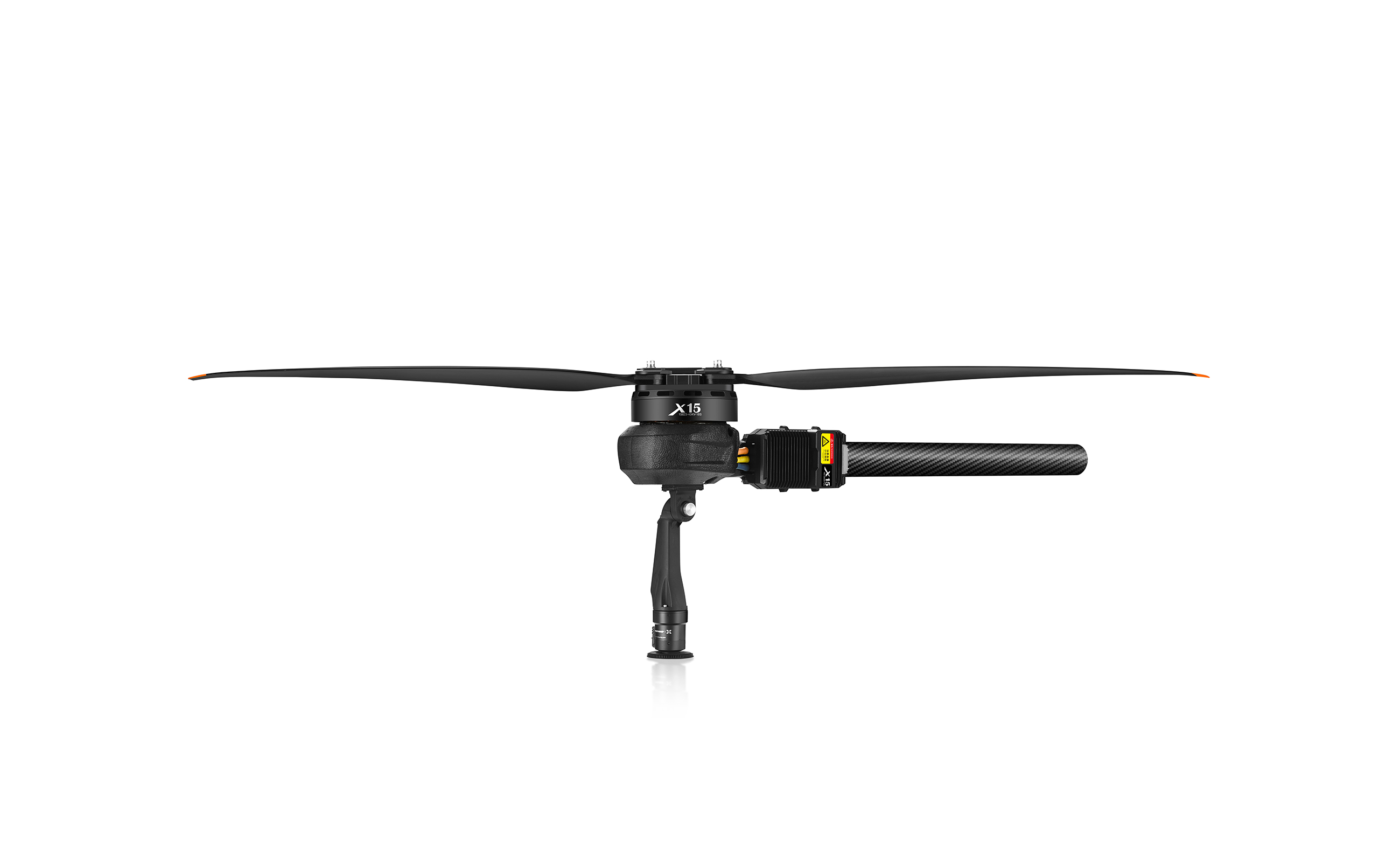

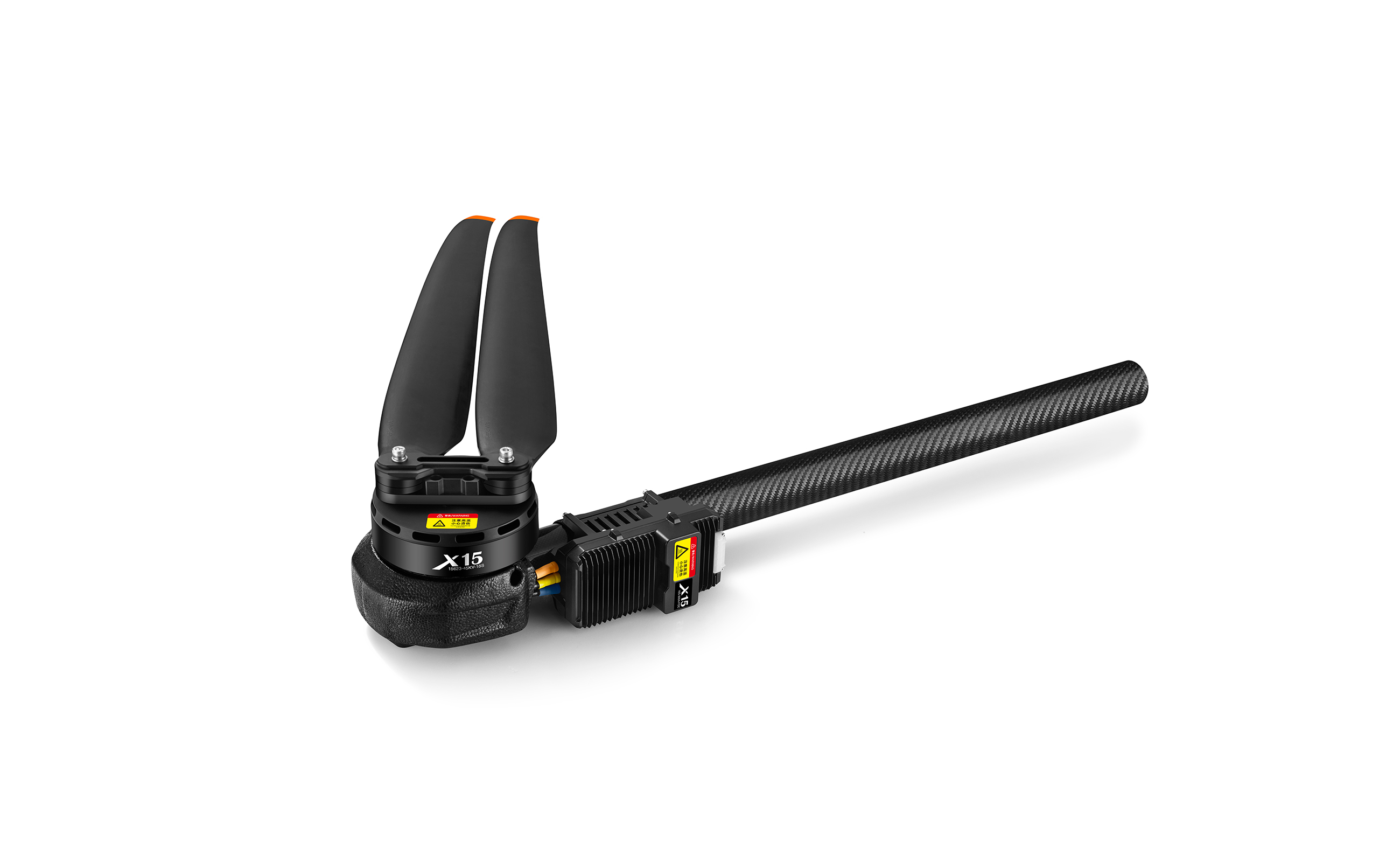

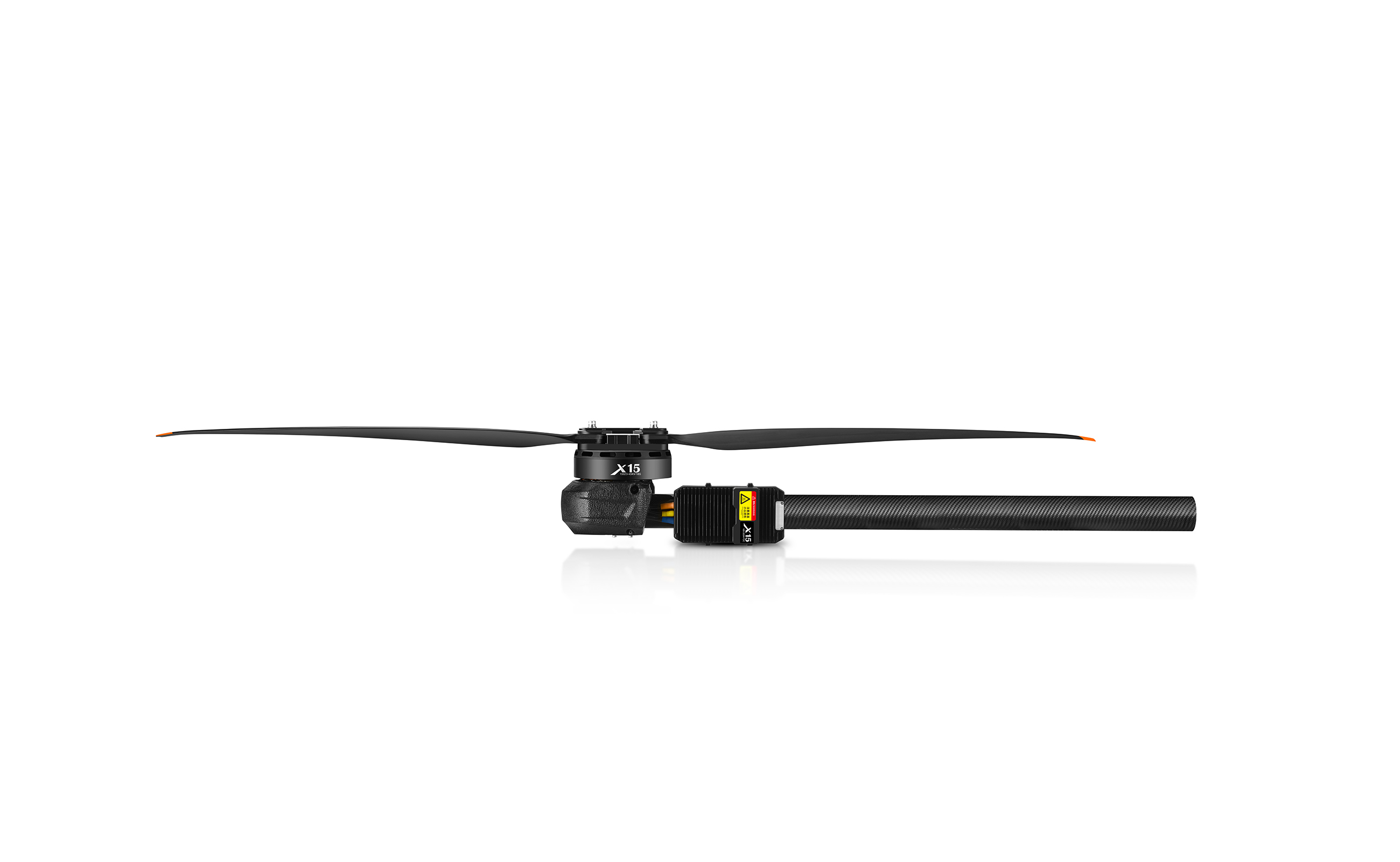

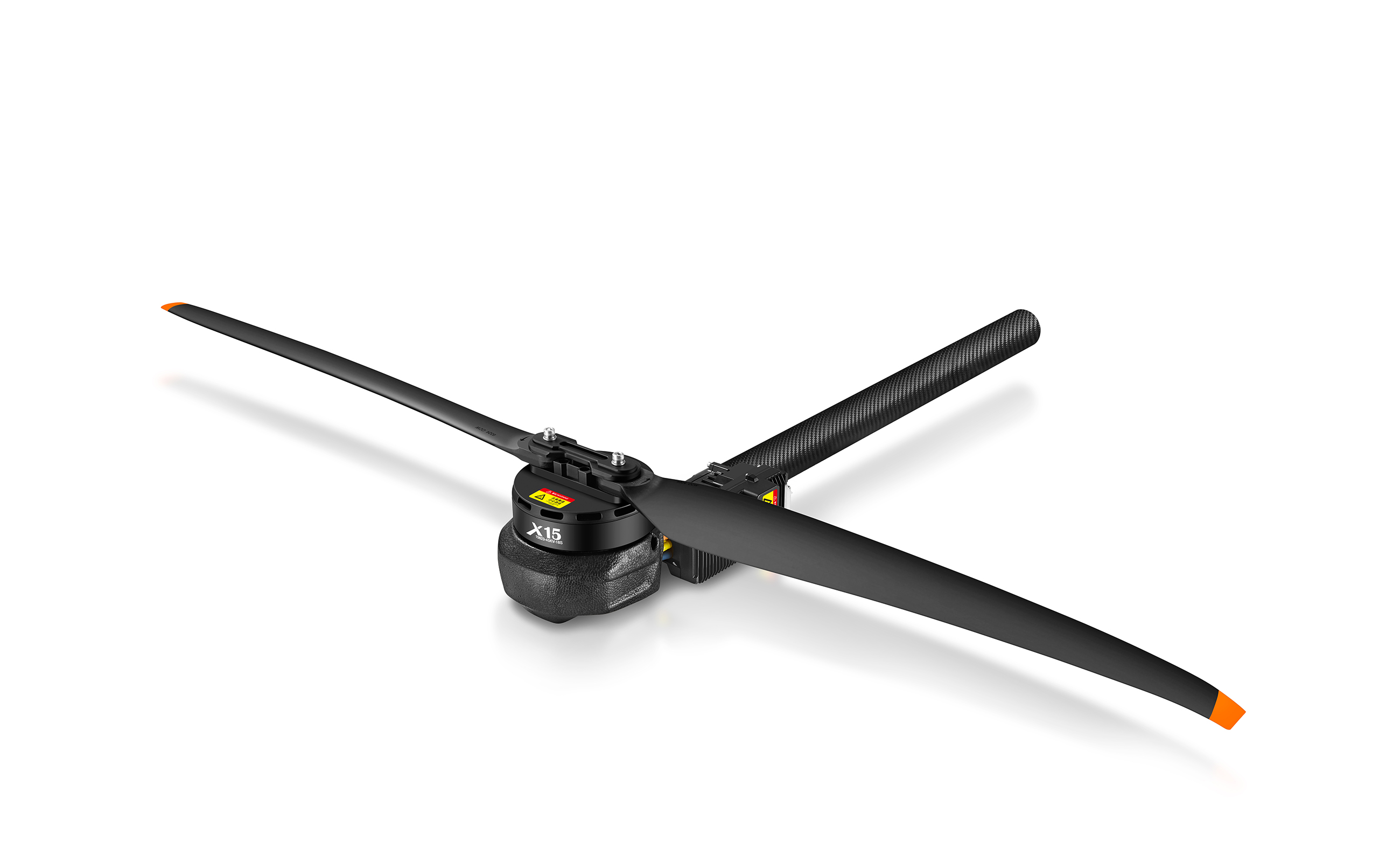

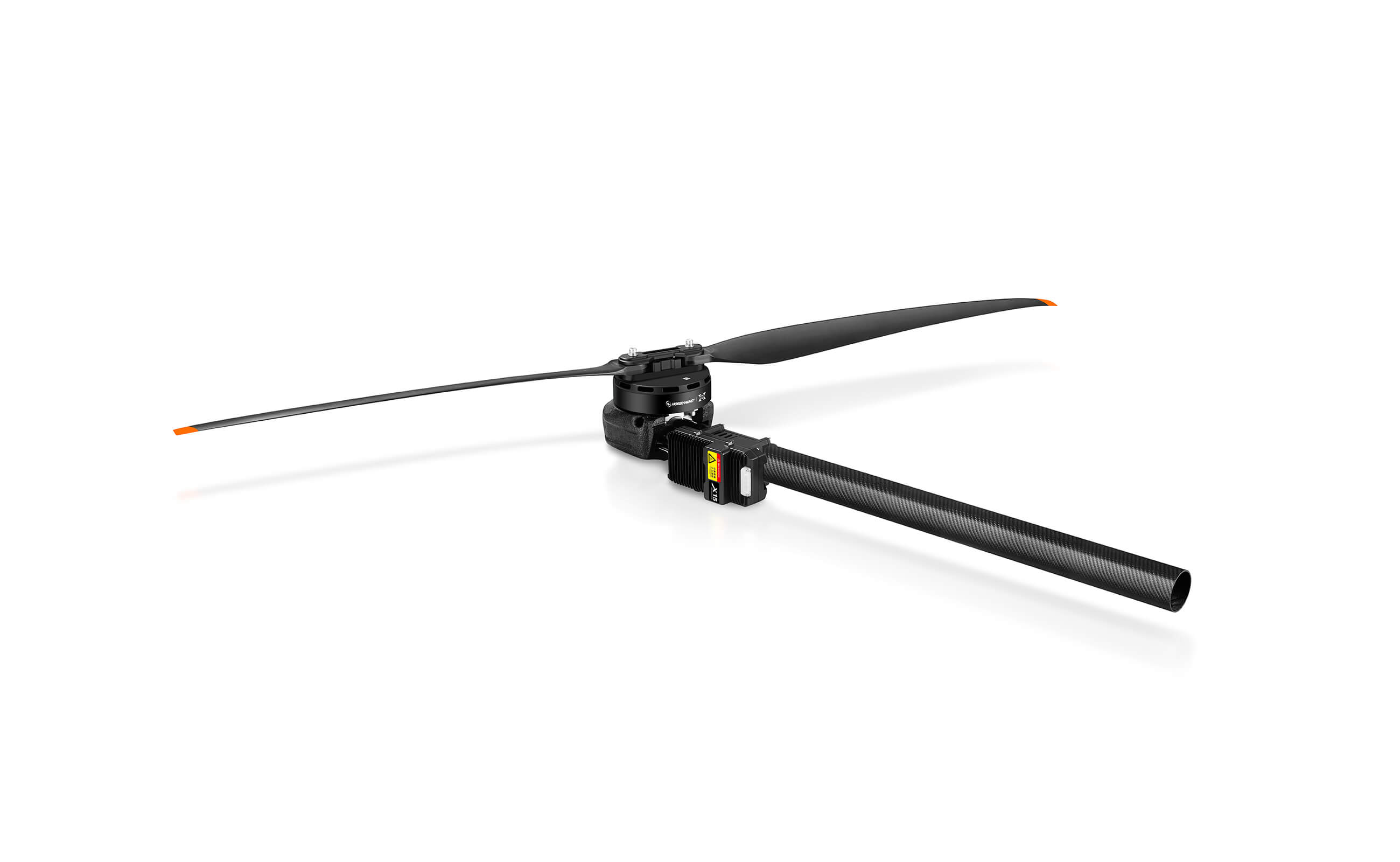

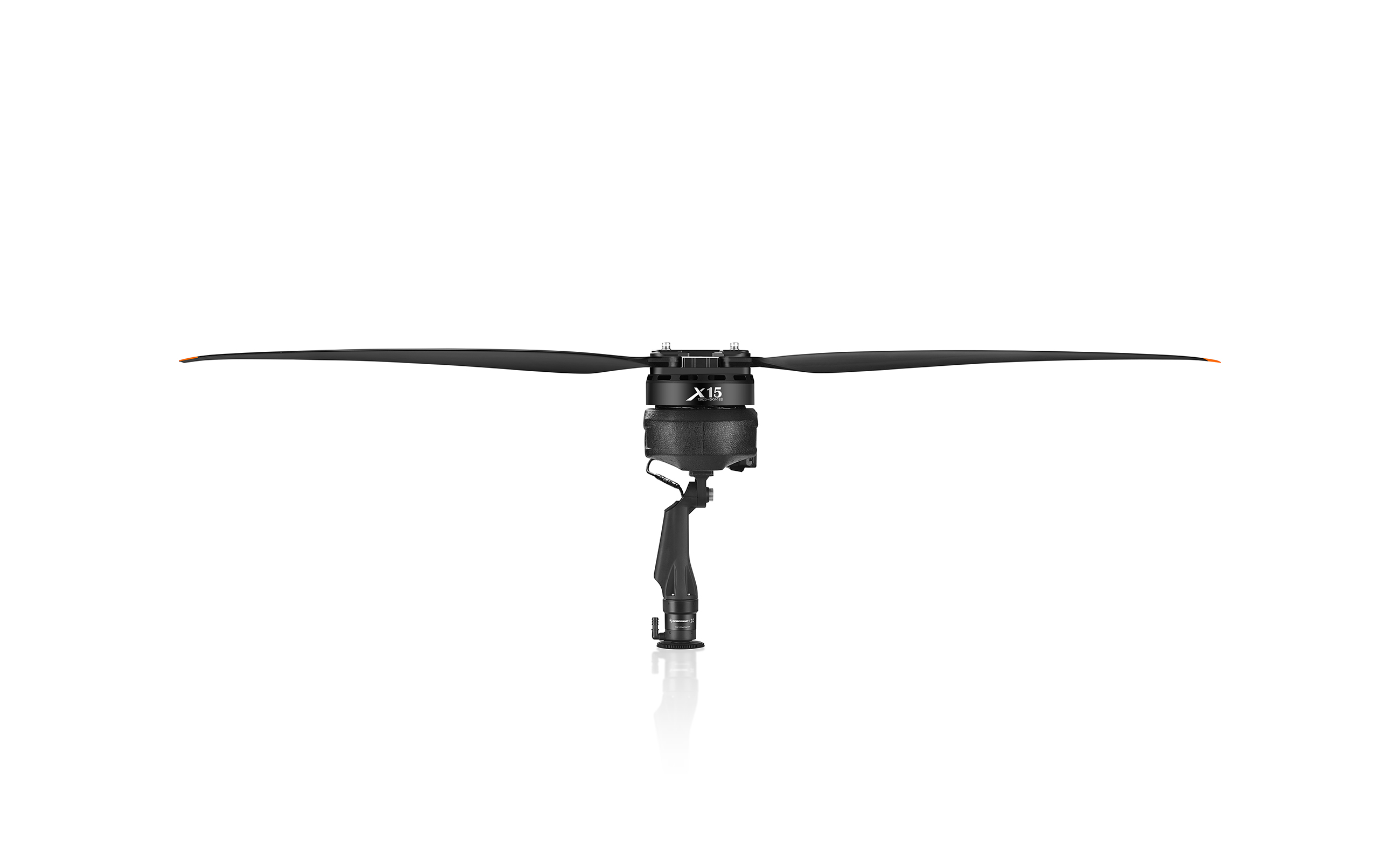

X1515623- The Agricultural Drone Propulsion System
for Optimal Safety
- X15 agricultural drone propulsion system,
- specifically designed for high-efficiency and heavy-load demands,
- delivers robust propulsion.
- With its exceptional performance and reliable quality,
- it ensures the quadcopter drone maintains agile
- flight capabilities and achieves efficient
- and precision operations even under maximum takeoff weight of 149kg.
This product is designed for agricultural drones.
For industrial and manned drone applications, please purchase our dedicated propulsion systems.
The final interpretation right is held by Shenzhen HOBBYWING Technology Co., Ltd.
Max. Thrust 72kg
Ideal for heavy-lift applications
300 A ESC
Ample redundancy
63" Propellers
High efficiency
- The integrated propulsion system delivers robust and stable propulsion output,
- capable of effortlessly handling various contingencies throughout flight operations.
- Open Architecture Parameter Tuning
- Enables the system to adapt to diverse configuration requirements,
- delivering flexible propulsion solutions that
- streamline flight control parameter tuning processes.
- Based on HOBBYWING Protocol
- The basic parameters of ESC can be adjusted using HOBBYWING DataLink,
- CAN Analyzer, DroneCAN GUI, etc.
- (Caution: Parameter modifications will affect actual flight performance, adjust with caution!)
- Optimized Propeller Structure and Increased Blade Area
- Significantly enhance the thrust while noise reduction is achieved,
- thereby extending flight duration.
- The Intelligent Monitoring System
- detects the propulsion system status in real time and prevents potential risks.
- CAN * communication enables millisecond-level sensing and feedback,
- thus maintaining optimal performance of the propulsion system.
*HWCAN and DroneCAN dual protocols,
ensuring communication compatibility with multiple
mainstream flight controllers on the market.
-
- The Motor and ESC Have
Undergone Multiple
Rigorous Tests - enabling stable operation in various complex
- environments to ensure flight safety during
- drone operations.
- The Motor and ESC Have
-
- Intelligent Protection V2.1
- autonomously handles fault conditions
- such as throttle signal loss, overcurrent,
- and motor stall, reducing the probability
- of accidents and ensuring flight safety.
- Flight logs are automatically recorded*,
- enabling reconstruct flight scenarios
- through data analysis
- * Under default settings,
the latest approximately 3 hours of flight
data can be stored.
Energy-Saving
- The X15 is both efficient and energy-saving.
- It provides strong propulsion and
- maintains a high energy efficiency ratio,
- thus enhancing loading capacity and
- extending flight time.
- With the same battery and takeoff weight,
- X15 VS X13
Efficiency
improved by
15%
Flight time
extended by
2 minutes
- Effectively reduces operational costs and
- safeguards the development of green and
- sustainable agriculture.
- Whether during installation and commissioning or routine maintenance,
- HOBBYWING's technical team offers expert technical support and maintenance guidance,
- ensuring seamless operation of the X15 propulsion system
- and enabling you to fully unlock its potential.
- Installation
& Commissioning
- Routine
Maintenance
- Technical
Support
- Maintenance
Guidance
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
| Product Name |
|
||||||||||||||||||||||||||
| Specifications |
|
||||||||||||||||||||||||||
| Motor |
|
||||||||||||||||||||||||||
| ESC |
|
||||||||||||||||||||||||||
| Propeller |
|
