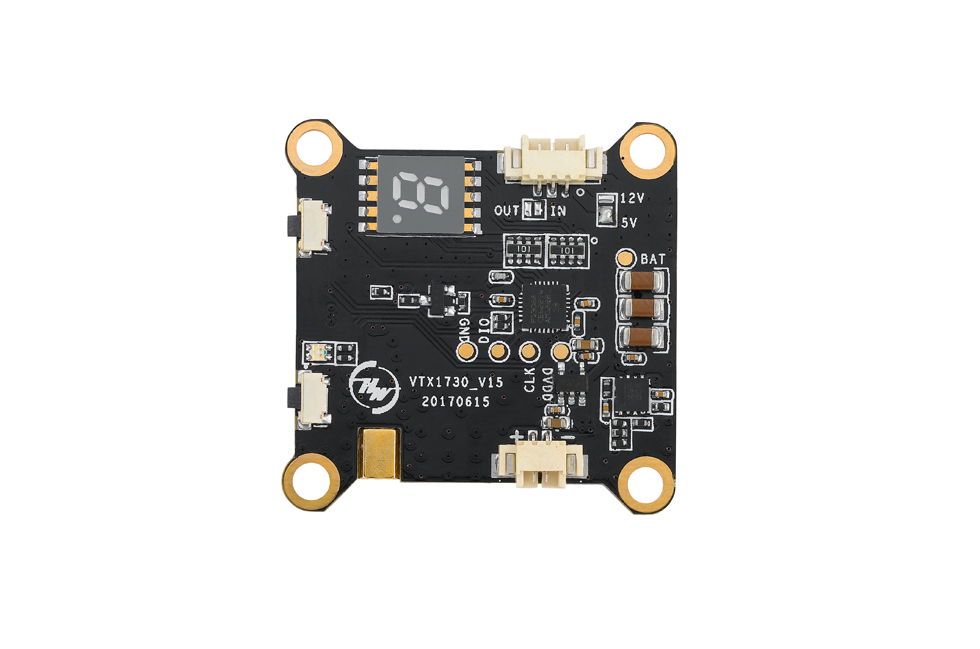

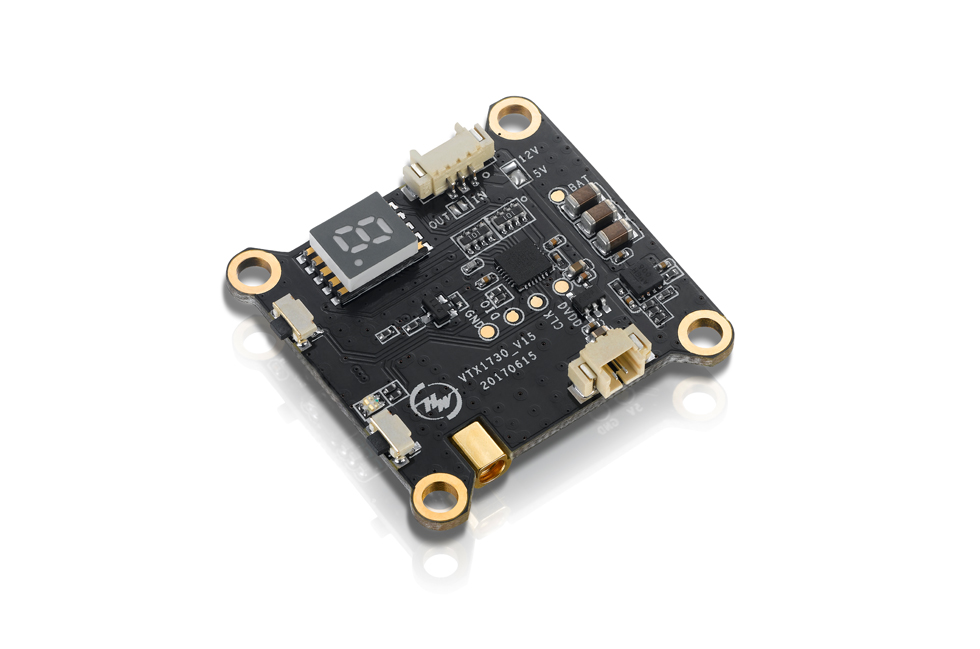

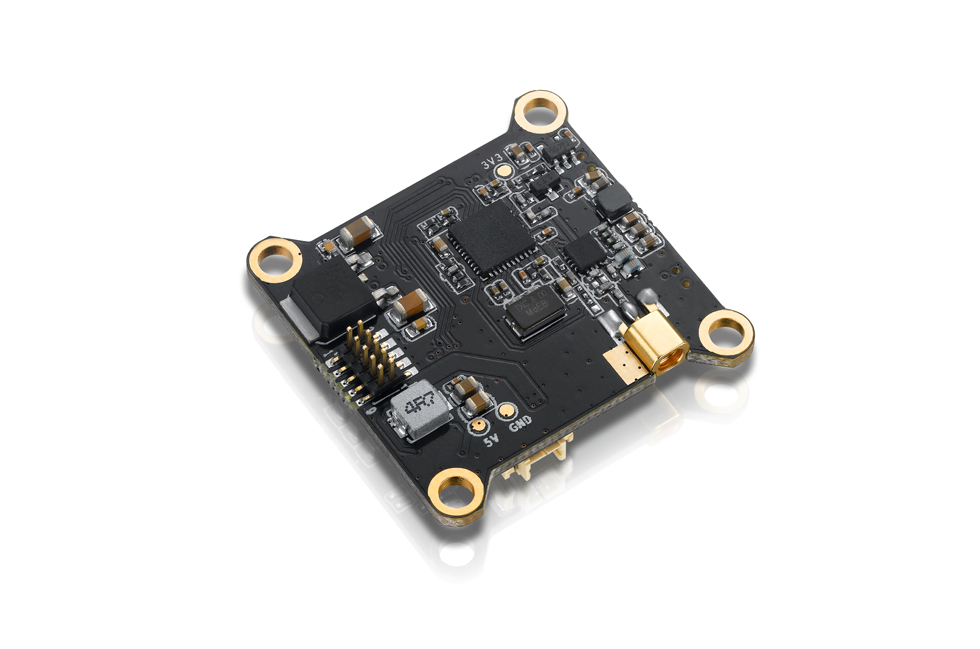

XRotor Video Transmitter

Small Size & Exquisite Design

The STM32F405 MCU which features the powerful computing capability and super-high
running frequency allows the FC to run the PID and gyro with higher frequency.

Small Size &
Exquisite Design

XRotor Video Transmitter

Voltage-regulating Filter,
Adjustable Transmitting Power &
Adjustable Voltage for Camera

The integrated voltage-regulating filter isolates the interference
of the power system from the VTX to ensure the image stays
clear and stable when the aircraft flies at high speed. The
adjustable transmitting power (0/25mW/200mW/600mW) and
stable output power guarantee long transmission distance.
For different applications, the supply voltage for the camera
is adjustable between 5V and 12V.

voltage-regulating Filter

48 Adjustable Frequencies & Race Bands Supported

The 6 frequency groups with 8 channels in each group form 48 frequencies; the frequency distribution is
applicable to most receiving equipment. Among the frequency groups, group D and group F are
frequency groups for competition; users can use the 8 frequencies in the same group at the same time
without worrying about interference.

48 Adjustable Frequencies
& Race Bands Supported

XRotor Video Transmitter

Stack-up Installation Supported

When pairing the VTX with the Hobbywing F4 flight controller
and XRotor Micro 40A 4-in-1 ESC, the installation is highly
integrated, simple and convenient, and makes the aircraft
more applicable to the FPV Racing.

Stack-up
Installation
Supported

XRotor Video Transmitter

XRotor Flight Controller F4

XRotor Micro 40A 4in1 BLHeli-S DShot600

Product Name
Product Number
Size & Weight Size

Mounting Holes

Weight
Basic Features Input Voltage

Current

Output Voltage

Transmitting Power

Transmitting Frequency Range

Transmitting Frequencies

Antenna Connector Type
包装清单
Product Name XRotor Micro Video Transmitter 5.8G
Product Number 30505000
Size & Weight Size

Mounting Holes

Weight		 36x36mm

30.5x30.5mm

5g
Basic Features Input Voltage

Current

Output Voltage

Transmitting Power

Transmitting Frequency Range

Transmitting Frequencies

Antenna Connector Type		 7-25V

70mA / 100mA / 250mW / 350mA @ 12V

5V/12V Adjustable (only for powering the webcam)

0/25mW/200mW/600mW Adjustable

5.3GHz-5.9GHz

48 Frequencies Adjustable

MMCX-to-SMA (a MMCX-to-SMA wire is included in the box)
包装清单 VTX*1,Manual*1, Webcam Wire*1, Power Wire*1, MMCX-to-SMA Antenna*1
