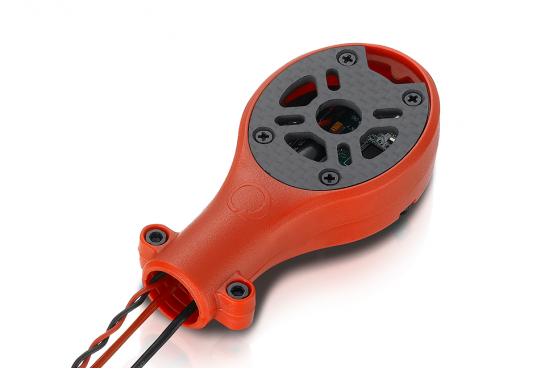

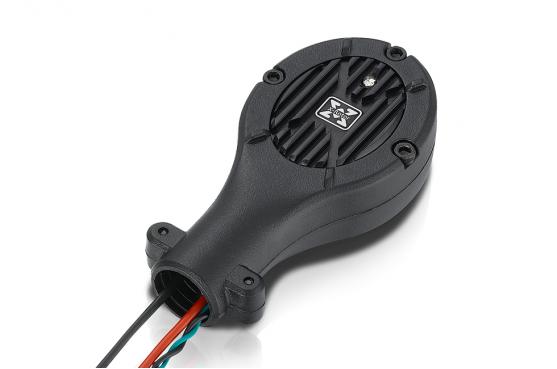

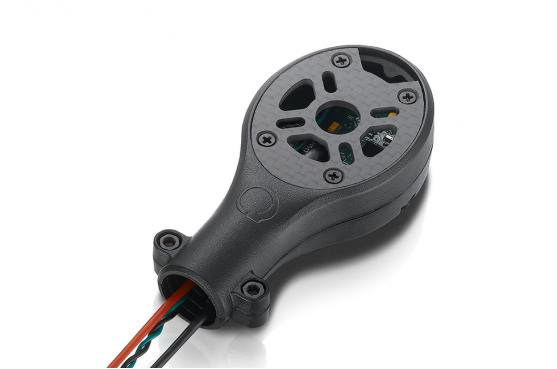

XRotor PRO 25A Circular

Easy Installation

Motor can be closely mounted onto the ESC, which greatly simplifies wiring and
installation of the propulsion system.

*Note: The motor is sold separately, not included in the package.

Easy Installation

Popular Choice

The mount is excellently fitted to the popular 16mm
(outer diameter) carbon fiber arm tube.

Popular Choice

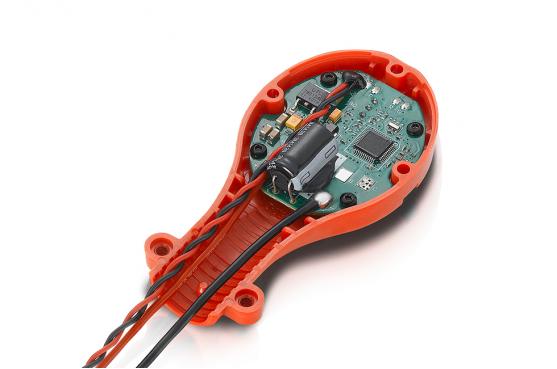

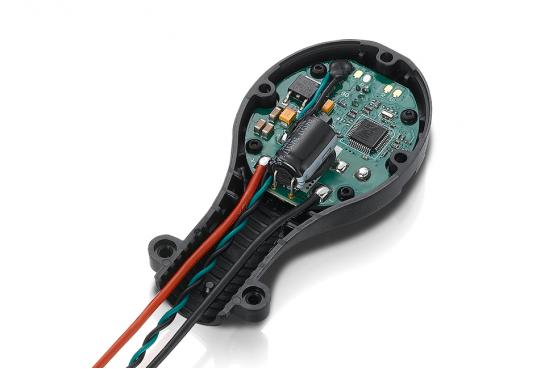

Excellent Protection

The integrated structure of the ESC and motor mount has
excellent dustproof and splash proof protection.

Excellent
Protection

DEO Technology

The DEO (Driving Efficiency Optimization) technology implemented
in the ESC has multiple advantages:
● Active braking. When reducing the throttle amount, the motor will
decelerate very quickly. This feature enables pilots to more easily
perform all maneuvers like sharp turns, altitude changes, and
sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation .
* Different companies call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Rapider throttle
response

Higher efficiency
longer flight time

Lower temperature

Easy to Use

Highly intelligent and adaptive default settings like
auto-adjusting timing for ease of operation.

Easy to Use

Compatibility

Compatible with various flight-control systems and
supports a throttle signal frequency of up to 621Hz.

Compatibility

Safer (Night) Flights

The high-visibility Red/Green navigation LED position on the ESC
saves you the trouble of mounting any extra LEDs.

Safer (Night) Flights

Green LED navigation light

Red LED navigation light

Product Name
Product Number
Specifications Cont./Peak Current

LiPo Cells

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Size & Weight Size

Weight
Features Input Wires

Output Wires

Input Connectors

Output Connectors
Applications
Product Name XRotor Pro 25A Circular
Product Number 30902022 (Black)/30902023 (Red)
Specifications Cont./Peak Current

LiPo Cells

BEC Output		 25A/40A

3-6S LiPo

No
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors		 Red-18AWG-300mm*1/Black-18AWG-300mm*1

No

No

No
Size & Weight Size

Weight		 89.3x44.5x20.9mm

50.5g(w/ Motor Mount)
Features Input Wires

Output Wires

Input Connectors

Output Connectors		 Supported

Supported

Supported

Not Supported

Supported

Not Supported

Not Supported
Applications 450-550 Class Multirotors
