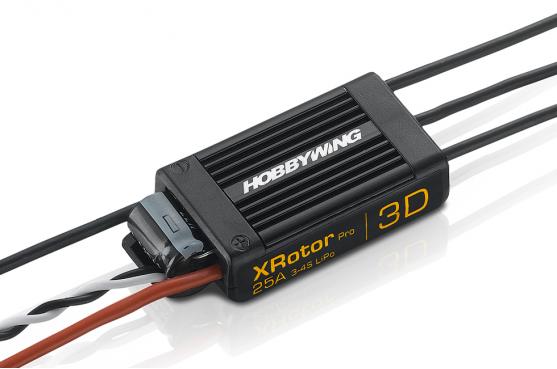

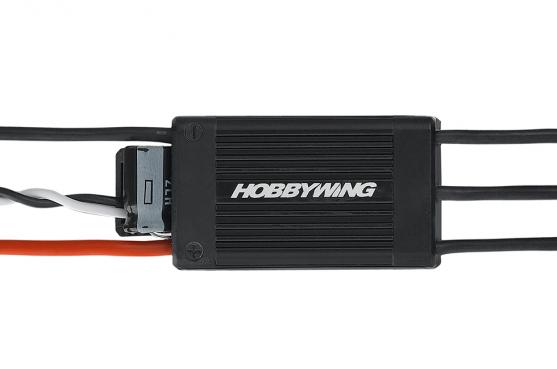

XRotor PRO 25A 3D

Overview
Specifications
Support
Accessories
Detail

3D Flight

China's first multi-rotor controller with 3D-flight function. It can change the motor rotation
very quickly which allow pilots to accomplish full 3D flight.

3D Flight

DEO Technology

The DEO (Driving Efficiency Optimization) technology implemented in the ESC has multiple
advantages:
● Active braking. When reducing the throttle amount, the motor will decelerate very quickly.
This feature enables pilots to more easily perform all maneuvers like sharp turns, altitude
changes, and sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation .
* Different companies call this technology by different names; “SimonK” calls it “Comp_PWM”,
“BLHeli” calls it “Dampaning-light” and Kontronik calls it “Active Freewheeling”.

Rapider throttle
response

Higher efficiency and
longer flight time

Lower temperature rise

Easy to Use

Highly intelligent and adaptive default settings like auto timing for ease of operation.
Faster Heat

Easy to Use

Faster Heat Dissipation

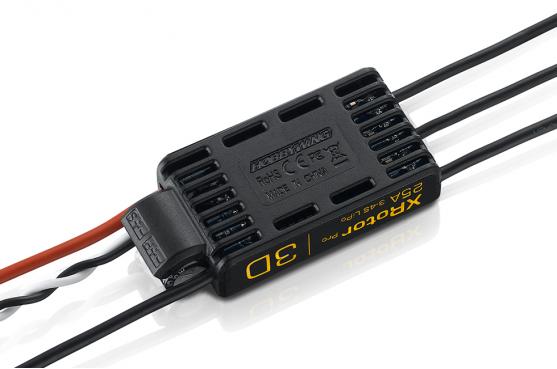

External aluminum heatsink combined with specially designed air-flow
slots allow excellent heat dissipation.

Faster Heat
Dissipation

Less Signal Interference

The twisted-pair throttle signal cable effectively reduces
interference produced in signal transmission and makes flight
more stable and reliable.

Less Signal
Interference

Product Name
Product Number
Specifications	Cont./Peak Current LiPo Cells BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors
Size & Weight	Size Weight
Features	Throttle Range Calibration Stick Programming DEO OneShot Mode Timing Light Color Motor Rotation
Applications

Product Name		XRotor PRO 25A 3D
Product Number		30902021
Specifications	Cont./Peak Current LiPo Cells BEC Output	25A/40A 3-4S LiPo No
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors	Red-18AWG-150mm1/Black-18AWG-150mm1 Output Wires Black-18AWG-75mm*3 No 3.5mm Gold Connectors (Female)
Size & Weight	Size Weight	46.6x22.2x10.5mm 25g
Features	Throttle Range Calibration Stick Programming DEO OneShot Mode Timing Light Color Motor Rotation	Not Supported Supported Supported Not Supported Supported Not Supported Not Supported
Applications		330-400 Class 3D Multirotors
