XRotor 2205 G2

Overview
Specifications
Support
Accessories
Detail

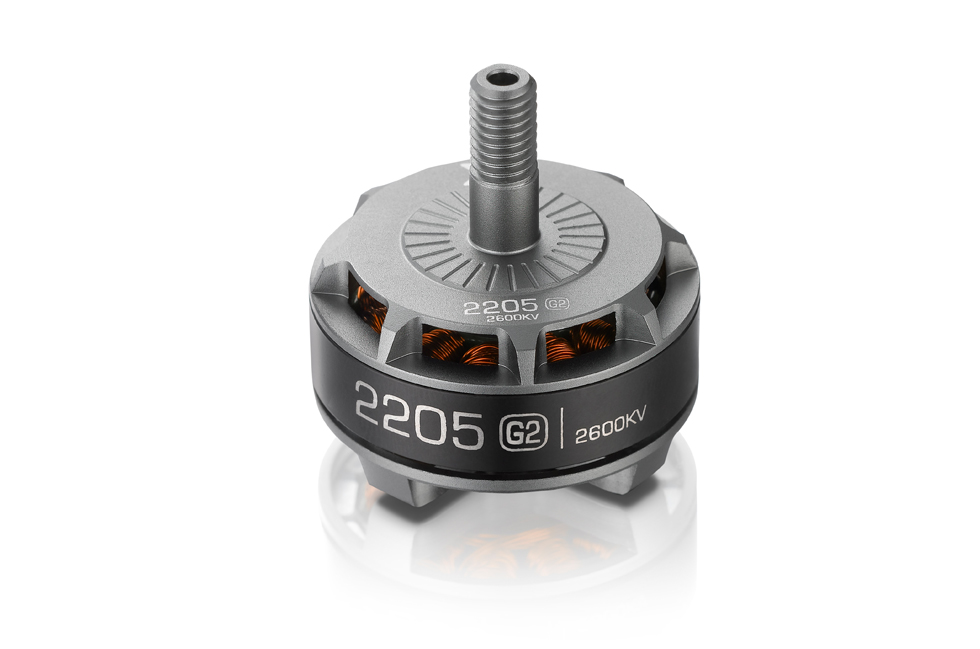

Excellent Product Design

●Super thin (10% thinner than the G1) disc-type structure with a low center of gravity guarantees better control feel.
● Concave anti-skid teeth together with the lock-up screw at the bottom effectively prevent rotor from moving or
loosing and strengthens reliability of the motor.
● One-piece eight-bladed centrifugal fan greatly reduces the operating temperature of the motor.
● Super light weight, only 27.5g (with three 20AWG wires with the length of 30mm included).

Excellent Product
Design

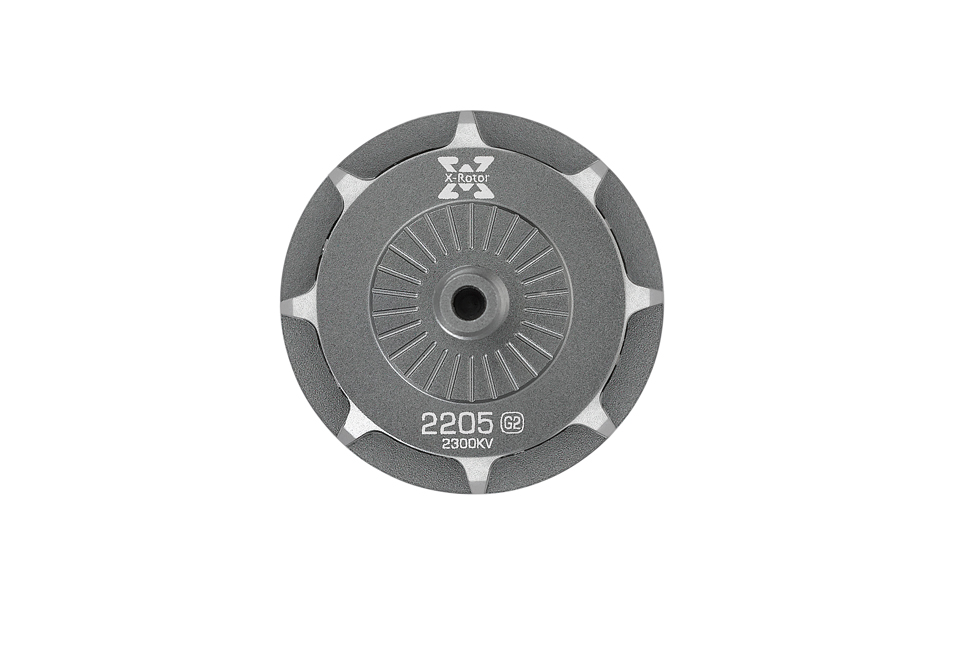

Eight-bladed Centrifugal Fan

Strong wind-cooling feature guarantees
the consistent output of high power.

Concave Anti-skid Teeth

Solid installation stands sudden acceleration,
deceleration and shock.

X-Rotor 2205 G2 2300kv

X-Rotor 2205 G2 2600kv

Low Vibration & Noise

The precisely balanced rotor guarantees low vibration
and noise during the motor’s high-speed rotation.

Low Vibration
& Noise

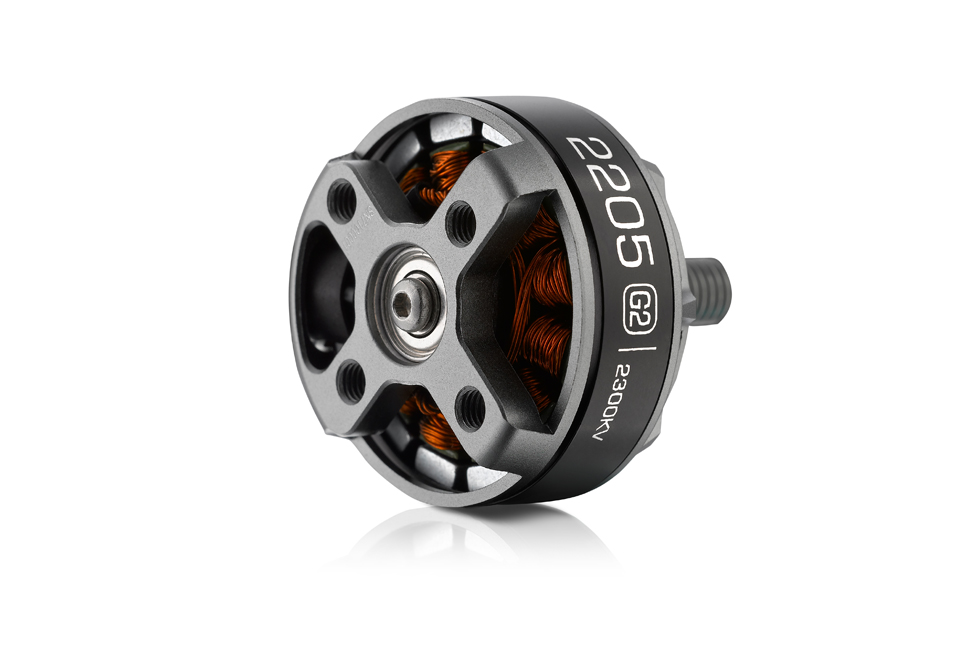

Super Impact Resistance

High-strength CNC-machined aluminum alloy frame,
which features the strengthened cross beam structure,
guarantees the super impact resistance of the motor.

Super Impact
Resistance

High-strength
Aluminum Alloy

Strengthened Cross
Beam Structure

Precisely
CNC-machined Frame

Super Impact
Resistance

Top Quality Componentsz

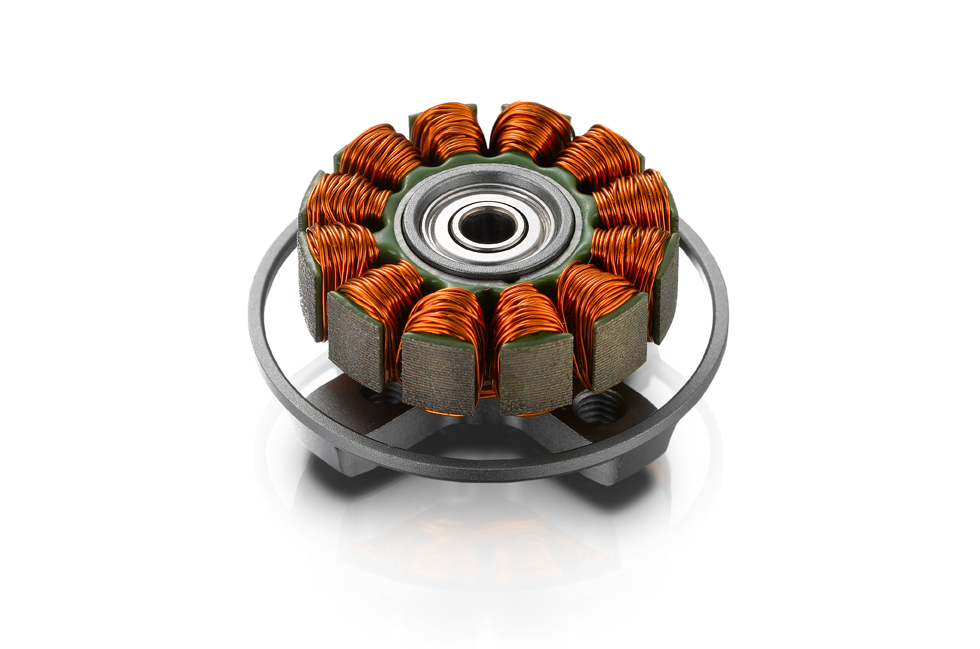

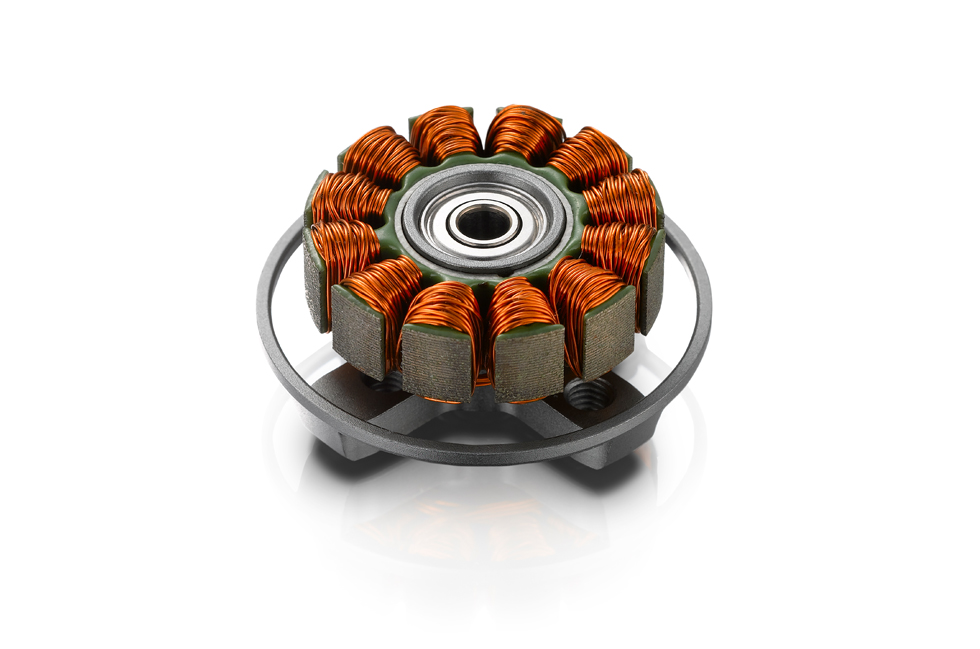

● Special 240OC heat-resistant windings (after vacuum dip coating treatment)
can stand high, surge current.
● N54 super magnets guarantee high torque output.
● Super thin (0.2mm) silicon sheets imported from Japan guarantee low power
loss, less heat generation but high magnetic permeability.
● Quality bearings imported from Japan guarantee smoother high-speed
rotation and longer service life.

Top Quality
Components

Special Bearings
Imported from Japan

Great Bearing Capacity &
Impact Resistance

Precise & Neat Windings

Precise & Neat
Low Resistance & High Efficiency
Great Electrical Characteristic

Super Thin Silicon Sheets
imported from Japan

Less Heat Generation &
High Magnetic Permeability

N54 Super Magnets

High Torque Output

Thickened Output Wires

More Reliable Soldered Dots
Lower Resistance

Special 4mm Bearings
Imported from Japan

Super Thrust

The maximum thrust of 1.58KG (*XRotor 2405 2850KV motors+5040
three-bladed propellers, 3S LiPo) combined with the thrust to weight
ratio of up to 47.3:1 provide aggressive power for FAV drone(s).

Super Thrust

Test Conditions: XXRotor 2205 G2 2300KV motor(s),
6040 two-bladed propeller(s), and the input voltage of 12V.

Product Name
Product Number
Specifications	KV Rating LiPo Cells No-Load Current(A/10V) Motor Resistance Max Continuous Current / Power Stator Diameter/Thickness Slot/Plot Count Motor/Shaft Diameter Motor Length (w/o, w/ Shaft) Weight
Recommended Props/ESCs

Product Name		XRotor 2205 G2 2300KV	XRotor 2205 G2 2600KV
Product Number		30405114	30405115
Specifications	KV Rating LiPo Cells No-Load Current(A/10V) Motor Resistance Max Continuous Current / Power Stator Diameter/Thickness Slot/Plot Count Motor/Shaft Diameter Motor Length (w/o, w/ Shaft) Weight	30405114 4S 1.6A 0.057Ω 25A/420W 22mm/5mm 12/14 28.1mm/5mm 15.8mm/29.2mm 29.5g	2600KV 4S 2.1A 0.044Ω 25A/420W 22mm/5mm 12/14 28.1mm/5mm 15.8mm/29.2mm 29.5g
Recommended Props/ESCs		5045 Three-bladed Propeller \| 5152 Three-bladed Propeller \| 6040 Two-bladed Propeller 6045 Three-bladed Propeller \| Two-bladed Propeller 30A/3-4S	5045 Three-bladed Propeller \| 5152 Three-bladed Propeller 30A/3-4S

Support

Manuals & Documents

2205-G2-2600KV Manuals

2205-G2-2300KV Manuals
