XRotor 1306

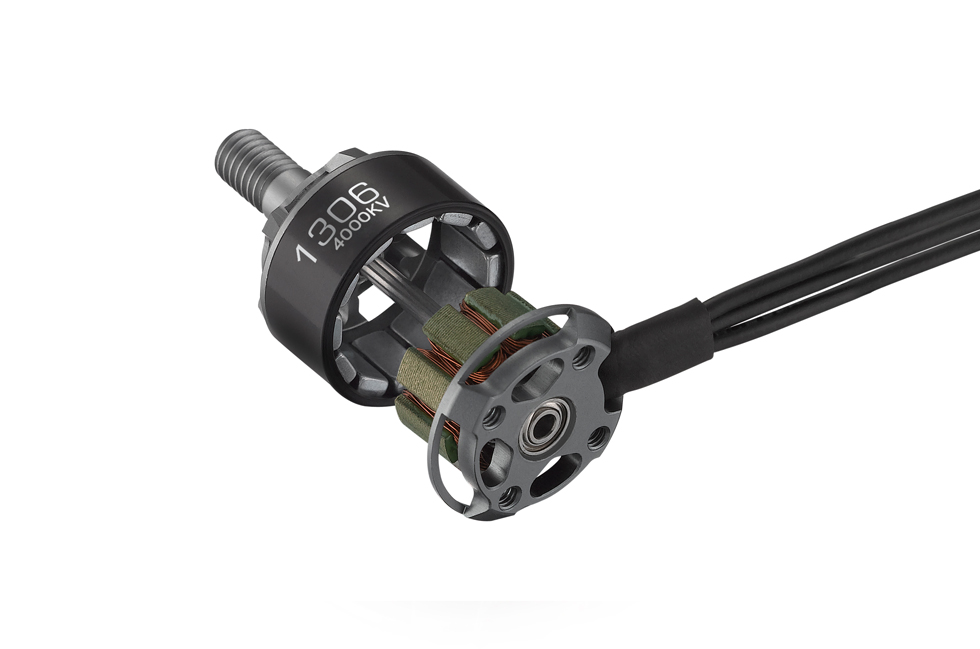

Excellent Product Design

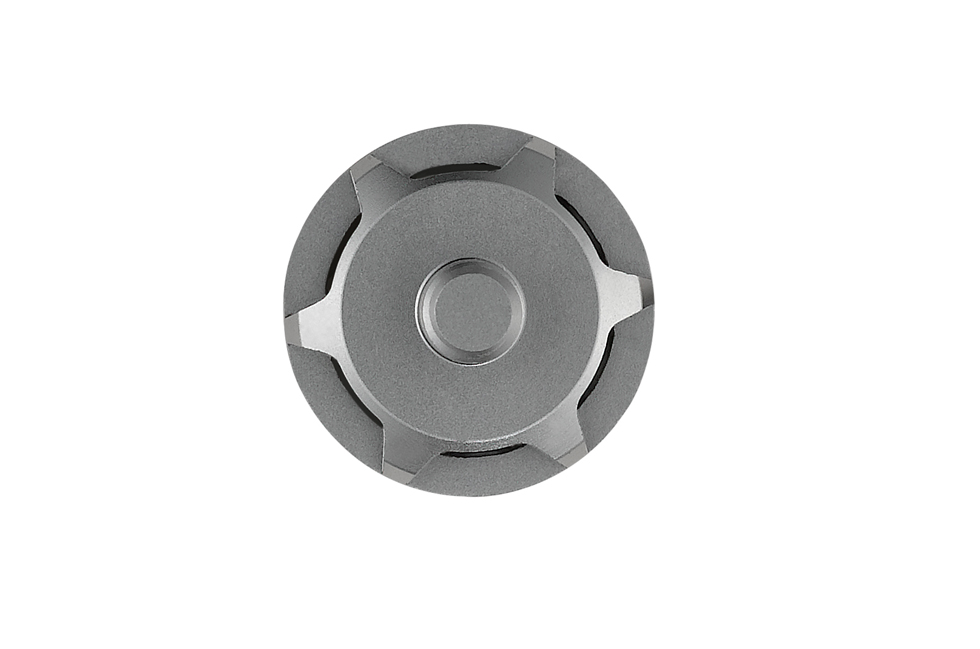

● Rotor with the special strengthened beam guarantees super impact resistance.
● Neat windings with low internal resistance guarantee the balanced current of the motor.
● Six-bladed centrifugal fan greatly reduces the operating temperature of the motor.

Excellent Product
Design

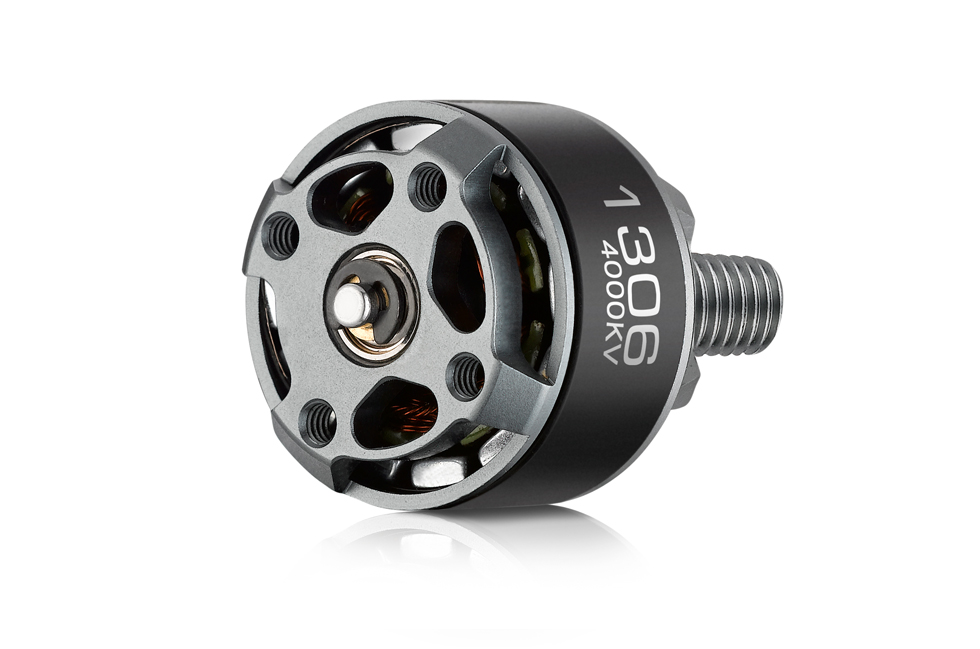

Six-bladed Centrifugal Fan

Special Bearings
Imported from Japan

Greatly reduces the operating
temperature of the motor

Great Bearing Capacity &
Impact Resistance

Top Quality Components

● Special 240℃ heat-resistant windings(after vacuum dip coating treatment)
can stand high, surge current.
● N54 super magnets guarantee high torque output.
● Super thin (0.2mm) silicon sheets imported from Japan guarantee low
power loss, less heat generation but high magnetic permeability.
● Quality bearings imported from Japan guarantee smoother high-speed
rotation and longer service life.

Top Quality
Components

Special Bearings
Imported from Japan

Great Bearing Capacity &
Impact Resistance

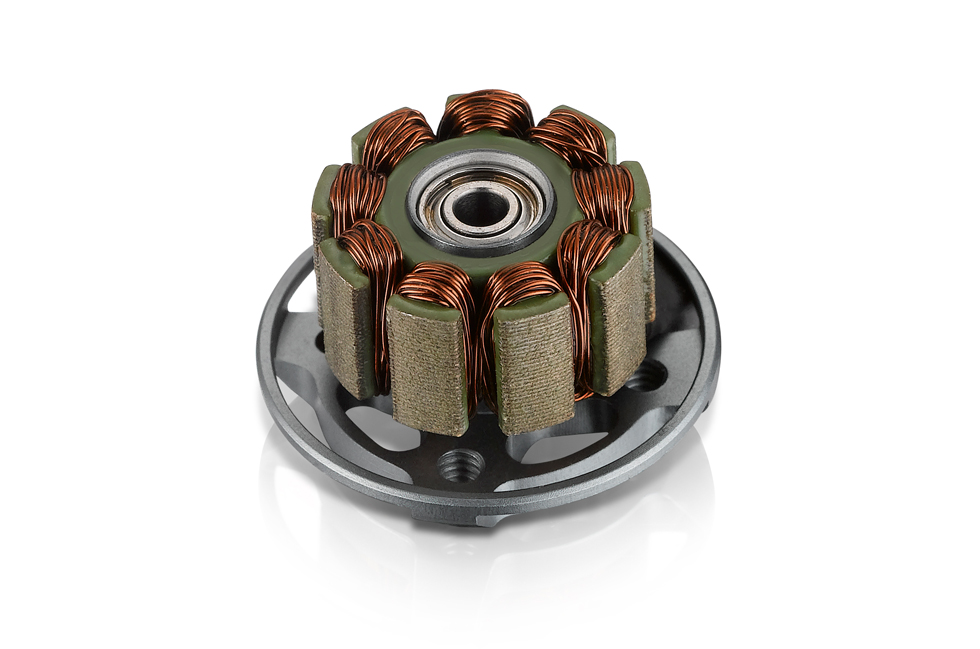

Precise & Neat Windings

Precise & Neat
Low Resistance & High Efficiency
Great Electrical Characteristic

Hollow & High-strength
Alloy Steel Shaft going
through the entire motor

It can stand the impact of 200KG

Super Thin Silicon Sheets
imported from Japan

Less Heat Generation &
High Magnetic Permeability

N54 Super Magnets

High Torque Output

Special 4mm Bearings
Imported from Japan

Low Vibration & Noise

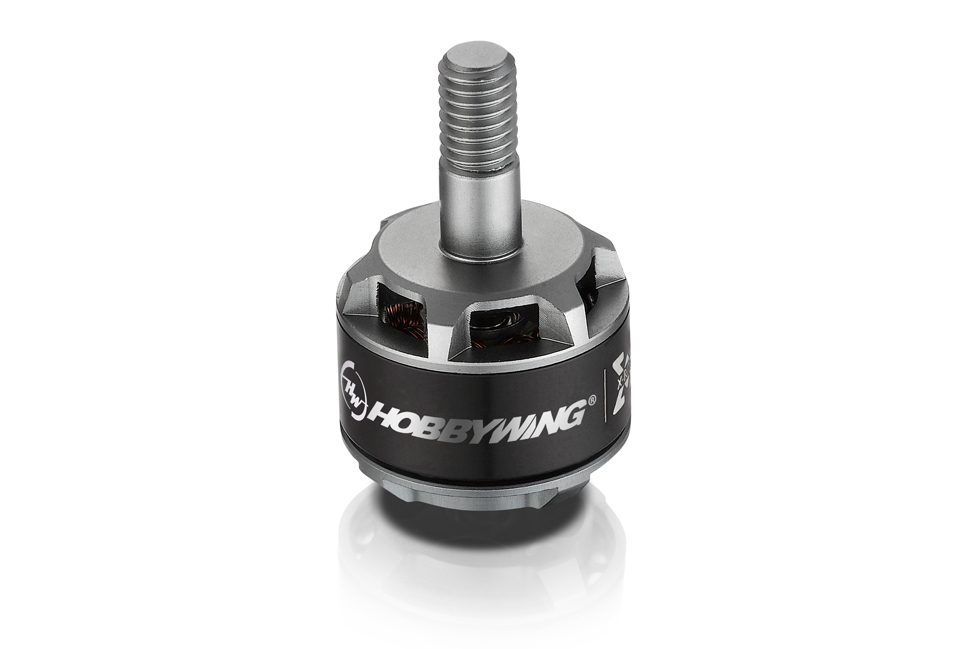

The precisely balanced rotor guarantees low vibration
and noise during the motor’s high-speed rotation.

Low Vibration &
Precise Control

Super Thrust

With the maximum thrust of up to 432g (when pairing XRotor
M1306 4000KV with 3530 three-blade propeller) or 461g (when
pairing XRotor M1306 4500KV with 3530 three-blade propeller),
the motor can provide sufficient power for FPV drones.

Super Thrust

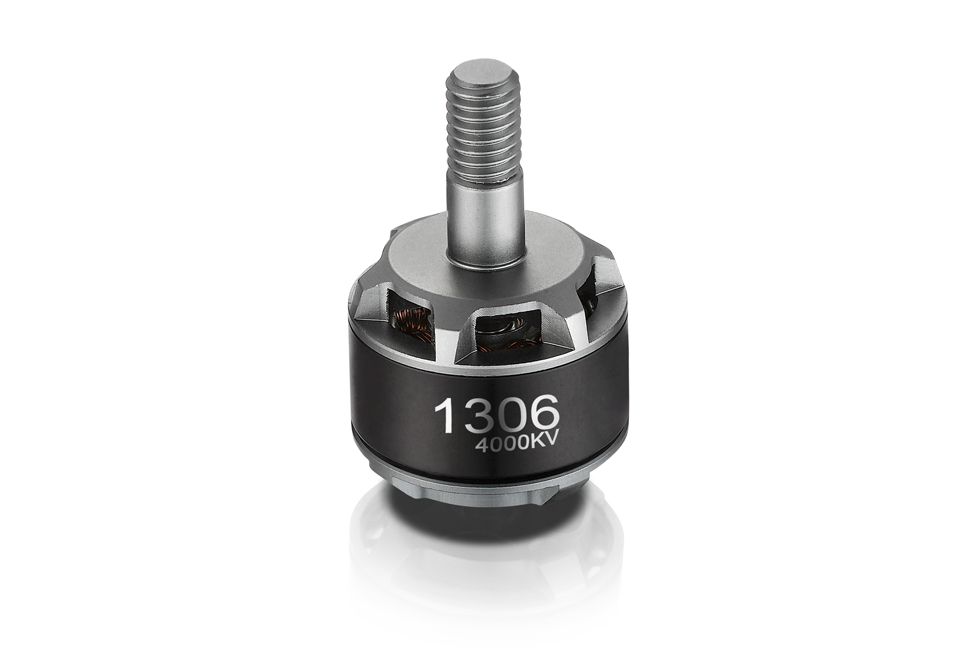

XRotor 1306 4000 / 4500KV

Product Name
Product Number
Specifications KV Rating

LiPo Cells

No-Load Current(A/10V)

Motor Resistance

Max Continuous Current / Power

Stator Diameter/Thickness

Slot/Plot Count

Motor/Shaft Diameter

Motor Length (w/o, w/ Shaft)

Weight
Recommended Props/ESCs
Product Name XRotor 1306 4000KV XRotor 1306 4500KV
Product Number 30405305 30405306
Specifications KV Rating

LiPo Cells

No-Load Current(A/10V)

Motor Resistance

Max Continuous Current / Power

Stator Diameter/Thickness

Slot/Plot Count

Motor/Shaft Diameter

Motor Length (w/o, w/ Shaft)

Weight		 4000KV

4S

0.8A

0.175Ω

10A/160W

13mm/6mm

9/12

18mm/5mm

15mm/28mm

13g		 4500KV

4S

1.1A

0.140Ω

10A/160W

13mm/6mm

9/12

18mm/5mm

15mm/28mm

13g
Recommended Props/ESCs 3045 Three-bladed/Two-bladed Propellers |

3530 Three-bladed/Two-bladed Propellers

Xrotor Micro 12A 4IN1 or above		 3045 Three-bladed/Two-bladed Propellers |

3530 Three-bladed/Two-bladed Propellers

Xrotor Micro 12A 4IN1 or above

FAQ

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
XRotor 1306
Overview Specifications Support Accessories Detail

Excellent Product Design

● Rotor with the special strengthened beam guarantees super impact resistance.
● Neat windings with low internal resistance guarantee the balanced current of the motor.
● Six-bladed centrifugal fan greatly reduces the operating temperature of the motor.

Excellent Product
Design

Top Quality Components

● Special 240℃ heat-resistant windings(after vacuum dip coating treatment) can stand high, surge current.
● N54 super magnets guarantee high torque output.
● Super thin (0.2mm) silicon sheets imported from Japan guarantee low power loss, less heat generation but high magnetic permeability. ● Quality bearings imported from Japan guarantee smoother high-speed
rotation and longer service life.

Top Quality
Components

Low Vibration & Noise

The precisely balanced rotor guarantees low vibration and noise during the motor’s high-speed rotation.

Low Vibration &
Precise Contro

Super Thrust

With the maximum thrust of up to 432g (when pairing XRotor M1306 4000KV with 3530 three-blade propeller) or 461g (when pairing XRotor M1306 4500KV with 3530 three-blade propeller), the motor can provide sufficient power for FPV drones.

Super Thrust

Product Name XRotor 1306 4000KV
Product Number 30405305
Specifications KV Rating

LiPo Cells

No-Load Current(A/10V)

Motor Resistance

Max Continuous Current / Power

Stator Diameter/Thickness

Slot/Plot Count

Motor/Shaft Diameter

Motor Length (w/o, w/ Shaft)

Weight		 4000KV

4S

0.8A

0.175Ω

10A/160W

13mm/6mm

9/12

18mm/5mm

15mm/28mm

13g
Recommended Props/ESCs 3045 Three-bladed/Two-bladed Propellers |

3530 Three-bladed/Two-bladed Propellers

Xrotor Micro 12A 4IN1 or above
Product Name XRotor 1306 4000KV XRotor 1306 4500KV
Product Number 30405305 30405306
Specifications KV Rating

LiPo Cells

No-Load Current(A/10V)

Motor Resistance

Max Continuous Current / Power

Stator Diameter/Thickness

Slot/Plot Count

Motor/Shaft Diameter

Motor Length (w/o, w/ Shaft)

Weight		 4000KV

4S

0.8A

0.175Ω

10A/160W

13mm/6mm

9/12

18mm/5mm

15mm/28mm

13g		 4500KV

4S

1.1A

0.140Ω

10A/160W

13mm/6mm

9/12

18mm/5mm

15mm/28mm

13g
Recommended Props/ESCs 3045 Three-bladed/Two-bladed Propellers |

3530 Three-bladed/Two-bladed Propellers

Xrotor Micro 12A 4IN1 or above		 3045 Three-bladed/Two-bladed Propellers |

3530 Three-bladed/Two-bladed Propellers

Xrotor Micro 12A 4IN1 or above
