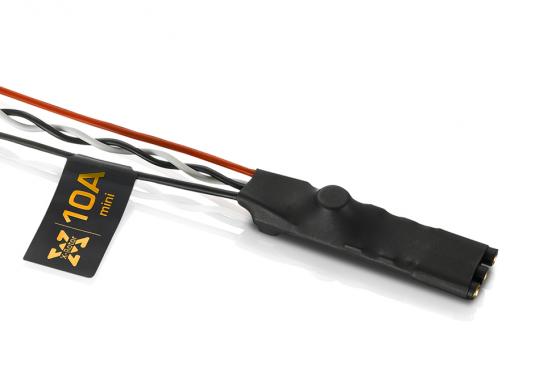

XRotor 10A Mini

Rapid Throttle Response

Dedicated program for multi-rotor ESCs,
which is better than various open-source programs,
greatly improves throttle response.

Rapid Throttle Response

Easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, highly intelligent and adaptive.

Easy to Use

Great Compatibility

Specifically optimized software utilized by XRotor 10A mini
ESCs ensures excellent compatibility between these
ESCs and multi-rotor motors.

Great Compatibility

Multi-rotor Motor

Less Signal Interference

The twisted-pair throttle signal cable effectively reduces
interference produced in signal transmission and makes flight
more stable and reliable.

Less Signal Interference

Super Low Internal Resistance

Good quality MOSFETs utilized by this XRotor 10A mini ESC
make internal resistance low but current endurance high.

Super Low
Internal Resistance

Small and Compact Design

With smaller size than regular 10A ESCs,
XRotor 10A mini ESCs perfectly match various QAVs and become
the first choice for many players.

Small and
Compact Design

Super High Throttle Signal

Compatible with various flight-control systems and supports a throttle
signal frequency of up to 621Hz.

Super High
Throttle Signal

Product Name
Product Number
Specifications Cont./Peak Current

LiPo Cells

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Size & Weight Size

Weight
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Applications
Product Name XRotor 10A Mini 3S
Product Number 30901008
Specifications Cont./Peak Current

LiPo Cells

BEC Output		 10A/15A

2-3S LiPo

No
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors		 Red-20AWG-100mm*1/Black-20AWG-100mm*1

No

No

2.0mm Gold Connectors (Female)
Size & Weight Size

Weight		 44.2x12.2x9.2mm

7g
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation		 Supported

Supported'

Not Supported

Supported

Supported

Not Supported

Not Supported
Applications 250 Class Quadrotors
