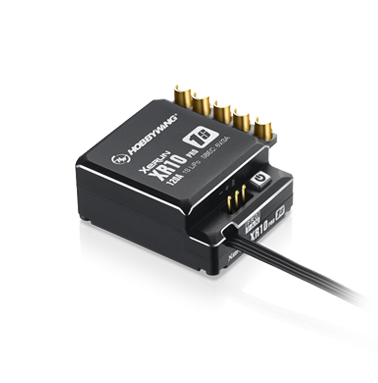

XeRun XR10 PRO 1S

Overview
Specifications
Support
Accessories
Detail

Special Design for 1/12^th Scale Top Racing

Reliable hardware combined with great software (contains 5 common ready-to-use profiles)
creates an ideal power solution to1/12^th scale top touring car racing.

Special Design for 1/12^th
Scale Top Racing

Small Size & Light Weight

Height of 15.9mm (6mm shorter than the previous V3.1 1S ESC) saves space and makes the
installation convenient; weight of 35.6g (12g lighter than the previous V3.1 1S ESC)
provides more weight margin when adjusting the balance of the chassis.

Small Size &
Light Weight

Super BEC

Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and
power various servos without connecting any extra receiver battery.

Super BEC

Built-in Electronic Switch & Capacitor Module

The built-in electronic switch with a lifespan of over 50000 on/off cycles
completely solves the problems like stuck reed, rusted contact points, and
automatic shutdown conventional mechanical switches often have.The internal
capacitor module saves space and makes the wiring simple and neat.

Built-in Electronic Switch &
Capacitor Module

Programming/Upgrading/Data
Reading Wirelessly

With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link
software installed), the user can remotely program parameters, upgrade firmware and
check relevant data of the ESC without leaving the control stand.

Programming / Upgrading /
Data reading wirelessly

Wifi Express module

Adjustable Throttle & Brake PWM Frequencies

Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and brake control for all classes of competitions (esp. the Stock class).

Adjustable Throttle &
Brake PWM Frequencies

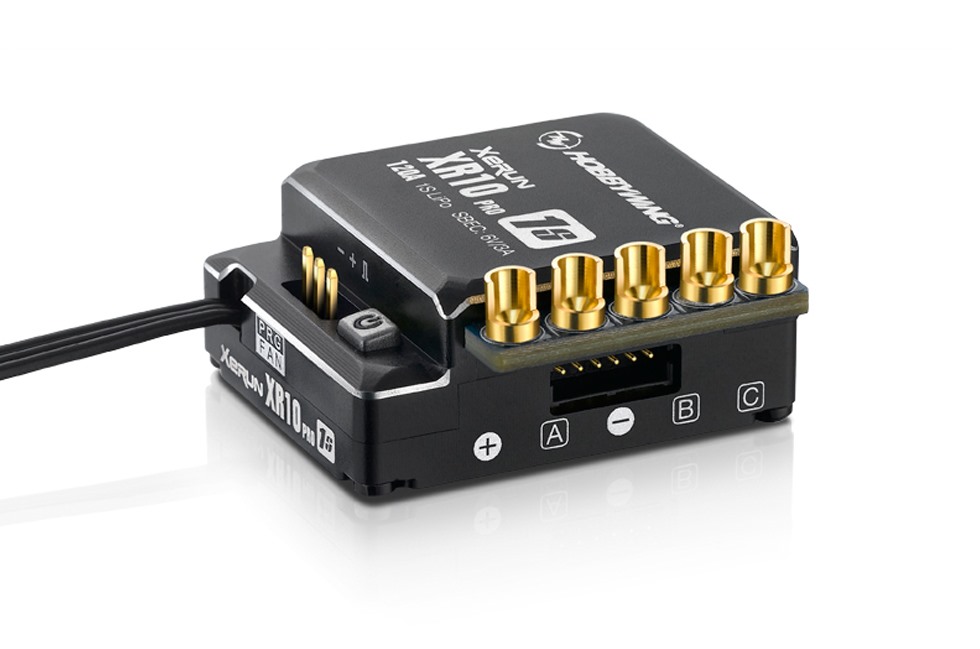

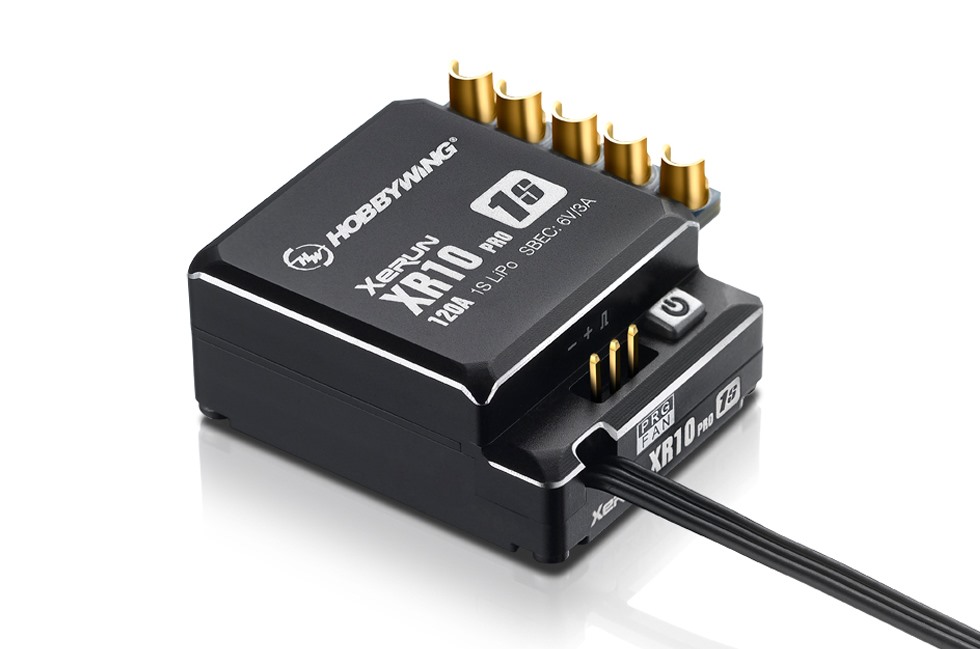

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance
or connect the ESC to a LCD program box or WiFi module for ESC programming.

Separate Programming
/Fan Port

Separate Programming/Fan Port

Innovative Data-logging Function

This ESC features the data-logging function which can record the maximum ESC/motor
temperature, RPM and etc. in real time and allows users to check those
data via a LCD program box or WiFi module after each use.

Innovative Data-logging
Function

LCD Program Box

WiFi Module

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		XeRun XR10 PRO 1S
Product Number		30112603
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/12^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	120A/830A 1S Lipo/3-4 Cell NiMH Switch Mode: 6V@3A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors	Red-12AWG-200mm1 Black-12AWG-200mm1 Red-14AWG-200mm1 Black-14AWG-200mm1 Black-12AWG-200mm3 Black-14AWG-200mm3 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port	Not Supported Not Supported Supported Supported Supported Separate Program Port
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	37.5x31x15.9mm 35.6g
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors / SD BL Motors 1/12^th Touring Car 1S LiPo: ≥3.0T(* ESC in Zero-timing/Blinky Mode)

Support

Manuals & Documents

Manuals

Software Download

Application Guidance

1/12^th TC-Modified at IFMAR 2018 from World Champion Alexander Hagberg

WiFi Express

STOPPED

WiFi Express

Product Number: 30503000
Working Voltage: 5V-12.6V
WiFi Protocol: IEEE802.11 b/g/n
WiFi Signal Effective Range: 0-10m
(Open Field) Applications: work on
the XeRun series, EzRun series
of car ESCs, and the Platinum series
of aircraft ESCs, and Seaking Pro
series of boat ESCs.

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
