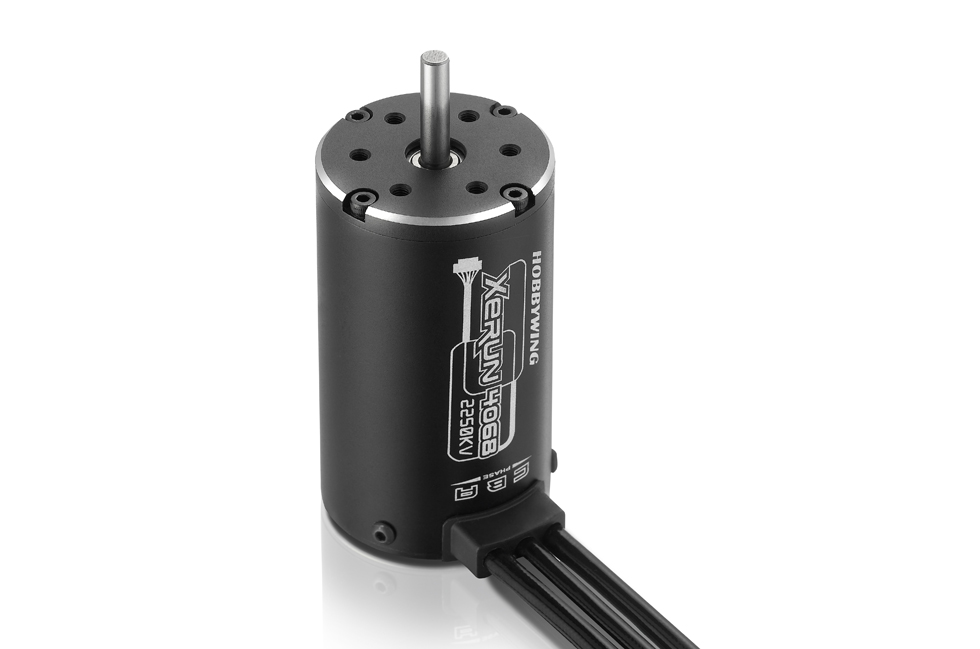

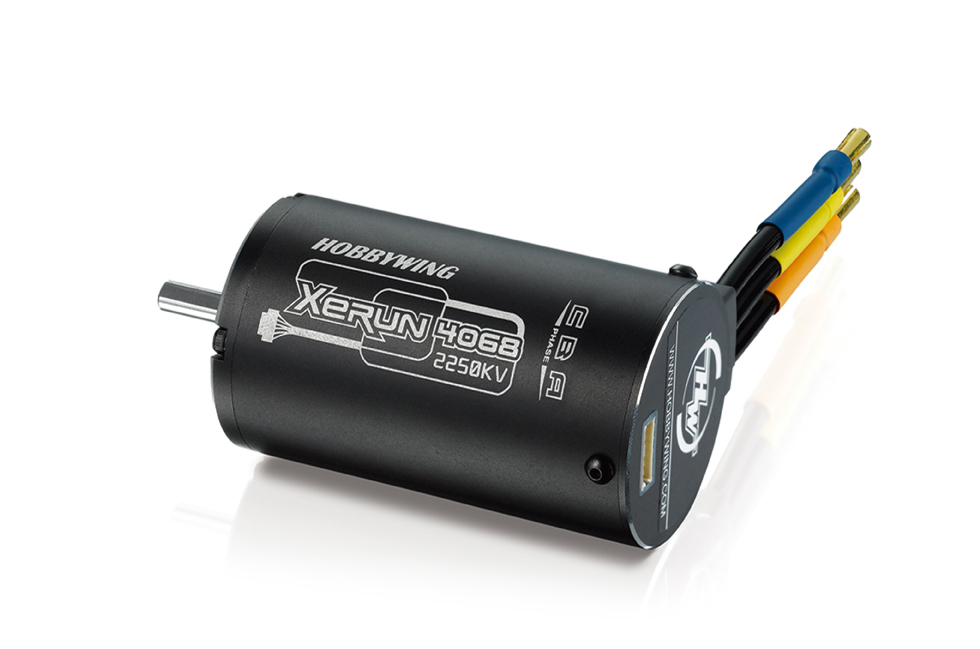

XeRun 4068SD

Great Construction

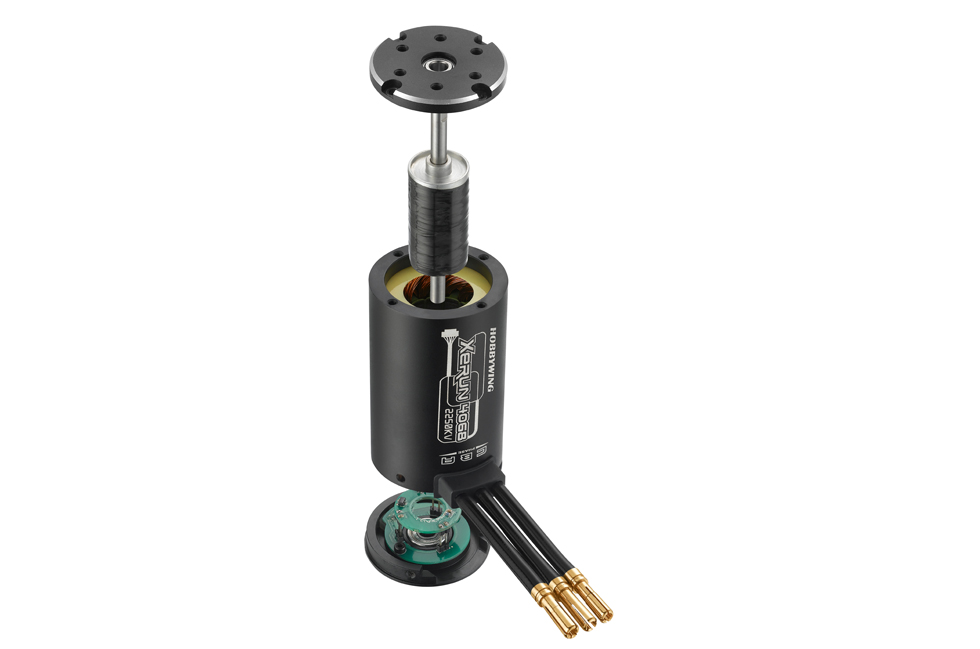

The use of a heat-resistant magnet attached steel case and double insulated windings,
high precision bearings, and rotor with a strong structure guarantees
outstanding performance and super durability.

Great Construction

Special Design for Off-road Vehicles

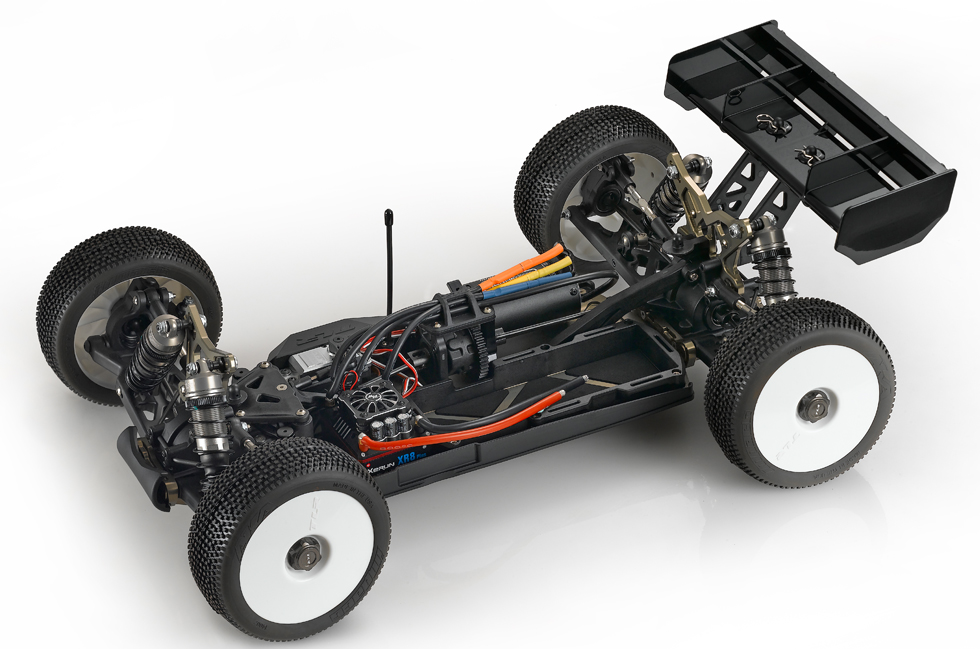

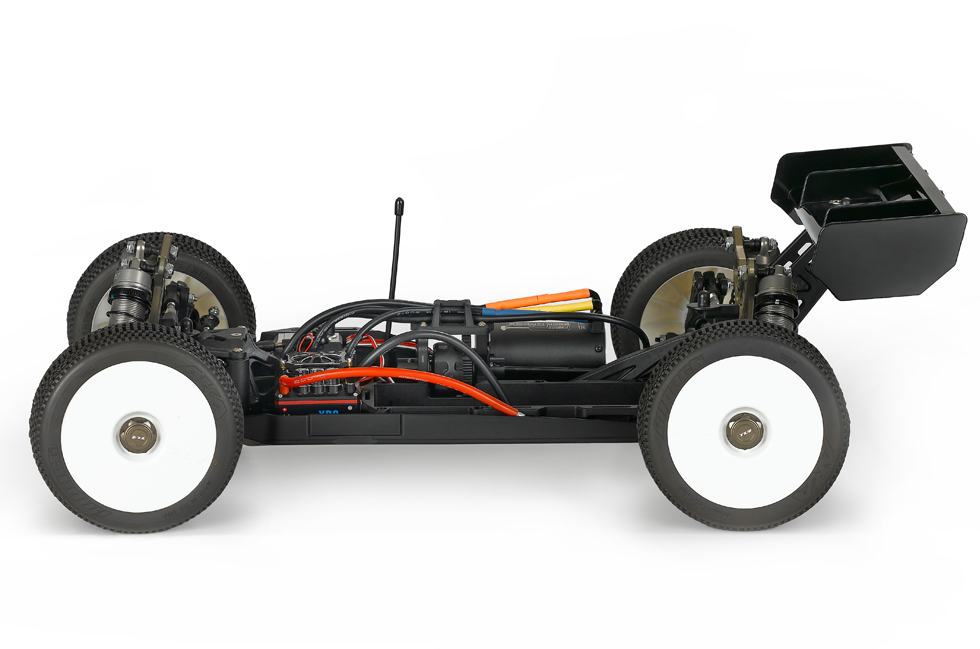

The XERUN 4068SD motor is specially designed for 1/8th
scale off-road racing. It can guarantee users the incredible acceleration,
performance and control feel in competitions.

Special Design for
Off-road Vehicles

High Torque

The 4 pole design will guarantee the motor to produce very
large amounts of torque, a much faster acceleration response and a very
stable output of power to the drivetrain.

High Torque

Compatible with the XERUN XR8 ESC

When pairing the XERUN 4068SD motor with the Hobbwing XERUN XR8 ESC,
the excellent match between ESC and motor will give you large torque
plus a very smooth and linear power band.

Compatible with
the XERUN XR8 ESC

Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Specifications KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)
Other Parameters Timing

Applications
Product Name XeRun 4068SD-2250KV
Product Number 90060040(Blue)/90060041(Black)
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count		 1/8th

BL

SD

4
Specifications KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)		 2250

2-4S

2.4

1250
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)		 40.0

68.0

5.0

340
Other Parameters Timing

Applications		 Fixed(Timing)

1/8th Monster Trucks (Crazy)
