XeRun 3656

Overview
Specifications
Support
Accessories
Detail

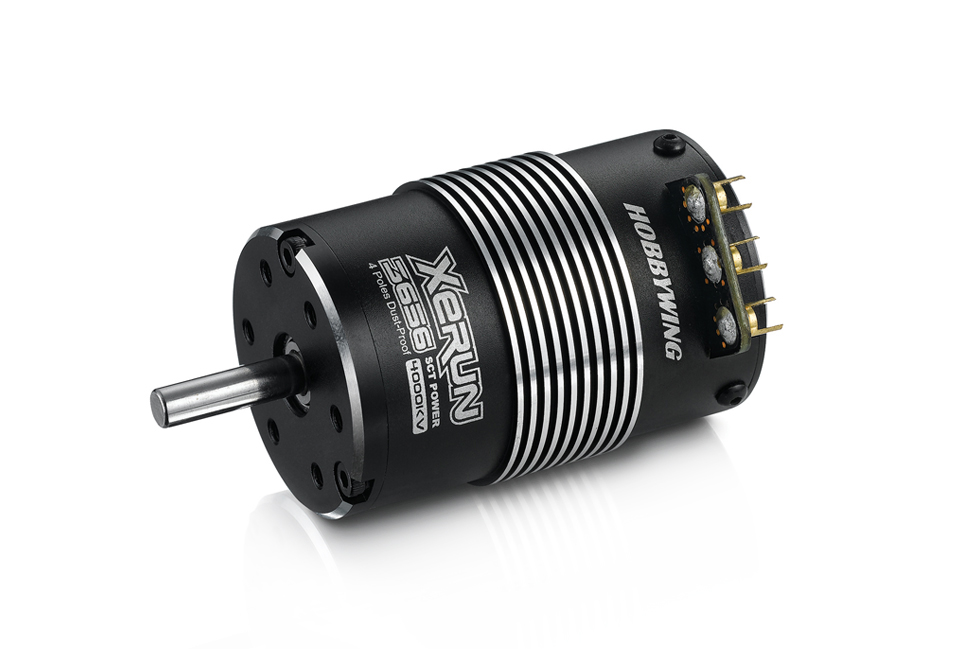

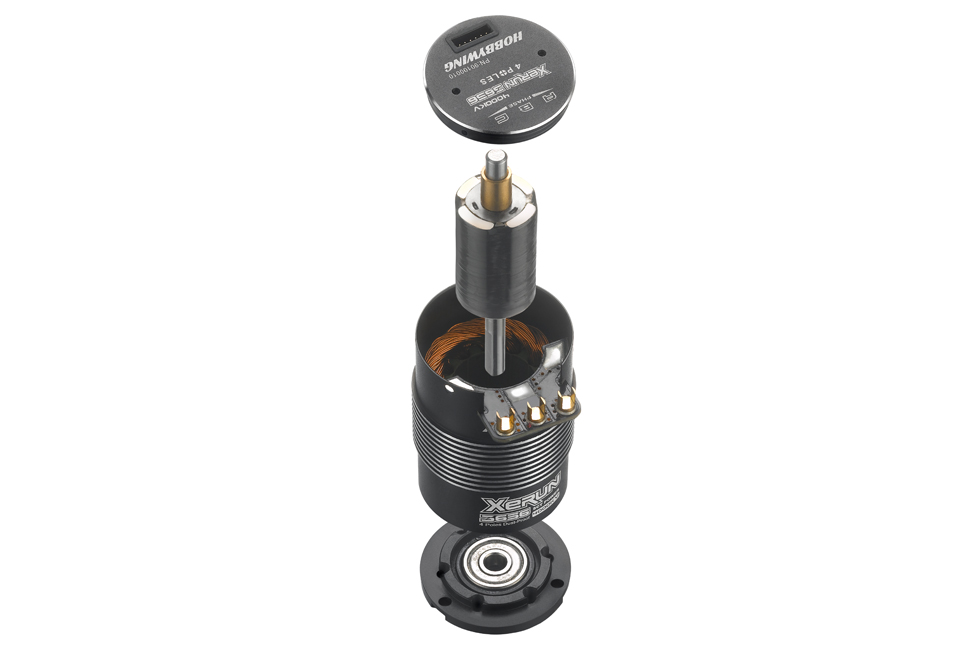

Great Construction

The use of a heat-resistant magnet attached steel
case and double insulated windings, high precision bearings,
and rotor with a strong structure guarantees outstanding performance
and super durability.

Great Construction

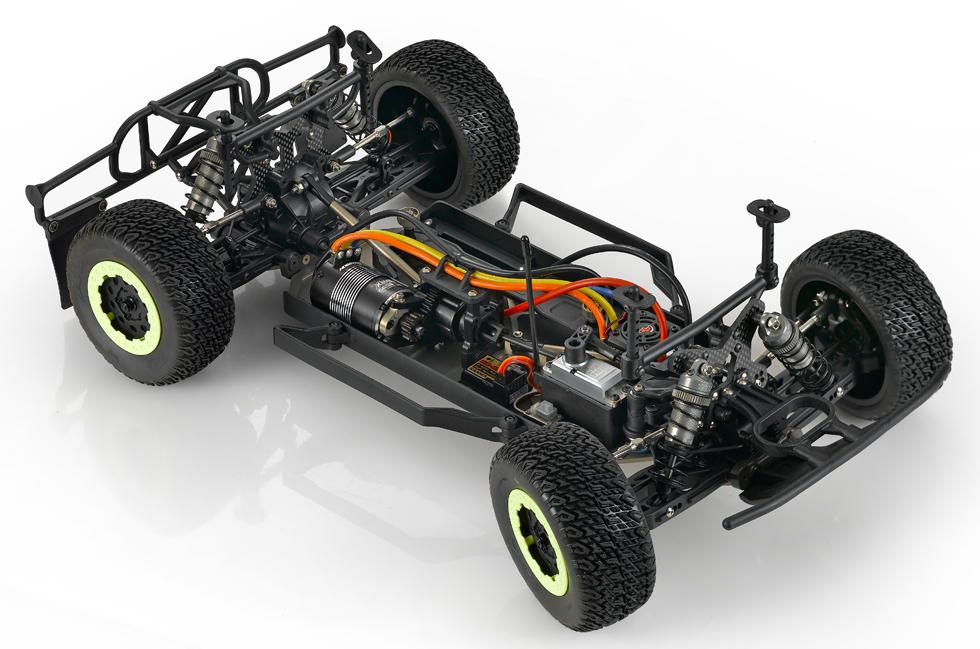

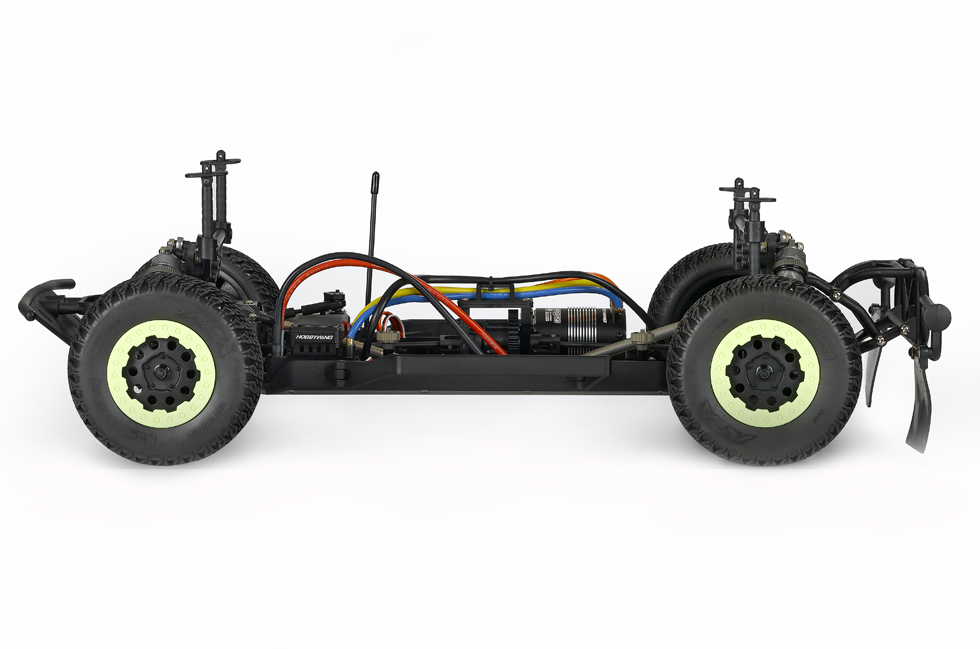

Special Design for
Short-course Truck

The XERUN 3656SD motor is specially designed
for 1/8^th, 1/10^th scale short-course truck racing.
It can guarantee users the incredible acceleration,
performance and control feel in competitions.

Special Design for
Short-course Truck

High Torque

The 4 pole design will guarantee the motor
to produce very large amounts of torque,
a much faster acceleration response and a very stable output
of power to the drivetrain.

High Torque

Efficient Cooling Design

The aluminum ribbed heatsink housing can effectively reduce the motor temperature.

Efficient Cooling Design

Compatible with the SCT PRO ESC

When pairing the XERUN 3656SD motor with
the Hobbwing XERUN SCT PRO ESC,
the excellent match between ESC and motor will give you
large torque plus a very smooth and linear power band.

Compatible with the
SCT PRO ESC

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count
Specifications	KV Rating LiPo Cells No-load Current(A) Max. Power Output(W) Current at the Point of Max. Power Output(A)
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g)
Other Parameters	Timing Applications

Product Name		XeRun SD 3656-3400KV	eRun SD 3656-4000KV	XeRun SD 3656-4700KV
Product Number		90100000	90100010	90100030
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count	1/10^th BL SD 4	1/10^th BL SD 4	1/10^th BL SD 4
Specifications	KV Rating LiPo Cells No-load Current(A) Max. Power Output(W) Current at the Point of Max. Power Output(A)	3400 2-3S 4.1 450 107	4000 2-3S 5.5 470 113	4700 2S 6.5 490 116
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g)	35.8 56.0 5.0 220	35.8 56.0 5.0 225	35.8 56.0 5.0 220
Other Parameters	Timing Applications	Fixed 1/10^th 2WD/4WD SCT Competitions,1/10^th Monster Trucks	Fixed 1/10^th 2WD/4WD SCT Competitions,1/10^th Monster Trucks	Fixed 1/10^th 2WD/4WD SCT Competitions,1/10^th Monster Trucks
